Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  3. Disconnect the glow plug module electrical connectors.

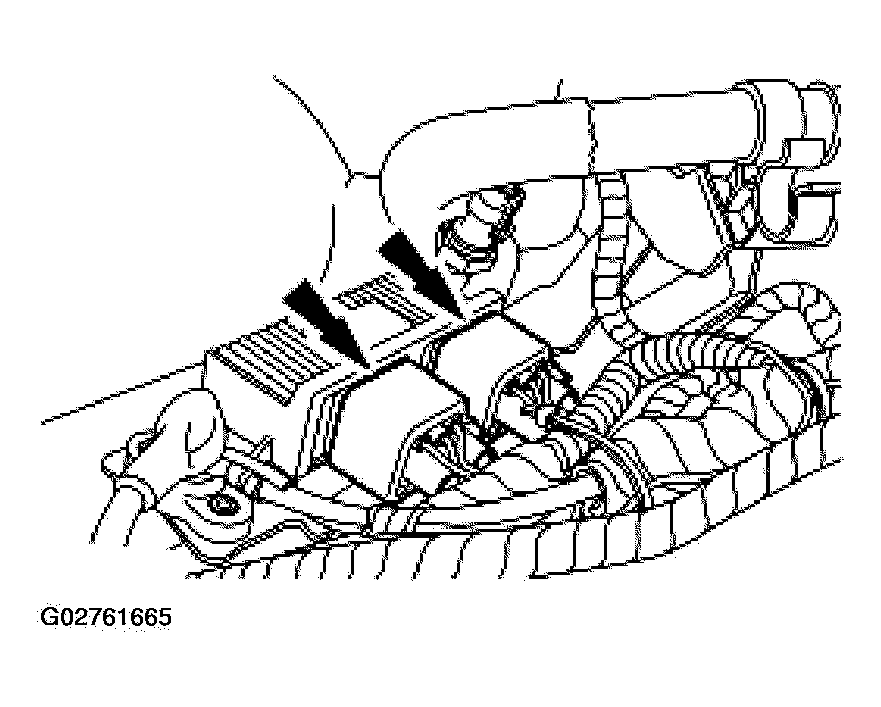

    Fig 1: Disconnecting Glow Plug Module Electrical Connectors
    G02761665Courtesy of FORD MOTOR CO.
  4. Remove the nuts and the glow plug module.

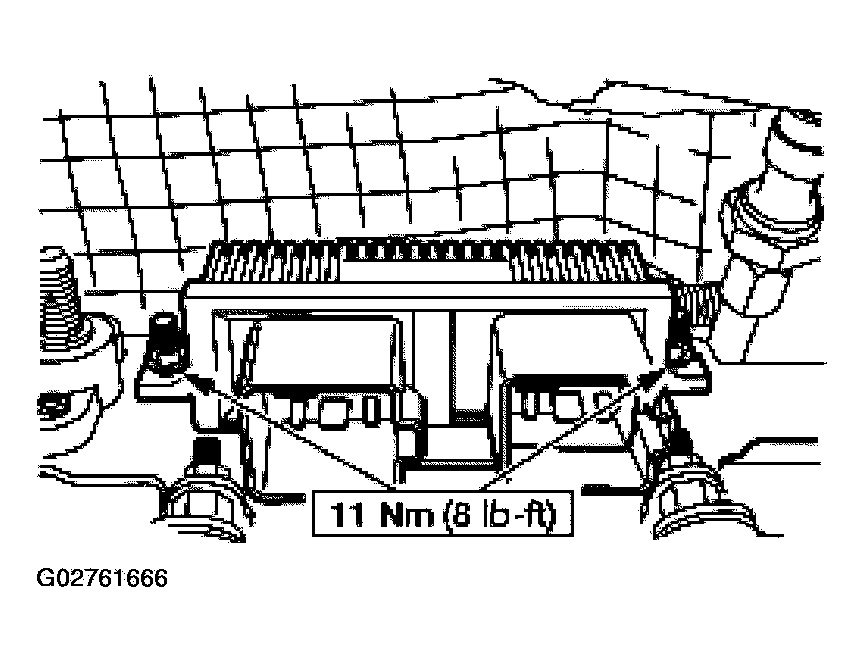

    Fig 2: Removing Nuts And Glow Plug Module
    G02761666Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
