Test F
PINPOINT TEST F: THE DOOR LOCKS OPERATE ONLY ONE WAY
Test F1-F2:

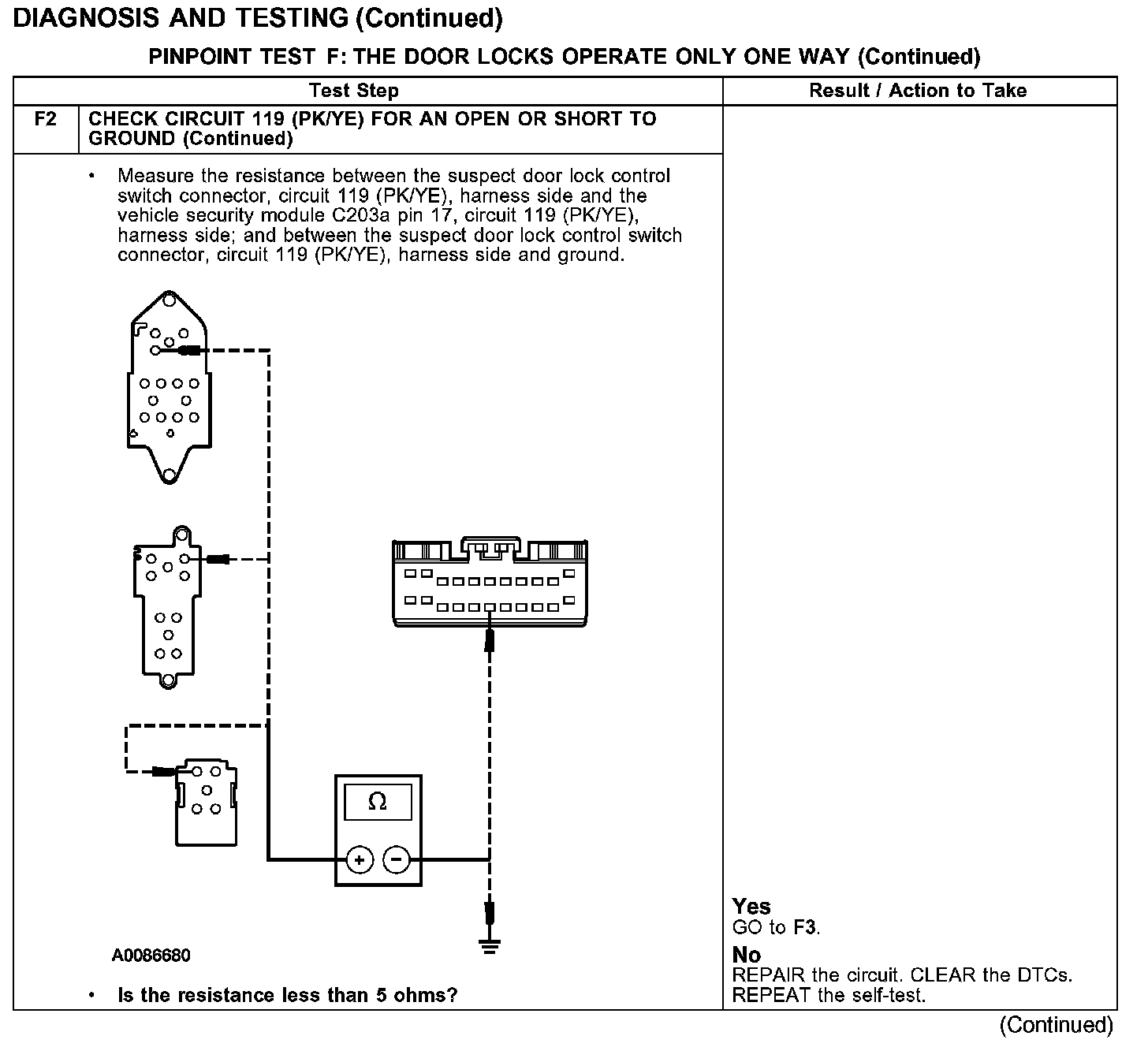

Test F2 Continued:

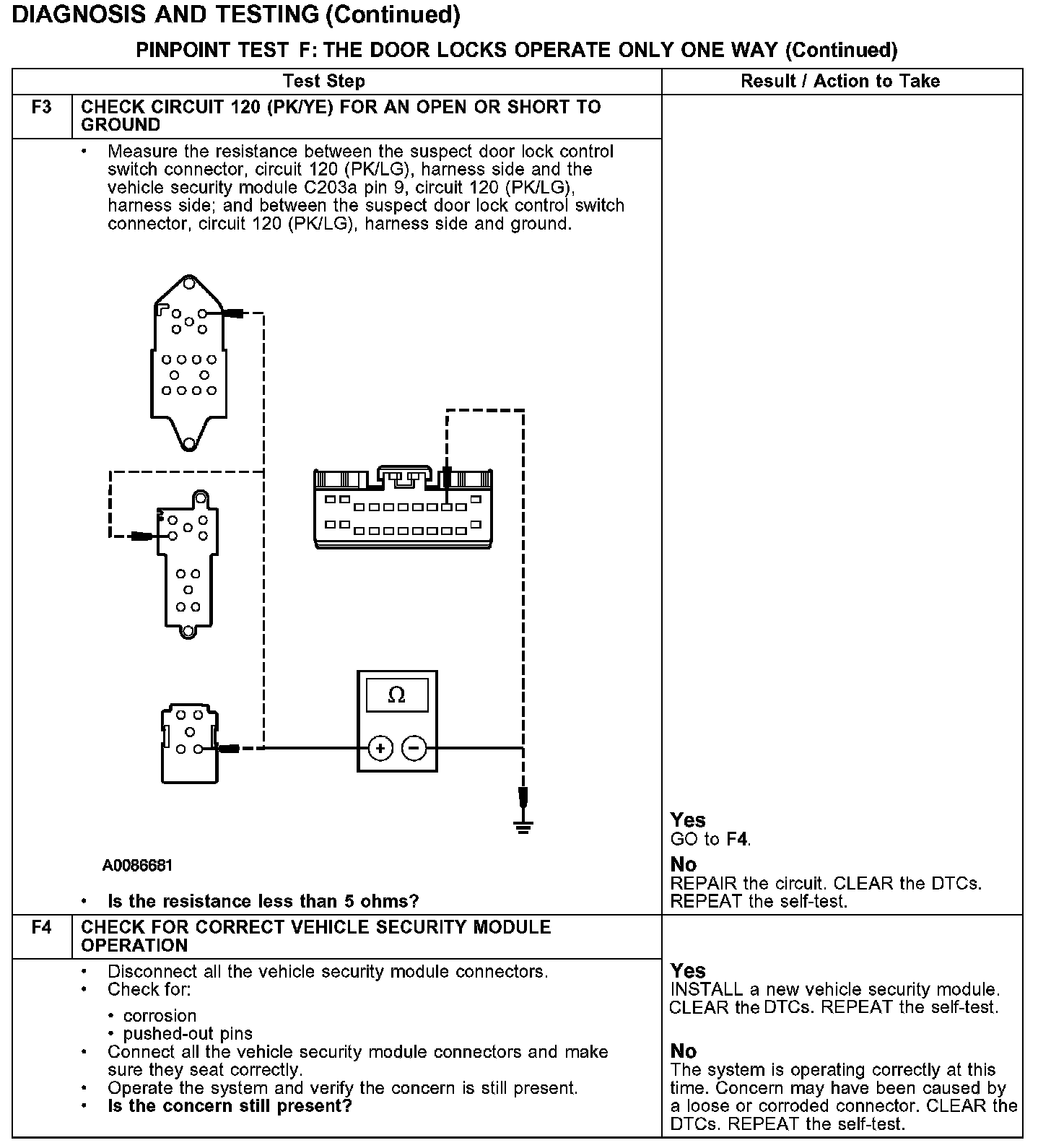

Test F3-F4:
