Rear
Part 1 Of 3:
Part 2 Of 3:
Part 3 Of 3:
Rear
Disc Brake System

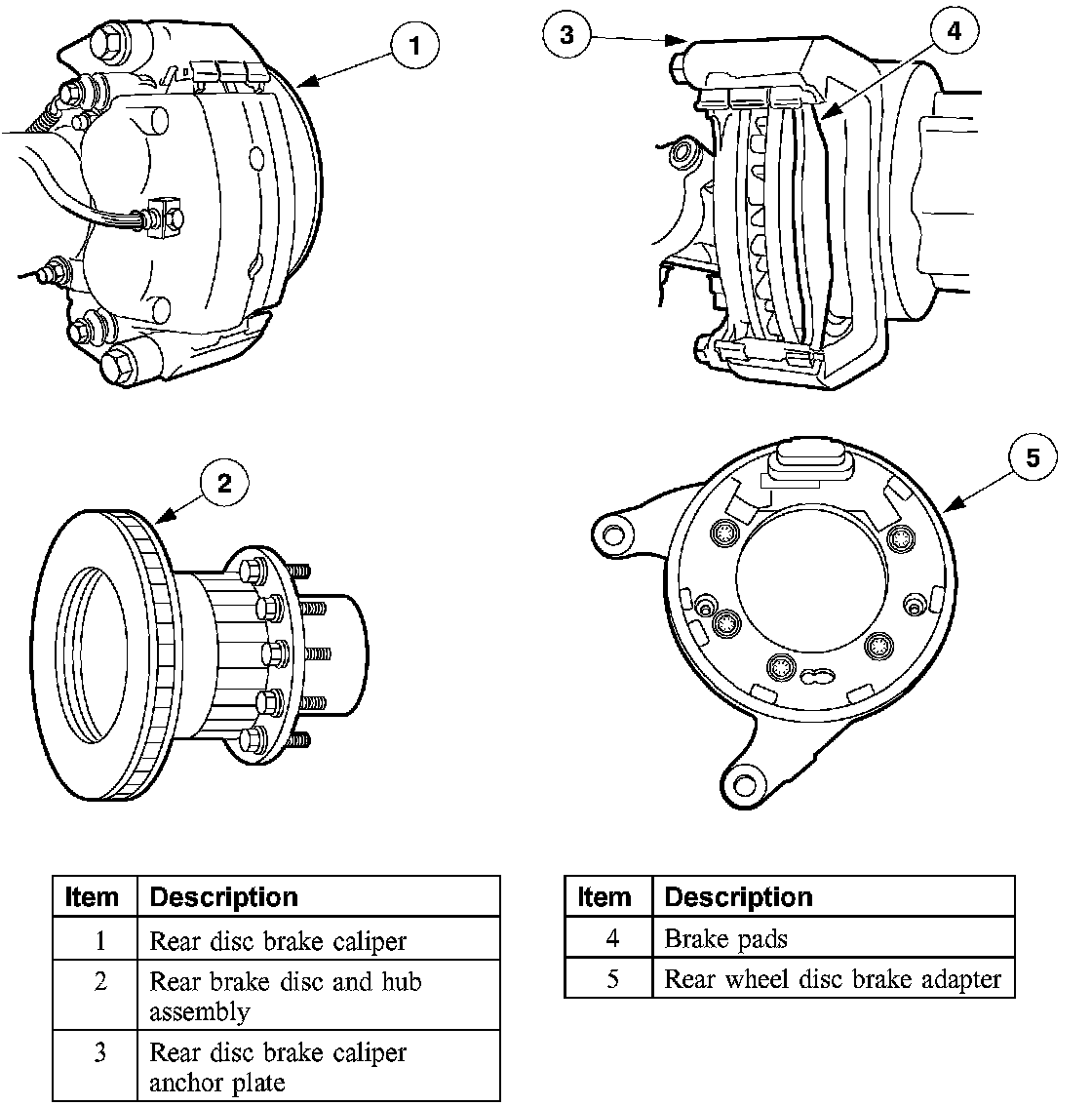

Components-Dual Rear Wheel

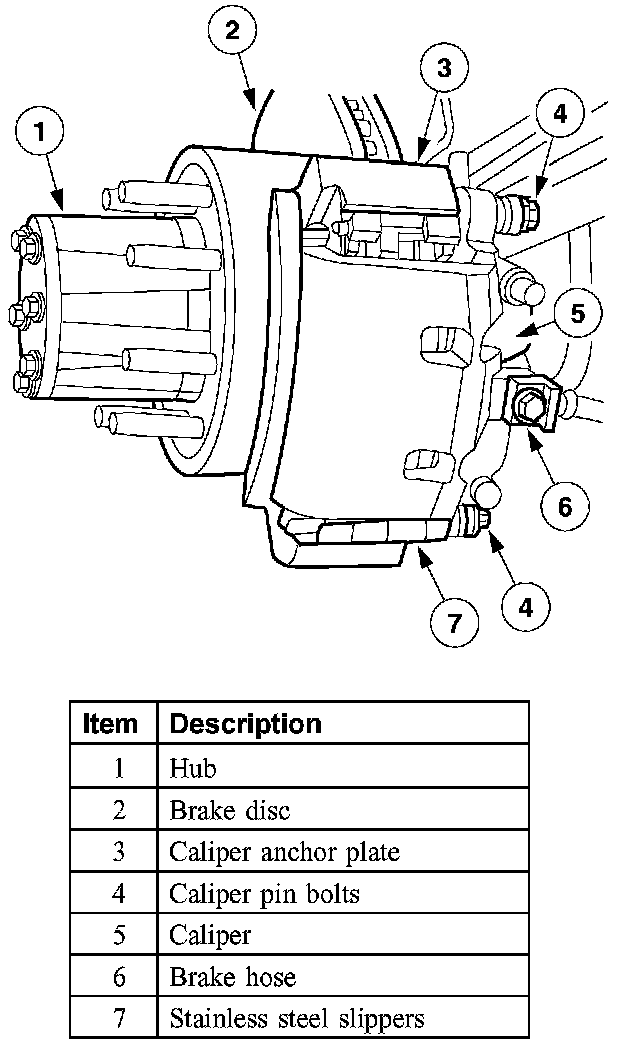

Brake Disc and Hub
