Test A
PINPOINT TEST A: THE ENGINE DOES NOT CRANK OR THE RELAY CLICKS
Test A1:

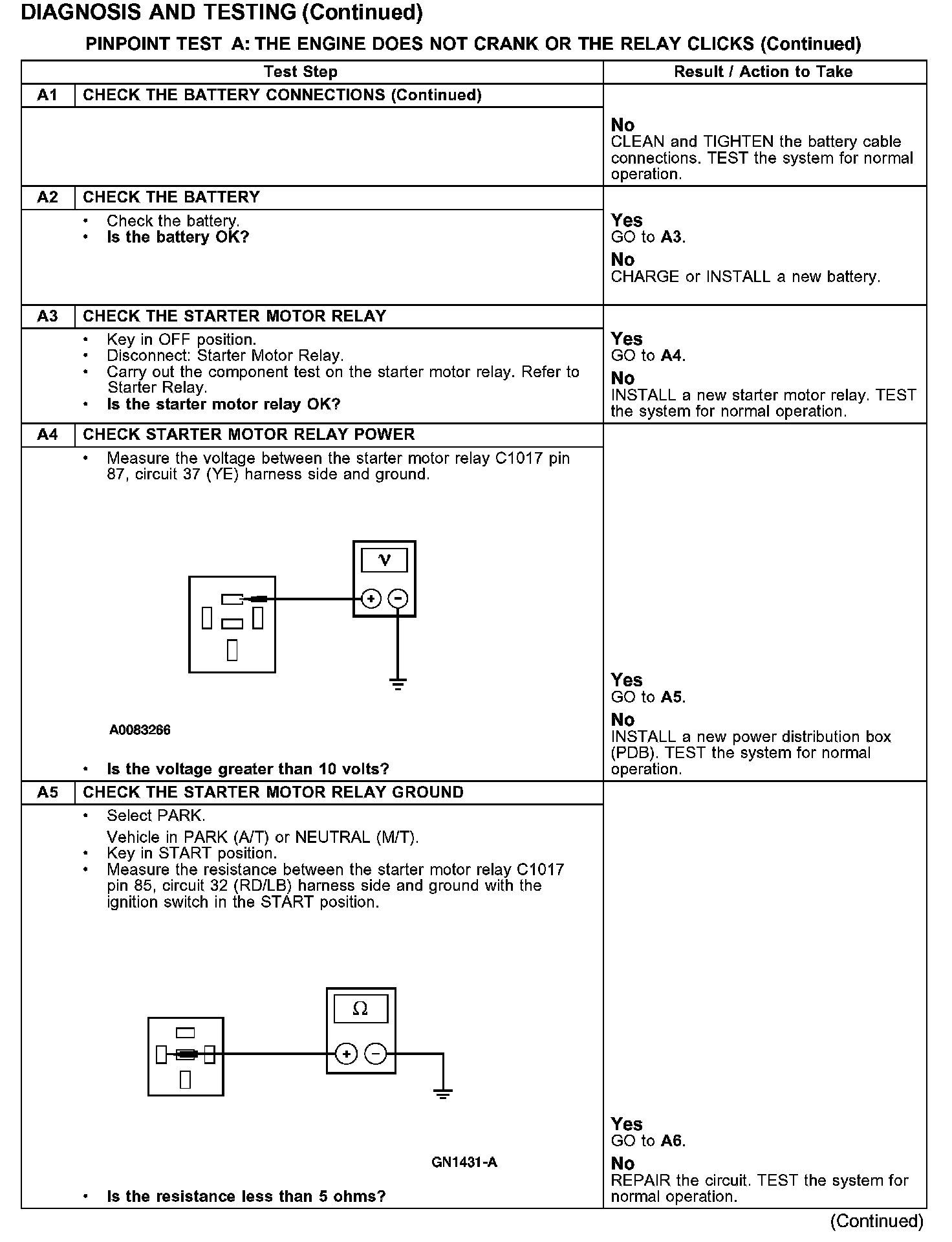

Test A1-A5:

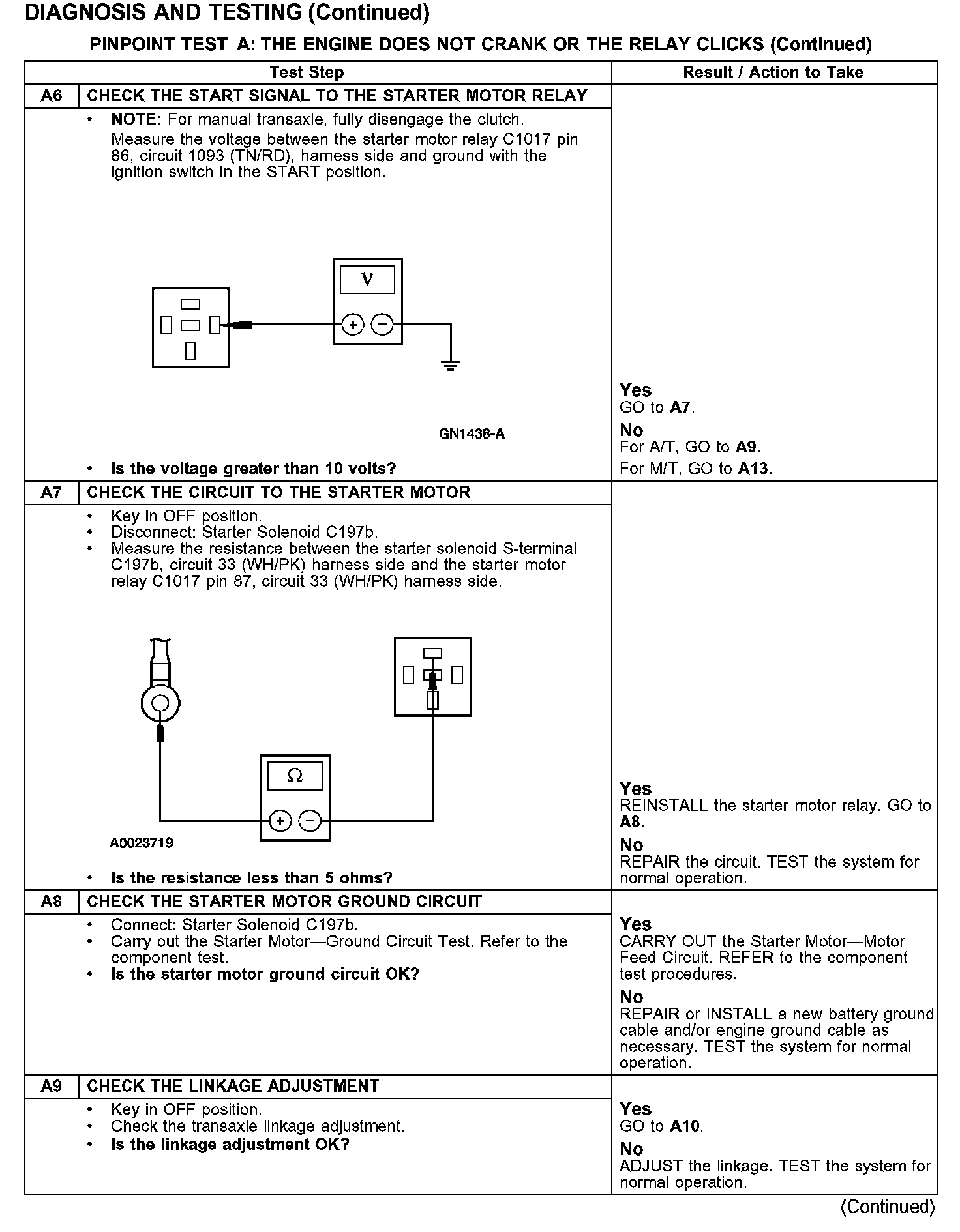

Test A6-A9:

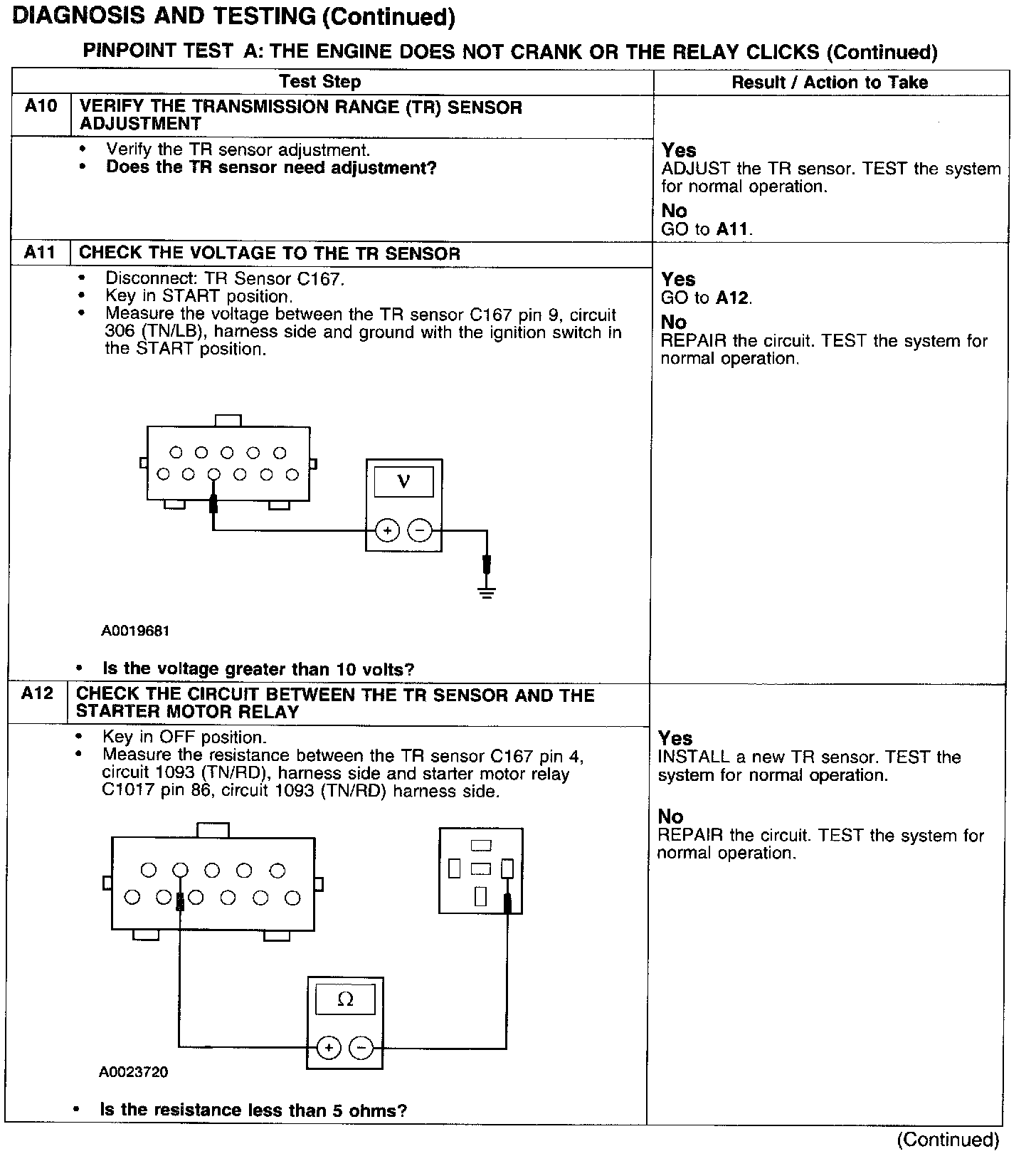

Test A10-A12:

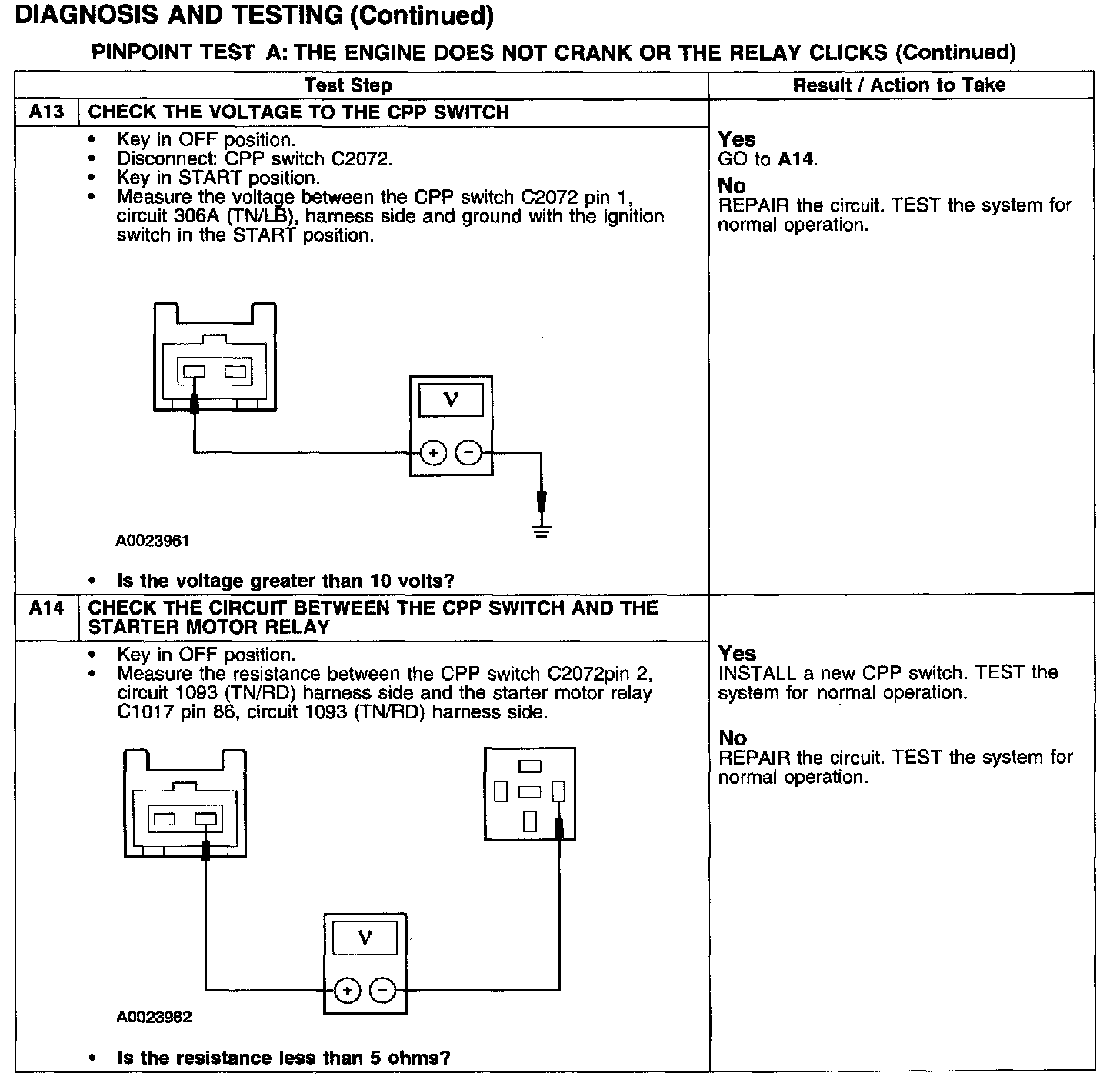

Test A13-A14:
