Relay - Micro ISO: Notes

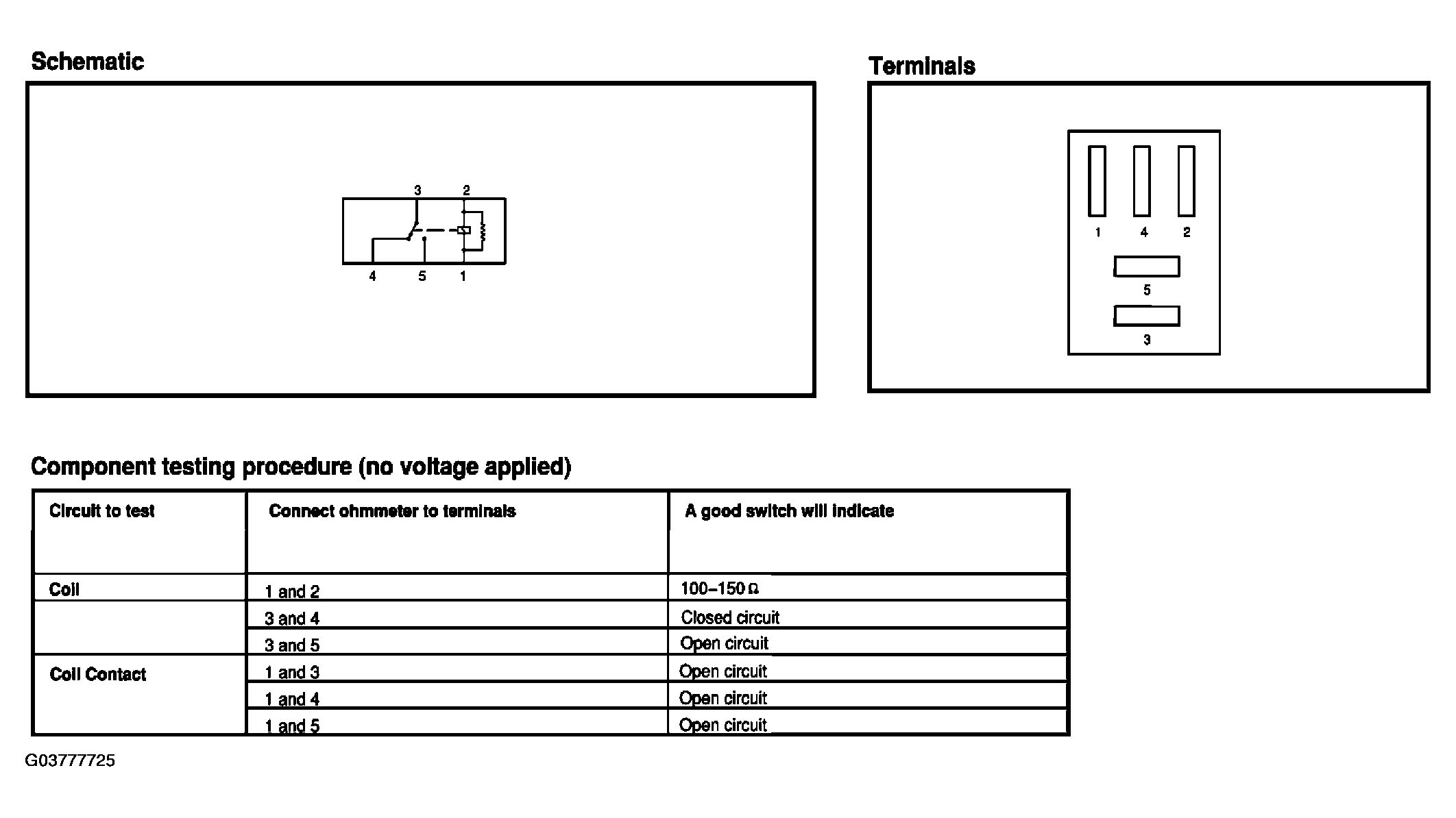

Fig 1: Testing Relay - Micro ISO
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
