Pinpoint Test A: No Communication With The Vehicle Security Module

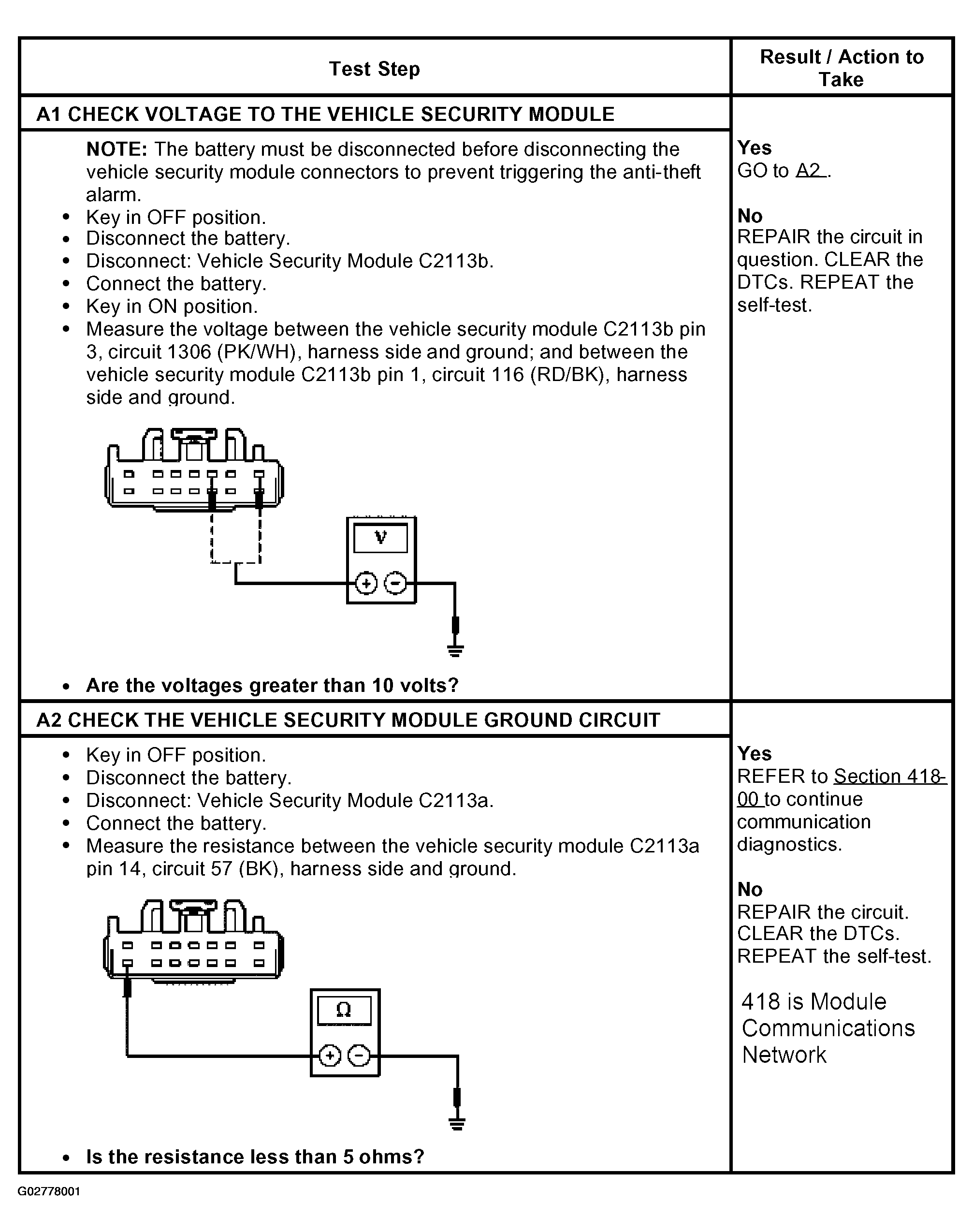

Fig 1: Pinpoint Test A No Communication With Vehicle Security Module
G02778001Courtesy of FORD MOTOR CO.
