Removal and Installation

  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Loosen the bolt and disconnect the powertrain control module (PCM) electrical connector.

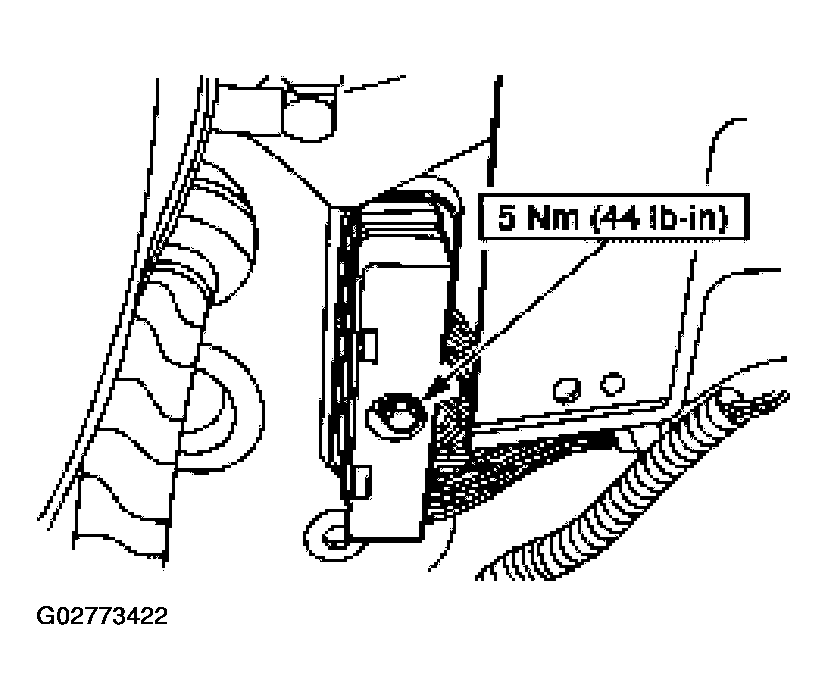

    Fig 1: Disconnecting Powertrain Control Module (PCM) Electrical Connector
    G02773422Courtesy of FORD MOTOR CO.
  3. Release the two harness retainers from the PCM bracket.

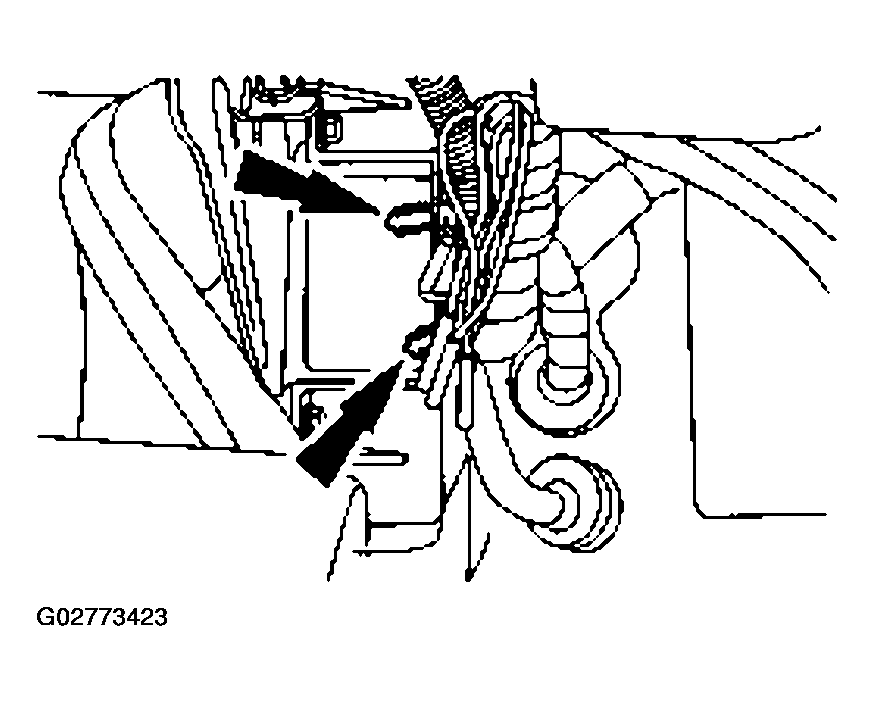

    Fig 2: Releasing Two Harness Retainers From PCM Bracket
    G02773423Courtesy of FORD MOTOR CO.
  4. Remove the screws and remove the PCM and bracket assembly.

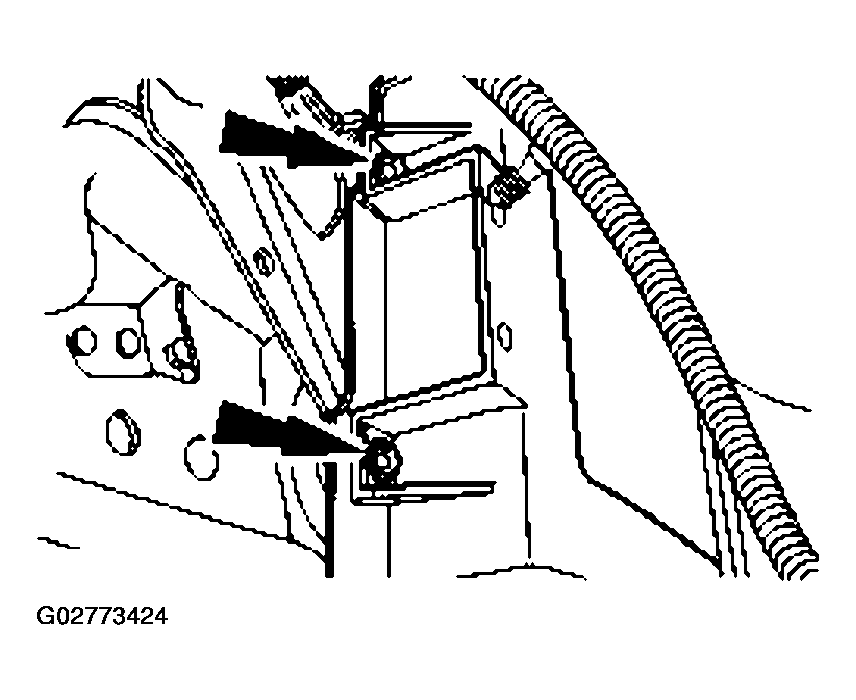

    Fig 3: Removing PCM And Bracket Assembly
    G02773424Courtesy of FORD MOTOR CO.
  5. Separate the PCM from the bracket.
    Fig 4: Separating PCM From Bracket
    G02773425Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
