Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES - CNG, FLEX-FUEL & GASOLINE .

Vehicle	Connector	Circuit	Pin
Escape 2.0L	104 Pin	FPM FP	40 54
Expedition, Navigator	122 Pin	FPM FP	B20 B27
F-150 Heritage SC 5.4L	104 Pin	LFP FPM FP	19 40 80
All other vehicles	104 Pin	FPM FP	40 80

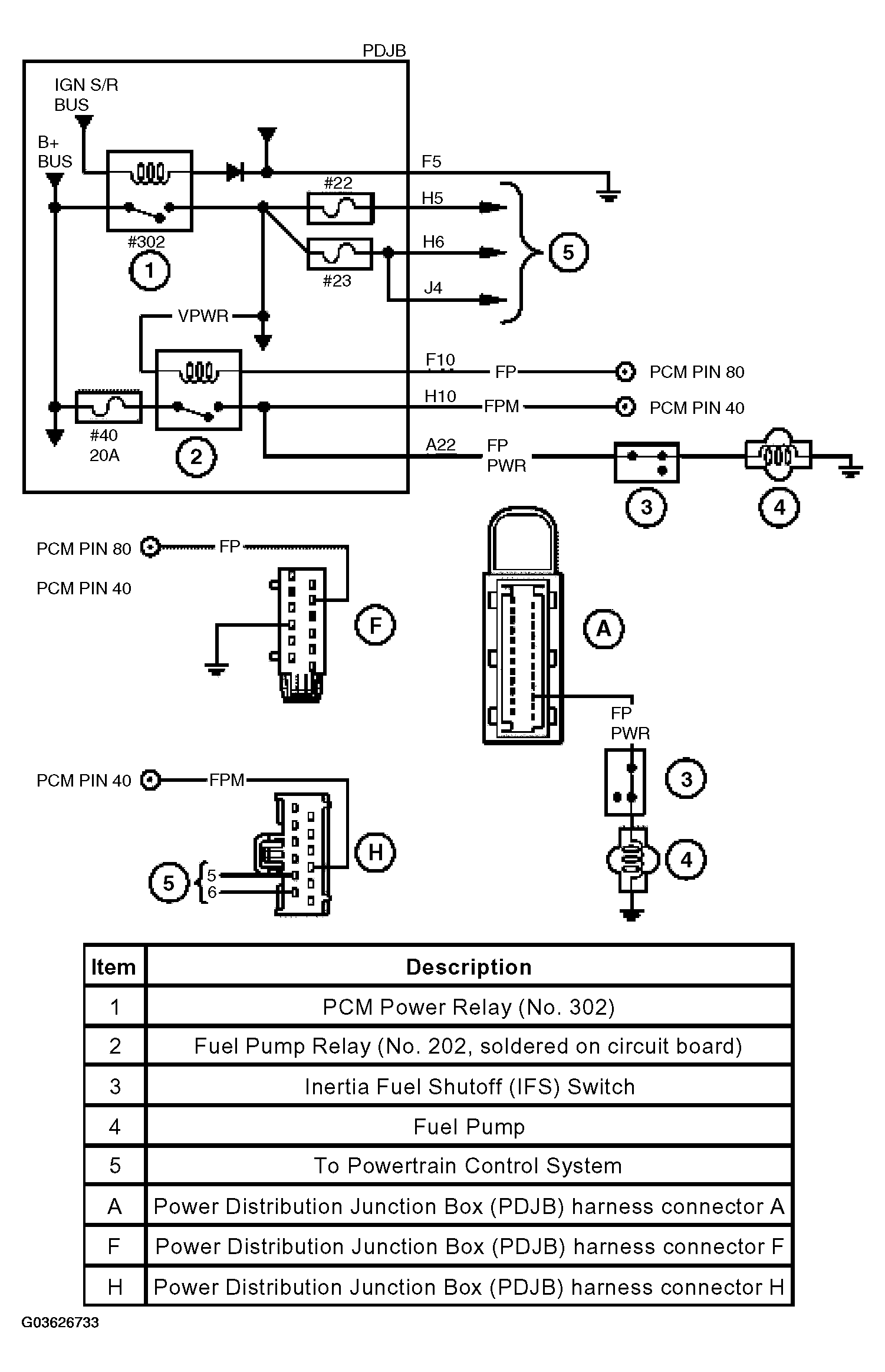

Fig 1: Identifying Fuel Pump Circuit - F-Super Duty 250-550, Excursion

Courtesy of FORD MOTOR CO.

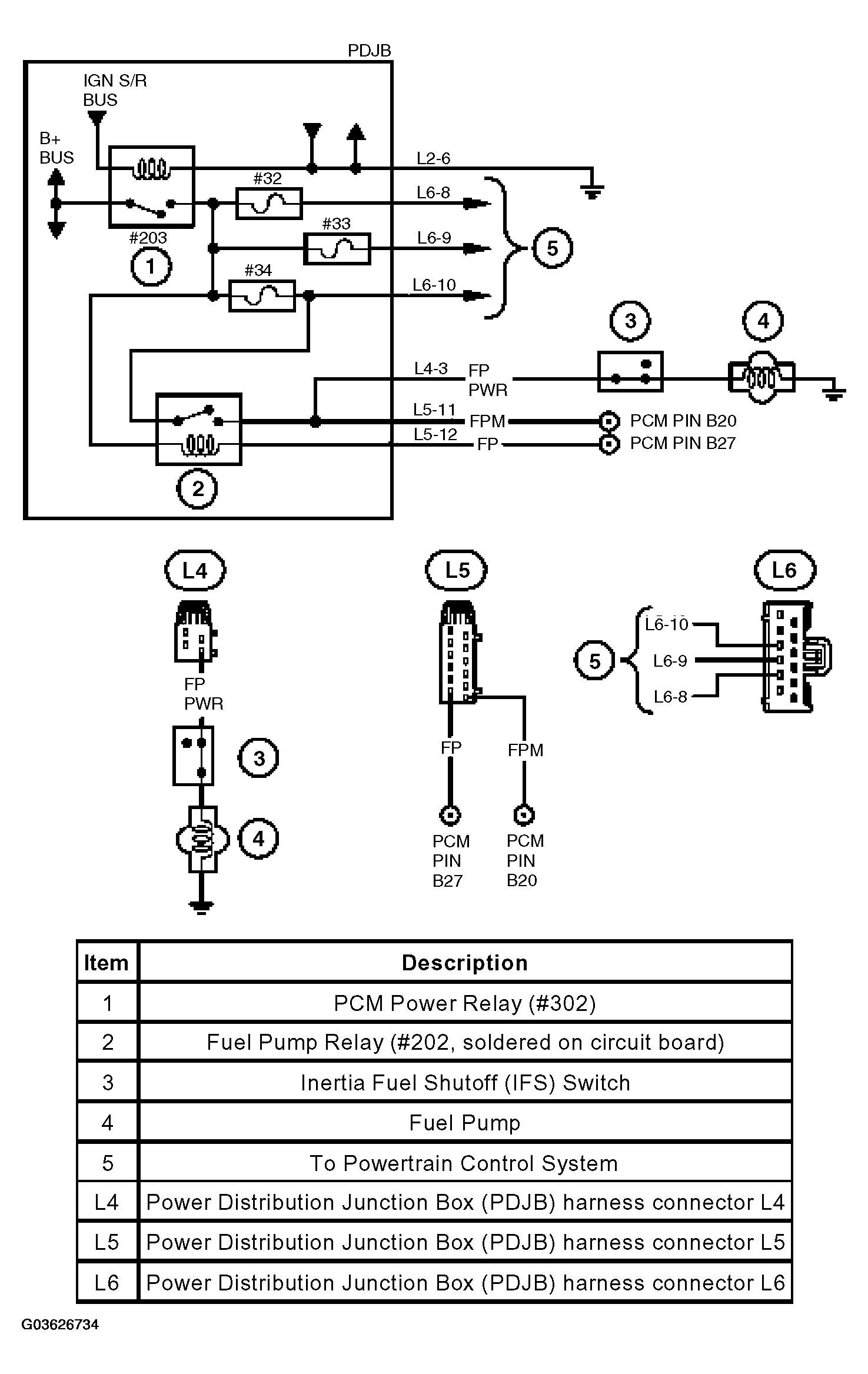

Fig 2: Identifying Fuel Pump Circuit - Expedition, Navigator

Courtesy of FORD MOTOR CO.

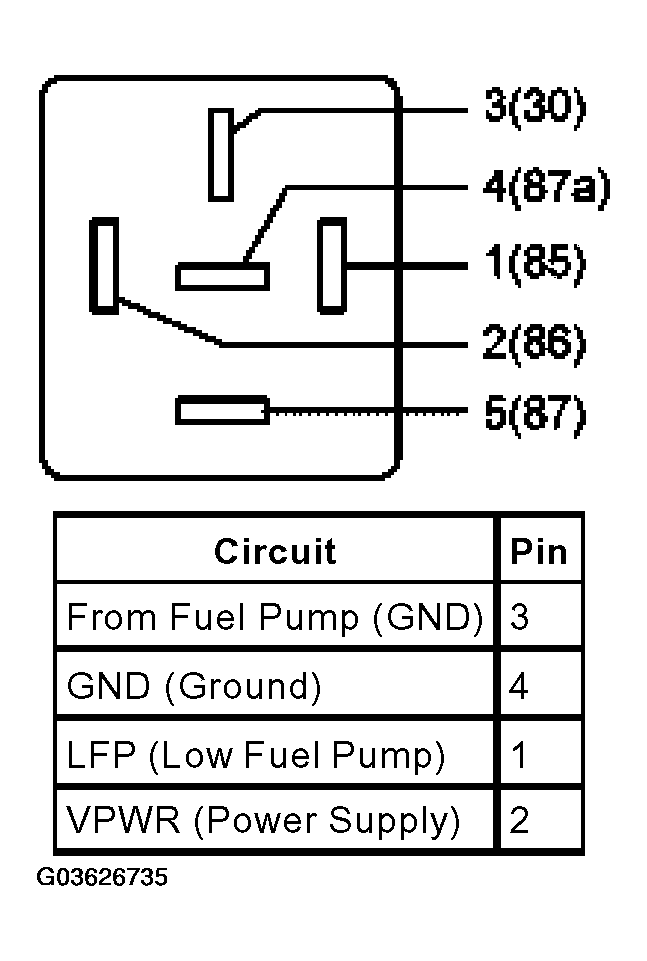

Fig 3: Identifying Low Speed Fuel Pump (LSFP) Relay Connector

Courtesy of FORD MOTOR CO.

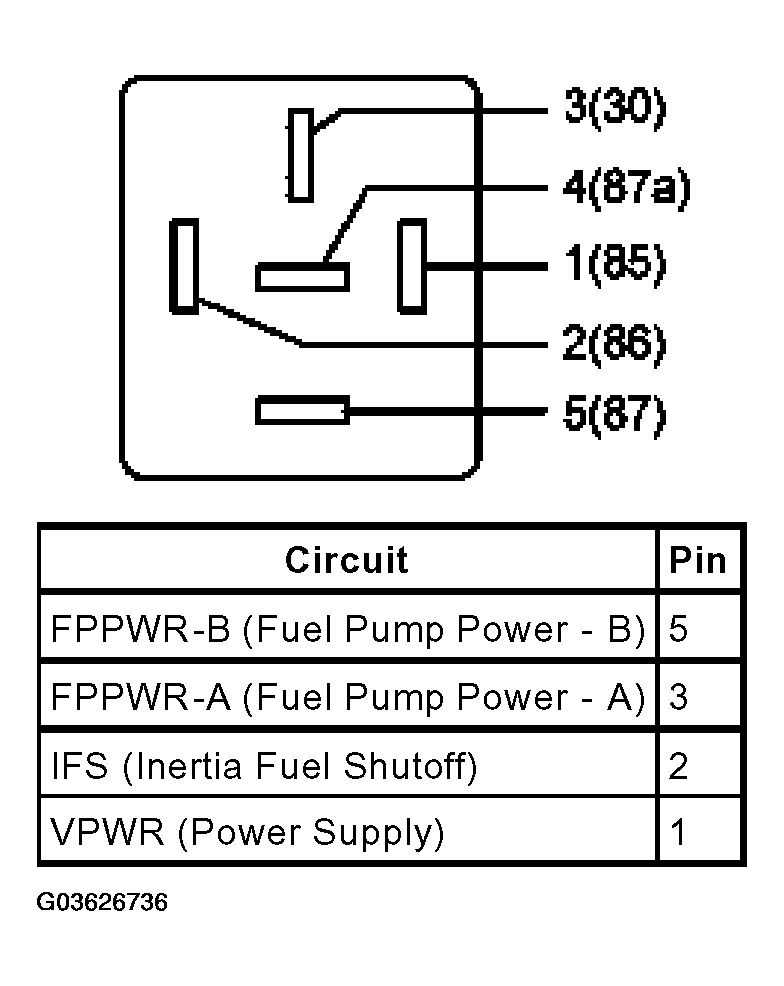

Fig 4: Identifying Inertia Fuel Shutoff (IFS) Relay Connector

Courtesy of FORD MOTOR CO.

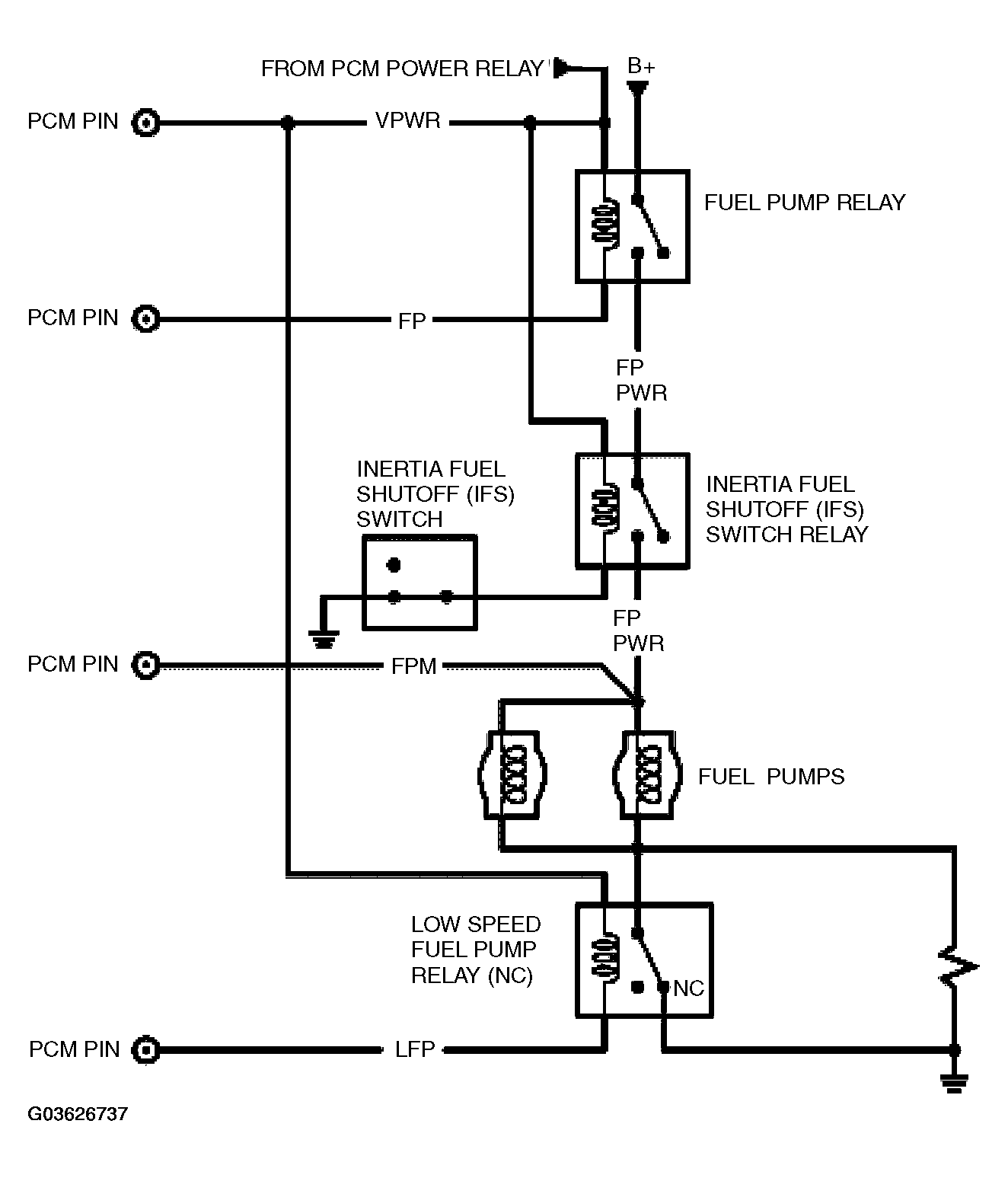

Fig 5: Identifying Fuel Pump Circuit - 5.4L F-150 Heritage

Courtesy of FORD MOTOR CO.
