Pinpoint Test KM: Air conditioning clutch relay circuit: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

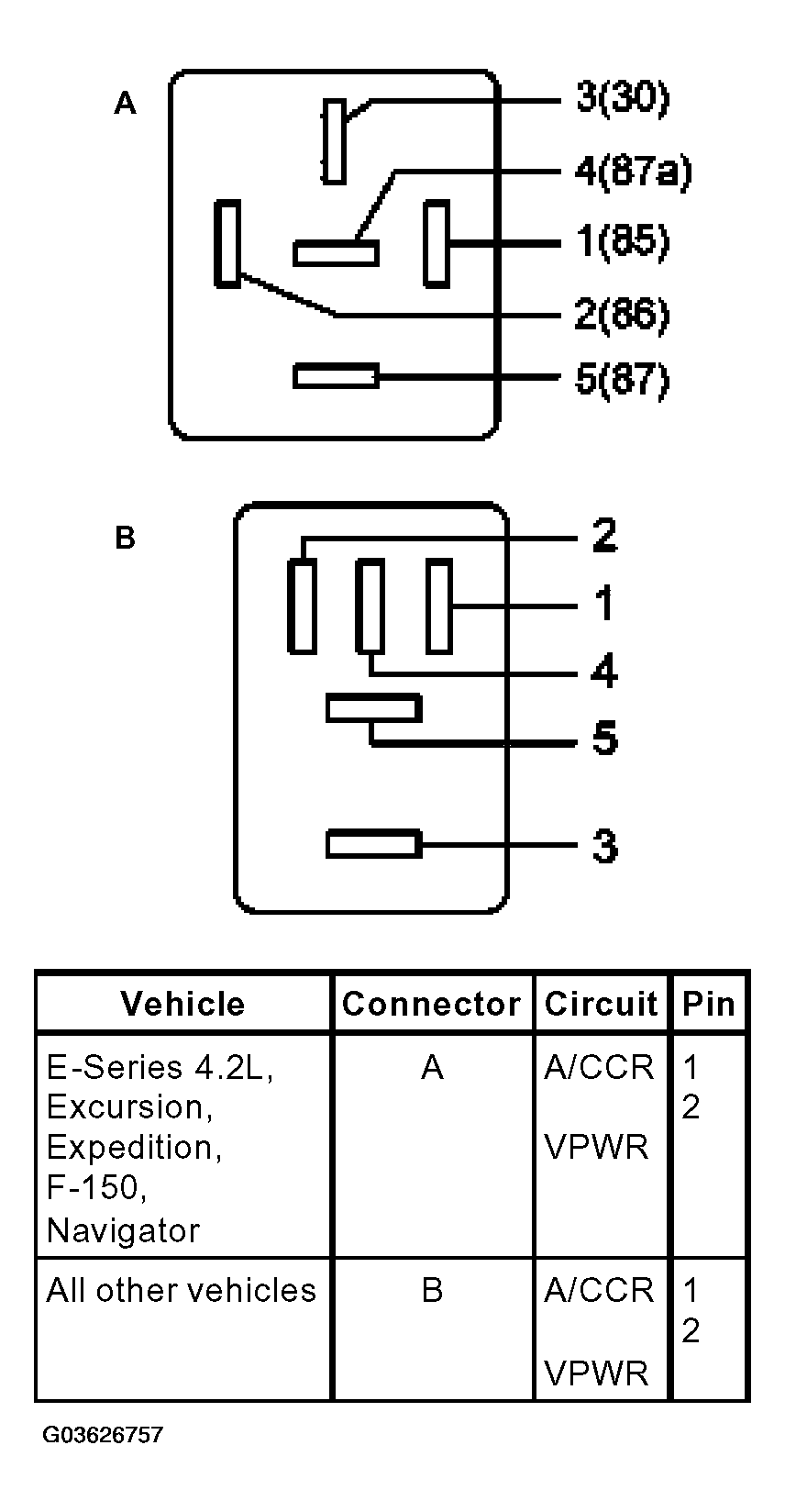

Fig 1: Identifying Air Conditioning Clutch (A/CC) Relay Connector

Courtesy of FORD MOTOR CO.

The VPWR & A/CCR circuits may be reversed in the harness connector. REFER to the appropriate SYSTEM WIRING DIAGRAMS article for more information.

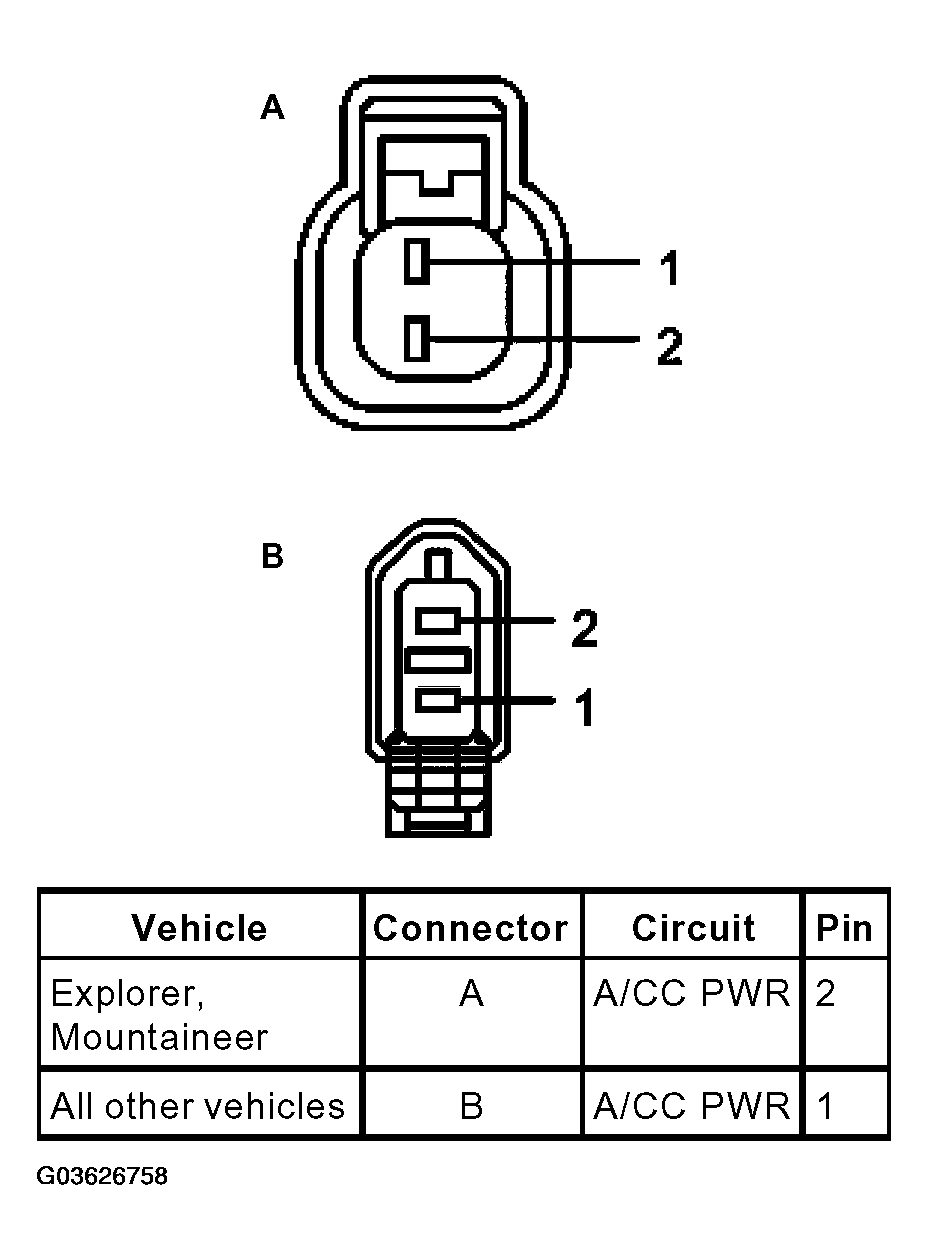

Fig 2: Identifying Air Conditioning Clutch (A/CC) Assembly Connector

Courtesy of FORD MOTOR CO.
