Excursion 6.0 P, RWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing -- Excursion & F250-F550 Super Duty
>>
Component testing
>>
Multifunction Switch, Turn Portion
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Multifunction Switch, Turn Portion

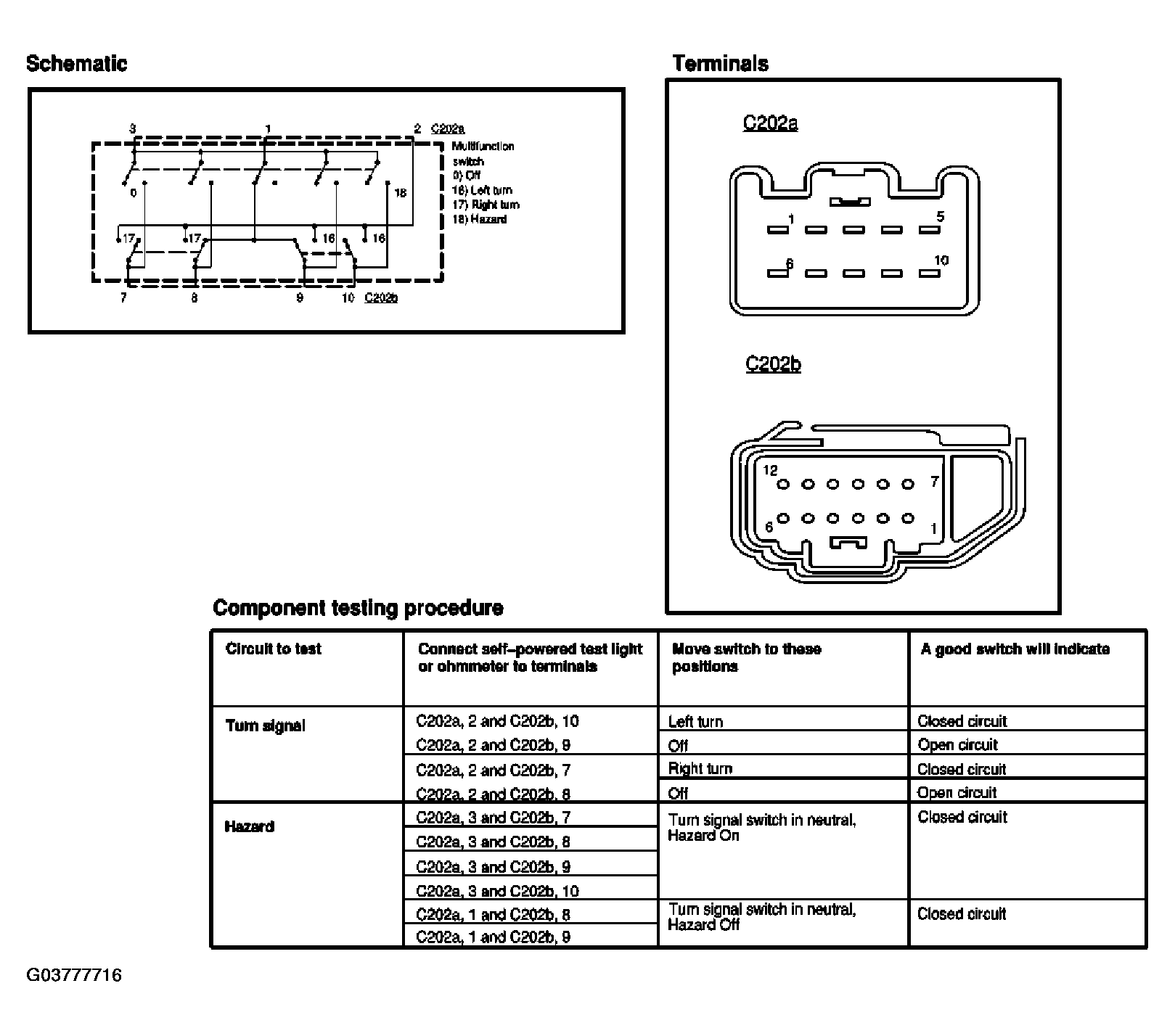

Fig 1: Testing Multifunction Switch, Turn Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
