Pinpoint Test G: The Doors Do Not Lock/Unlock Using The Remote Transmitter/Wireless Keyless Entry Keypad

NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

NOTE: Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

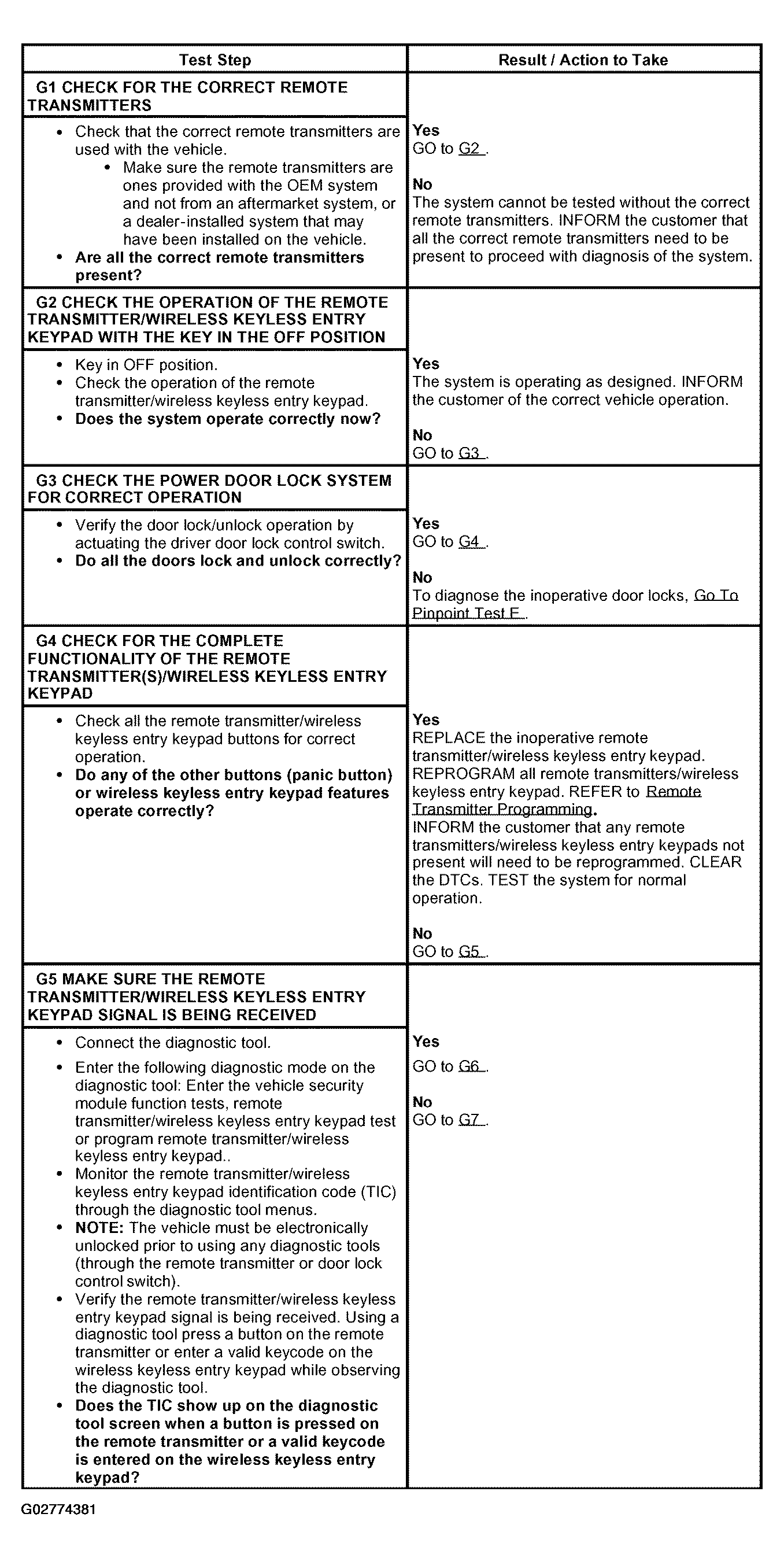

Fig 1: Pinpoint Test G: Doors Do Not Lock/Unlock Using Remote Transmitter/Wireless Keyless Entry Keypad (G1-G5)

Courtesy of FORD MOTOR CO.

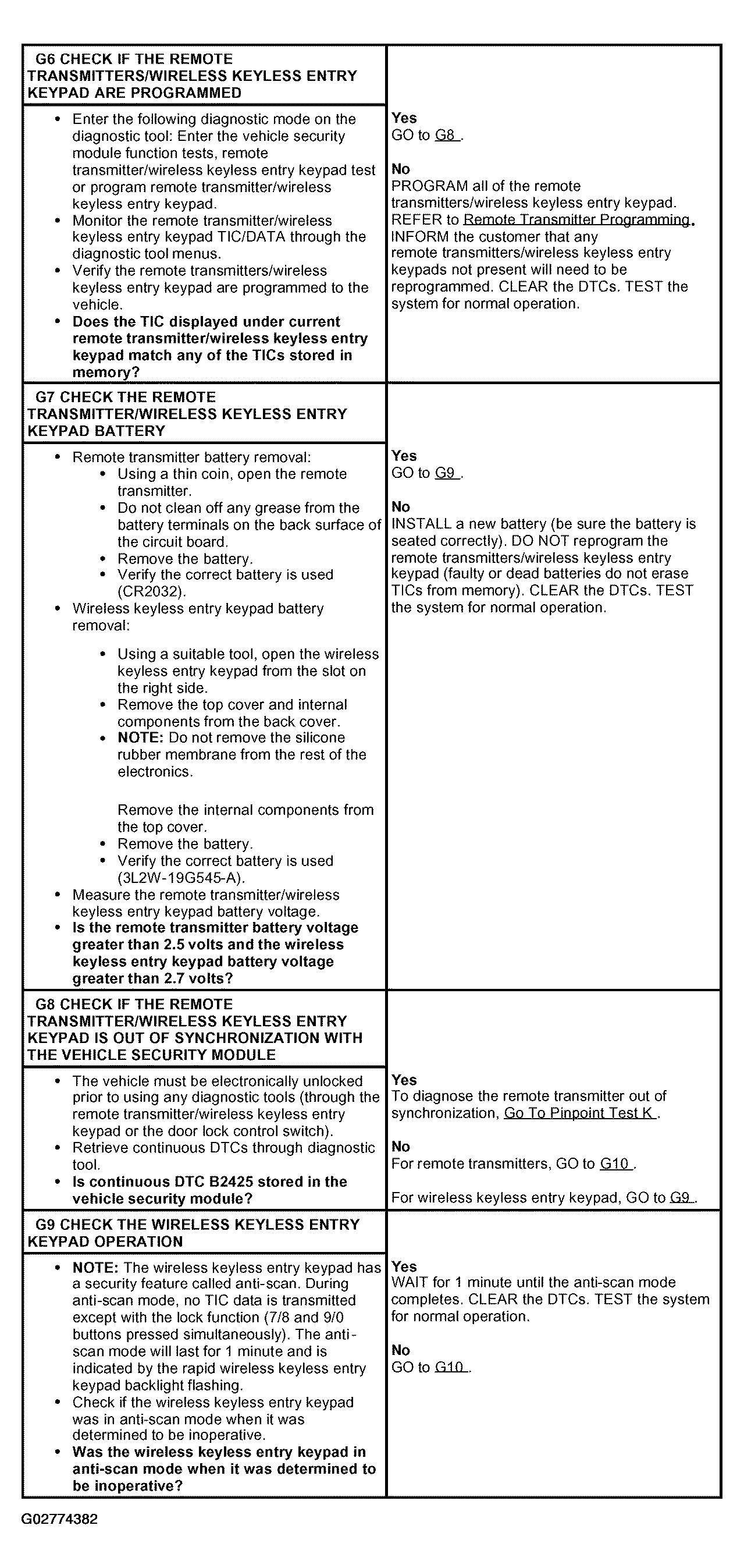

Fig 2: Pinpoint Test G: Doors Do Not Lock/Unlock Using Remote Transmitter/Wireless Keyless Entry Keypad (G6-G9)

Courtesy of FORD MOTOR CO.

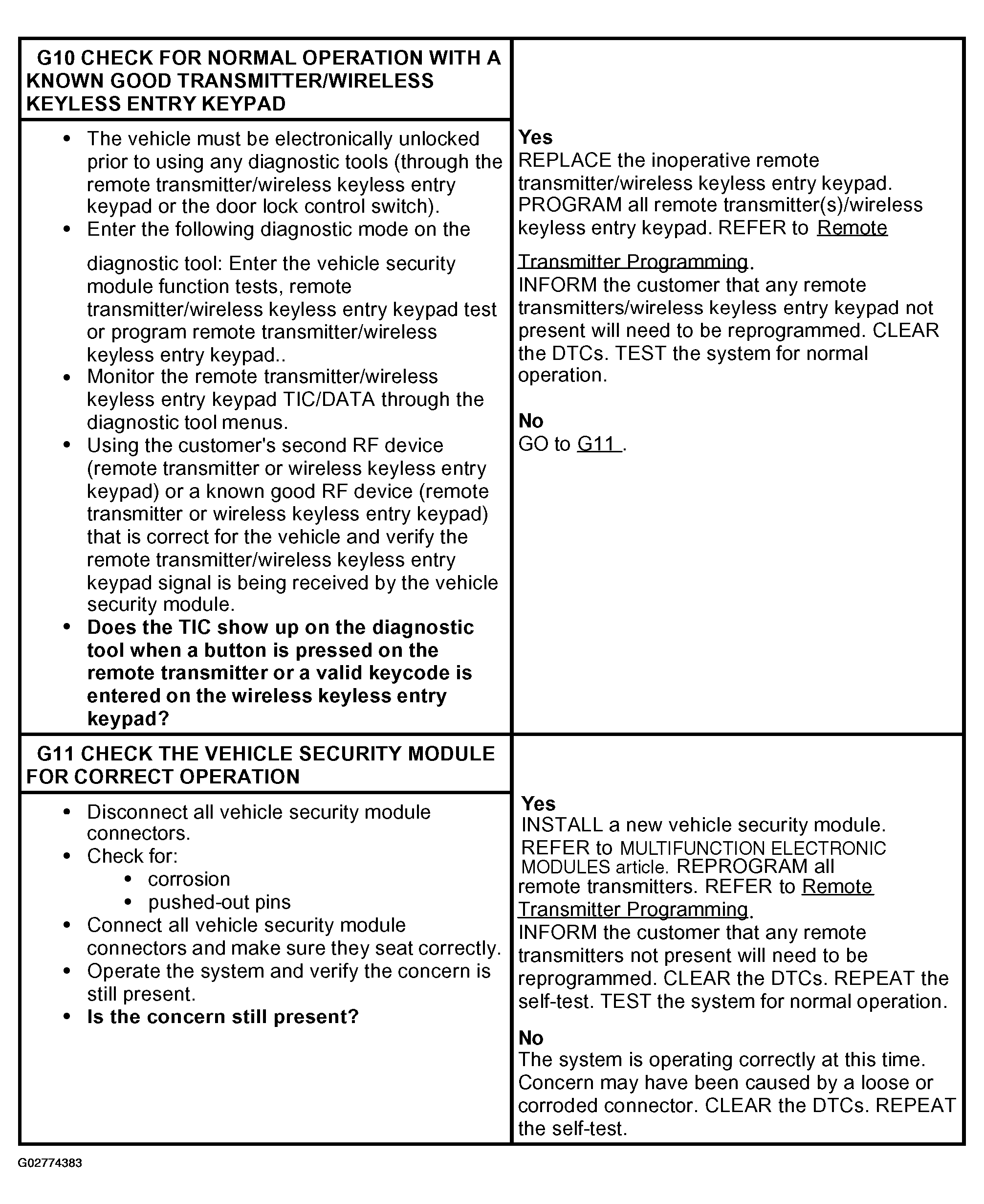

Fig 3: Pinpoint Test G: Doors Do Not Lock/Unlock Using Remote Transmitter/Wireless Keyless Entry Keypad (G10 & G11)

Courtesy of FORD MOTOR CO.
