Inspection & Verification

  1. Visually inspect for obvious signs of electrical damage. Refer to the following chart:

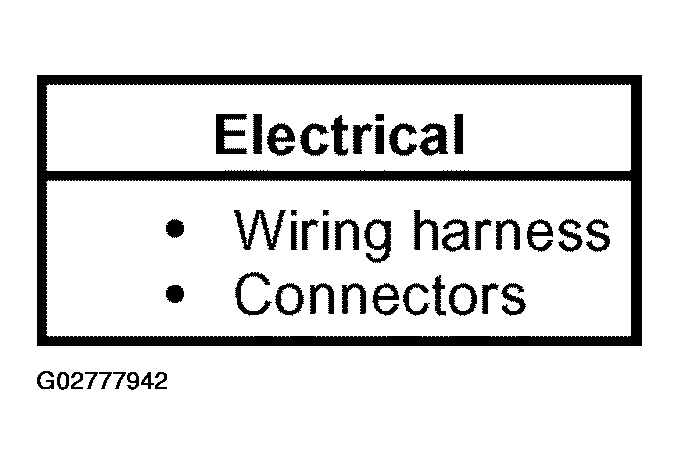

    2. Fig 1: Visual Inspection Chart
    G02777942Courtesy of FORD MOTOR CO.
