Audio Unit Frequency Interference Suppression Components

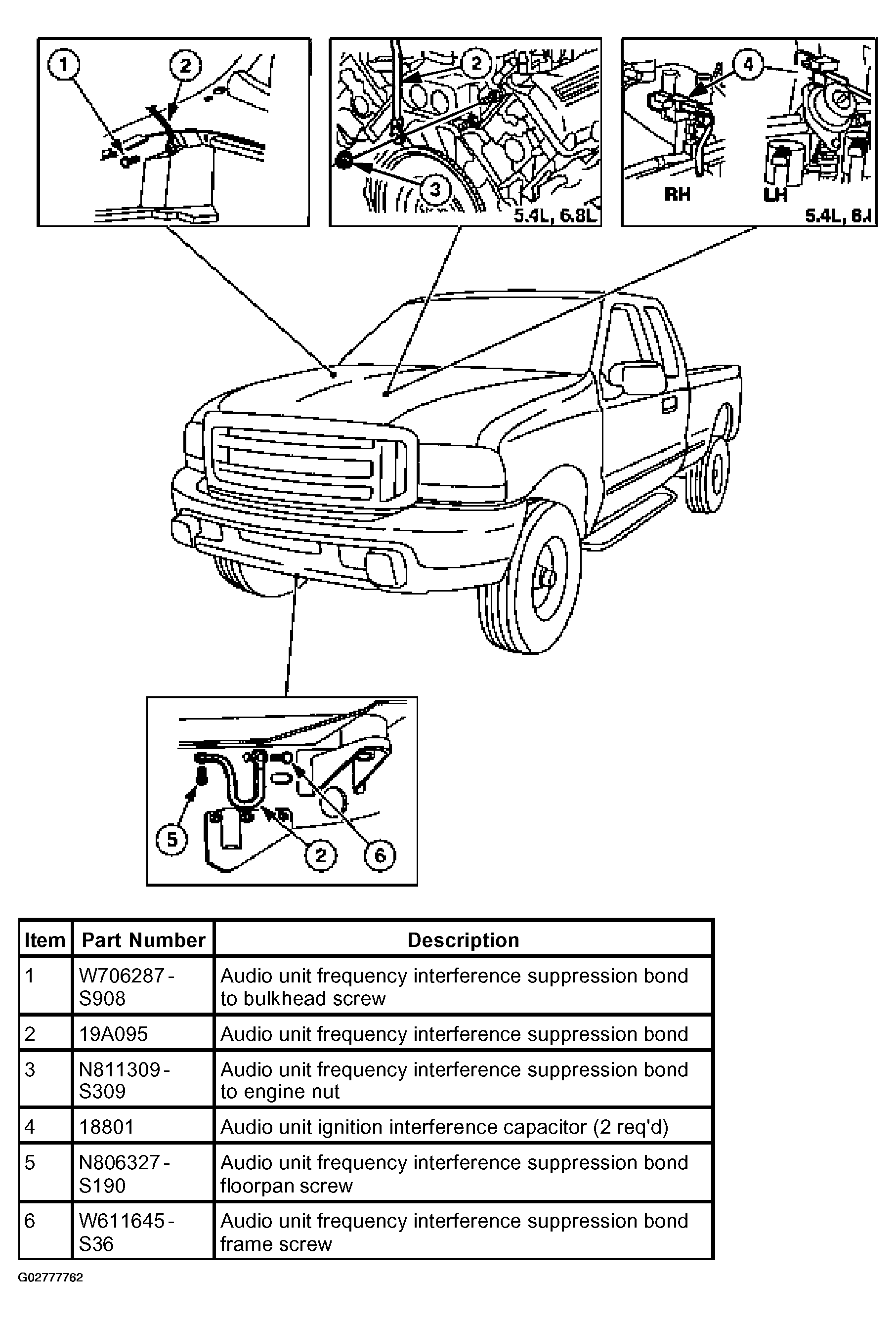

Fig 1: Identifying Audio Unit Frequency Interference Suppression Components
G02777762Courtesy of FORD MOTOR CO.

The audio unit frequency interference suppression components reduce interference transmitted through the speakers by the engine ignition and electrical systems. When installing new audio unit frequency interference suppression components, make sure that a good contact is made at all connections. Remove any paint or dirt between a component and its mating surface. Tighten all nuts, bolts and screws securely. Refer to SPECIFICATIONS .
