Pinpoint Test A: Steering System Noise

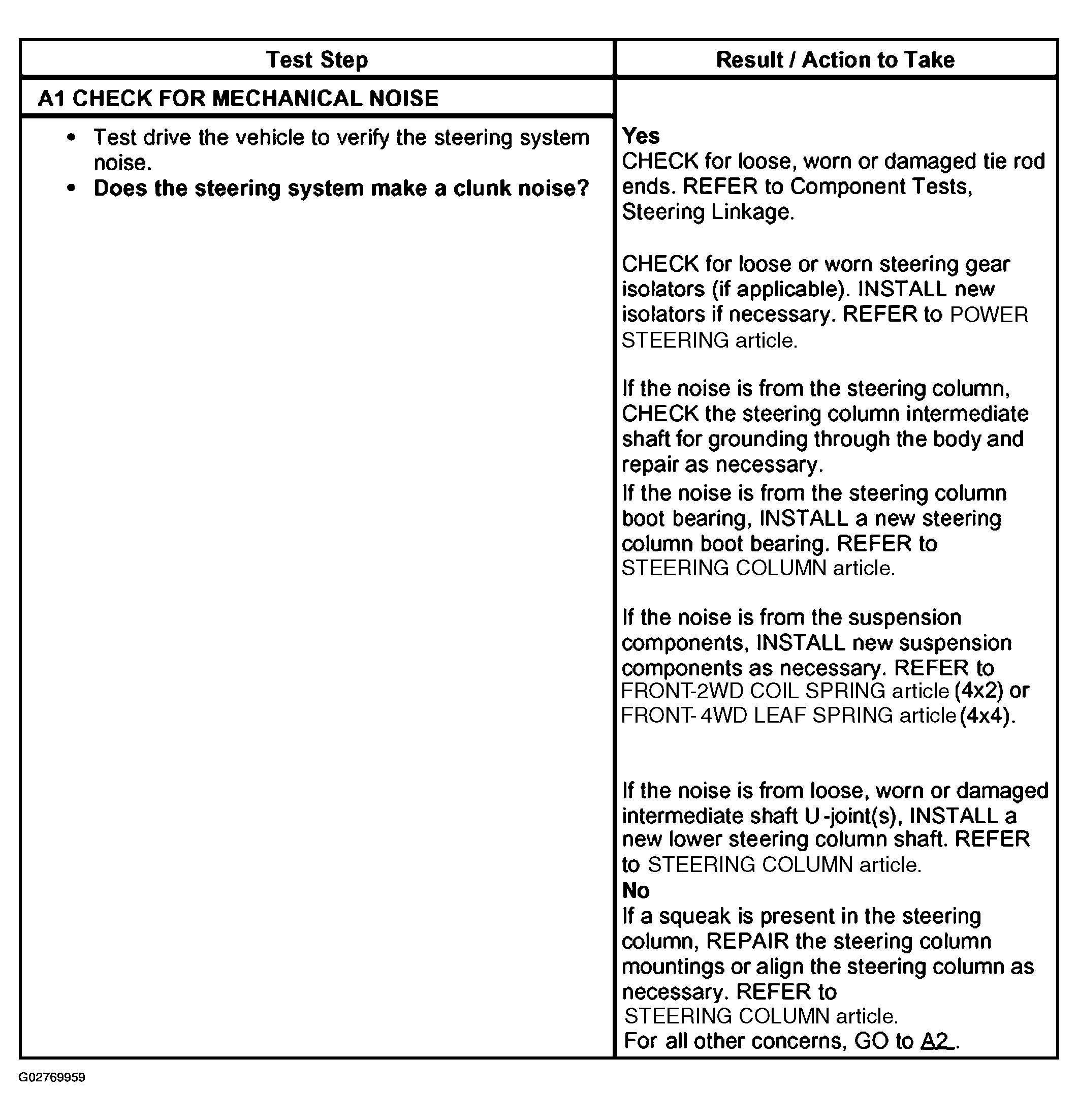

Fig 1: Pinpoint Test A: Steering System Noise (A1)
G02769959Courtesy of FORD MOTOR CO.

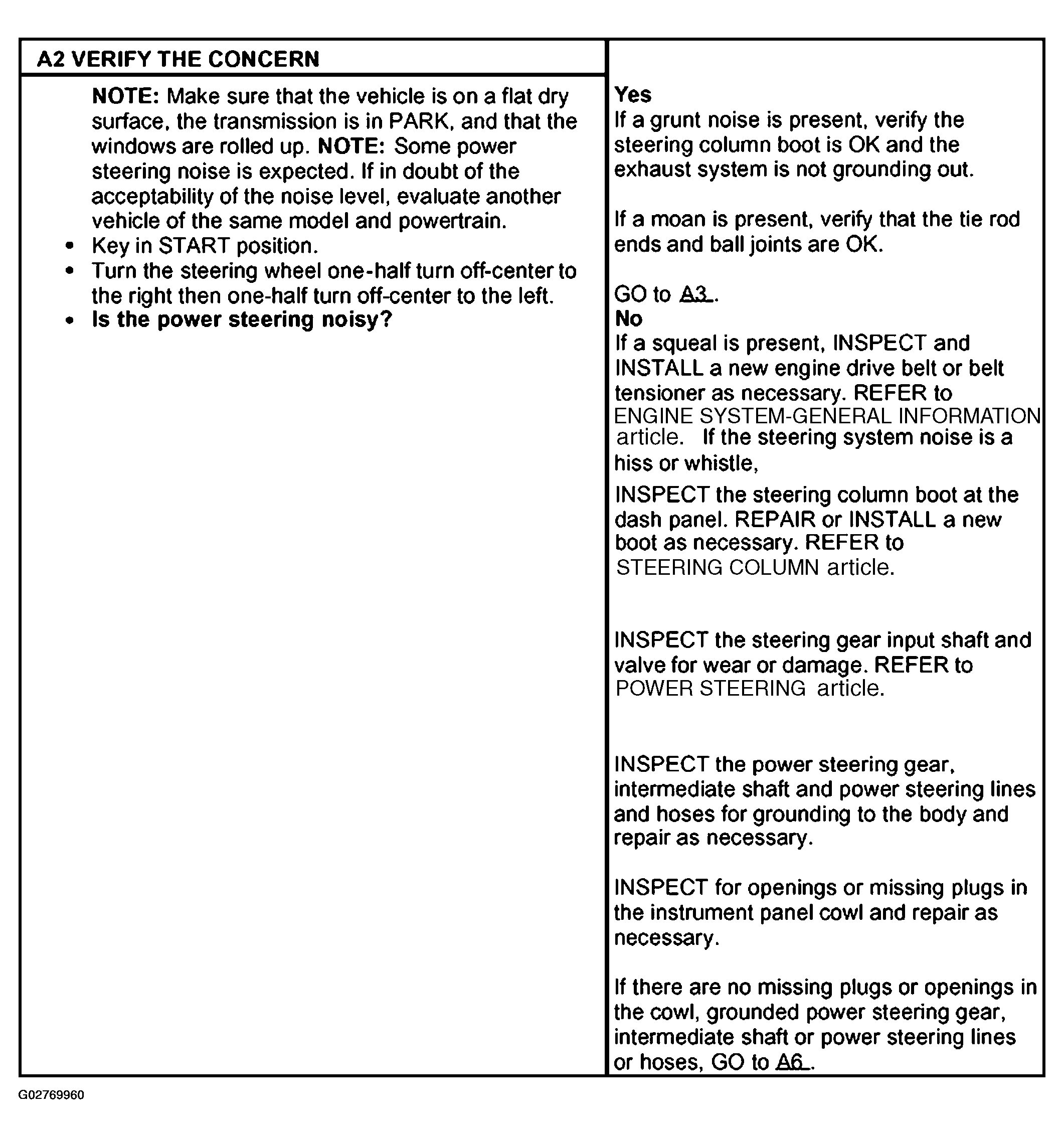

Fig 2: Pinpoint Test A: Steering System Noise (A2)
G02769960Courtesy of FORD MOTOR CO.

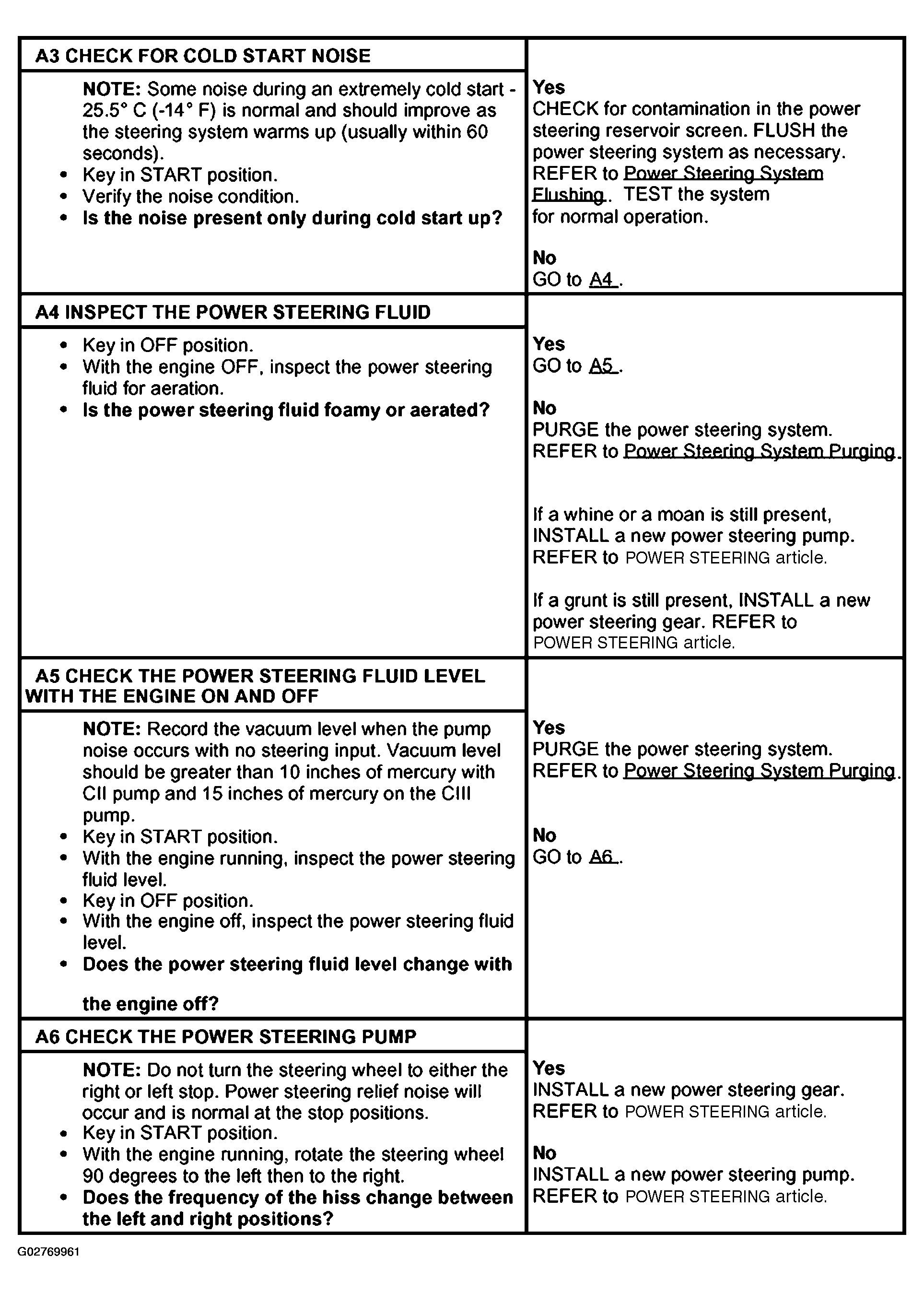

Fig 3: Pinpoint Test A: Steering System Noise (A3 - A6)
G02769961Courtesy of FORD MOTOR CO.
