Pinpoint Test B: Steering Is Very Difficult/Very Easy

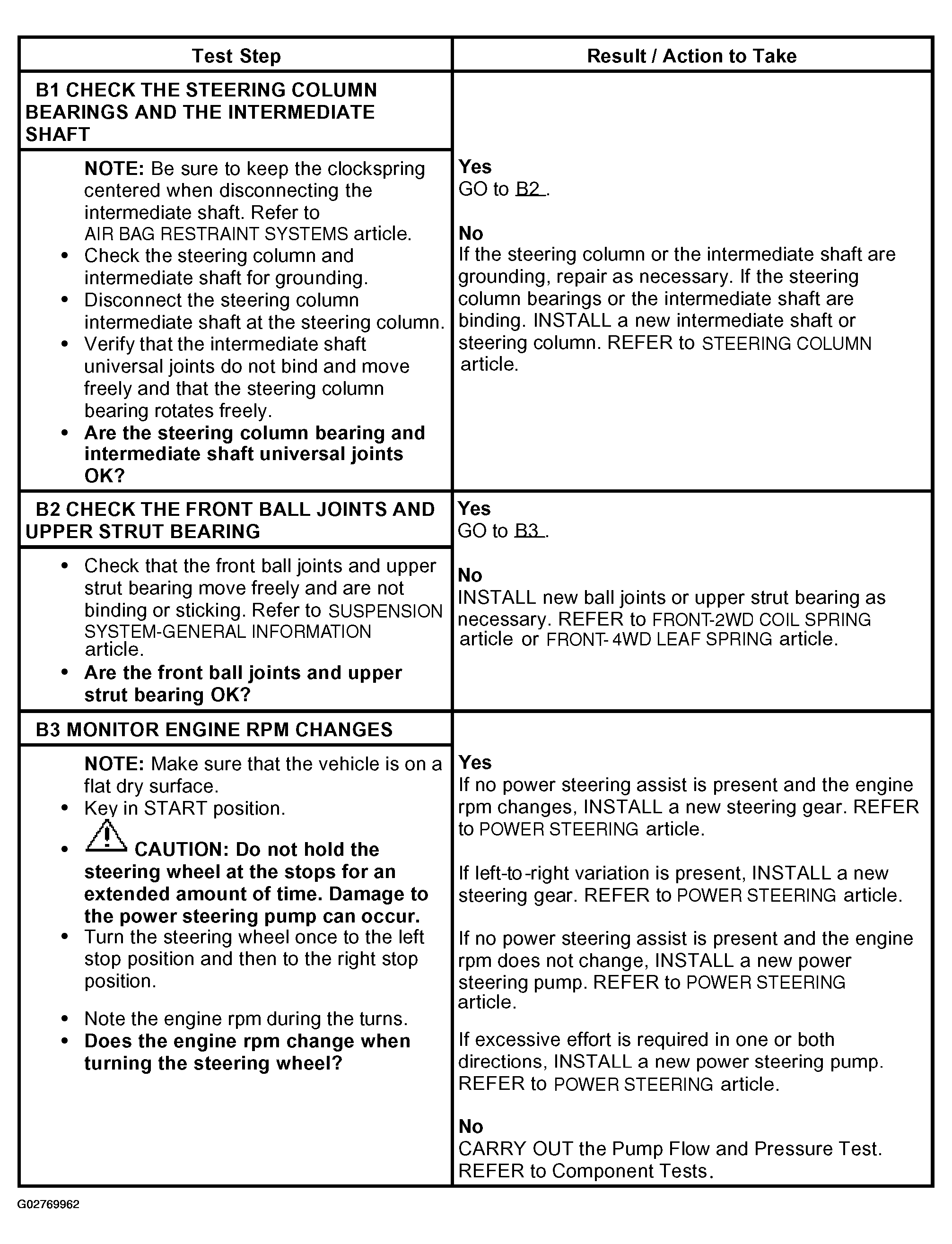

Fig 1: Pinpoint Test B: Steering Is Very Difficult/Very Easy (B1 - B3)
G02769962Courtesy of FORD MOTOR CO.
