Pinpoint Test KP: Charge air cooler (CAC) pump: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

• Charge Air Cooler Pump Relay (14B192).
• Charge Air Cooler Pump Motor (8501).
• Harness circuits: CAC, VPWR and GND.

Fig 1: Identifying Charge Air Cooler (CAC) Motor Connector

Courtesy of FORD MOTOR CO.

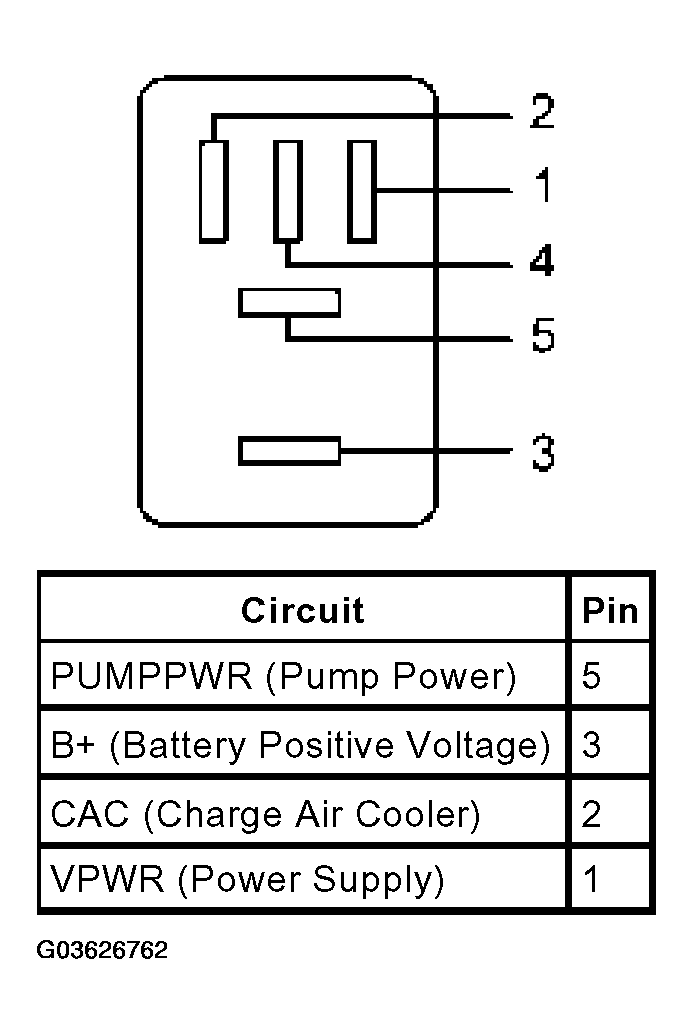

Fig 2: Identifying Charge Air Cooler (CAC) Relay Connector

Courtesy of FORD MOTOR CO.
