Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control Module

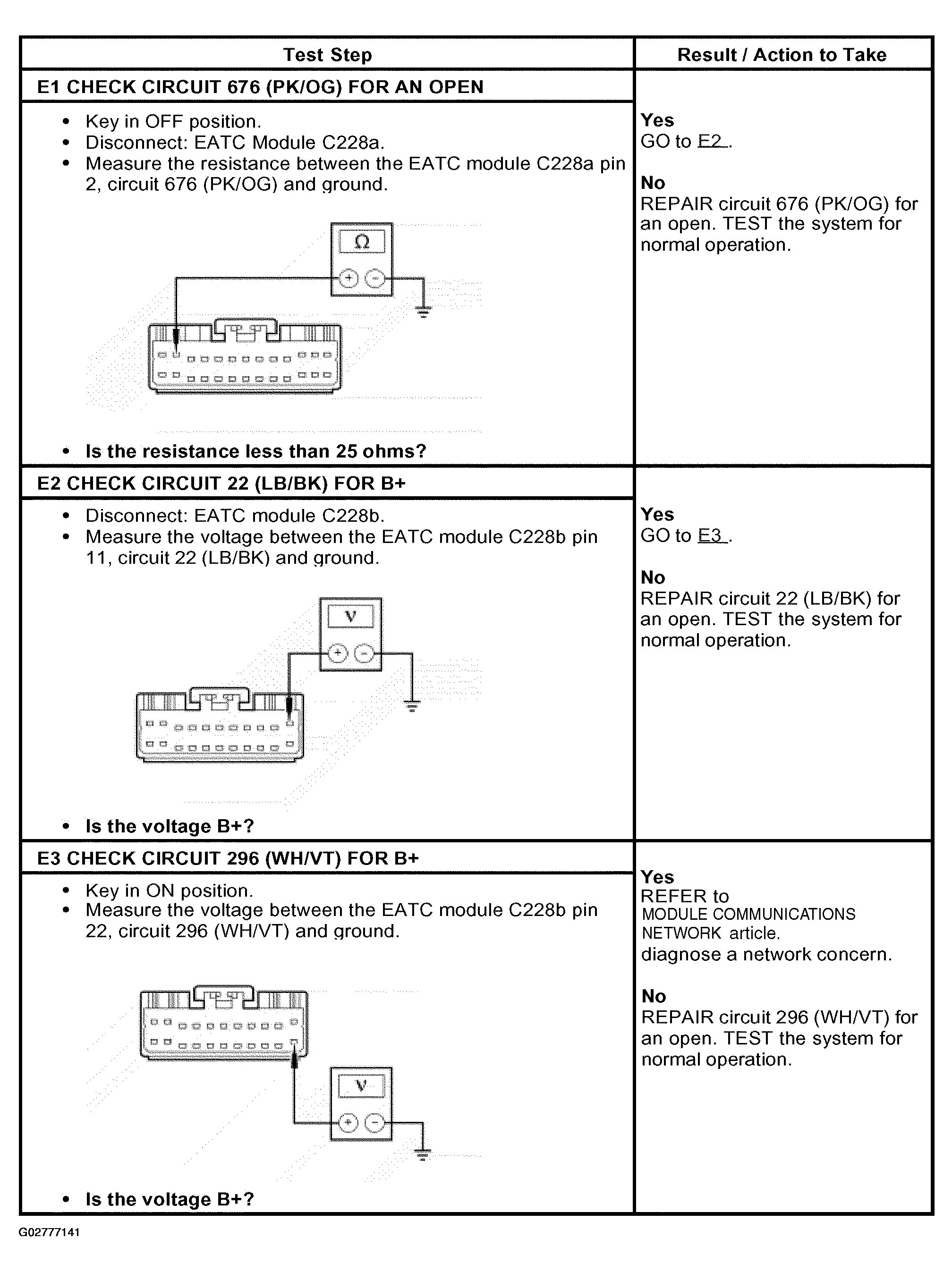

Fig 1: Pinpoint Test E: No Communication With Electronic Automatic Temperature Control Module (Step E1 To E3)
G02777141Courtesy of FORD MOTOR CO.
