Pinpoint Test W: The Temperature Control Does Not Operate Using The Front/Rear Auxiliary Climate Controls

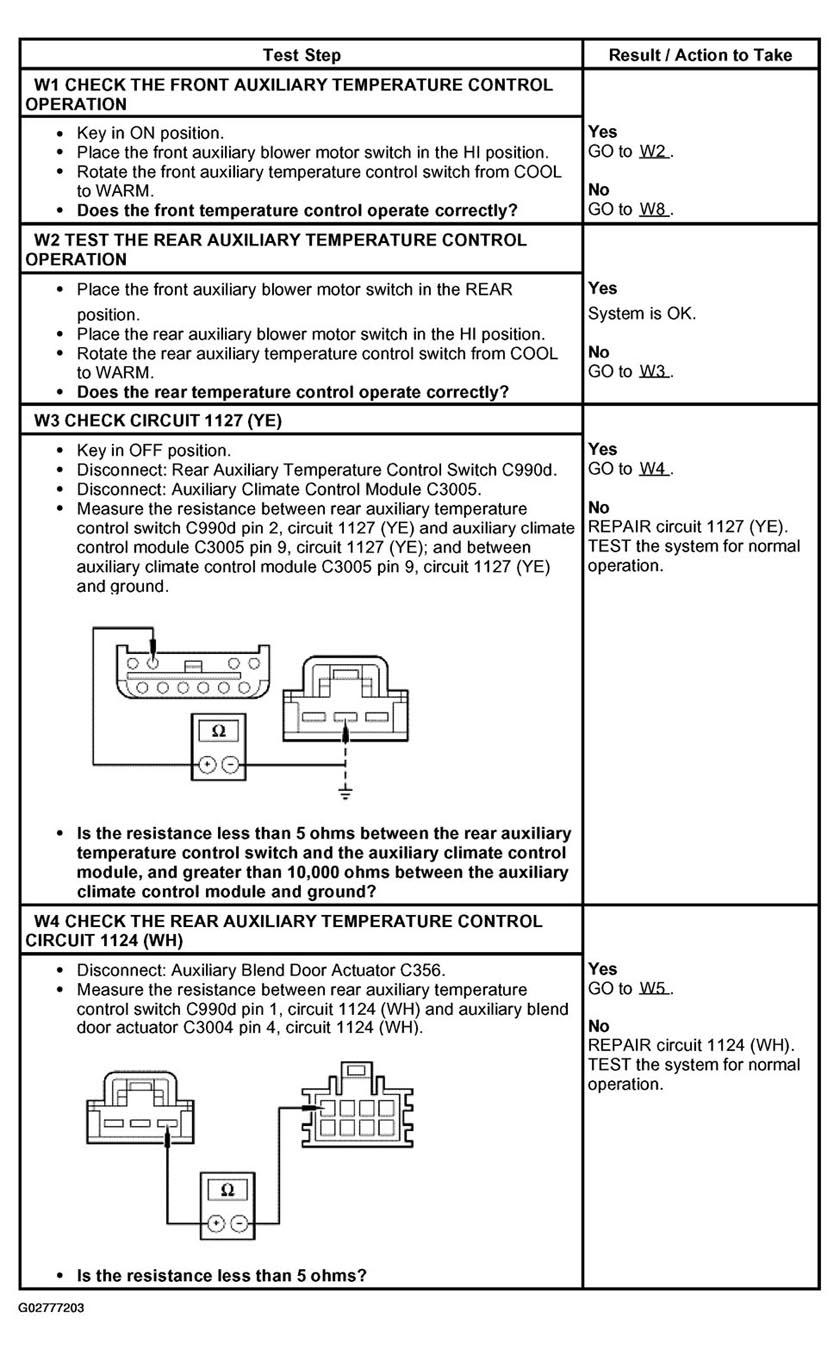

Fig 1: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step W1 To W4)

Courtesy of FORD MOTOR CO.

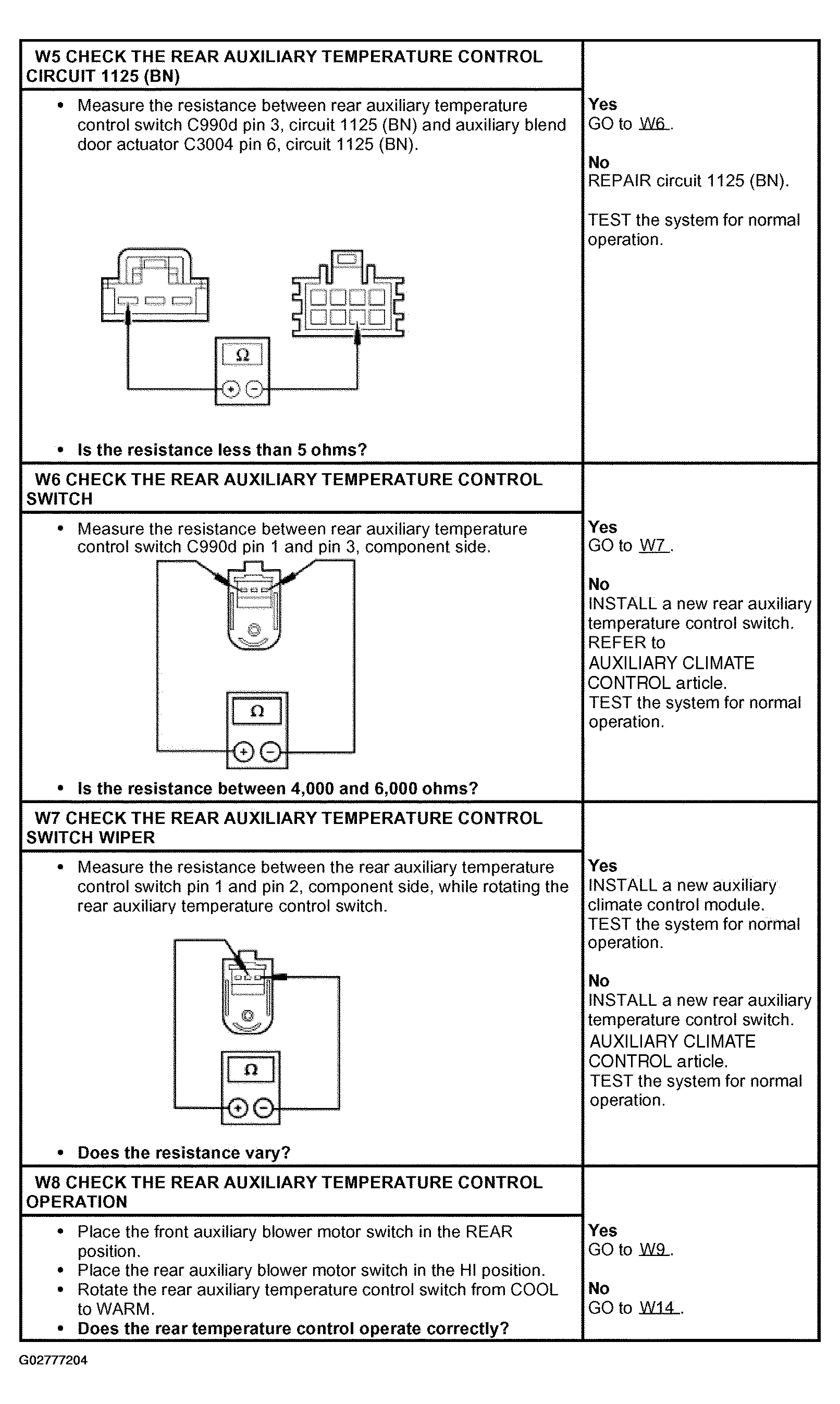

Fig 2: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step W5 To W8)

Courtesy of FORD MOTOR CO.

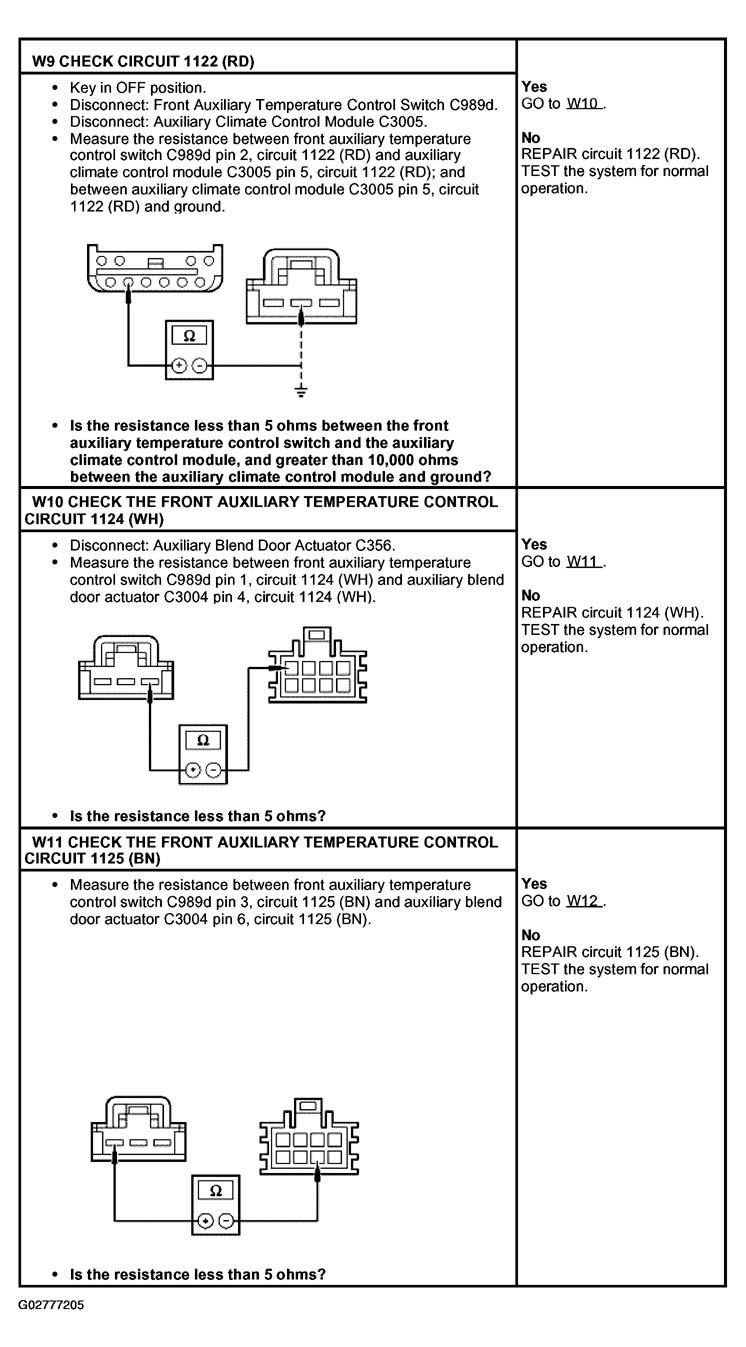

Fig 3: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step W9 To W11)

Courtesy of FORD MOTOR CO.

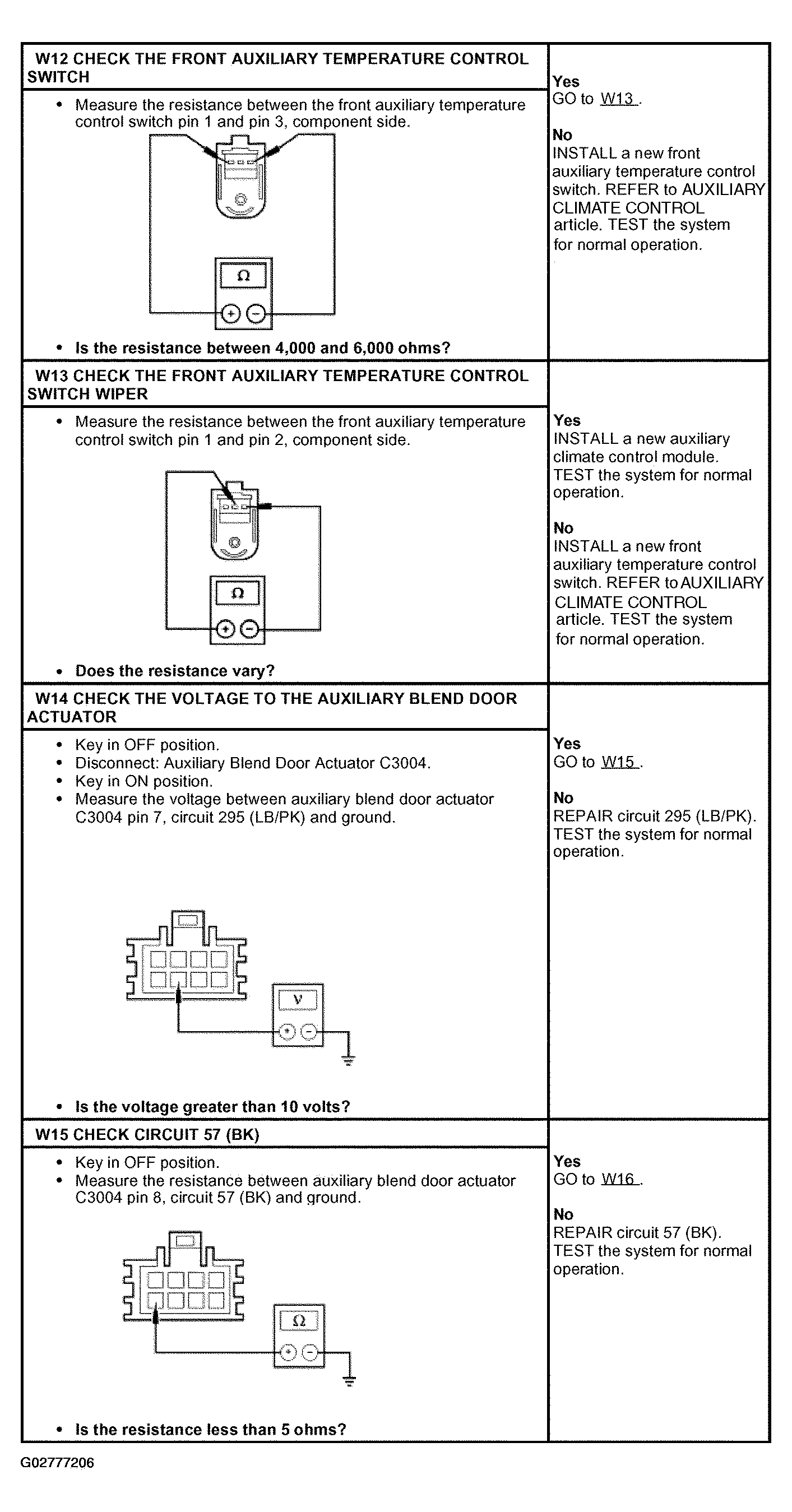

Fig 4: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step W12 To W15)

Courtesy of FORD MOTOR CO.

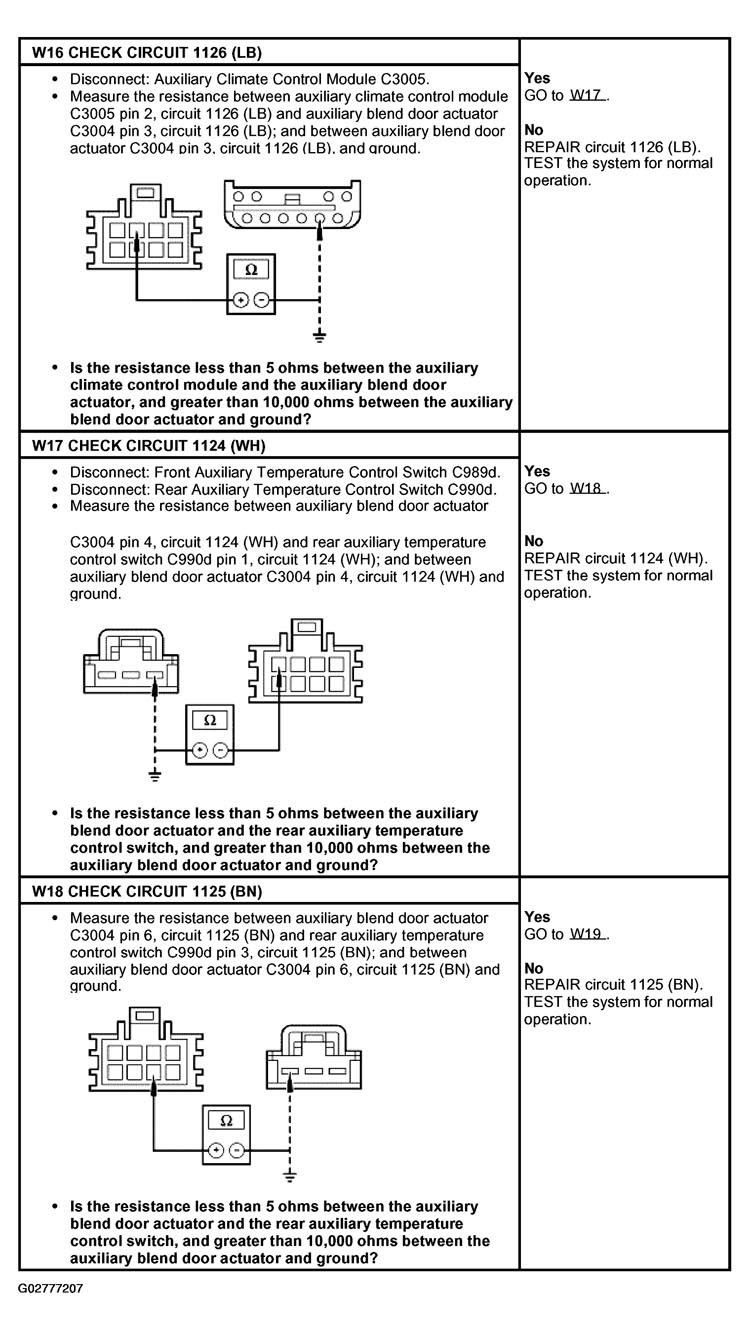

Fig 5: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step W16 To W18)

Courtesy of FORD MOTOR CO.

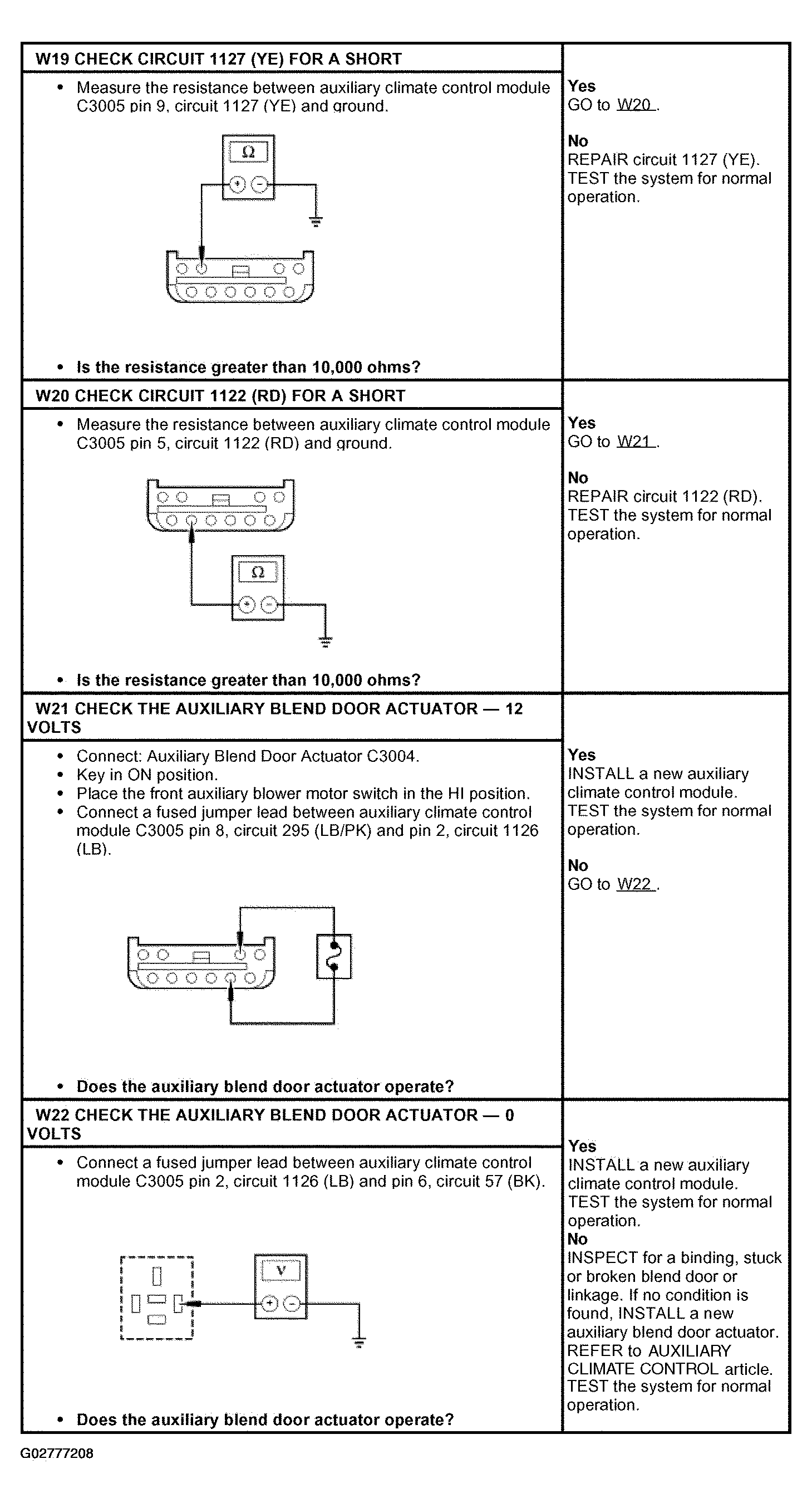

Fig 6: Pinpoint Test W: Temperature Control Does Not Operate Using Front/Rear Auxiliary Climate Controls (Step W19 To W22)

Courtesy of FORD MOTOR CO.
