Item 45: Output Shaft Bushing Assembly Note

    CAUTION: Do not crush the bearing cage.

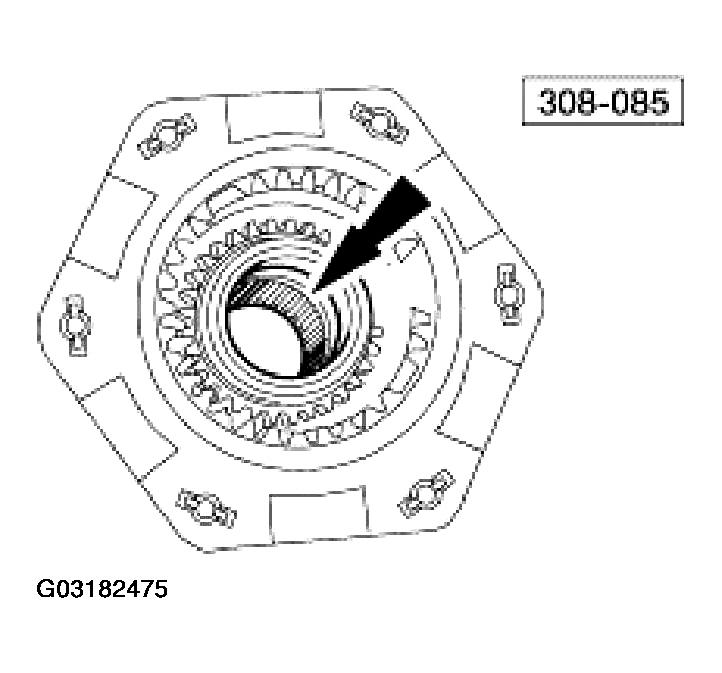

    Fig 1: Installing Output Shaft Bushing
    G03182475Courtesy of FORD MOTOR CO.
  1. If removed, using a suitable press and the special tool, install the output shaft bushing.
