Tests TB: Trans Control Switch/Trans Control Indicator Lamp



PINPOINT TEST TB: AUTOMATIC TRANSMISSION CONTROL SWITCH ATCS/TRANSMISSION CONTROL INDICATOR LAMP TCIL

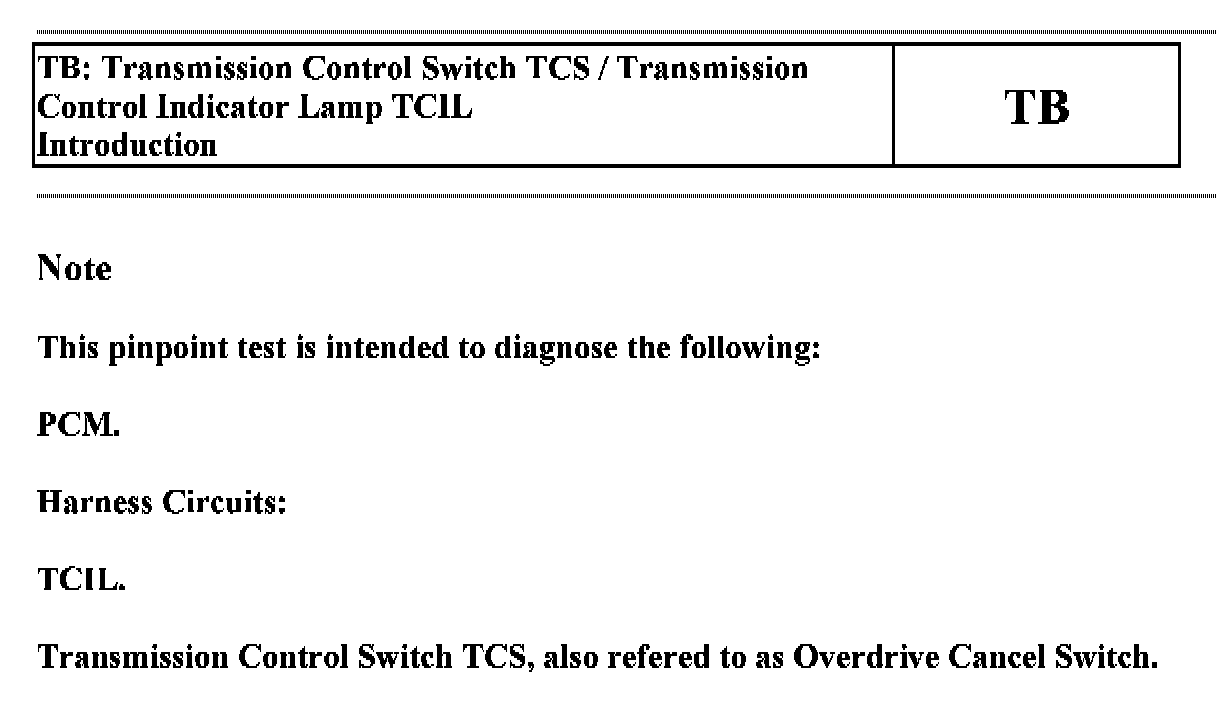

TB Introduction 1 Of 2:

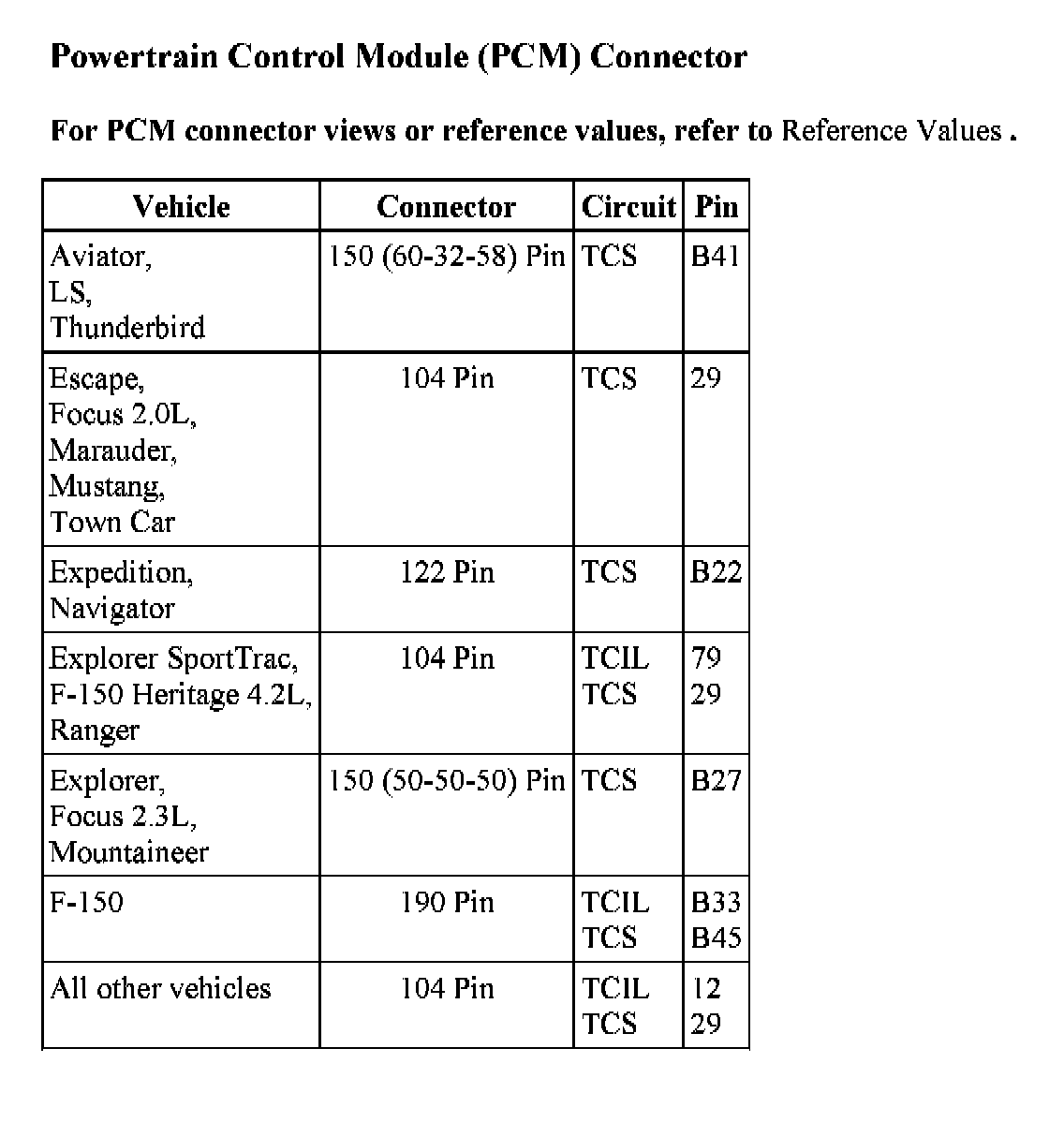

TB Introduction 2 Of 2:

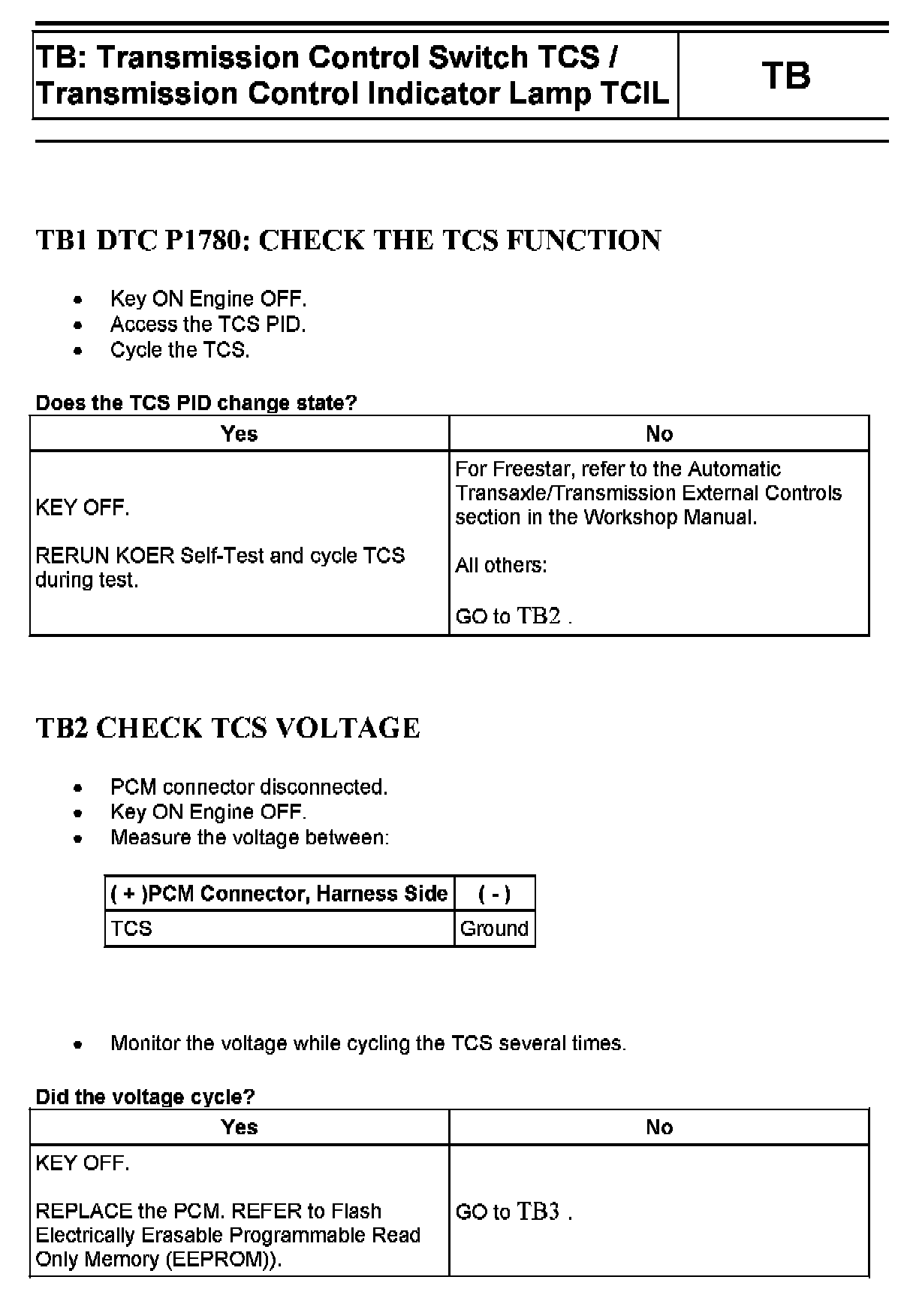

TB1 - TB2:

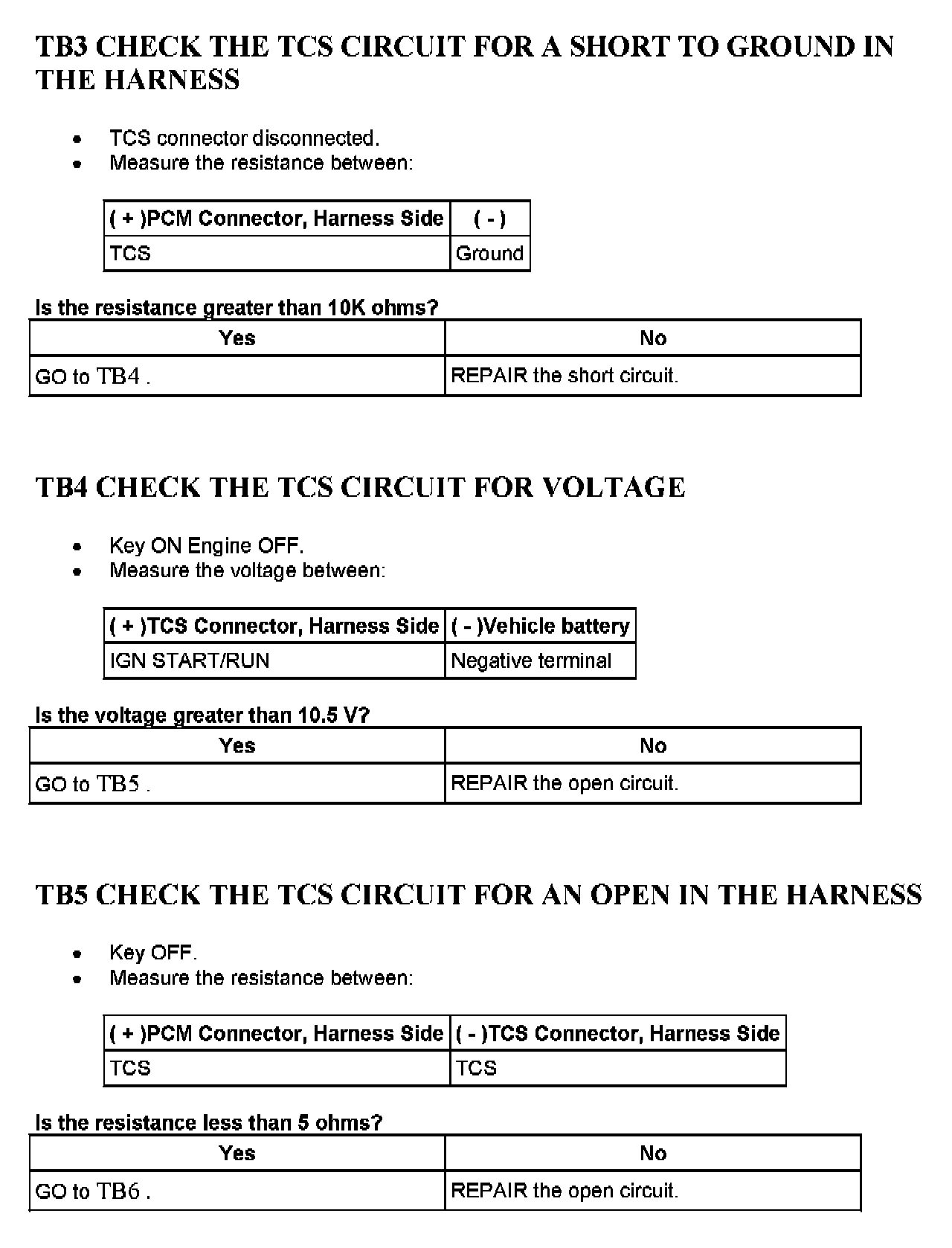

TB3 - TB5:

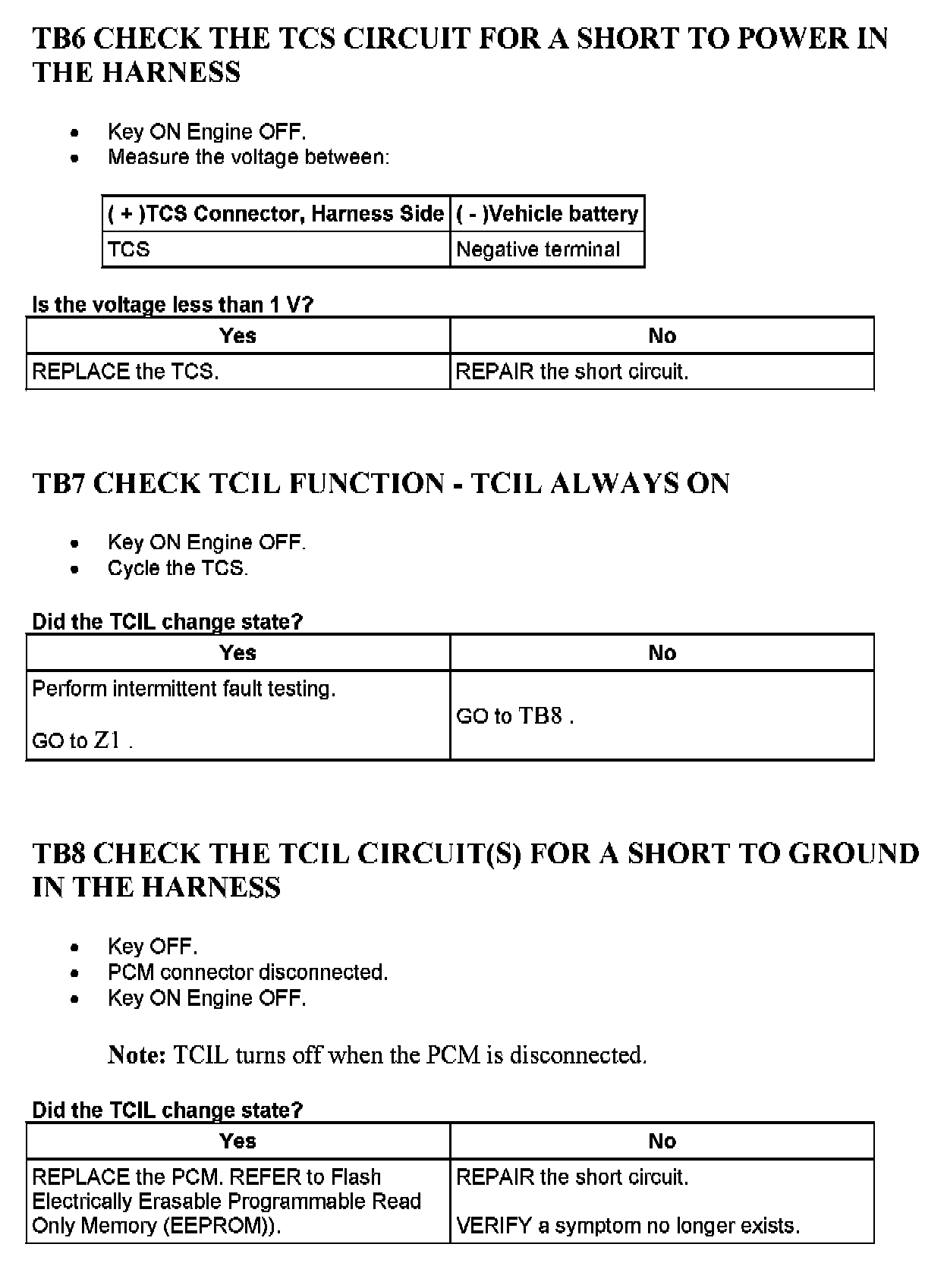

TB6 - TB8:

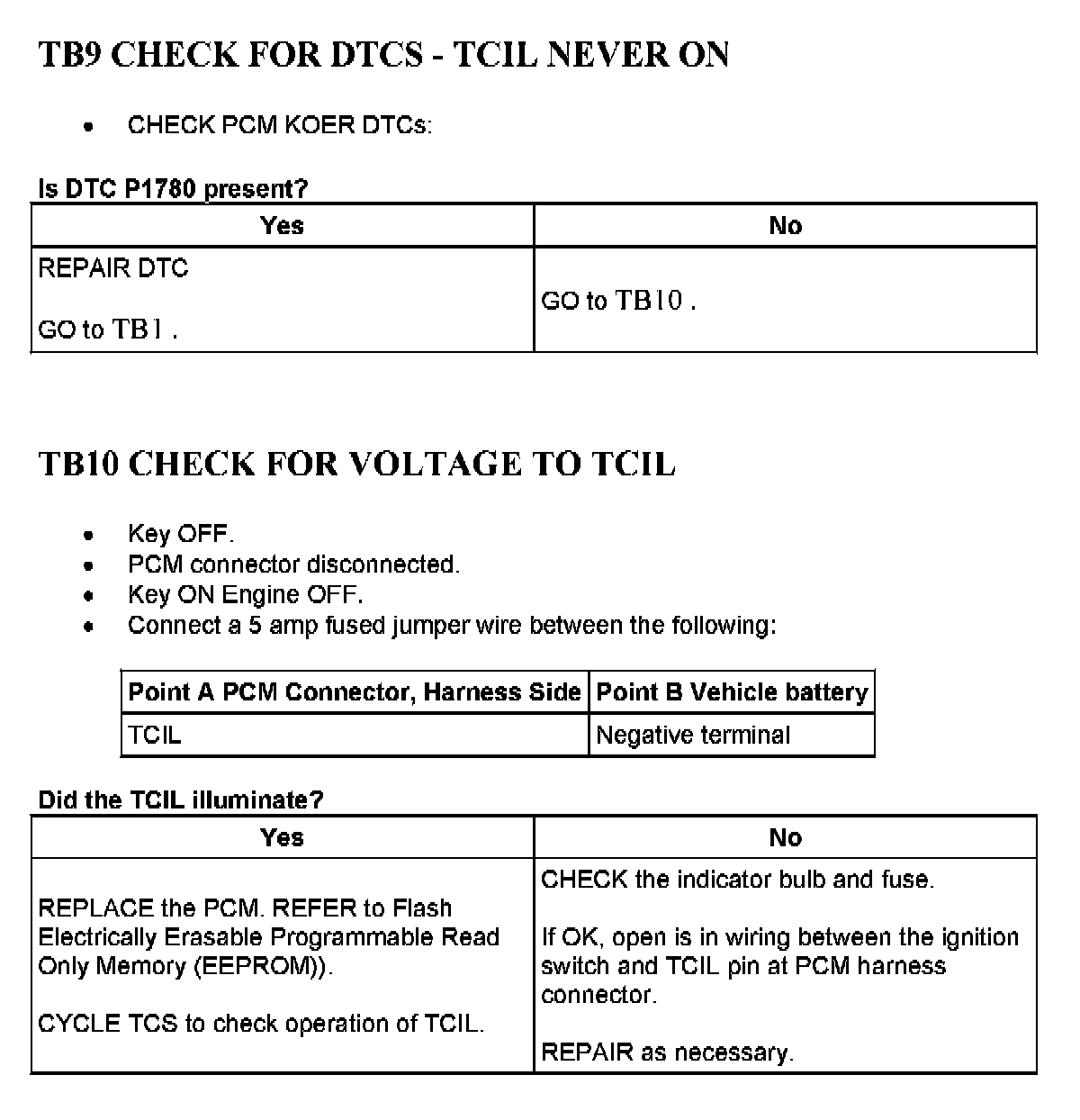

TB9 - TB10:
