Differential Assembly And Final Drive Input

WARNING: This page is about a different variant/trim than selected.

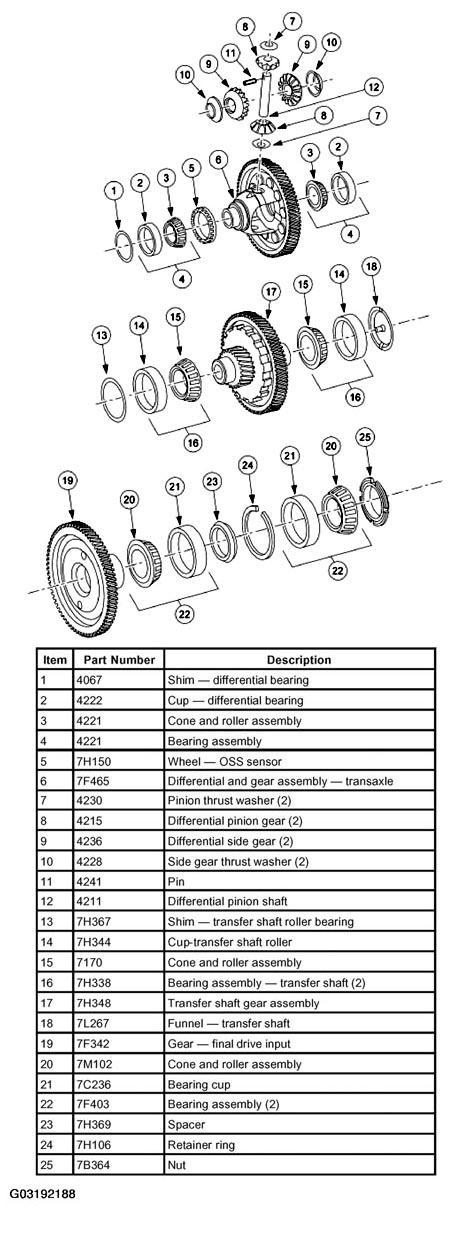

Fig 1: Identifying Differential Assembly And Final Drive Input Components
G03192188Courtesy of FORD MOTOR CO.
