Section 18 (Engine - 2.3L): Removal: Engine

	Heavy Duty Floor Crane 014-00071 or equivalent
	Spreader Bar 303-D089 (D93P-6001-A3) or equivalent
	Powertrain Lift with Tilting Plate 014-00765 or equivalent
	Universal Adapter Brackets 014-0001
	Torque Converter Holding Tool 307-346 (T97T-7902-A)
	Lifting Bracket, Engine 303-050 (T70P-6000)
	Tie Rod End Remover 211-001 (TOOL-3290-D) or equivalent
	Transaxle Plugs 308-152 (T88C-7025-AH)
	Impact Slide Hammer 100-001 (T50T-100-A)
	Front Drive Halfshaft Remover 205-D070 (D93P-1175-B) or equivalent

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
2. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
3. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .

Vehicles with air conditioning

4. Recover the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

All vehicles

5. Drain the cooling system. For additional information, refer to ENGINE COOLING .
6. Drain the engine oil.
   • Install the drain plug.

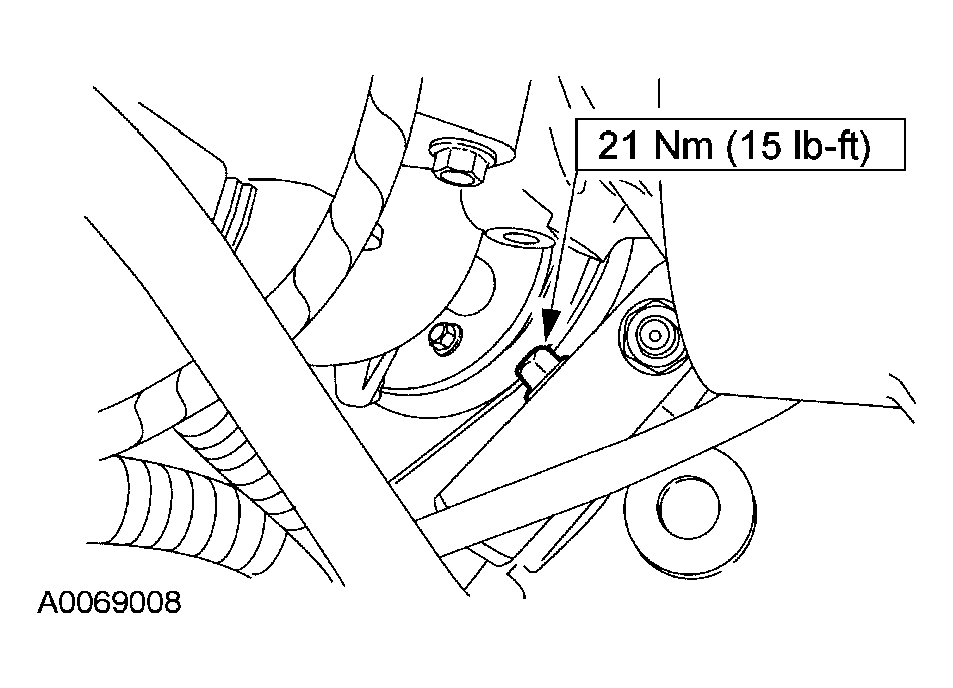

   Fig 1: Identifying Engine Oil Drain Plug

   Courtesy of FORD MOTOR CO.
7. Remove the accessory drive belt.
8. Remove the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
9. Remove the air intake resonator. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

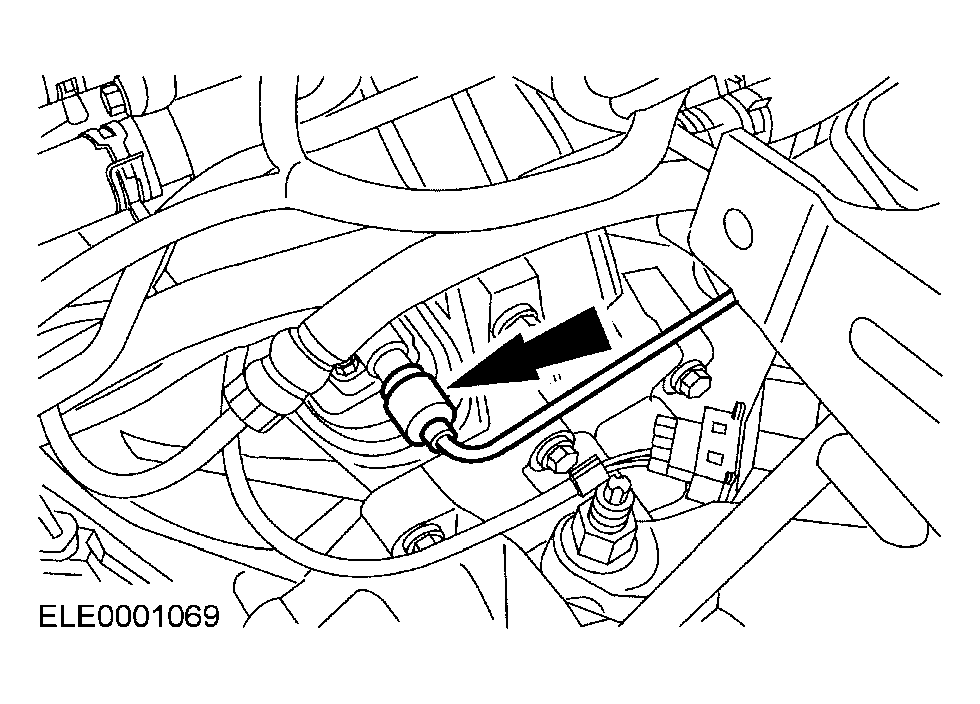

10. Disconnect the fuel tube. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

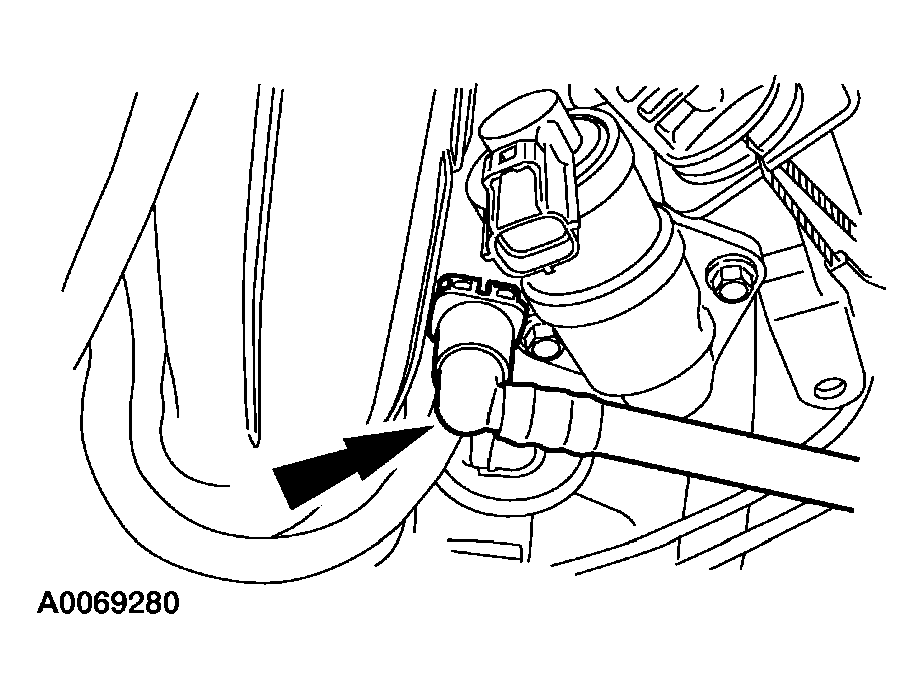

11. Disconnect the vapor tube.
    Fig 2: Disconnecting Vapor Tube

    Courtesy of FORD MOTOR CO.
12. Disconnect the engine emissions hose and the exhaust gas recirculation (EGR) vacuum regulator solenoid electrical connector.
    Fig 3: Disconnecting Engine Emissions Hose And Exhaust Gas Recirculation Vacuum Regulator Solenoid Electrical Connector

    Courtesy of FORD MOTOR CO.
13. Disconnect the brake booster vacuum hose.
    Fig 4: Disconnecting Brake Booster Vacuum Hose

    Courtesy of FORD MOTOR CO.

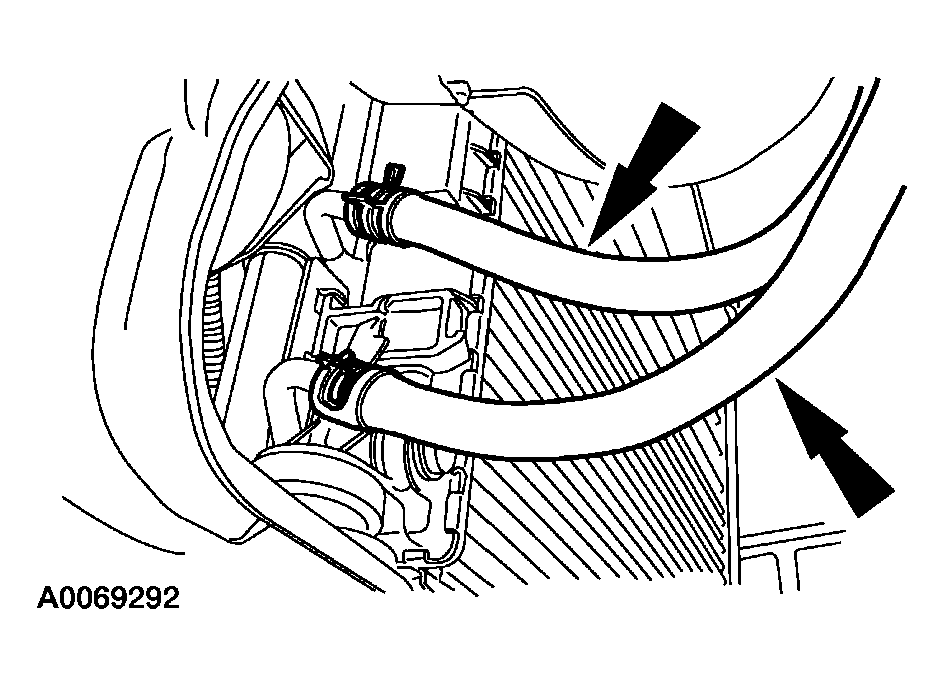

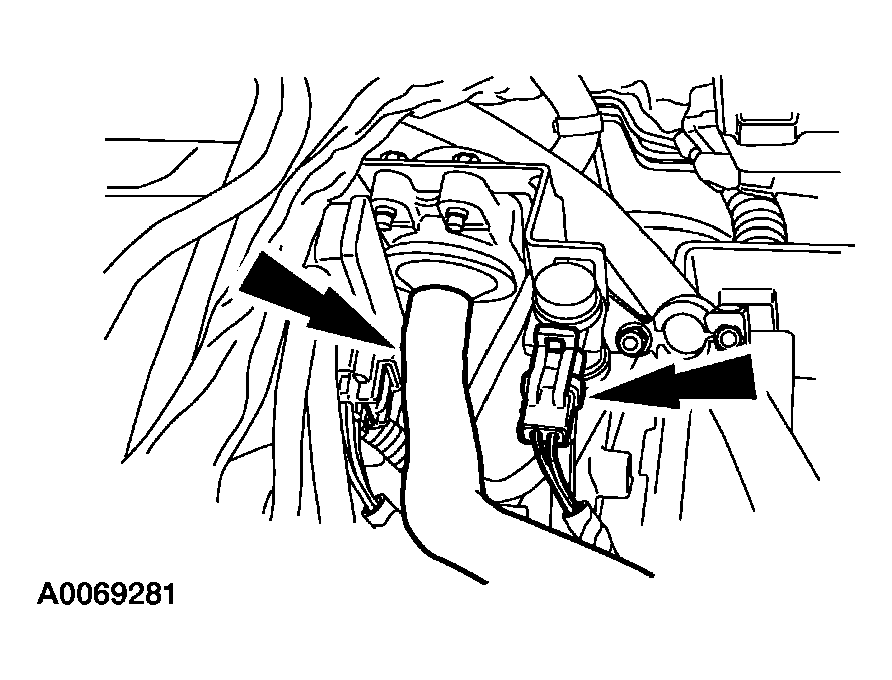

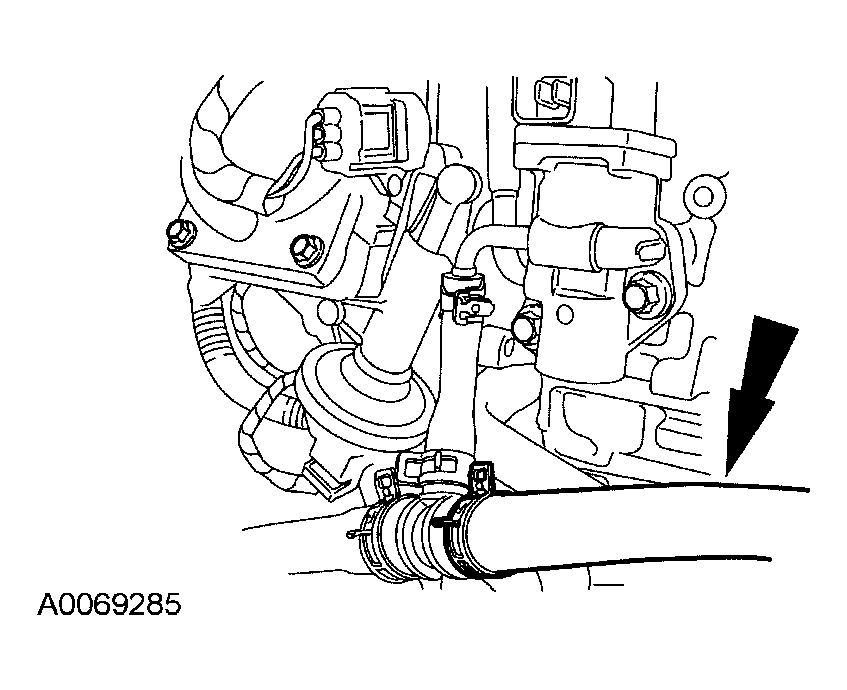

14. Disconnect the lower radiator hose, the heater hose and the overflow hose from the coolant bypass.
    Fig 5: Disconnecting Lower Radiator Hose, Heater Hose And Overflow Hose From Coolant Bypass

    Courtesy of FORD MOTOR CO.

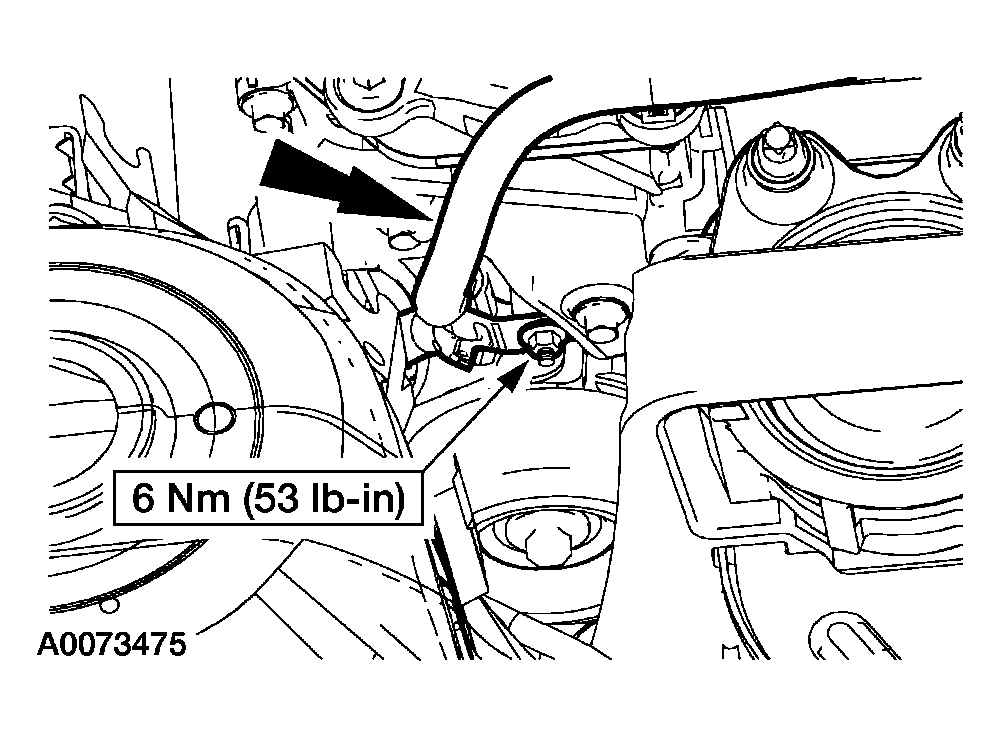

15. Detach the hose, remove the screw and the pin-type retainer.
    • Remove the snow shield.
    Fig 6: Removing Screw And Pin-Type Retainer

    Courtesy of FORD MOTOR CO.

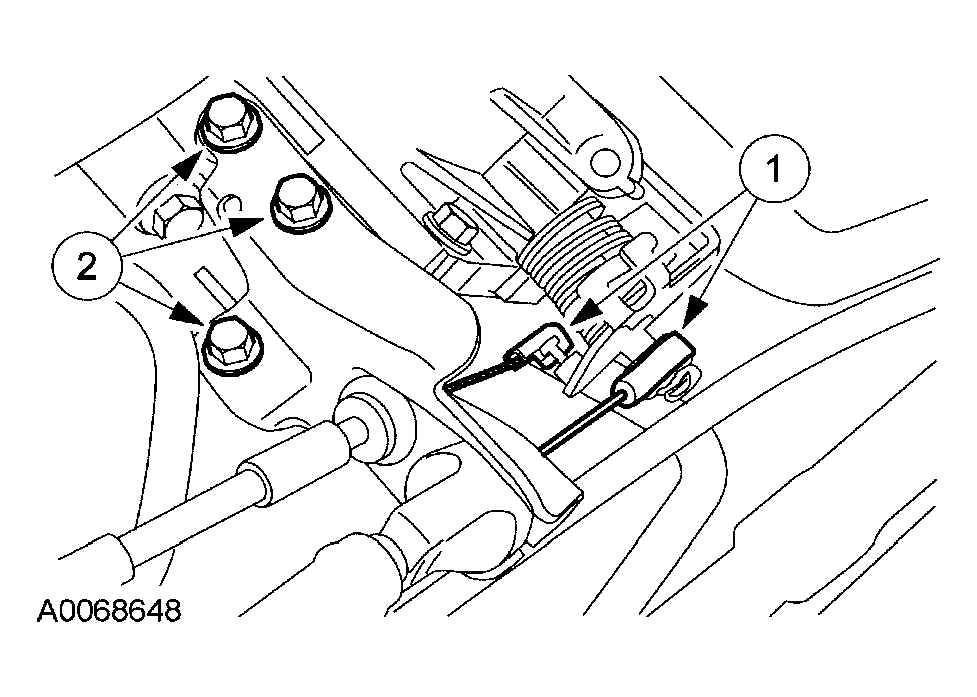

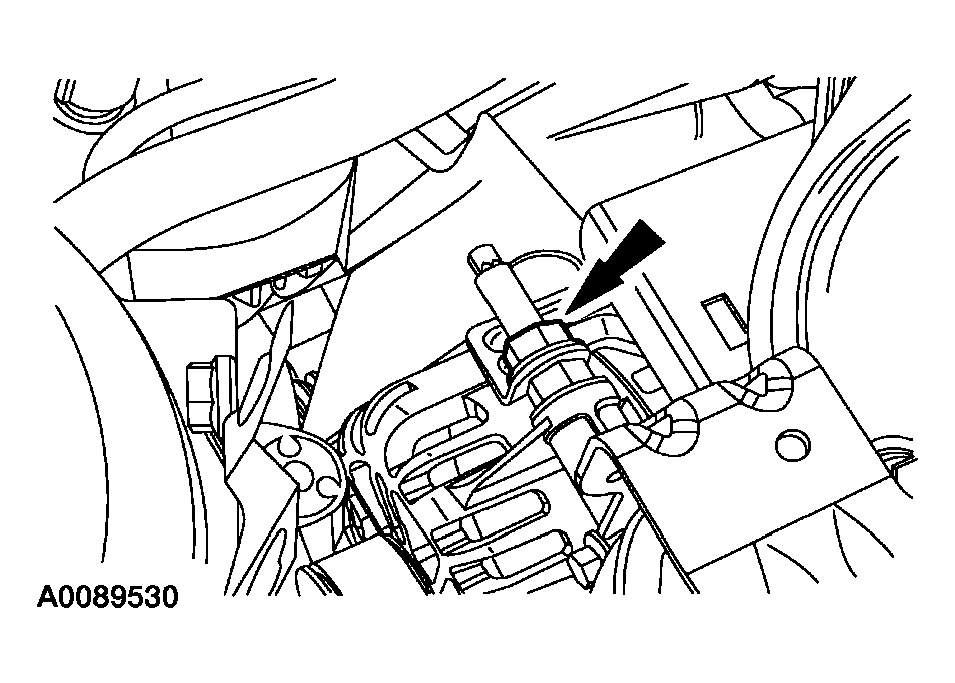

16. Position aside the accelerator cable and speed control cable (if equipped).
    1. Disconnect the accelerator and speed control cable (if equipped) from the throttle body.
    2. Remove the three bolts and position aside the accelerator cable bracket aside.
    Fig 7: Removing Accelerator Cable

    Courtesy of FORD MOTOR CO.

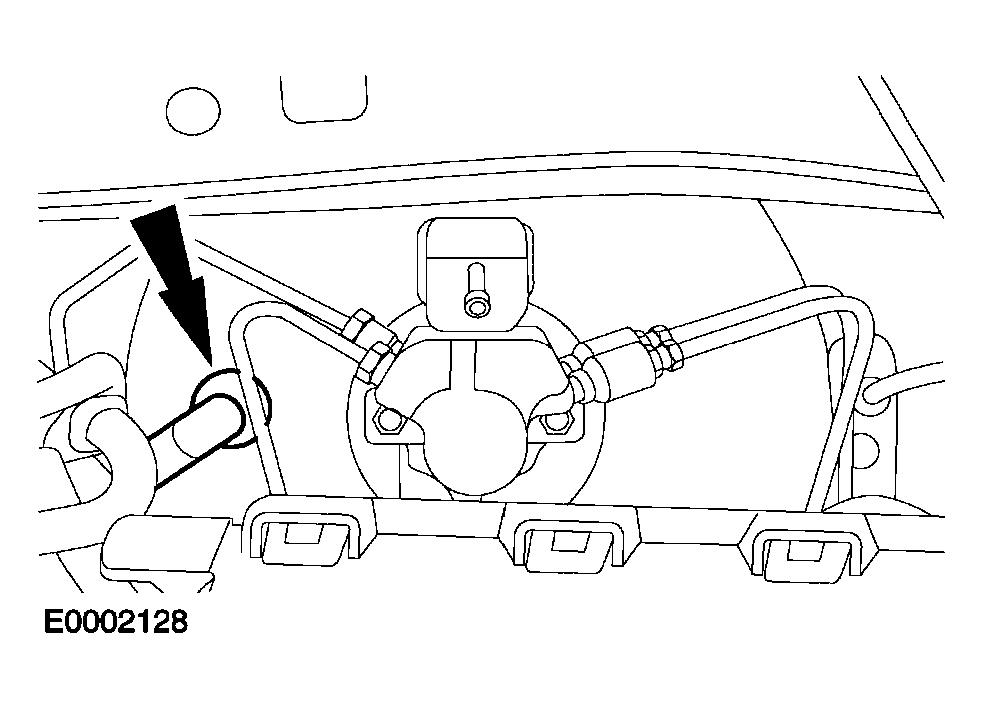

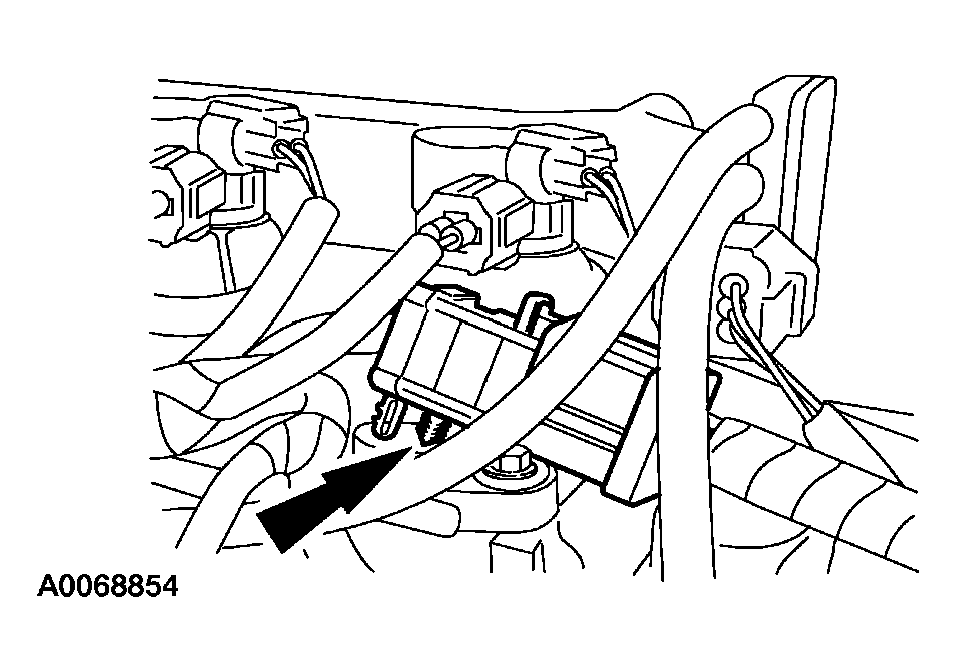

17. Disconnect the fuel injection supply manifold wiring harness electrical connector.
    Fig 8: Disconnecting Fuel Injection Supply Manifold Wiring Harness Electrical Connector

    Courtesy of FORD MOTOR CO.

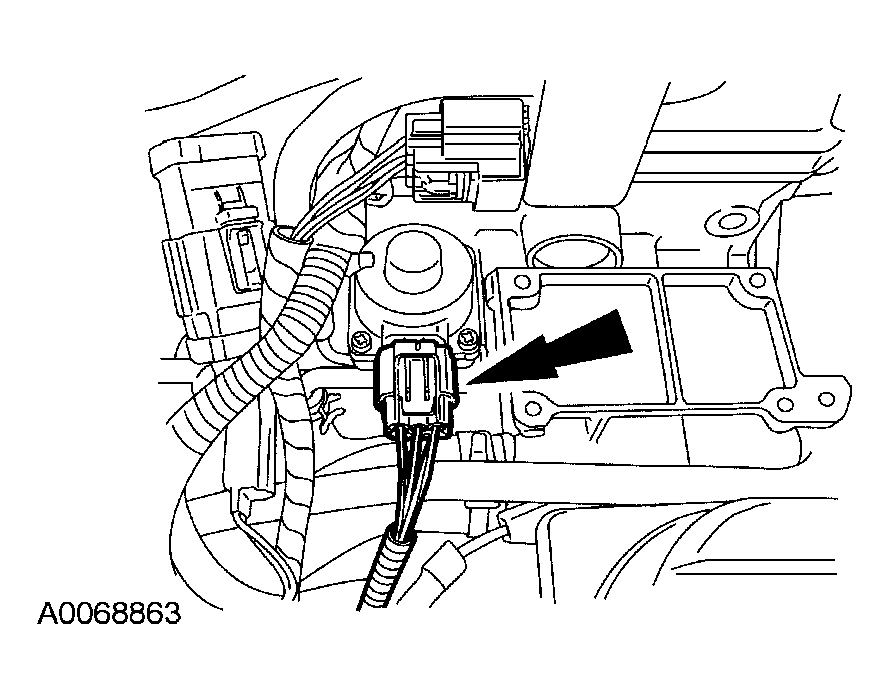

18. Disconnect the EGR valve electrical connector.
    Fig 9: Disconnecting EGR Valve Electrical Connector

    Courtesy of FORD MOTOR CO.

Vehicles equipped with manual transmissions

NOTE: Press the locking tab.
Fig 10: Detaching Gearshift Cables From Transaxle
Courtesy of FORD MOTOR CO.

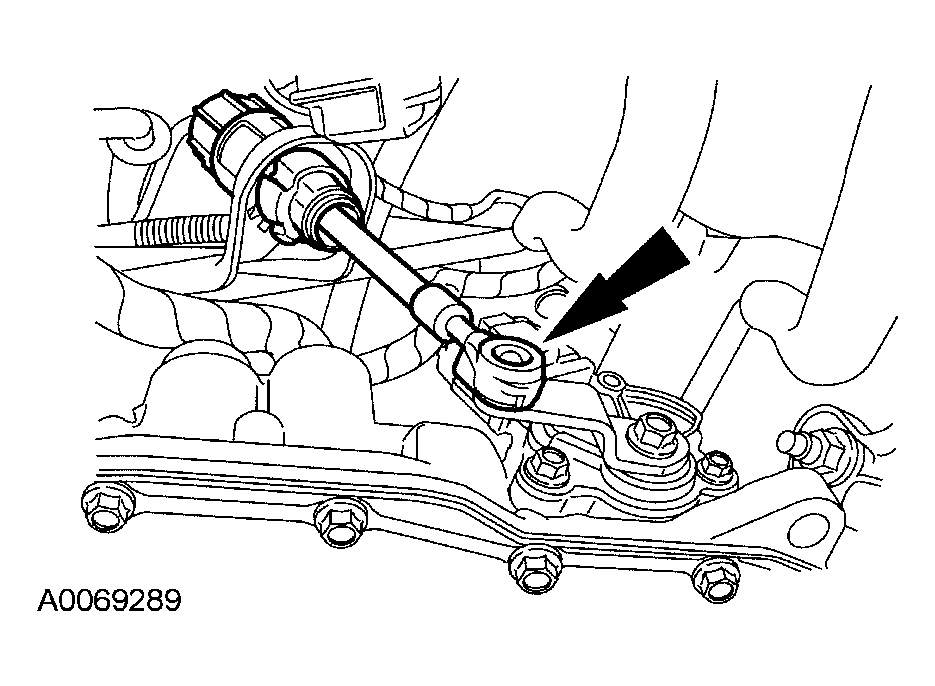

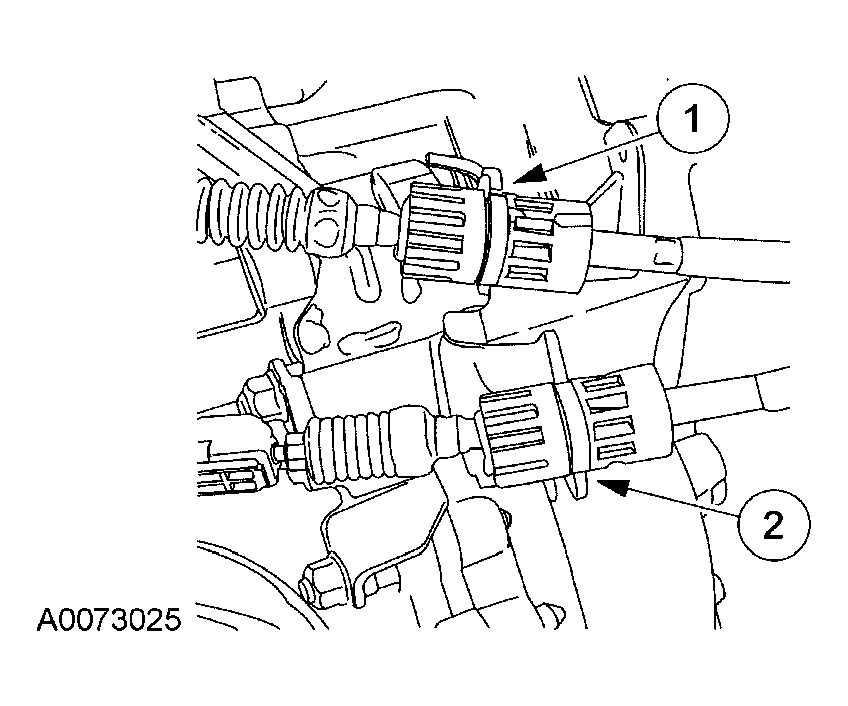

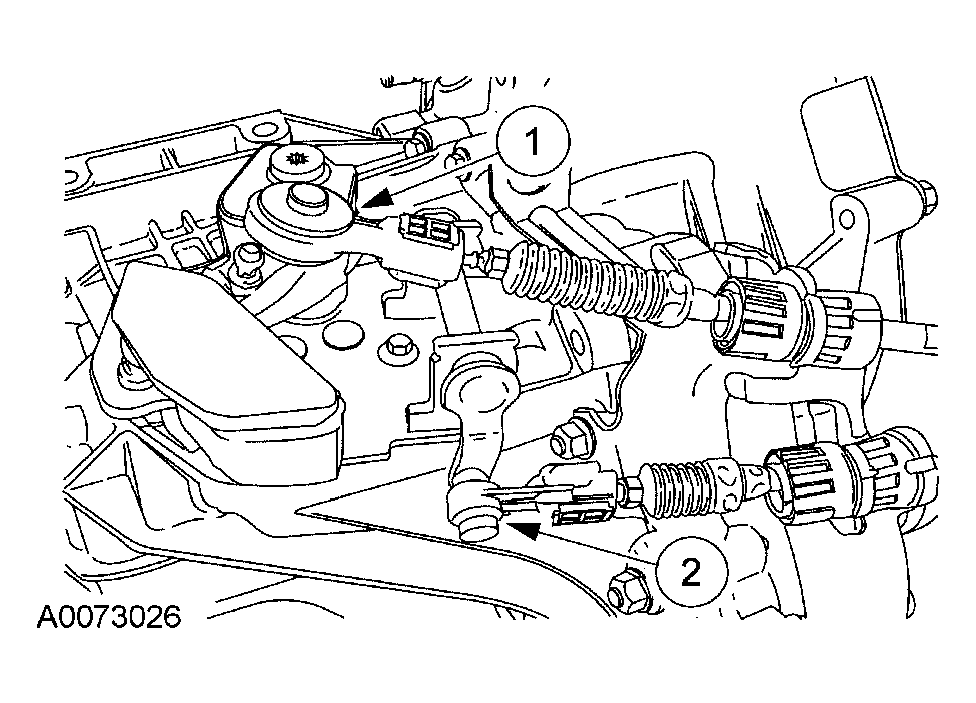

19. Detach the gearshift cables from the transaxle.
    1. Detach the shifter cable from the shift mast.
    2. Detach the selector cable from the selector lever.
20. Detach the gearshift cables from the bracket.
    1. Detach the shifter cable from the bracket, turning the abutment sleeves counterclockwise.
    2. Detach the selector cable from the bracket, turning the abutment sleeves counterclockwise.
    Fig 11: Detaching Selector Cable From Bracket

    Courtesy of FORD MOTOR CO.
WARNING: Escaping brake fluid. Do not allow brake fluid to come in contact with the skin or eyes. If brake fluid does come into contact with the skin or eyes, rinse the affected areas with water immediately. Failure to follow these instructions may result in personal injury.
CAUTION: If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Fig 12: Removing Clutch Slave Cylinder Supply Line
Courtesy of FORD MOTOR CO.
21. Remove the clutch slave cylinder supply line.
    • Remove the clip.
    • Remove the supply line and secure it to one side using cable tires.

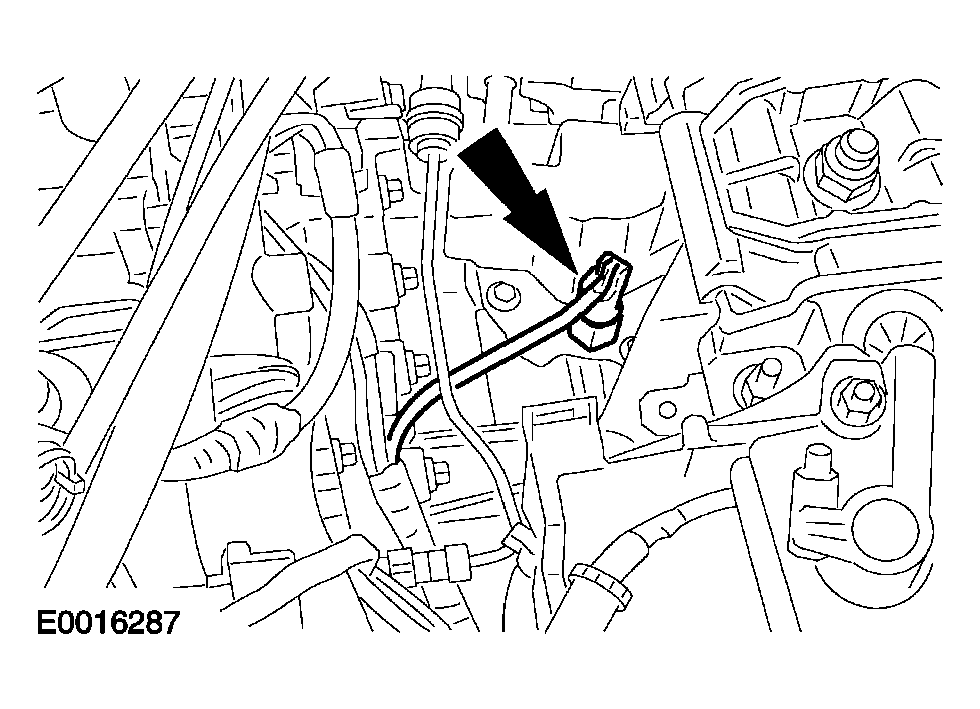

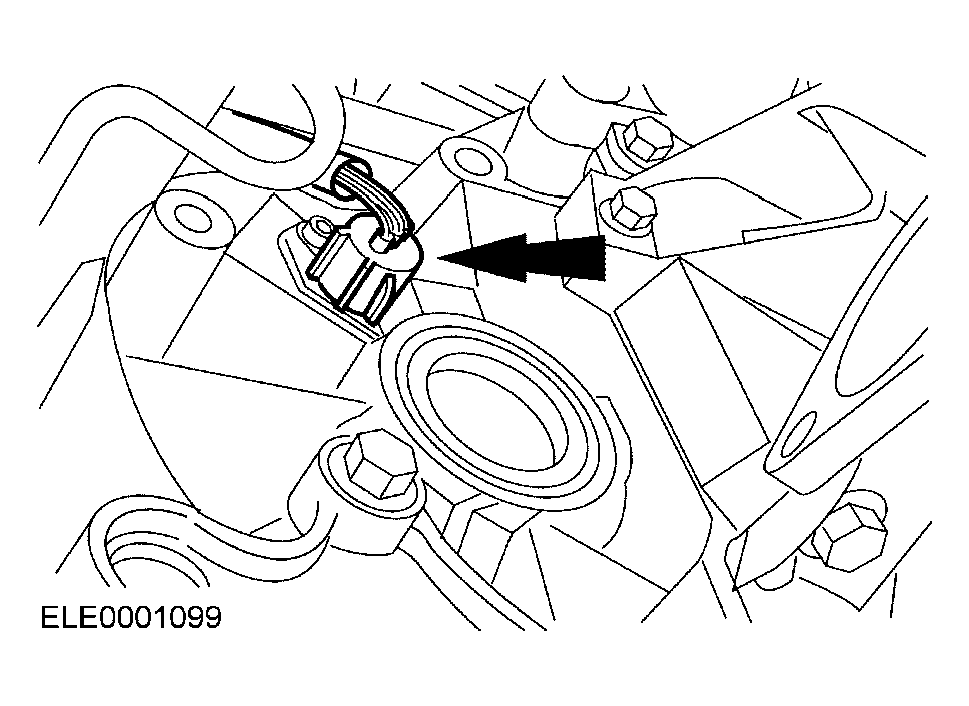

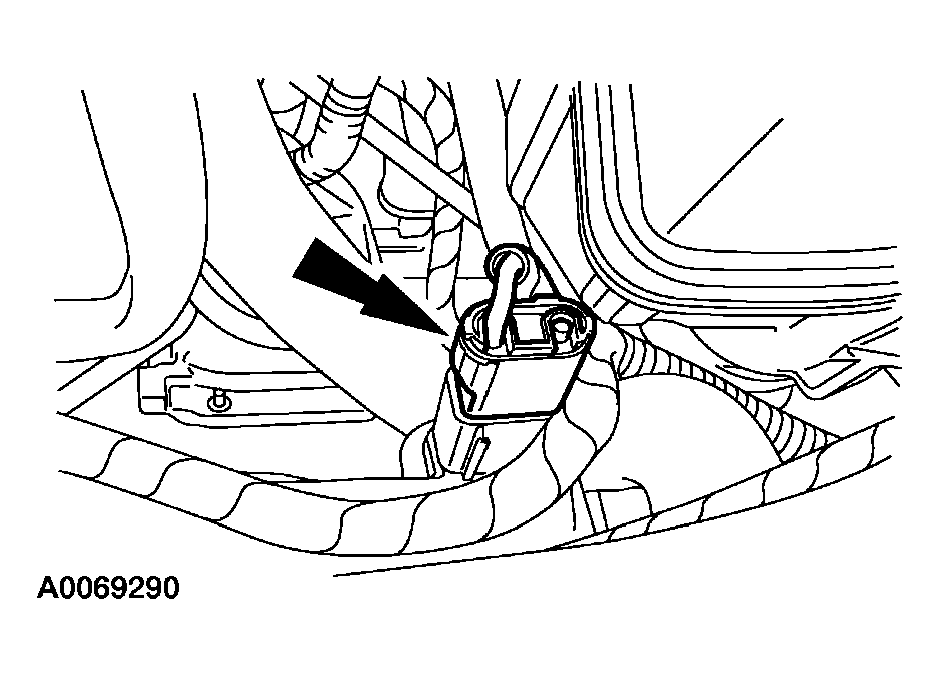

22. Disconnect the reversing lamp switch electrical connector.
    Fig 13: Disconnecting Reversing Lamp Switch Electrical Connector

    Courtesy of FORD MOTOR CO.

All vehicles

23. Disconnect the heater hose from the "T" fitting and position it aside.
    Fig 14: Disconnecting Heater Hose From "T" Fitting

    Courtesy of FORD MOTOR CO.
24. Remove the coolant expansion tank. For additional information, refer to ENGINE COOLING .

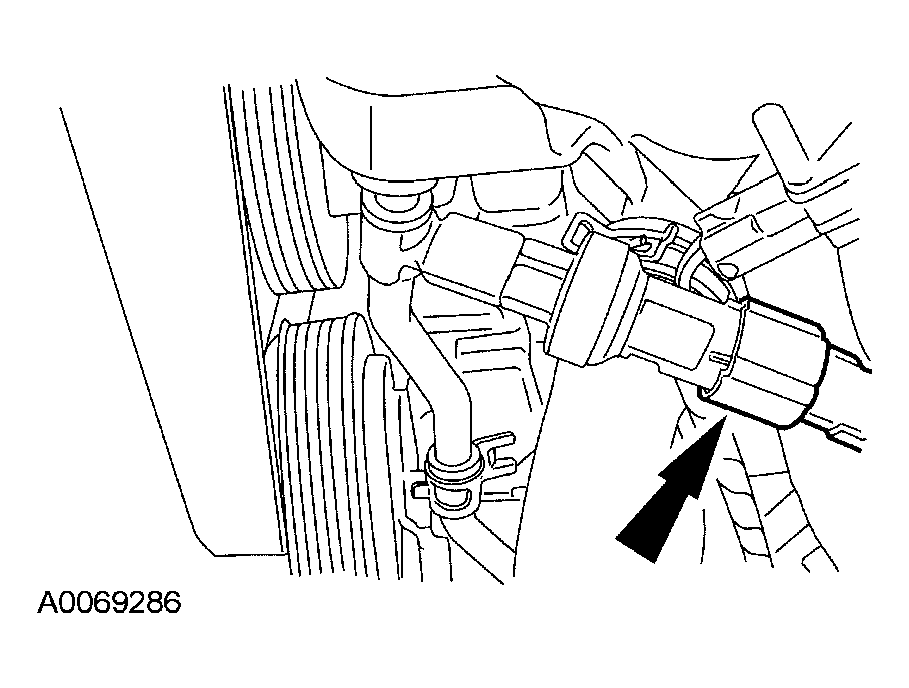

25. Disconnect the power steering pressure (PSP) switch electrical connector.
    Fig 15: Disconnecting Power Steering Pressure Switch Electrical Connector

    Courtesy of FORD MOTOR CO.
26. Remove the power steering pump pulley. For additional information, refer to POWER STEERING .

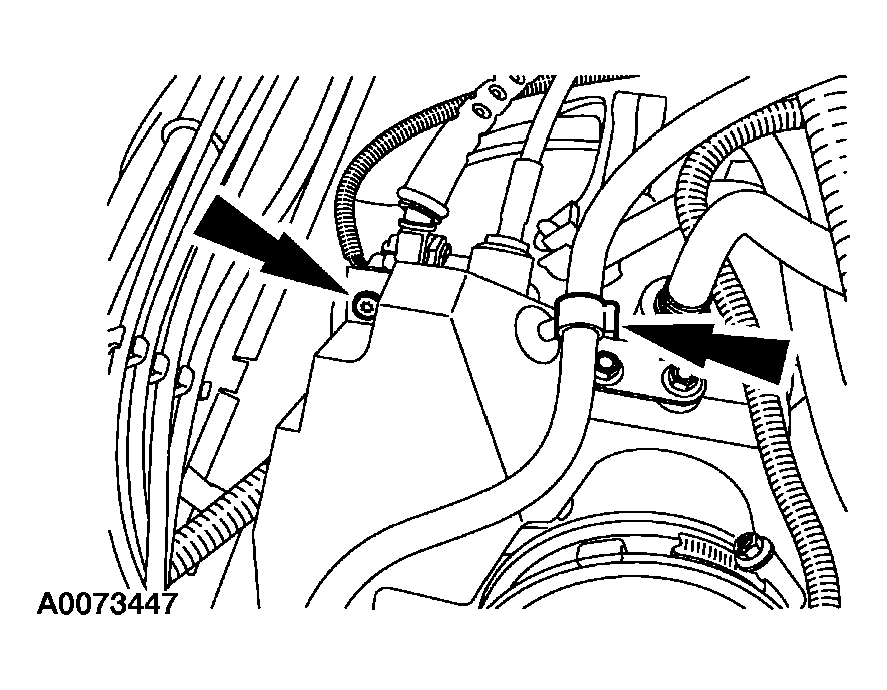

27. Disconnect the PSP tube.
    Fig 16: Disconnecting PSP Tube

    Courtesy of FORD MOTOR CO.

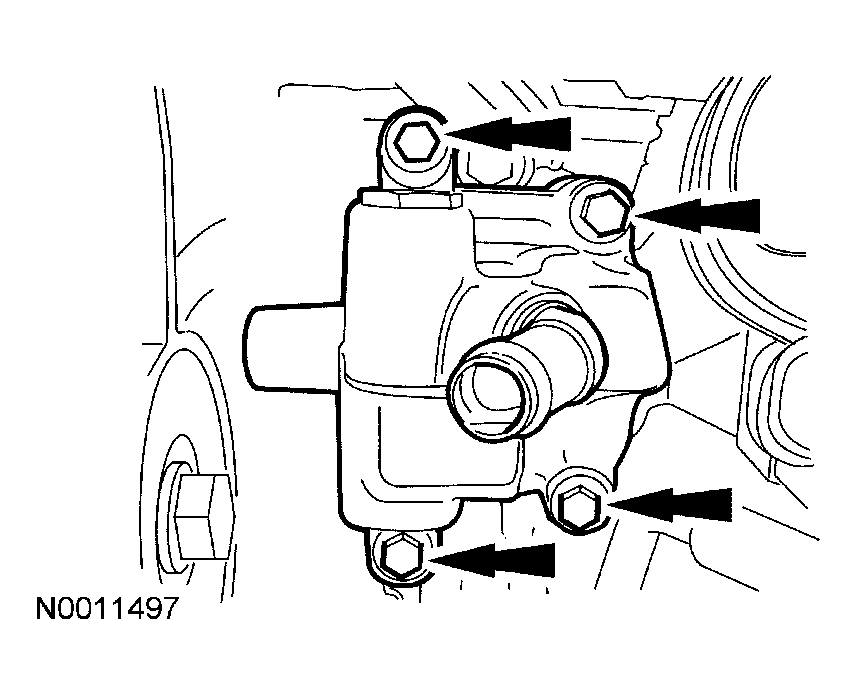

28. Remove the power steering bolts and position the power steering pump aside.
    Fig 17: Removing Power Pump Steering Bolts

    Courtesy of FORD MOTOR CO.

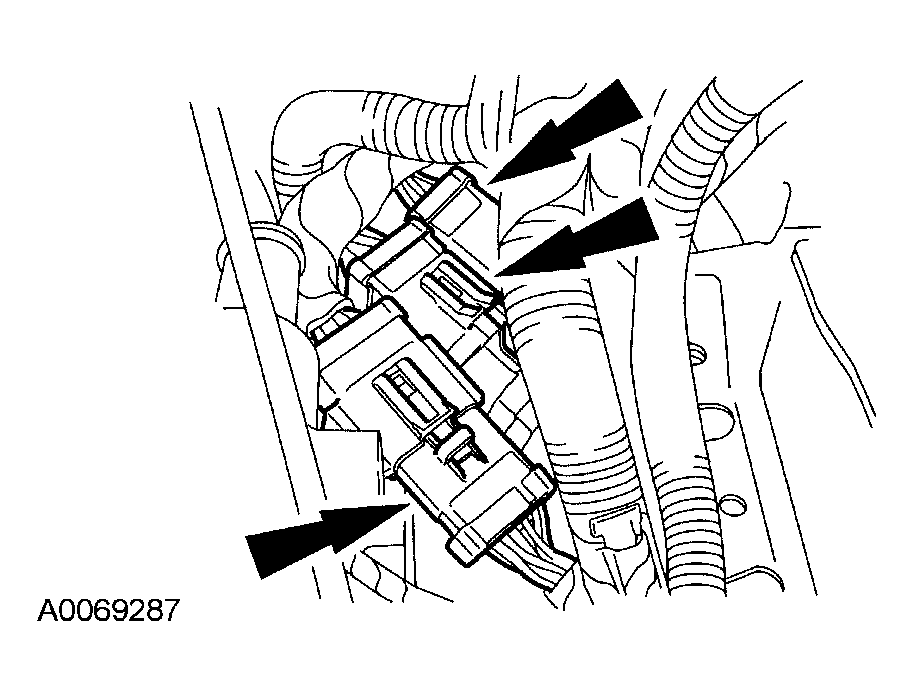

29. Disconnect the three main engine wiring harness electrical connectors.
    Fig 18: Disconnecting Main Engine Wiring Harness Electrical Connectors

    Courtesy of FORD MOTOR CO.

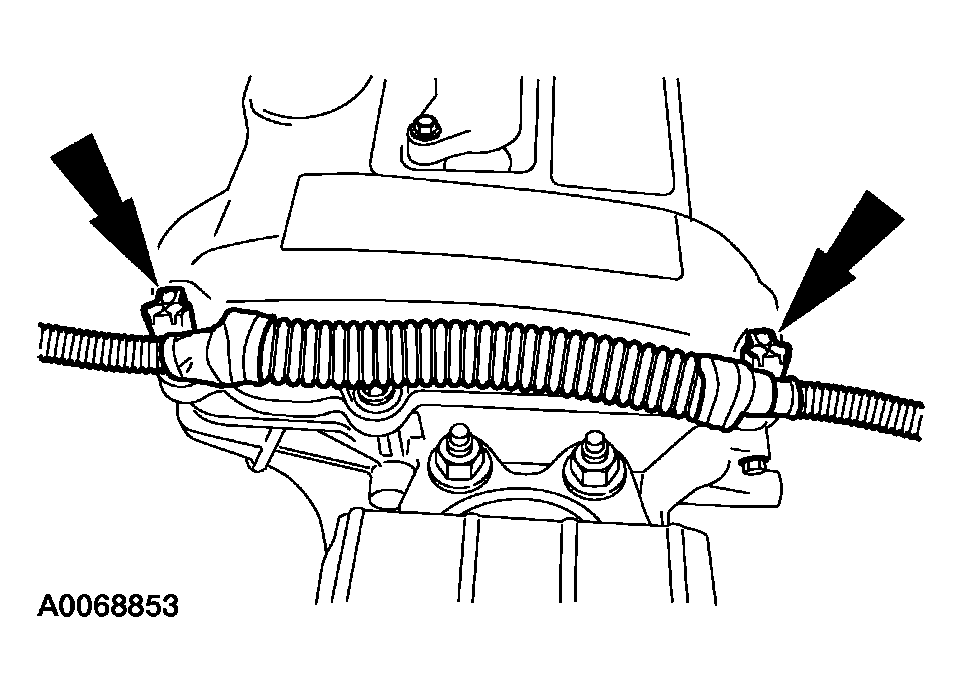

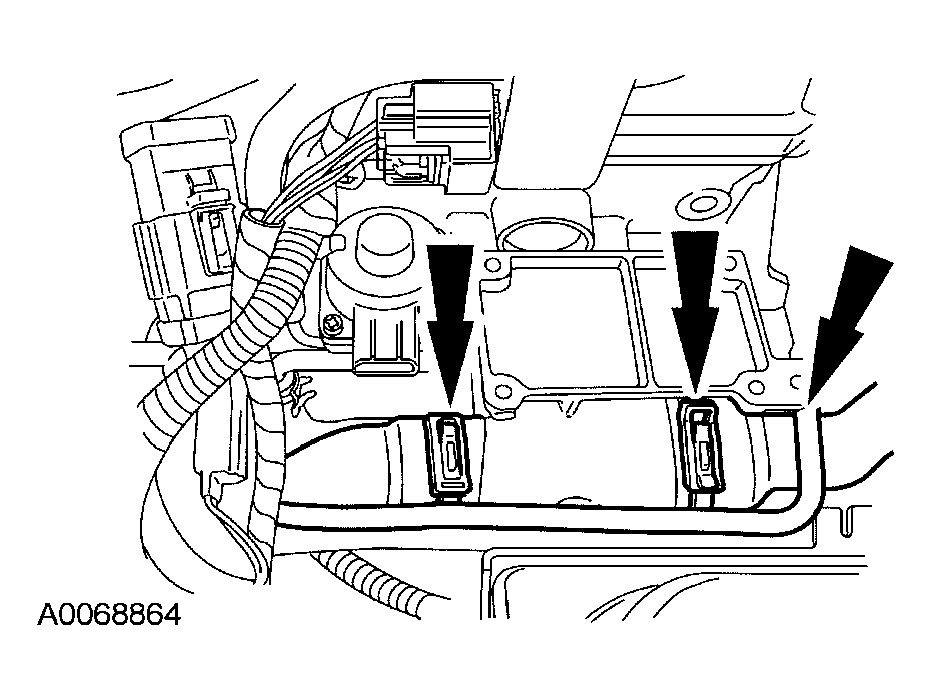

30. Remove the wiring harness retainers from the valve cover.
    Fig 19: Removing Wiring Harness Retainers From Valve Cover

    Courtesy of FORD MOTOR CO.
31. Disconnect the cooling fan electrical connector.
    Fig 20: Disconnecting Cooling Fan Electrical Connector

    Courtesy of FORD MOTOR CO.
32. Disconnect the cooling fan electrical connector.
    Fig 21: Disconnecting Cooling Fan Electrical Connector

    Courtesy of FORD MOTOR CO.

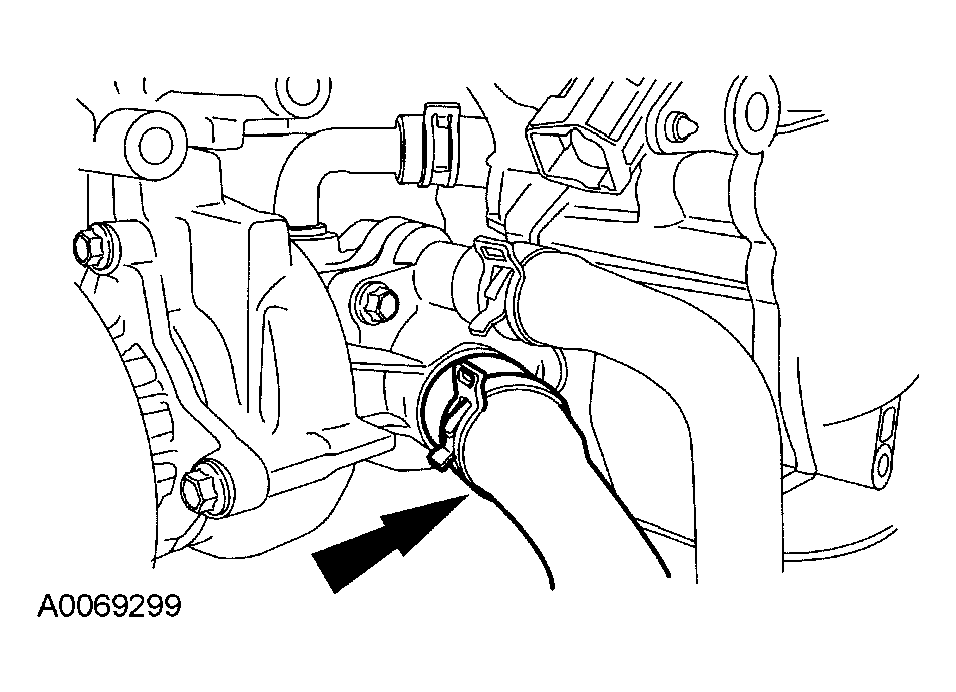

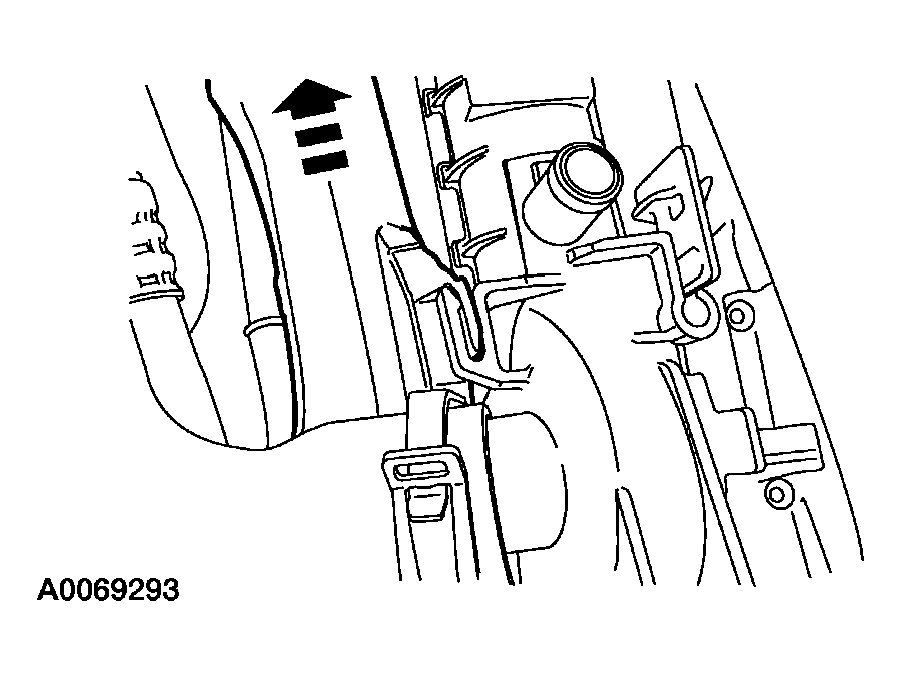

33. Disconnect the upper radiator hose.
    Fig 22: Disconnecting Upper Radiator Hose

    Courtesy of FORD MOTOR CO.
34. Remove the battery cable bracket nut.
    Fig 23: Removing Battery Cable Bracket Nut

    Courtesy of FORD MOTOR CO.

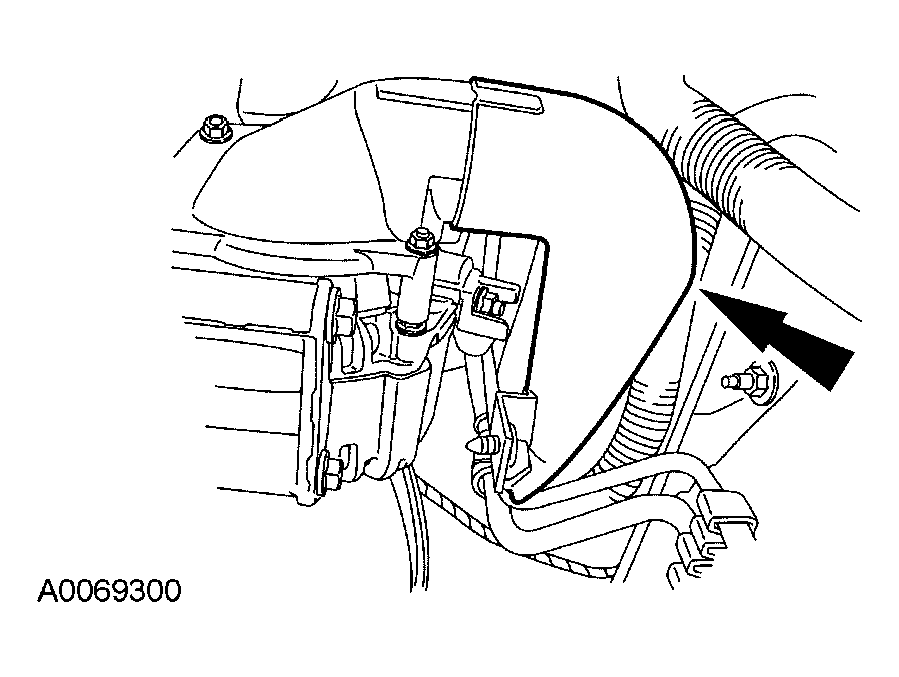

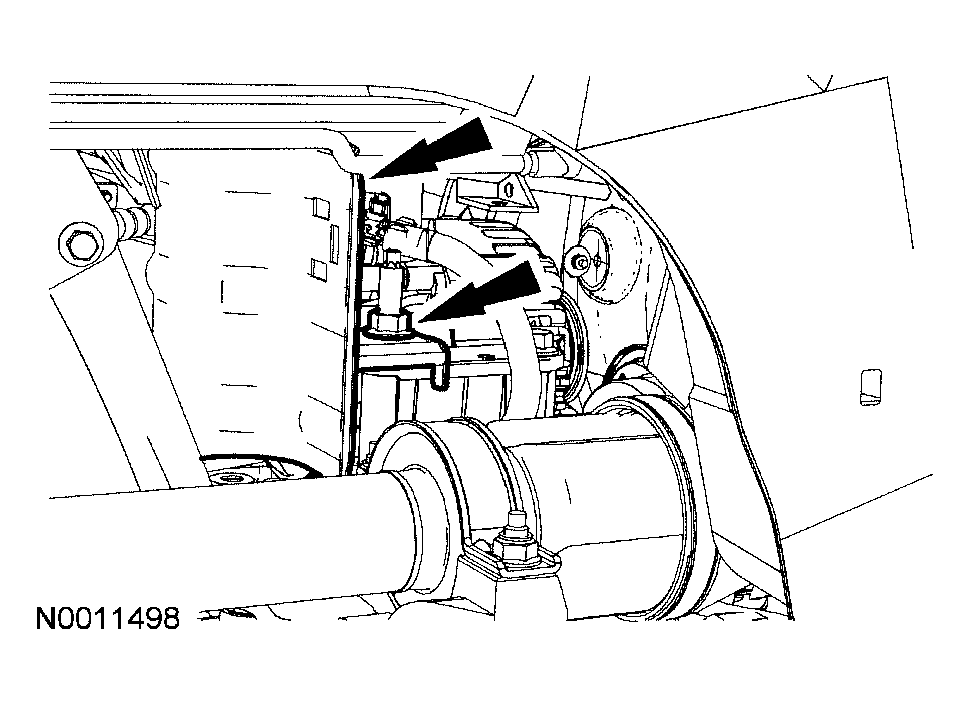

35. Remove the generator heat shield top nut.
    Fig 24: Removing Generator Heat Shield Top Nut

    Courtesy of FORD MOTOR CO.
36. Remove the generator heat shield lower nut and the heat shield.
    Fig 25: Removing Generator Heat Shield Lower Nut And Heat Shield

    Courtesy of FORD MOTOR CO.

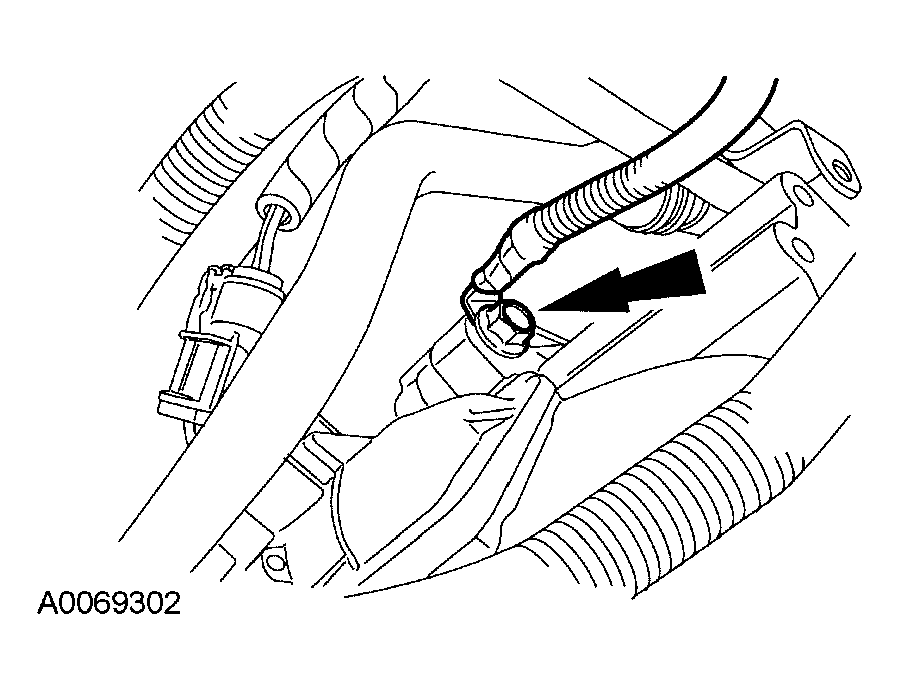

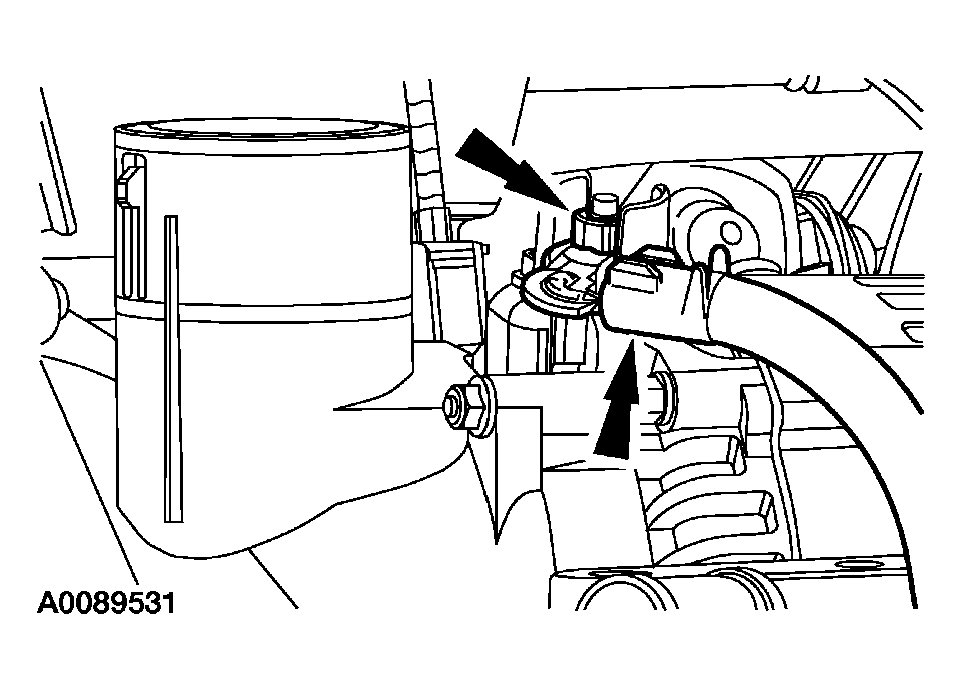

37. Remove the generator B+ cable nut and disconnect the B+ cable.
    Fig 26: Removing Generator B+ Cable Nut

    Courtesy of FORD MOTOR CO.
38. Remove the bolt and the ground cable.
    Fig 27: Removing Bolt And Ground Cable

    Courtesy of FORD MOTOR CO.
39. Remove the generator cooling tube.
    Fig 28: Removing Generator Cooling Tube

    Courtesy of FORD MOTOR CO.

Vehicles equipped with automatic transmissions

40. Disconnect the transmission shifter cable and position it aside.
    Fig 29: Disconnecting Transmission Shifter Cable

    Courtesy of FORD MOTOR CO.

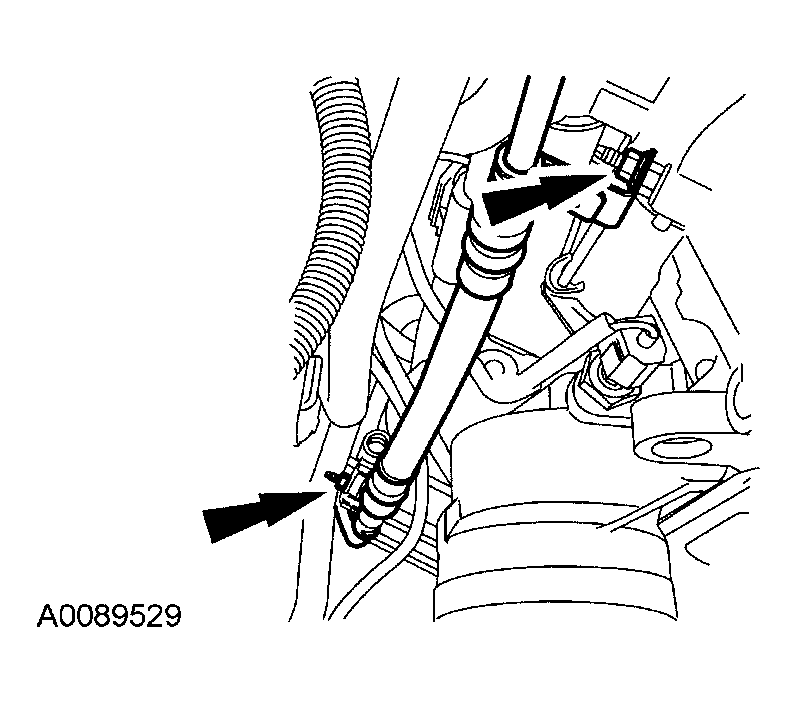

41. Disconnect the transmission cooler hoses.
    Fig 30: Disconnecting Transmission Cooler Hoses

    Courtesy of FORD MOTOR CO.

All vehicles

42. Remove the cooling fan.
    Fig 31: Removing Cooling Fan

    Courtesy of FORD MOTOR CO.

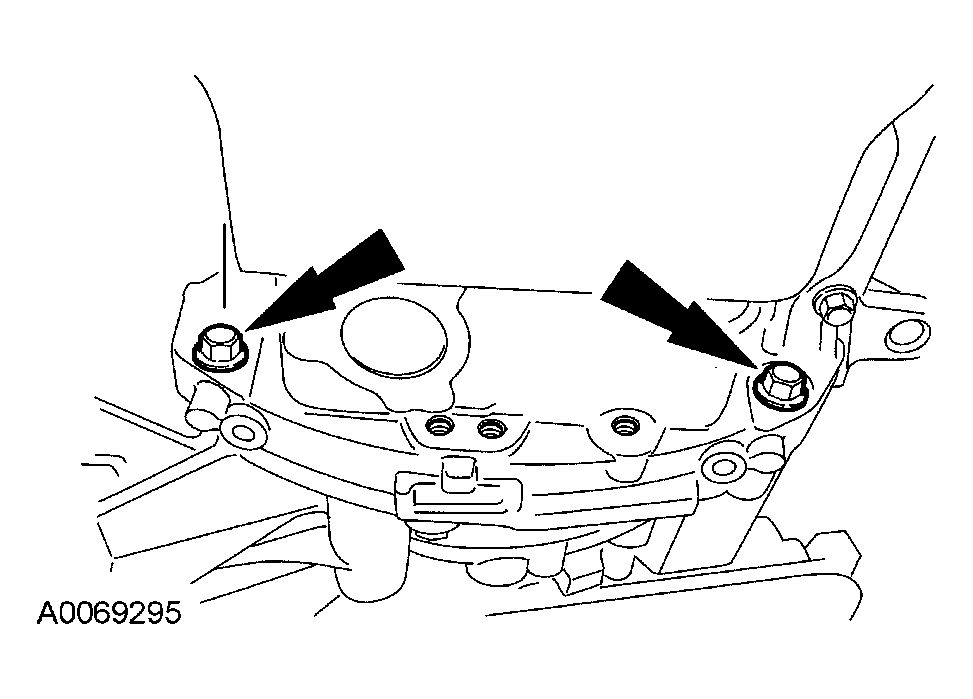

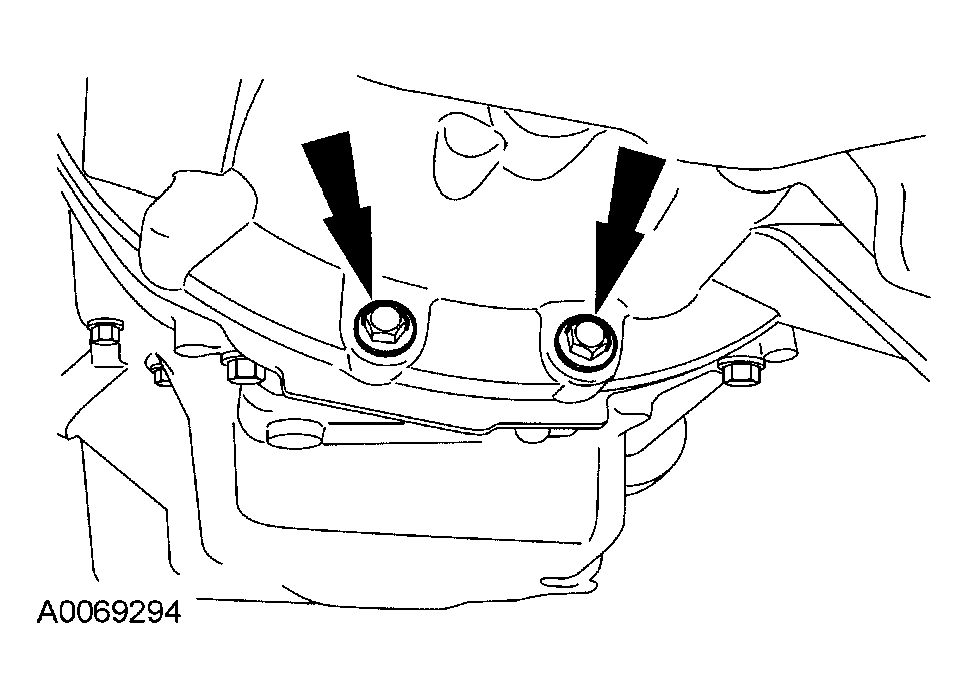

43. Remove the two lower bellhousing bolts.
    Fig 32: Removing Lower Bellhousing Bolts

    Courtesy of FORD MOTOR CO.
44. Remove the two oil pan-to-bellhousing bolts.
    Fig 33: Removing Oil Pan-To-Bellhousing Bolts

    Courtesy of FORD MOTOR CO.

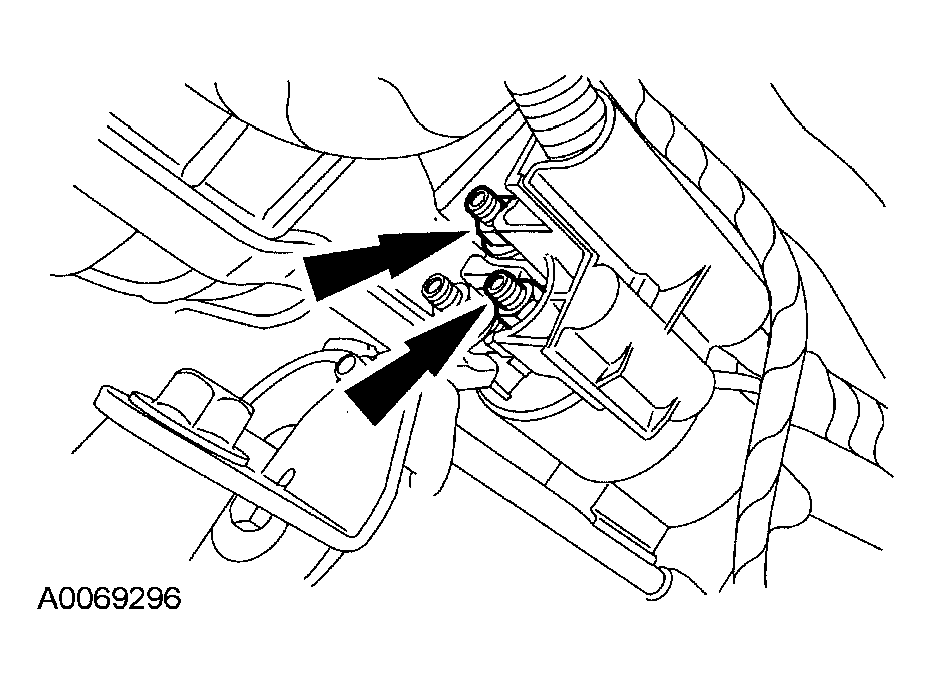

45. Disconnect the starter electrical connections.
    Fig 34: Disconnecting Starter Electrical Connections

    Courtesy of FORD MOTOR CO.
46. Remove the nuts and detach the power steering pressure line brackets from the stud bolts and position aside.
    Fig 35: Removing Nuts

    Courtesy of FORD MOTOR CO.

Vehicles with air conditioning

47. Remove the three A/C compressor bolts.
    Fig 36: Removing Three A/C Compressor Bolts

    Courtesy of FORD MOTOR CO.
48. Loosen the bolt and remove the A/C compressor.
    • Lower the A/C compressor to access the manifold bolt.
    • Discard the O-ring seals.
    • Disconnect the field coil electrical connector.
    Fig 37: Removing A/C Compressor Manifold Bolt

    Courtesy of FORD MOTOR CO.

All vehicles

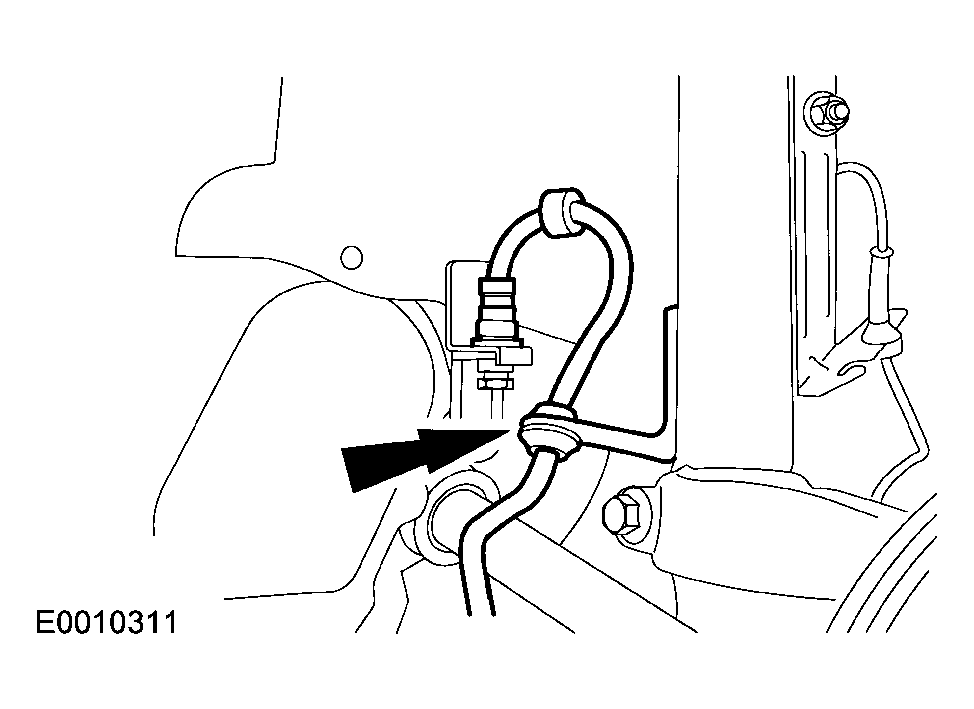

49. Detach the LH brake hose from the support bracket.
    Fig 38: Detaching LH Brake Hose From Support Bracket

    Courtesy of FORD MOTOR CO.
NOTE: Pull the caliper outward to release the piston.

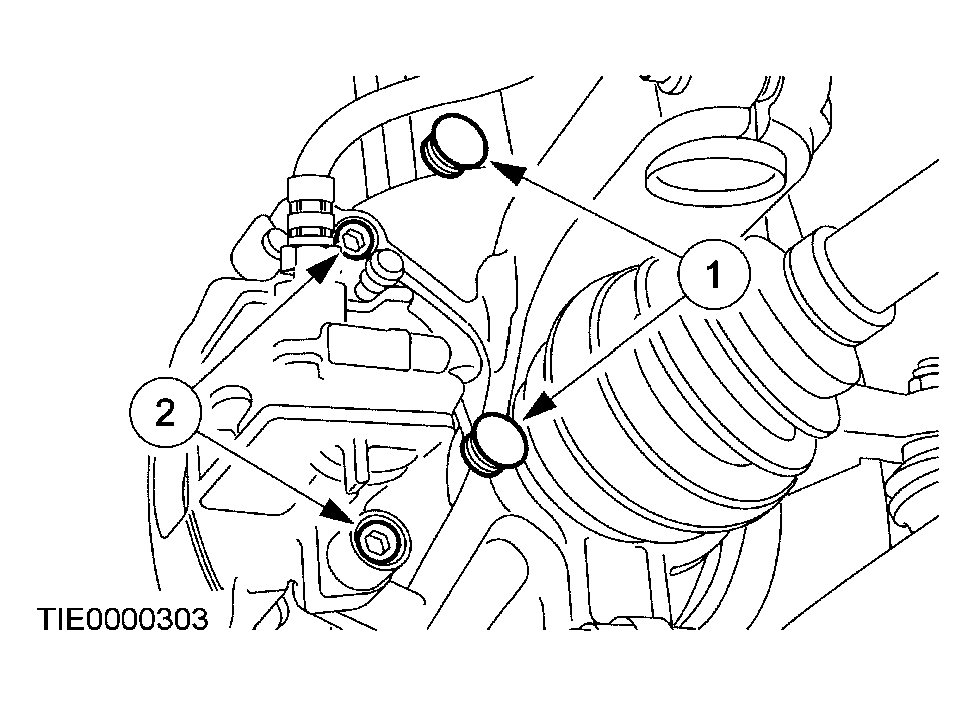

Fig 39: Removing Bolt Covers
Courtesy of FORD MOTOR CO.
50. Detach the LH caliper.
    1. Remove the bolt covers.
    2. Remove the bolts.
CAUTION: Suspend the caliper to prevent load from being placed on the brake hose.
Fig 40: Supporting Brake Caliper
Courtesy of FORD MOTOR CO.

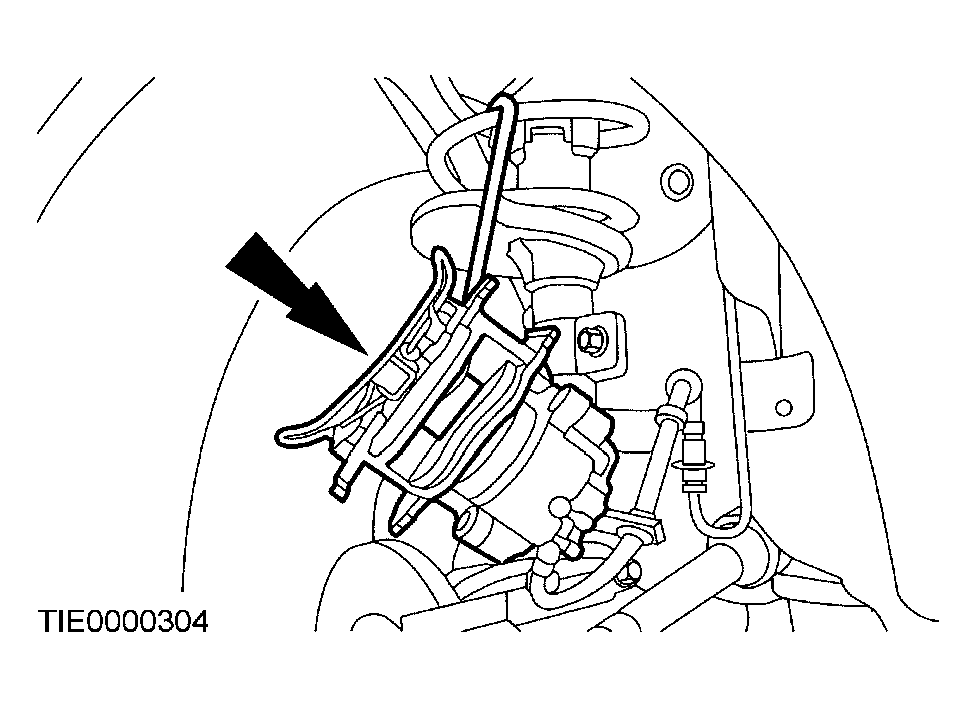

51. Support the brake caliper.

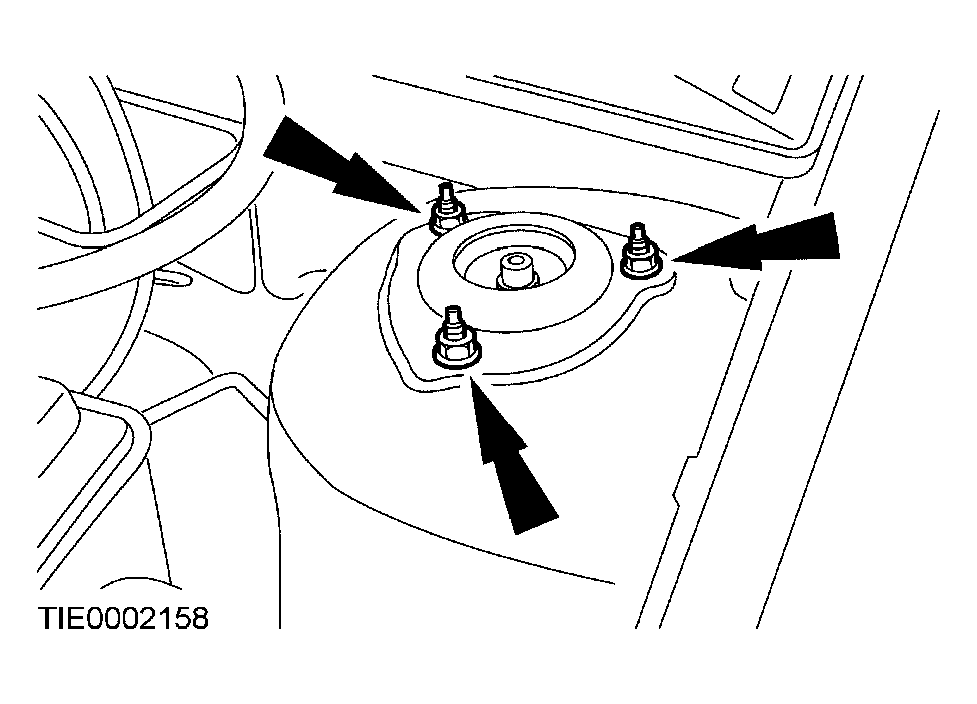

52. Loosen the LH strut and spring assembly top mount nuts by four turns.
    Fig 41: Loosening LH Strut And Spring Assembly Top Mount

    Courtesy of FORD MOTOR CO.
53. Disconnect the LH stabilizer bar at the strut.
    Fig 42: Disconnecting LH Stabilizer Bar At Strut

    Courtesy of FORD MOTOR CO.

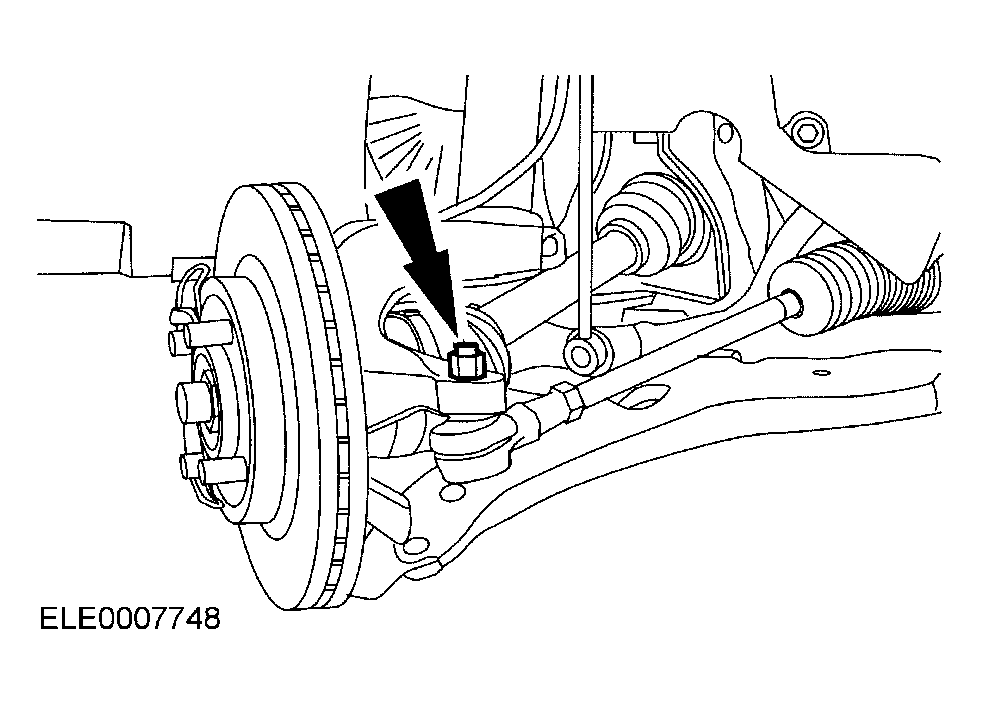

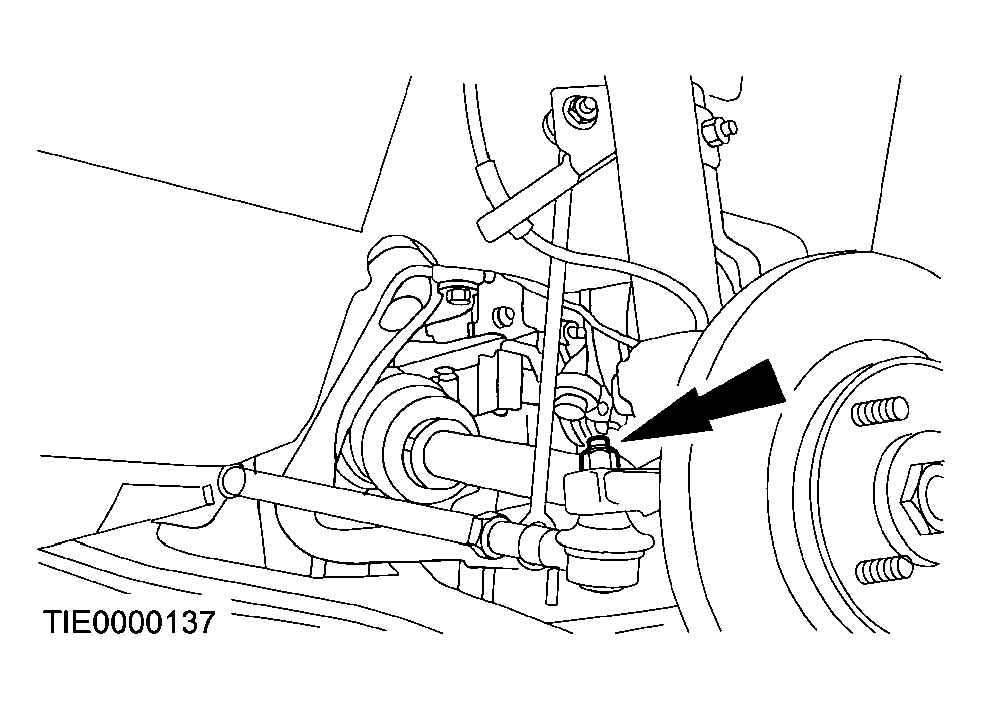

54. Remove the LH tie-rod end nut.

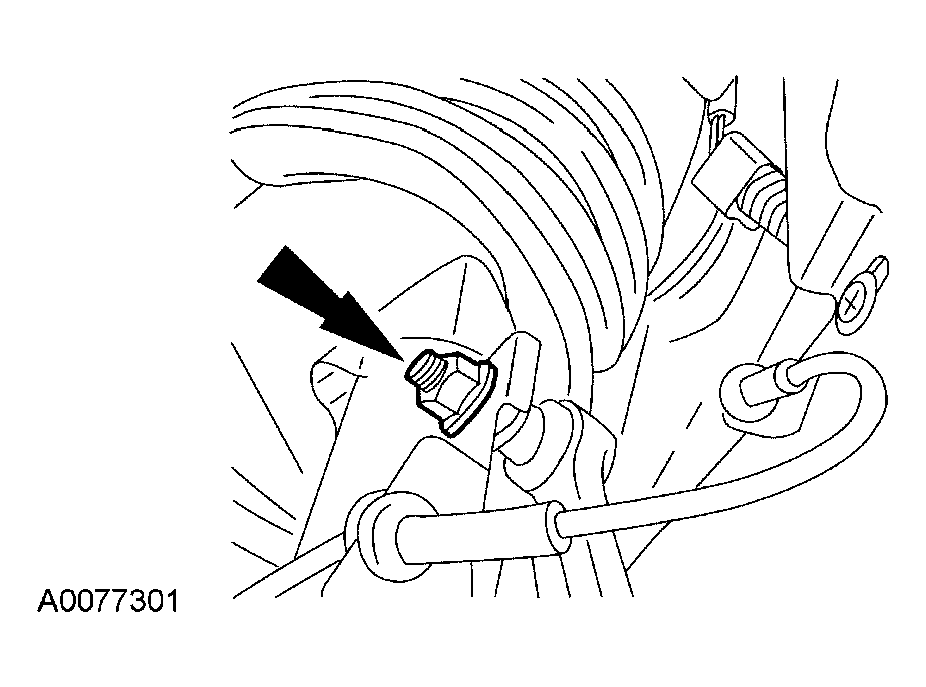

    Fig 43: Removing LH Tie-Rod End Nut

    Courtesy of FORD MOTOR CO.
55. Remove the RH tie-rod end nut.
    Fig 44: Removing RH Tie-Rod End Nut

    Courtesy of FORD MOTOR CO.

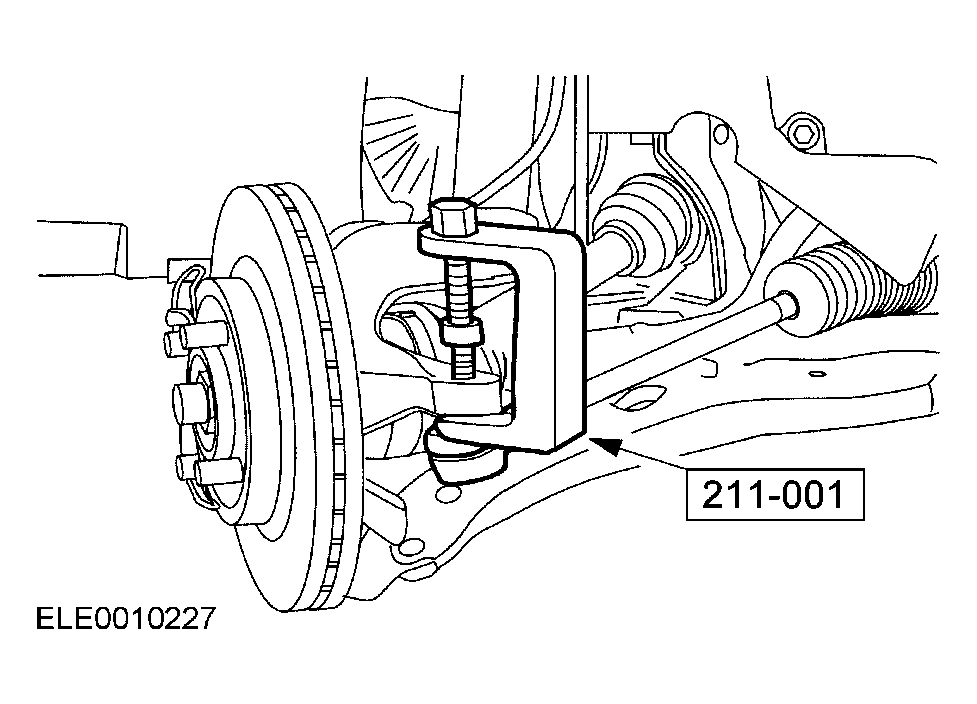

56. Using the special tool, disconnect both of the tie-rods from the knuckles.
    Fig 45: Disconnecting Both Of Tie-Rods From Knuckles

    Courtesy of FORD MOTOR CO.

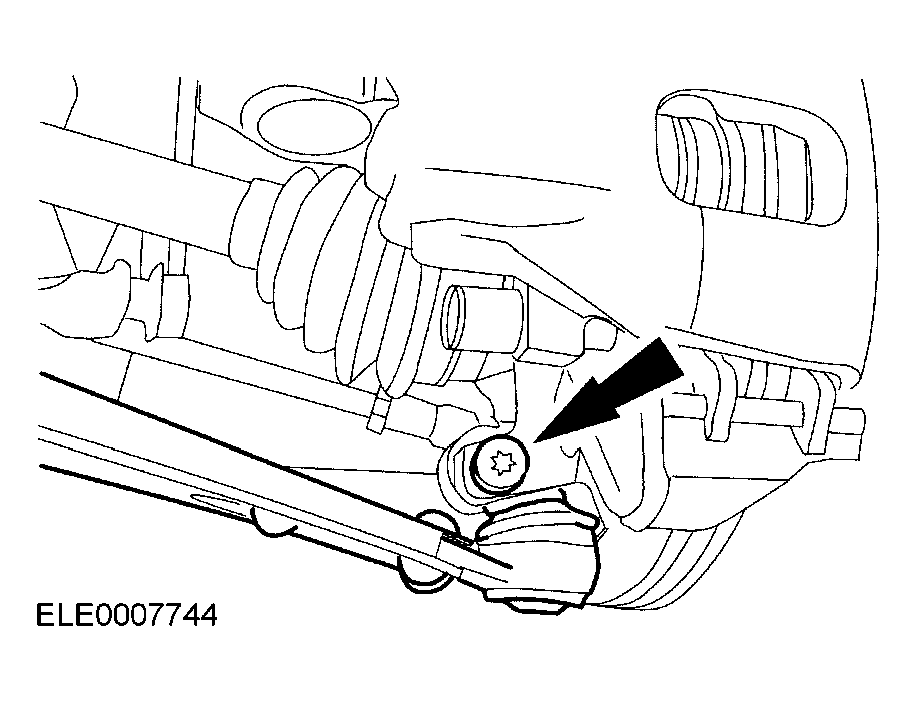

57. Disconnect both of the lower control arms from the knuckles.
    Fig 46: Disconnecting Both Of Lower Control Arms From Knuckles

    Courtesy of FORD MOTOR CO.
58. Remove the mounting bracket nuts, then remove the bracket from the halfshaft intermediate bearing.

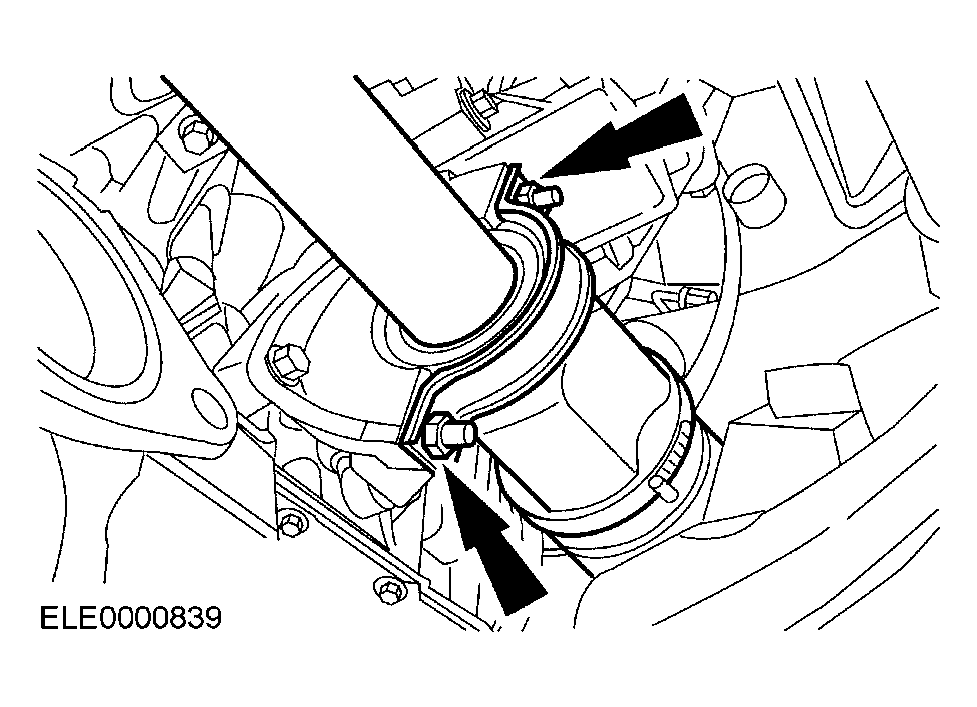

    Fig 47: Removing Bracket From Halfshaft Intermediate Bearing

    Courtesy of FORD MOTOR CO.
59. Remove the RH front drive halfshaft. Position the halfshaft aside and support with mechanic's wire.
    • Install a plug into the transaxle opening.
    Fig 48: Removing RH Front Drive Halfshaft

    Courtesy of FORD MOTOR CO.

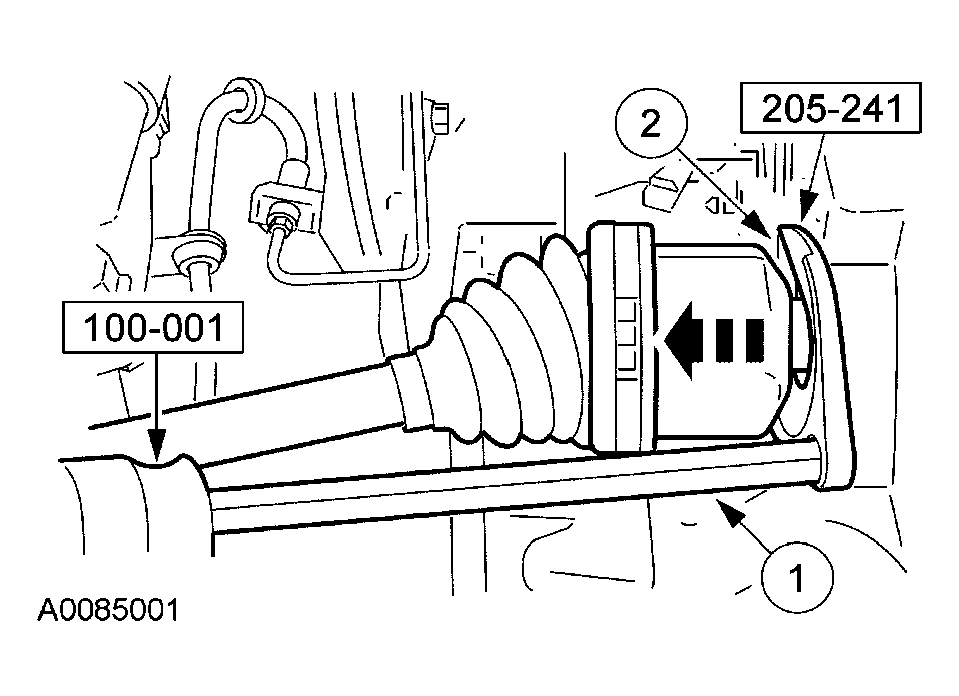

60. Remove the LH front drive halfshaft from the transaxle.
    1. Using the special tool, remove the halfshaft from the transaxle.
    2. Install a plug into the transaxle opening.
       • Support the halfshaft using mechanic's wire.
    Fig 49: Removing LH Front Drive Halfshaft From Transaxle

    Courtesy of FORD MOTOR CO.

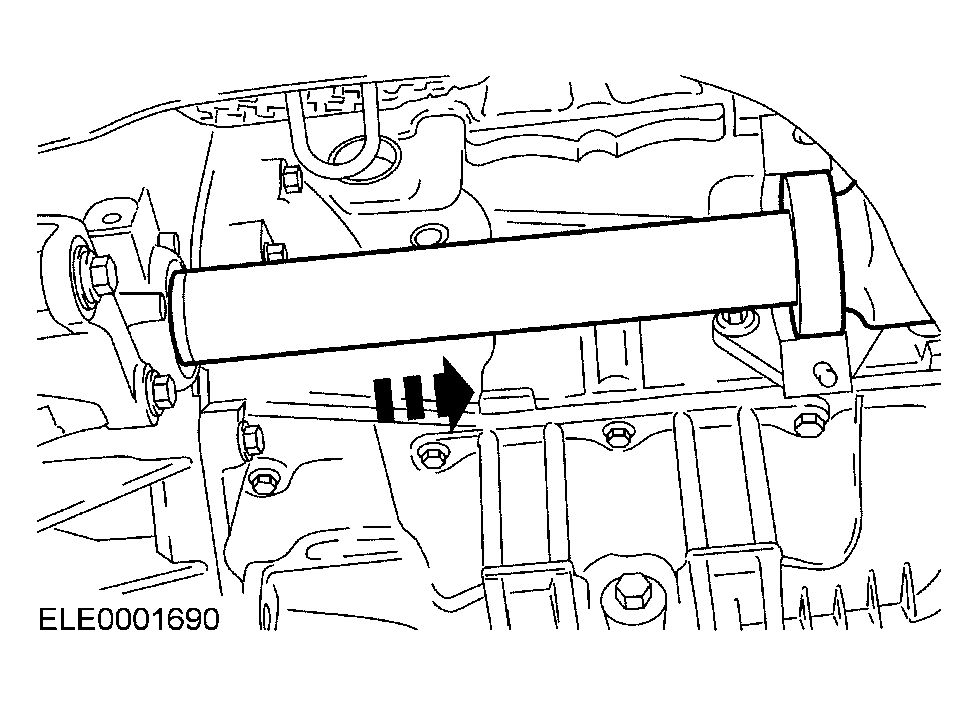

61. Remove the lower engine mount.

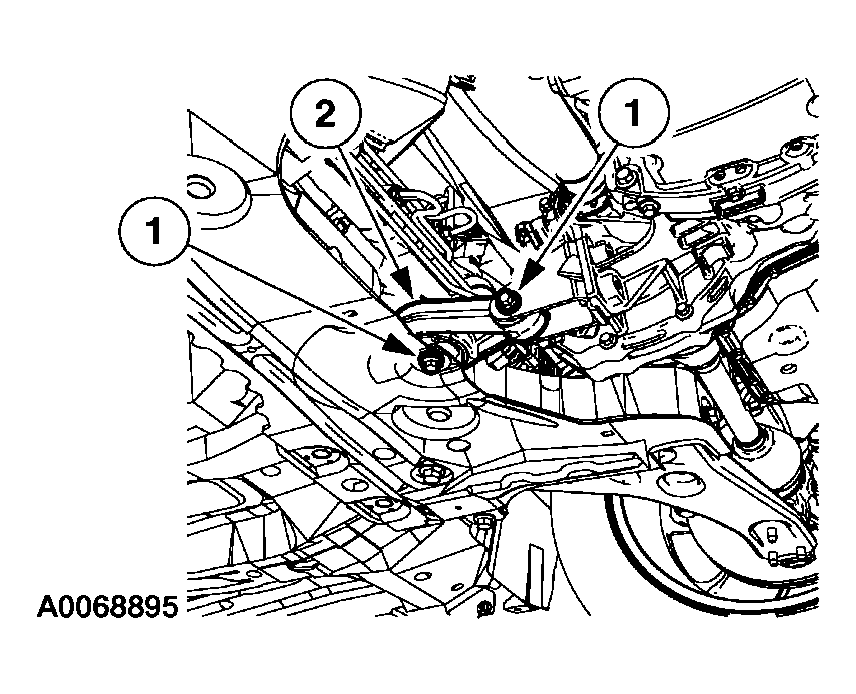

    Fig 50: Removing Lower Engine Mount

    Courtesy of FORD MOTOR CO.

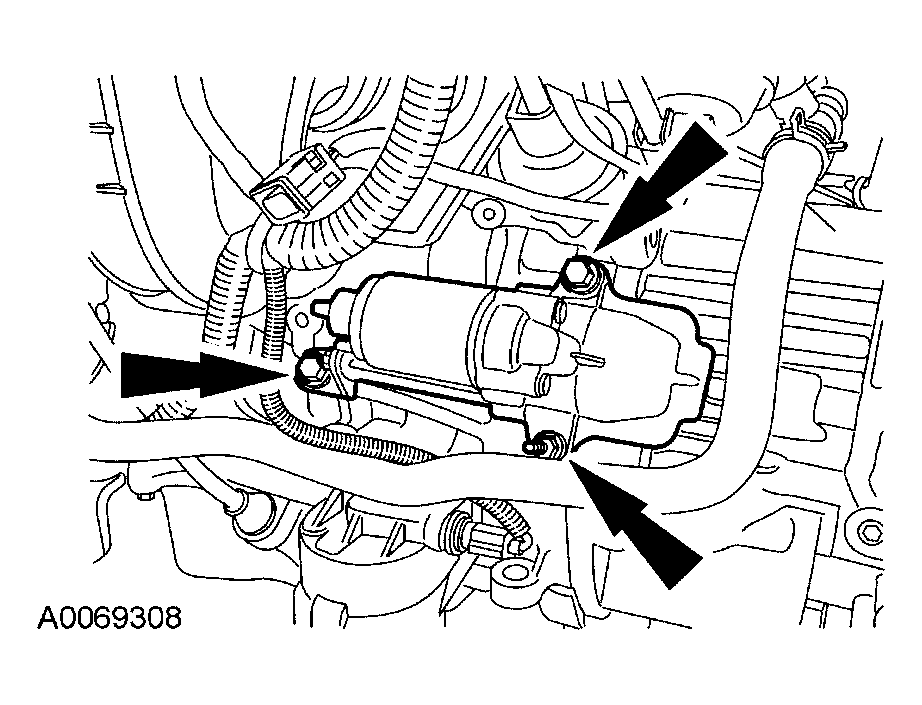

62. Remove the three bolts and the starter.
    Fig 51: Removing Bolts And Starter

    Courtesy of FORD MOTOR CO.
63. Remove the starter isolator.
    Fig 52: Identifying Starter Motor Isolator

    Courtesy of FORD MOTOR CO.

Vehicles equipped with manual transmission

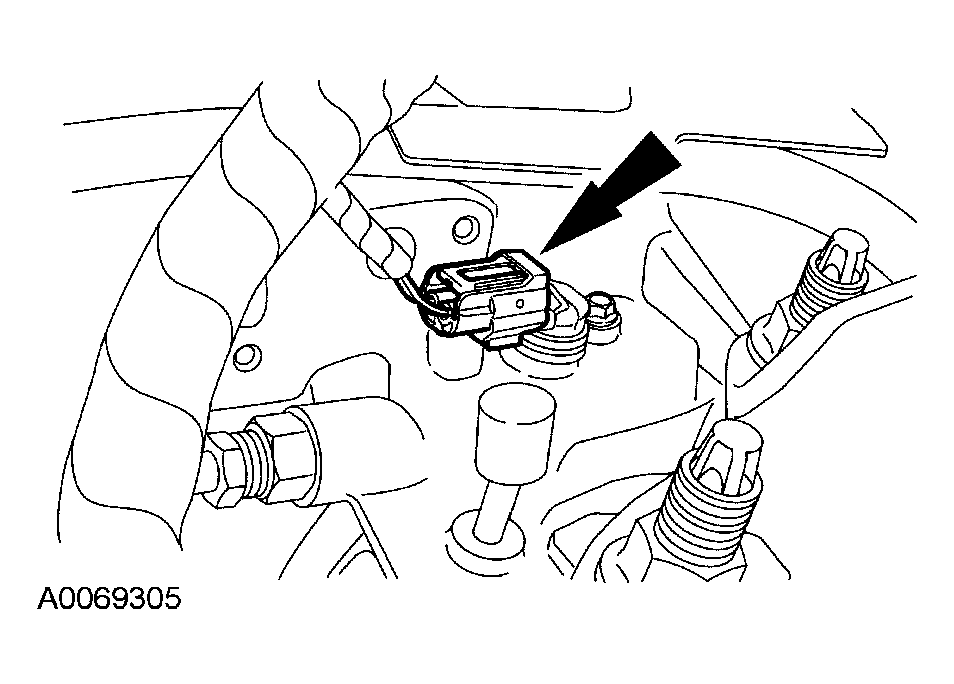

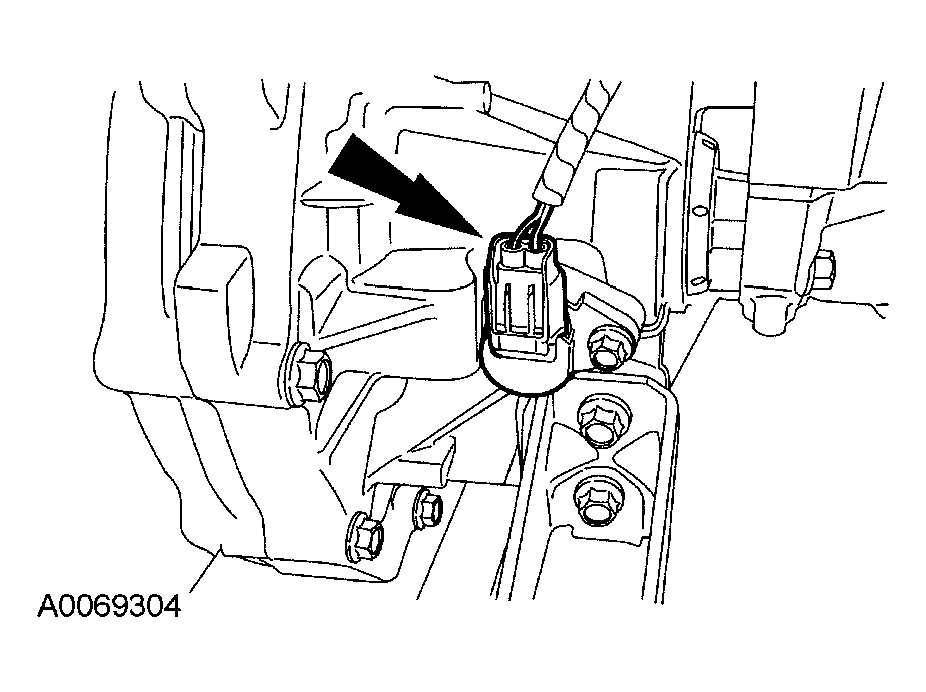

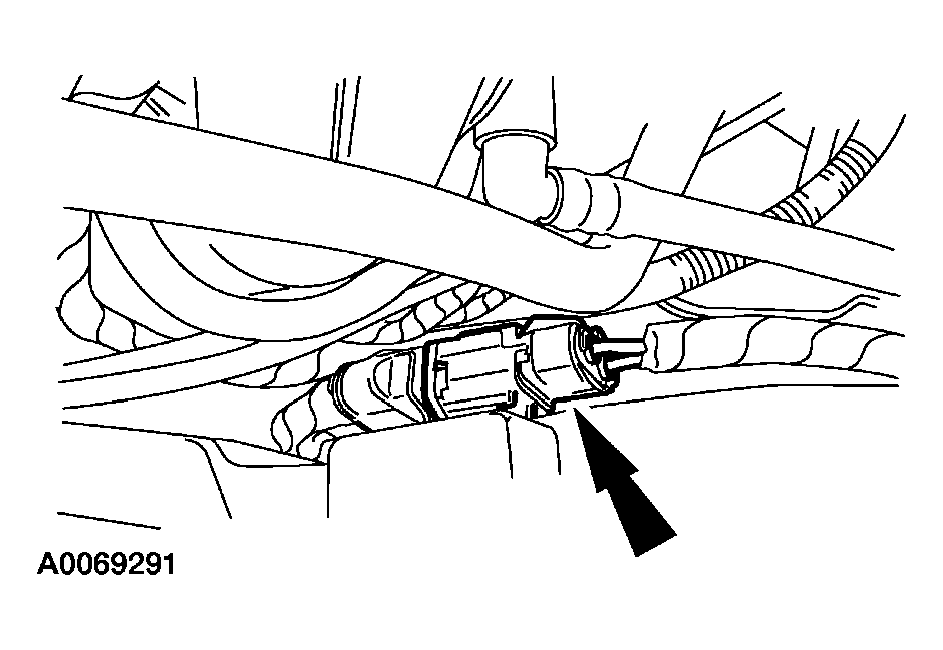

64. Disconnect the vehicle speed sensor (VSS) electrical connector.
    Fig 53: Disconnecting Vehicle Speed Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.

Vehicles equipped with automatic transmissions

NOTE: Mark one stud and the flexplate for assembly reference.
Fig 54: Locating Torque Converter Nut
Courtesy of FORD MOTOR CO.
65. Remove the four torque converter nuts.

All vehicles

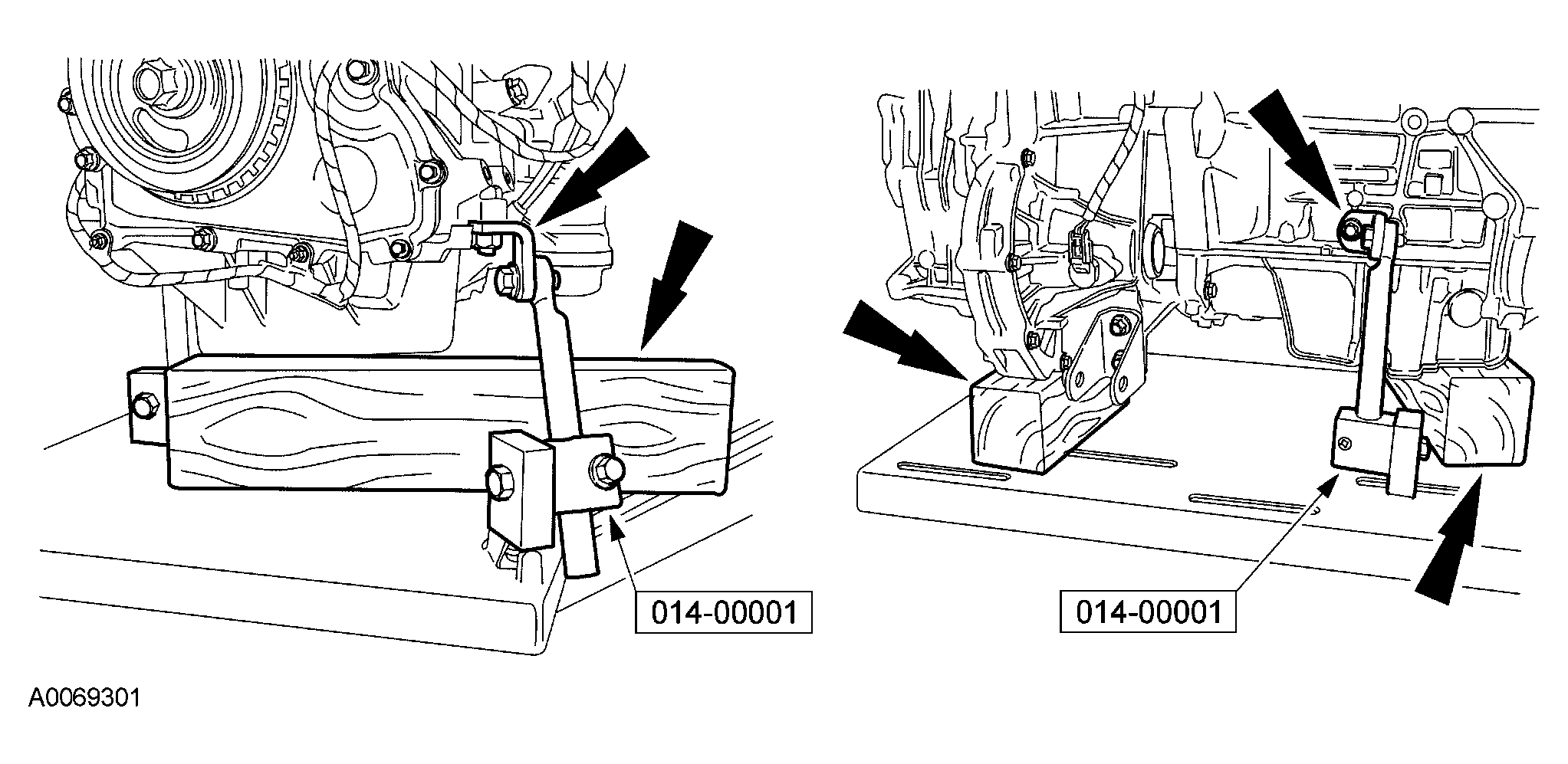

66. Using the special tools, fasten the engine to the lift table.
    Fig 55: Fastening Engine To Lift Table

    Courtesy of FORD MOTOR CO.

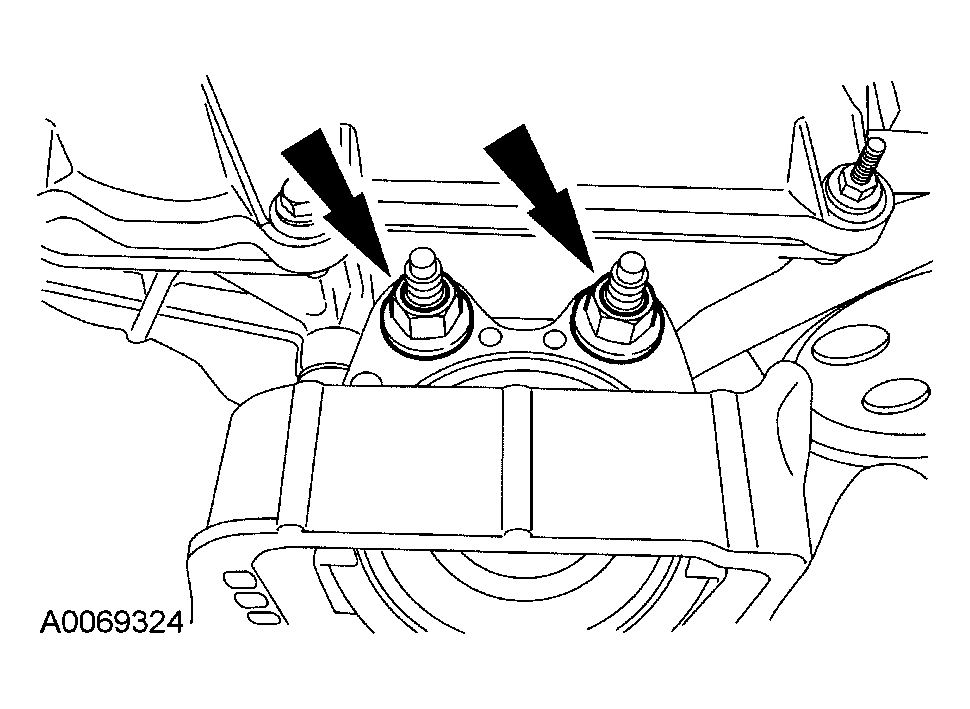

67. Remove the RH motor mount nuts.
    Fig 56: Removing RH Motor Mount Nuts

    Courtesy of FORD MOTOR CO.

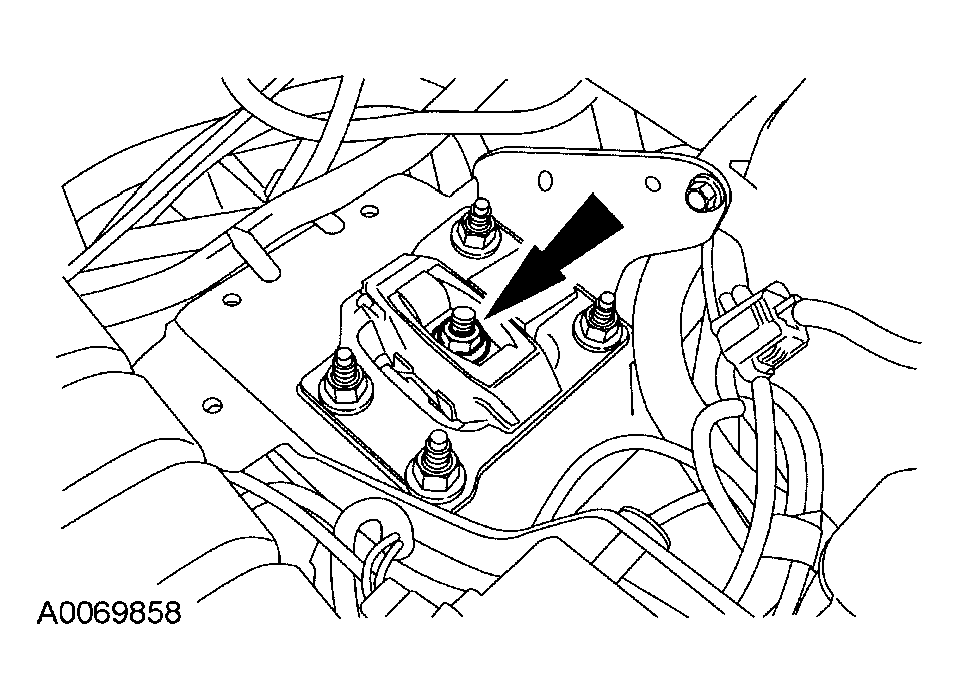

68. Remove the LH motor mount nut.
    Fig 57: Removing LH Motor Mount Nut

    Courtesy of FORD MOTOR CO.
69. Lower the engine and transaxle assembly from the vehicle.

Vehicles equipped with automatic transmissions

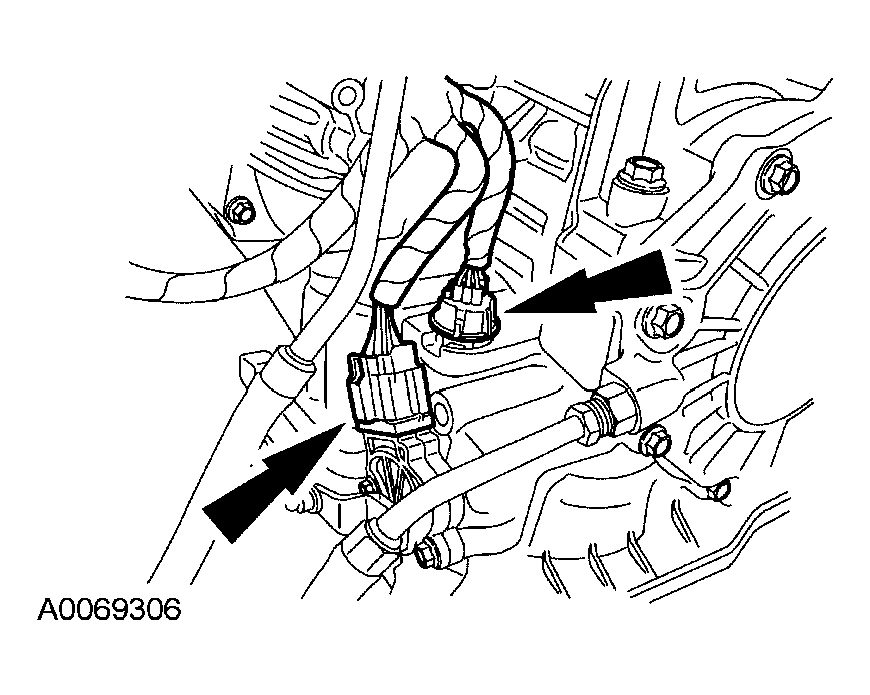

70. Disconnect the output shaft speed (OSS) sensor electrical connector.
    Fig 58: Disconnecting Output Shaft Speed Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
71. Disconnect the turbine shaft speed (TSS) sensor electrical connector.
    Fig 59: Disconnecting Turbine Shaft Speed Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
72. Disconnect the solenoid body and the transmission range (TR) sensor electrical connectors.
    Fig 60: Disconnecting Solenoid Body And Transmission Range Sensor Electrical Connectors

    Courtesy of FORD MOTOR CO.

All vehicles

NOTE: Lower the engine to within a few inches of the floor.

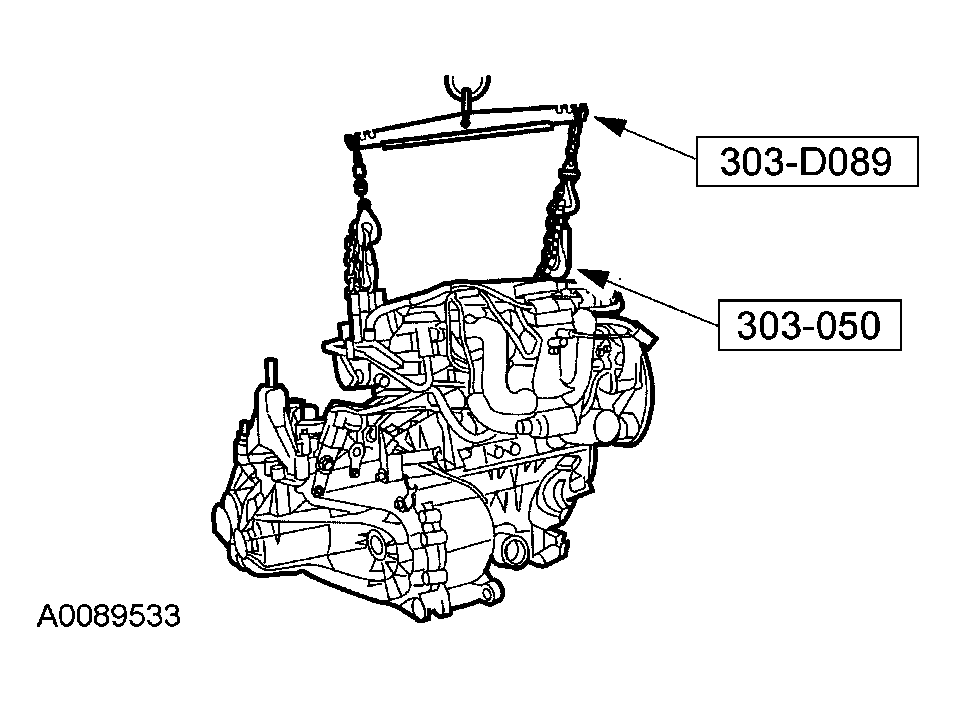

Fig 61: Removing Engine From Table
Courtesy of FORD MOTOR CO.
73. Using the engine crane, remove the engine from the lift table.
74. Remove the remaining bellhousing bolts and separate the engine and transmission.

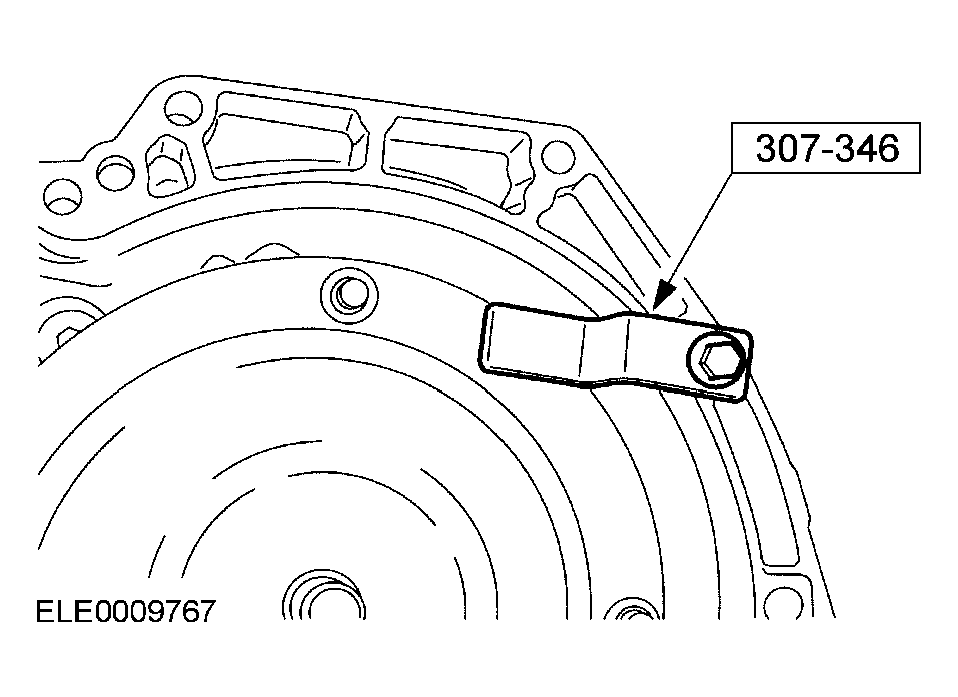

75. Install the special tool to prevent damage to the torque converter.
    Fig 62: Installing Special Tool

    Courtesy of FORD MOTOR CO.
