Home >> Ford >> 2004 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Electronic Manual Temperature Control (EMTC) Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

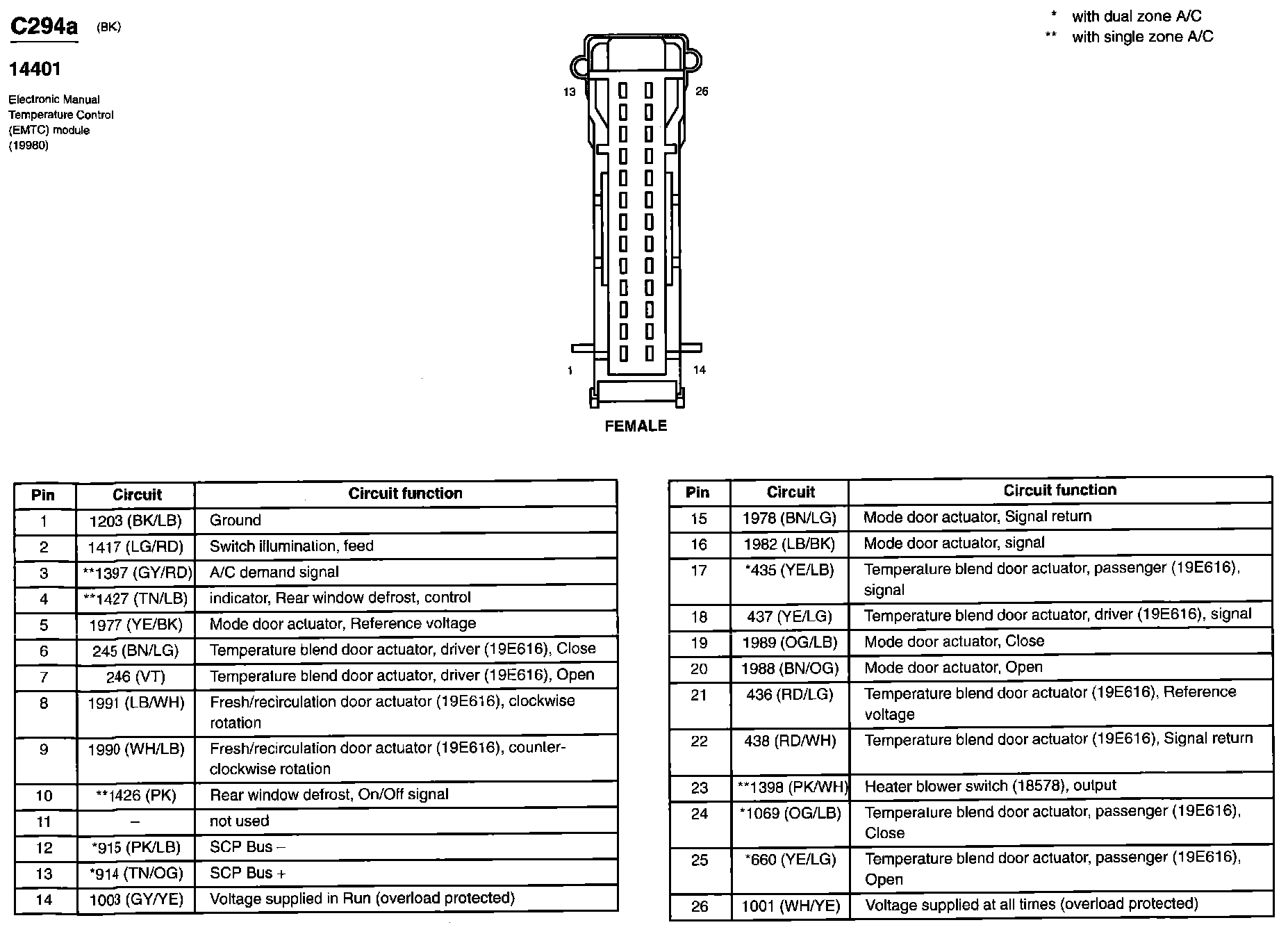

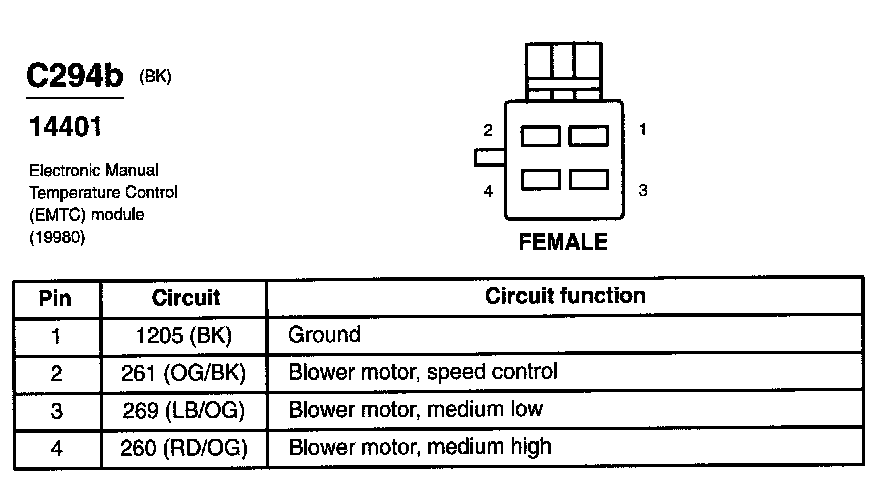

Electronic Manual Temperature Control (EMTC) Module
