Home >> Ford >> 2004 >> Ranger 4WD L4-2.3L VIN D >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Battery Junction Box
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

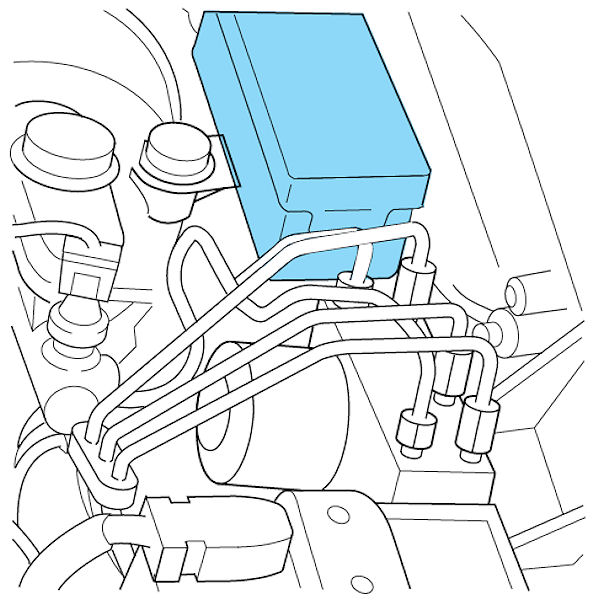

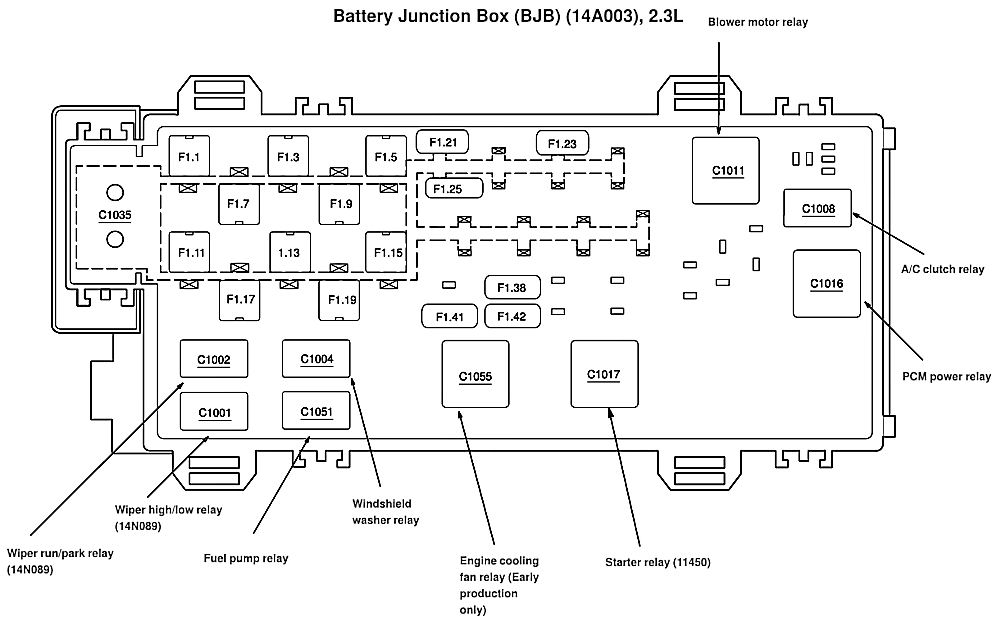

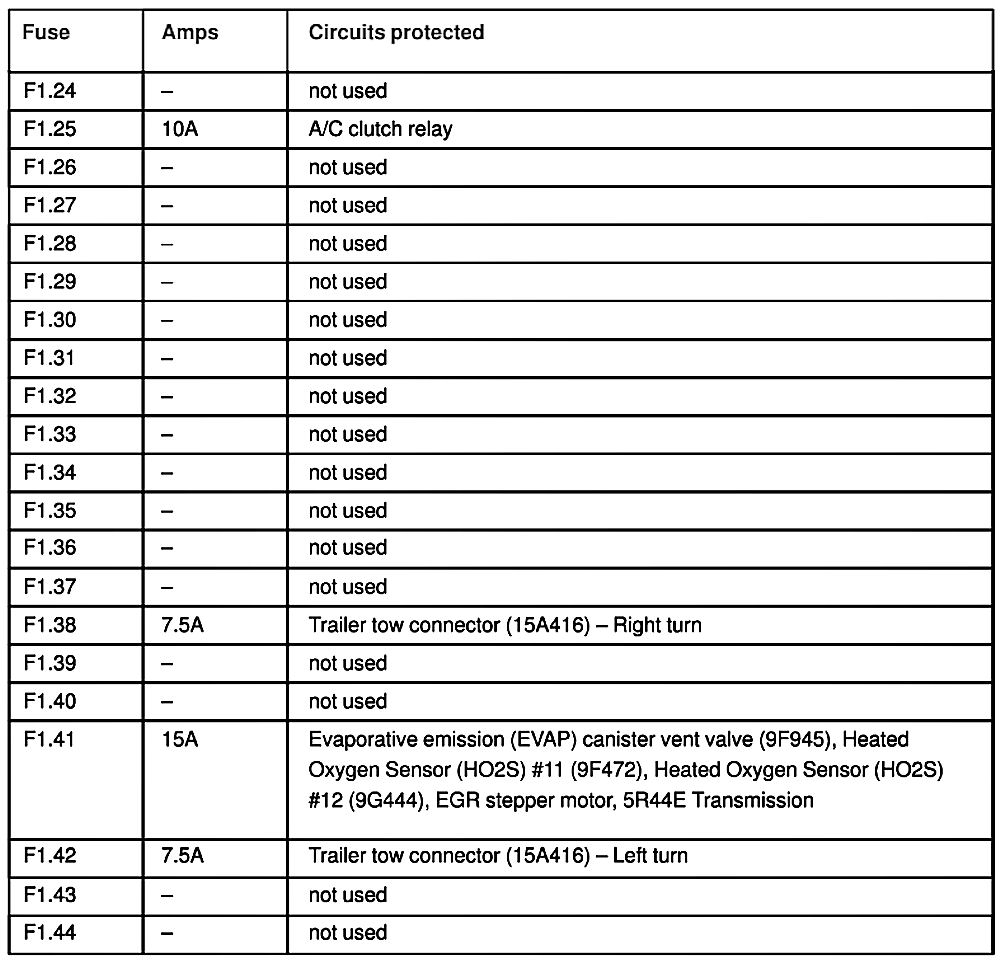

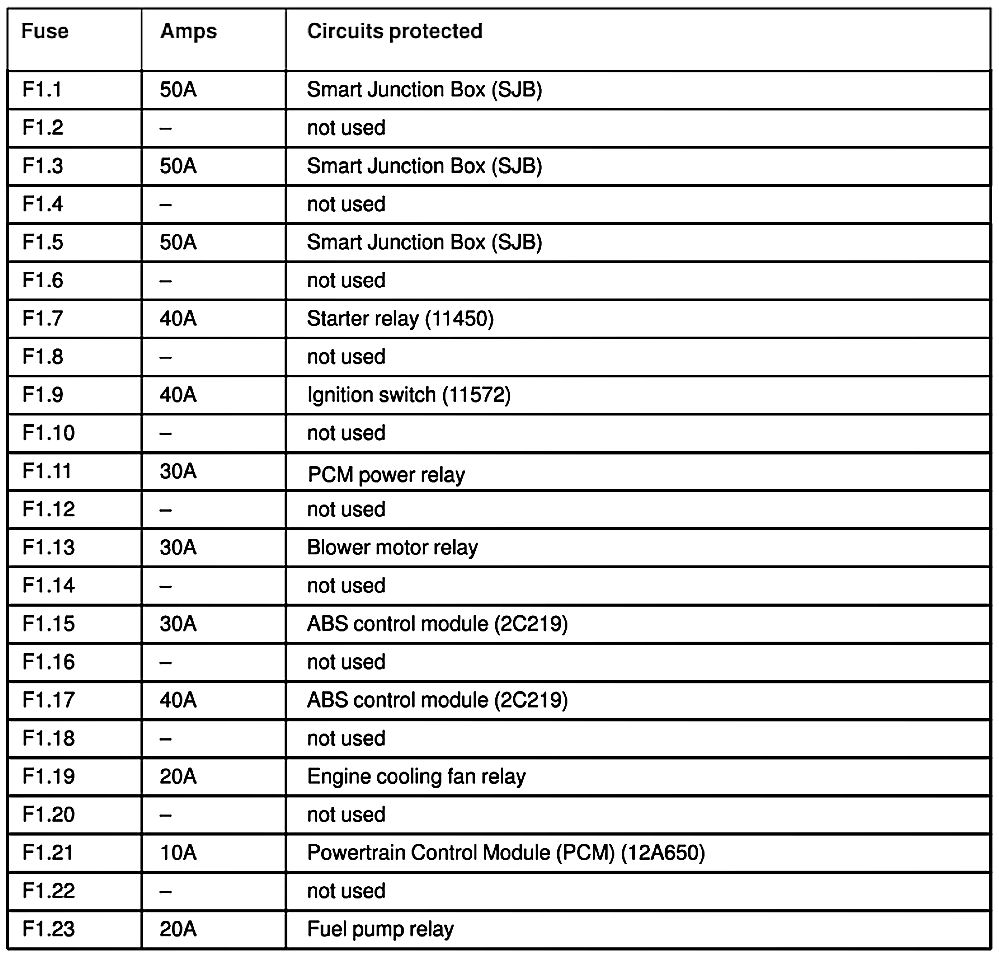

Battery Junction Box
