Pinpoint Test B: 4-Wheel Anti-Lock Brake/Traction Control (Abs/Tc) Module Or Stability Assist Module Does Not Respond To Diagnostic Tool (SCP)

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

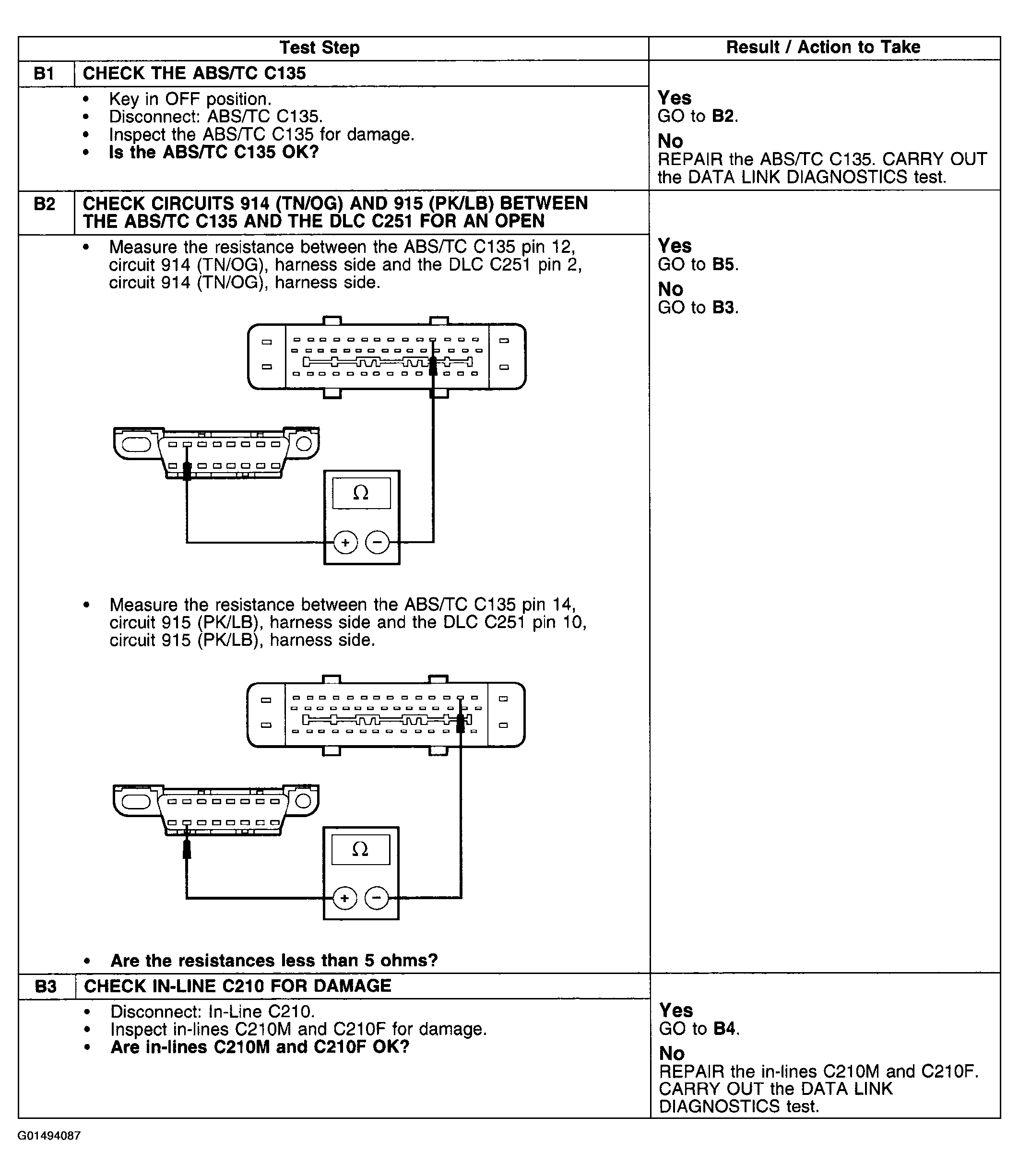

Fig 1: Pinpoint Test B: 4-Wheel Anti-Lock Brake/Traction Control (ABS/TC) Module Or Stability Assist Module Does Not Respond To Diagnostic Tool (SCP) (B1-B3)

Courtesy of FORD MOTOR CO.

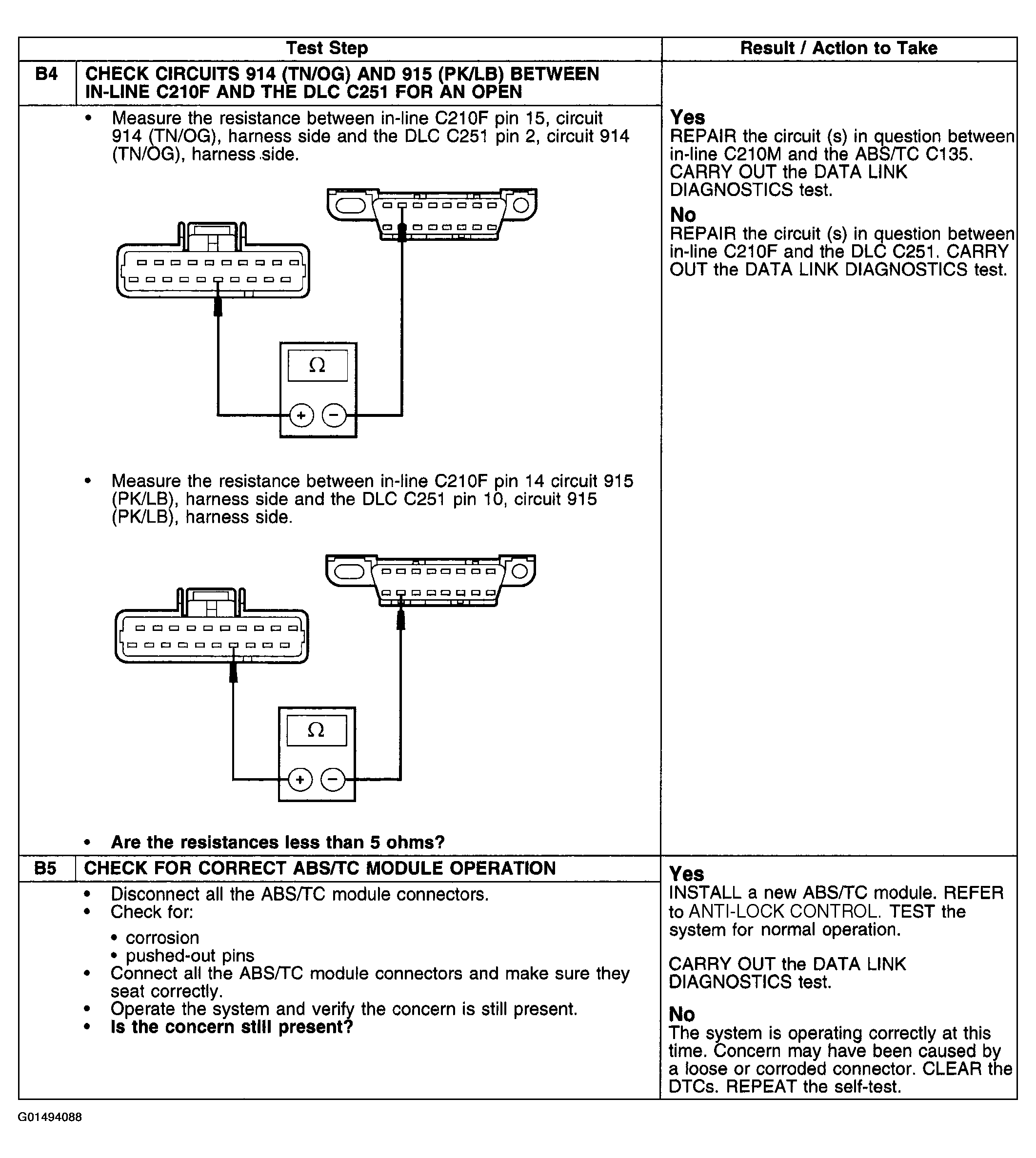

Fig 2: Pinpoint Test B: 4-Wheel Anti-Lock Brake/Traction Control (ABS/TC) Module Or Stability Assist Module Does Not Respond To Diagnostic Tool (SCP) (B4-B5)

Courtesy of FORD MOTOR CO.
