Pinpoint Test F: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

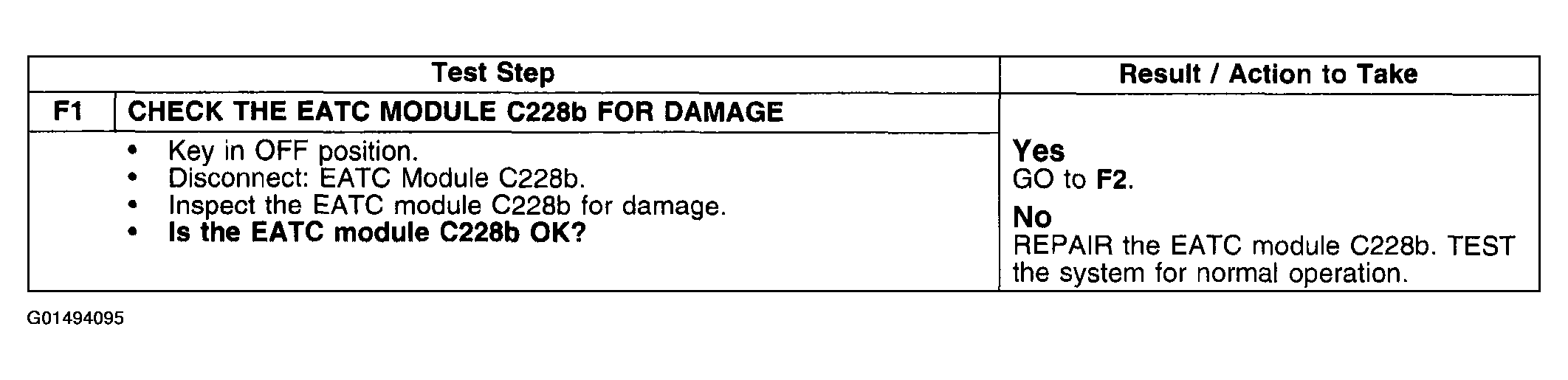

Fig 1: Pinpoint Test F: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (F1)
G01494095Courtesy of FORD MOTOR CO.

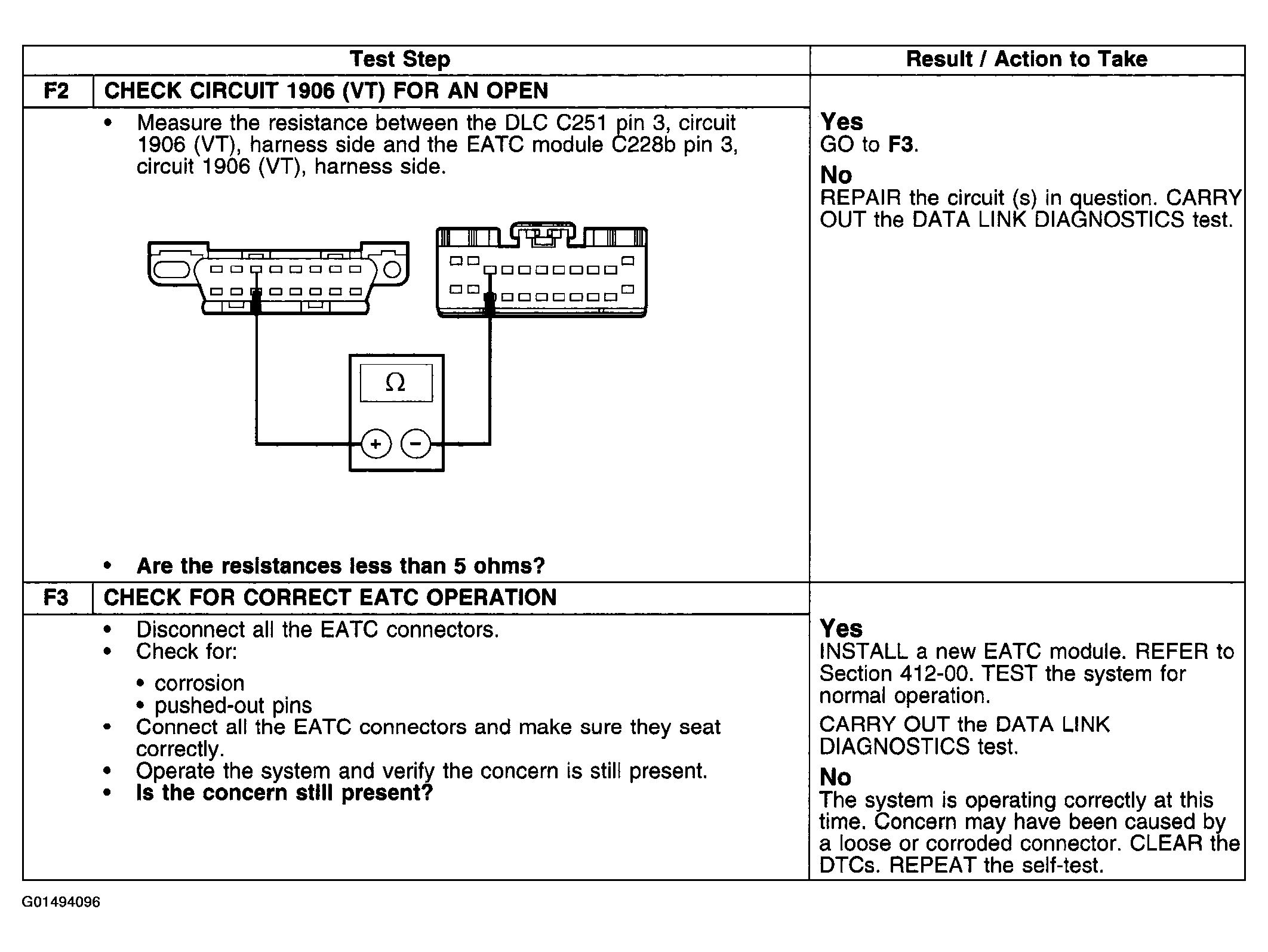

Fig 2: Pinpoint Test F: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (F2-F3)
G01494096Courtesy of FORD MOTOR CO.
