Pinpoint Test I: 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

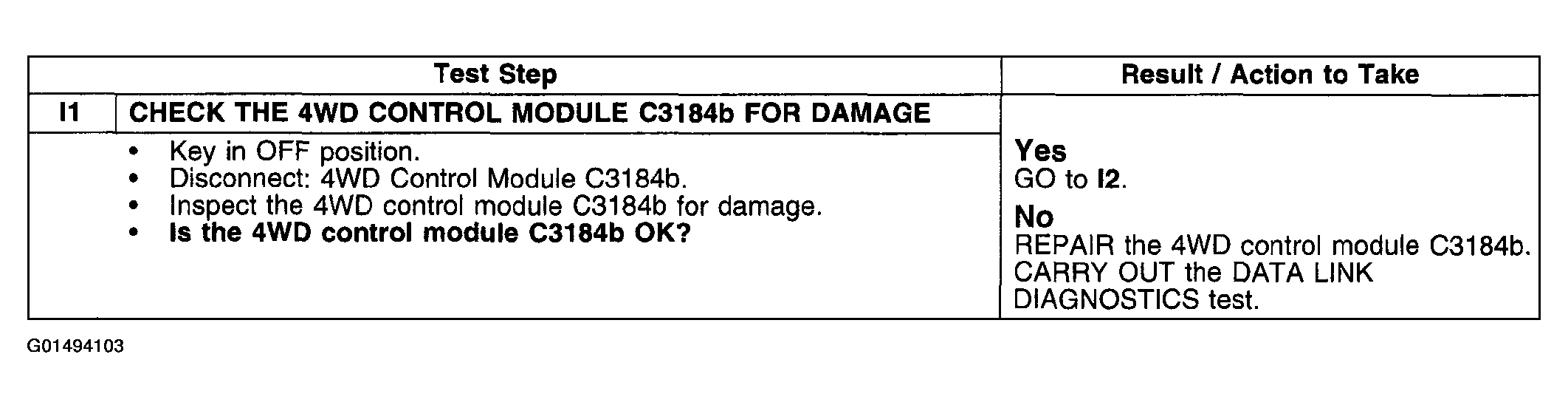

Fig 1: Pinpoint Test I: 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool (I1)
G01494103Courtesy of FORD MOTOR CO.

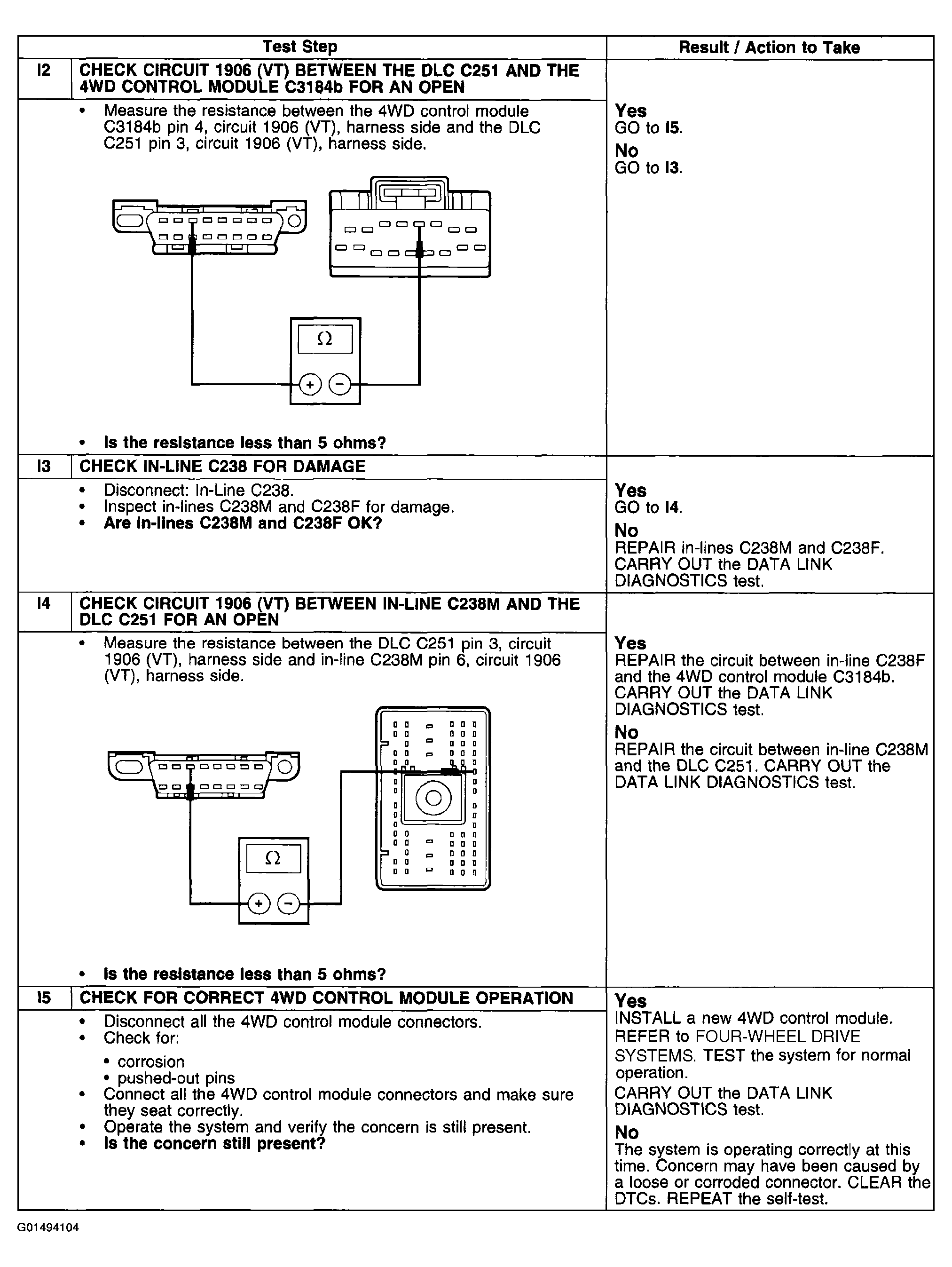

Fig 2: Pinpoint Test I: 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool (I2-I5)
G01494104Courtesy of FORD MOTOR CO.
