Pinpoint Test O: Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

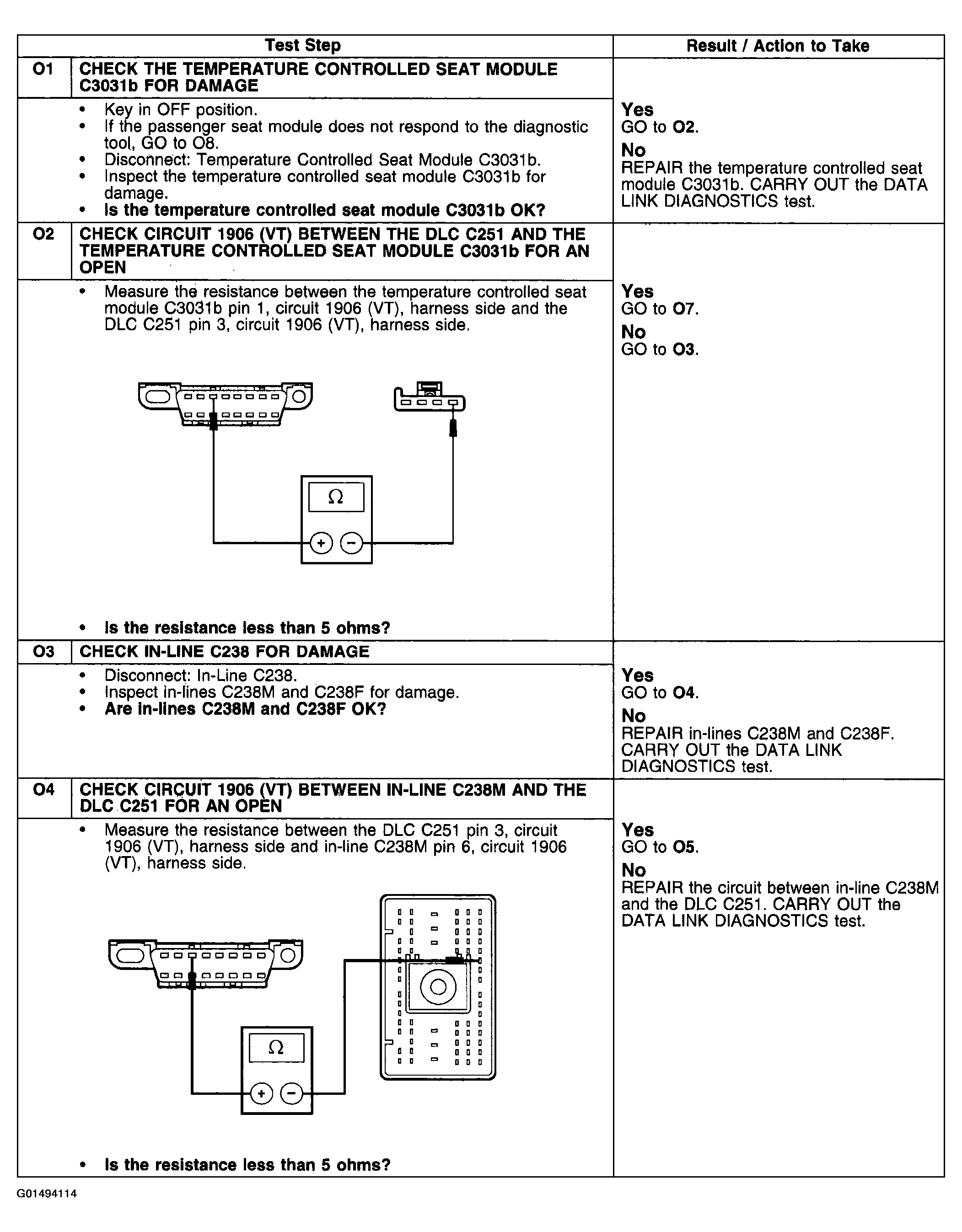

Fig 1: Pinpoint Test O: Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (O1-O4)

Courtesy of FORD MOTOR CO.

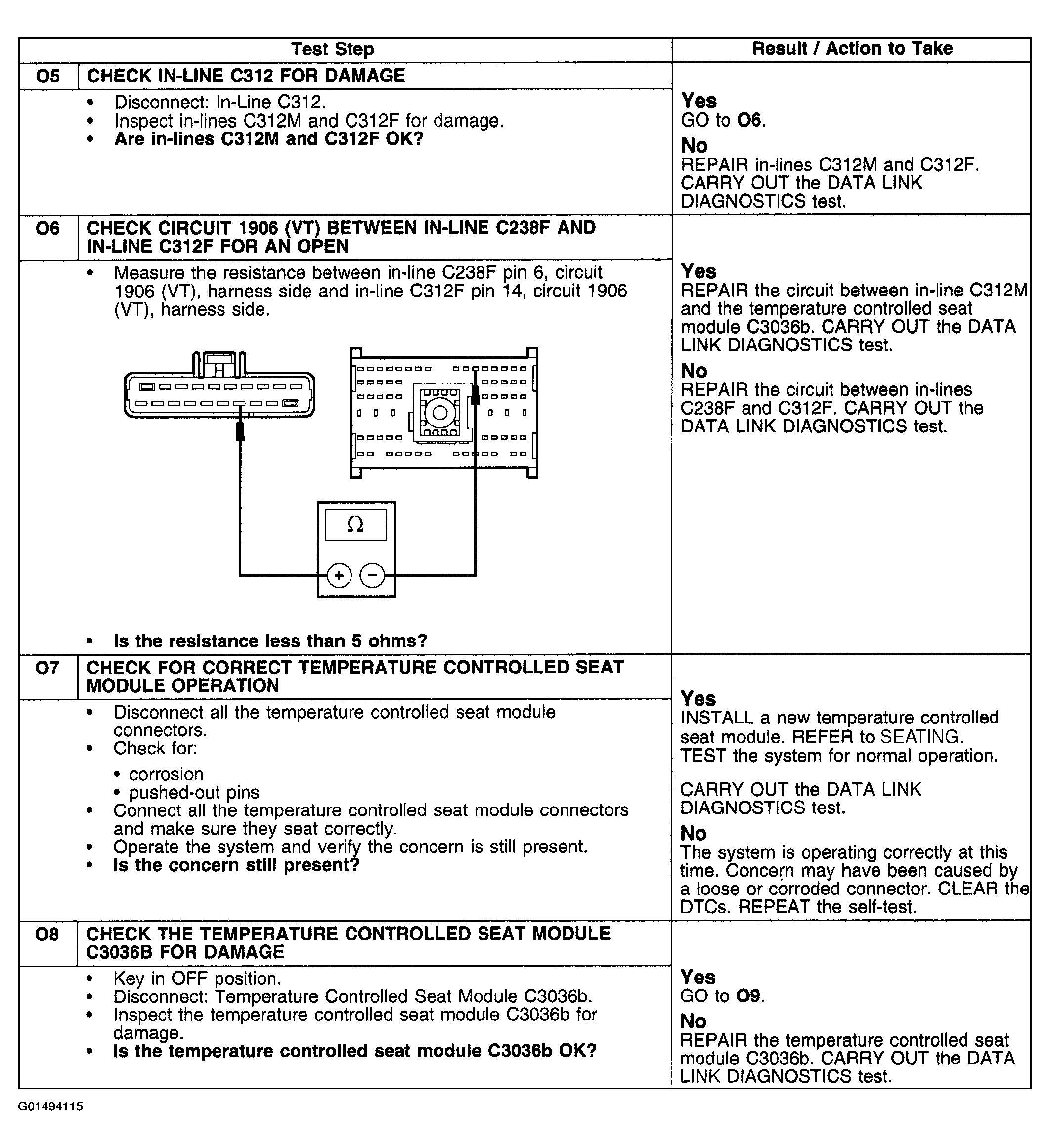

Fig 2: Pinpoint Test O: Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (O5-O8)

Courtesy of FORD MOTOR CO.

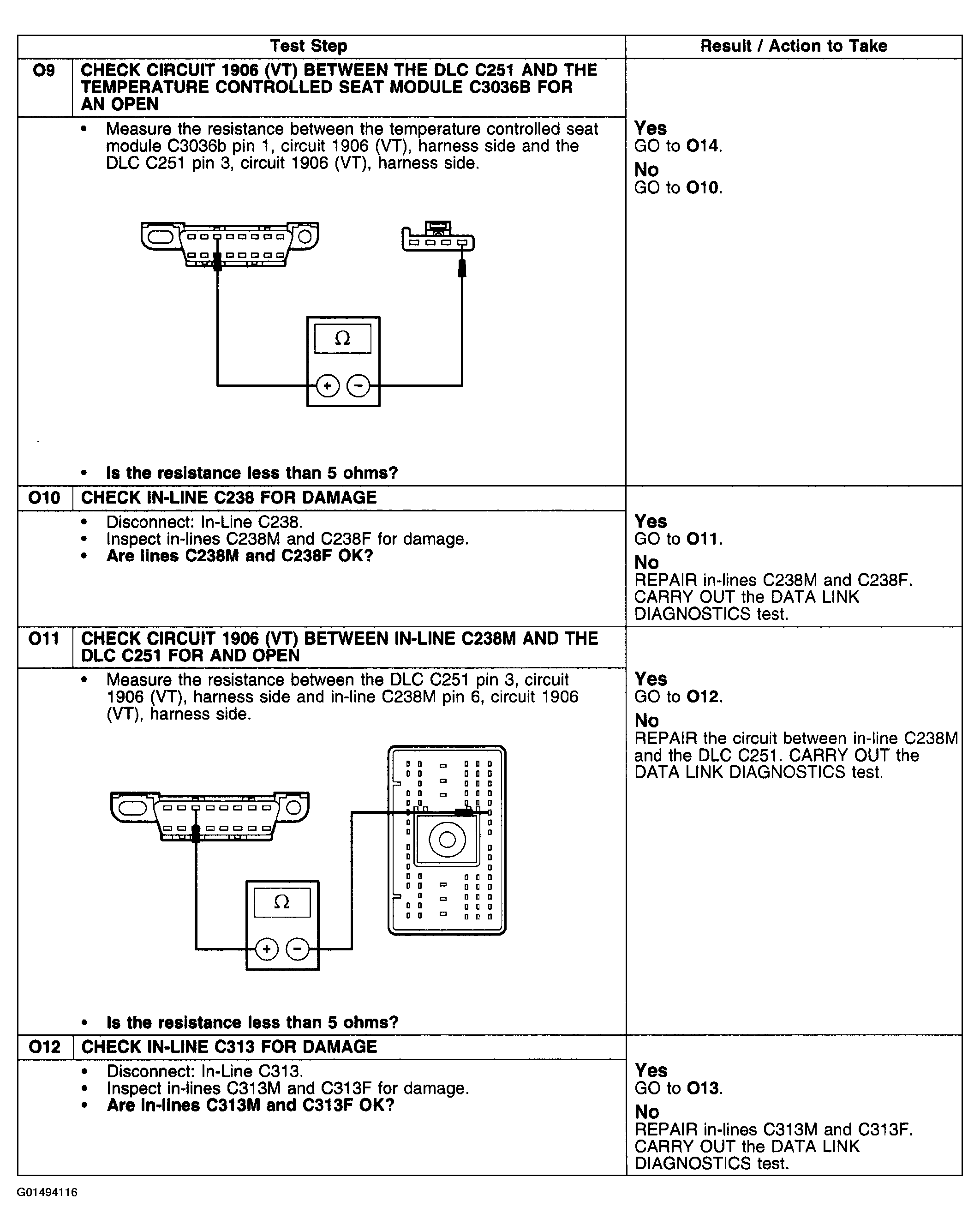

Fig 3: Pinpoint Test O: Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (O9-O12)

Courtesy of FORD MOTOR CO.

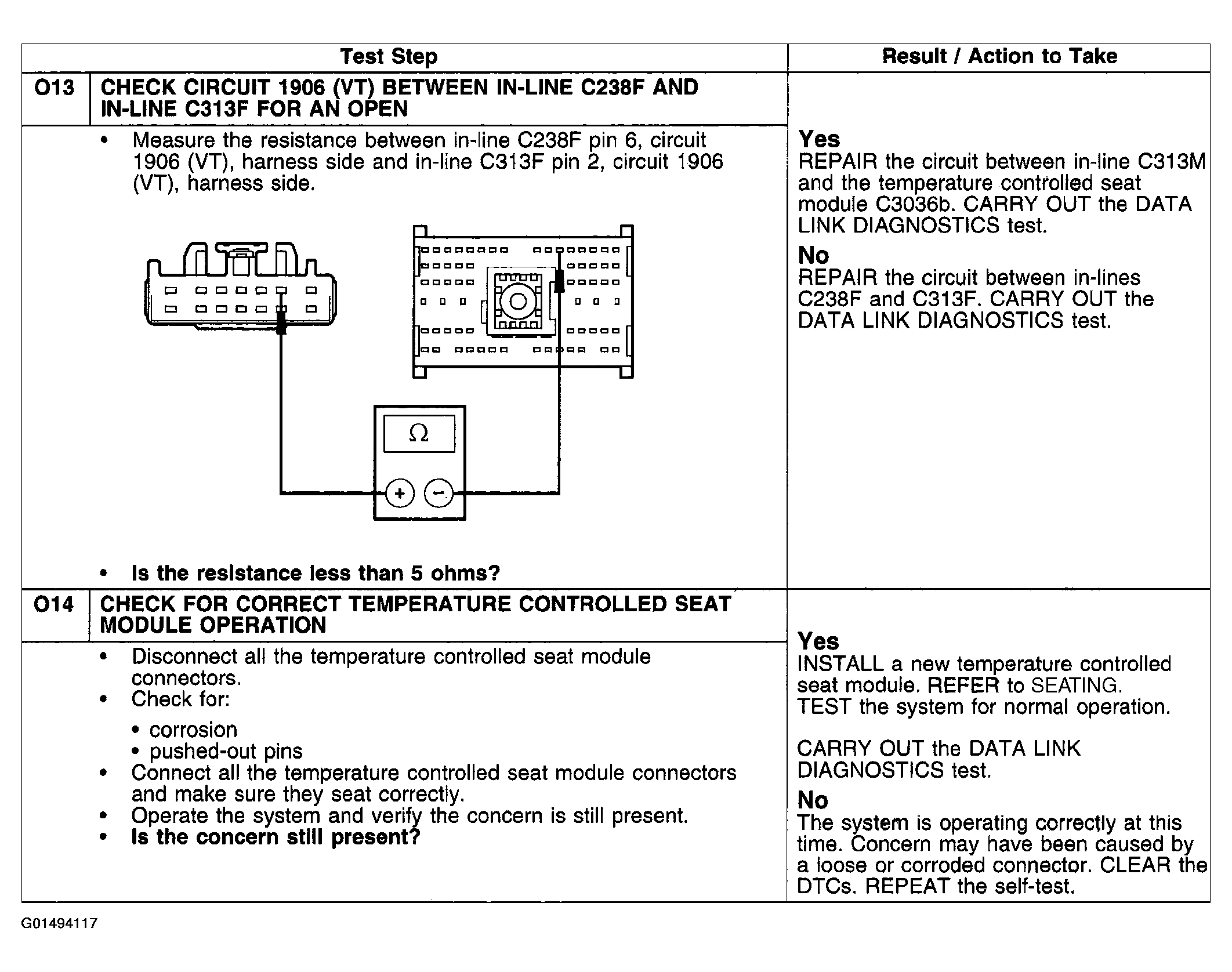

Fig 4: Pinpoint Test O: Temperature Controlled Seat Module Does Not Respond To Diagnostic Tool (O13-O14)

Courtesy of FORD MOTOR CO.
