Pinpoint Test O: The Navigation System Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

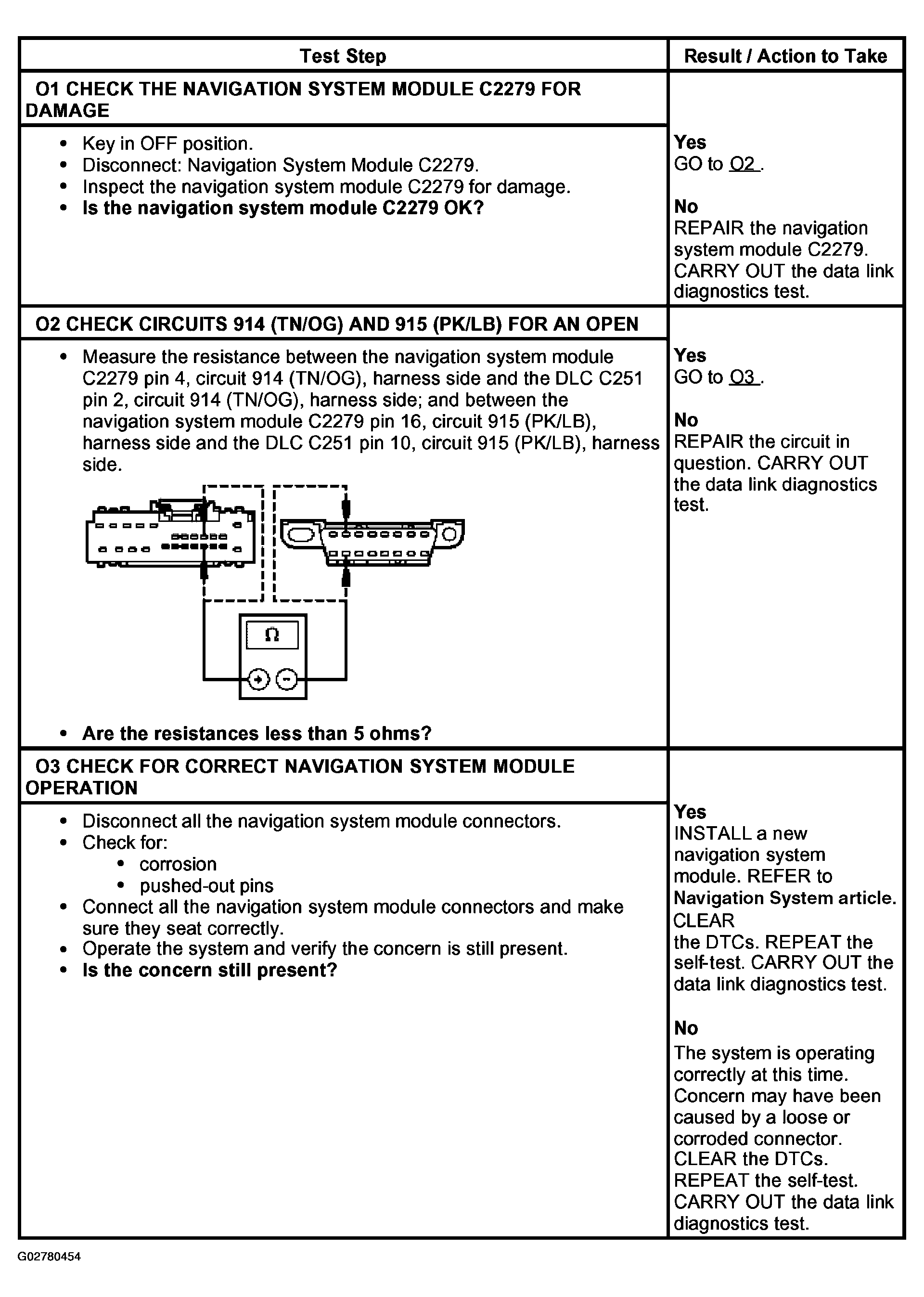

Fig 1: Pinpoint Test O: Navigation System Module Does Not Respond To Diagnostic Tool
G02780454Courtesy of FORD MOTOR CO.
