Front Electronic Module (FEM)-C201a

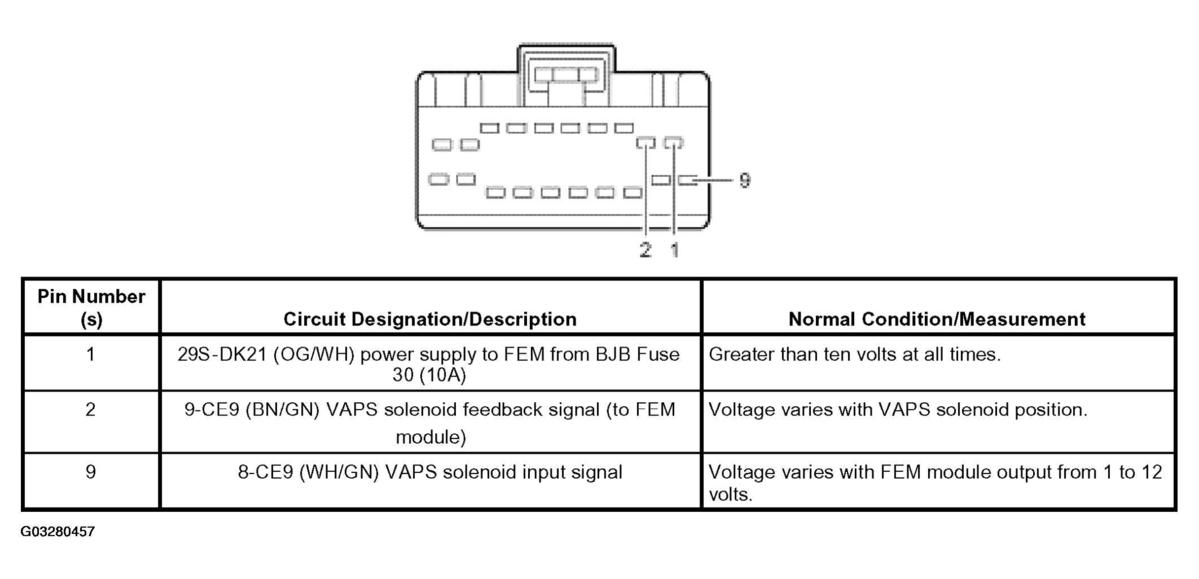

Fig 1: Identifying Front Electronic Module (FEM)-C201A
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
