Pinpoint Test A: No Communication With The ABS Module

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

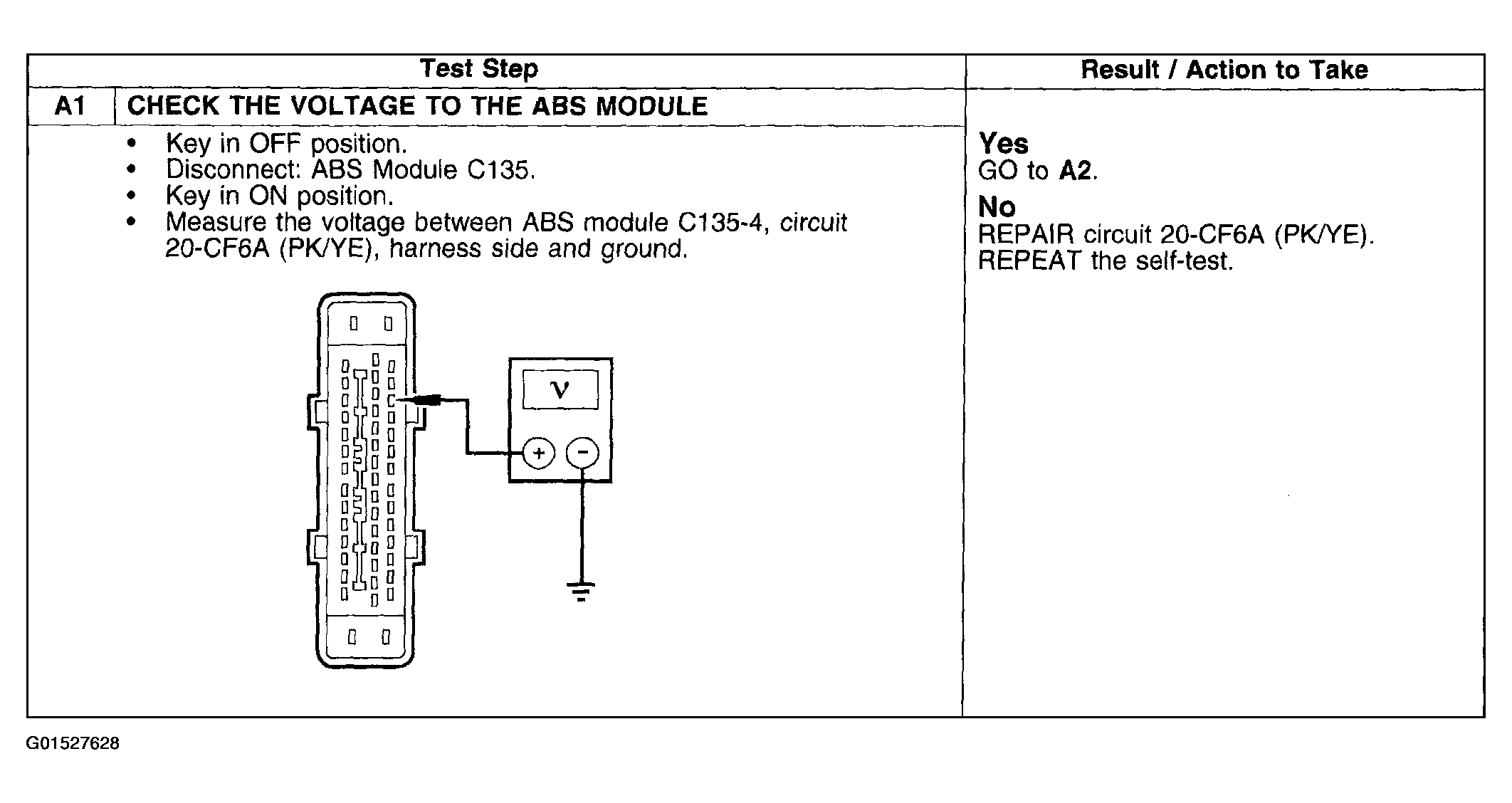

Fig 1: Diagnosis Procedure - No Communication With The ABS Module (A1)

Courtesy of FORD MOTOR CO.

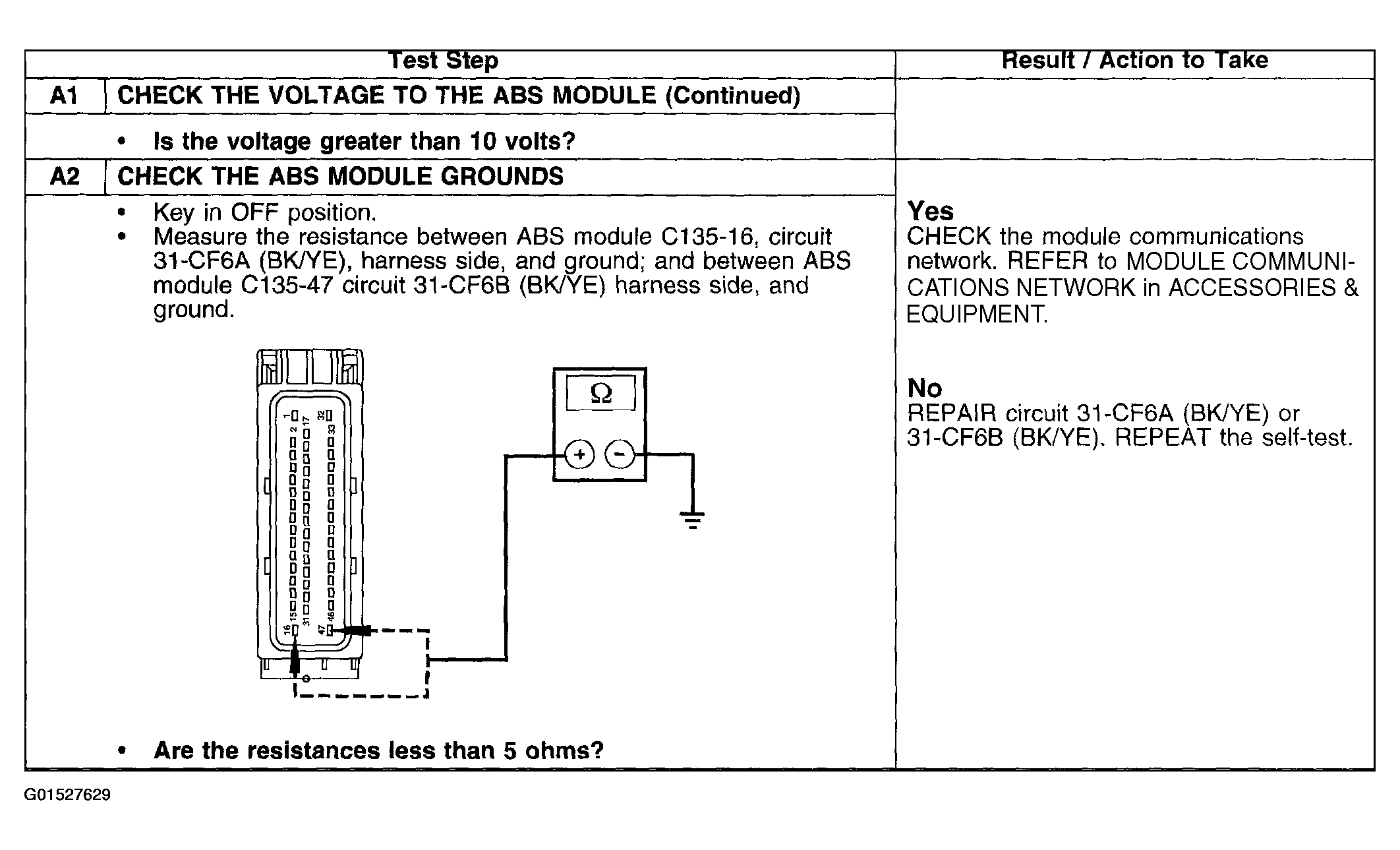

Fig 2: Diagnosis Procedure - No Communication With The ABS Module (A1 Cont.-A2)

Courtesy of FORD MOTOR CO.
