Pinpoint Test F: DTC B1255 Or DTC B1257 - A/C Ambient Temperature Sensor Open Circuit Or Short To Ground

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

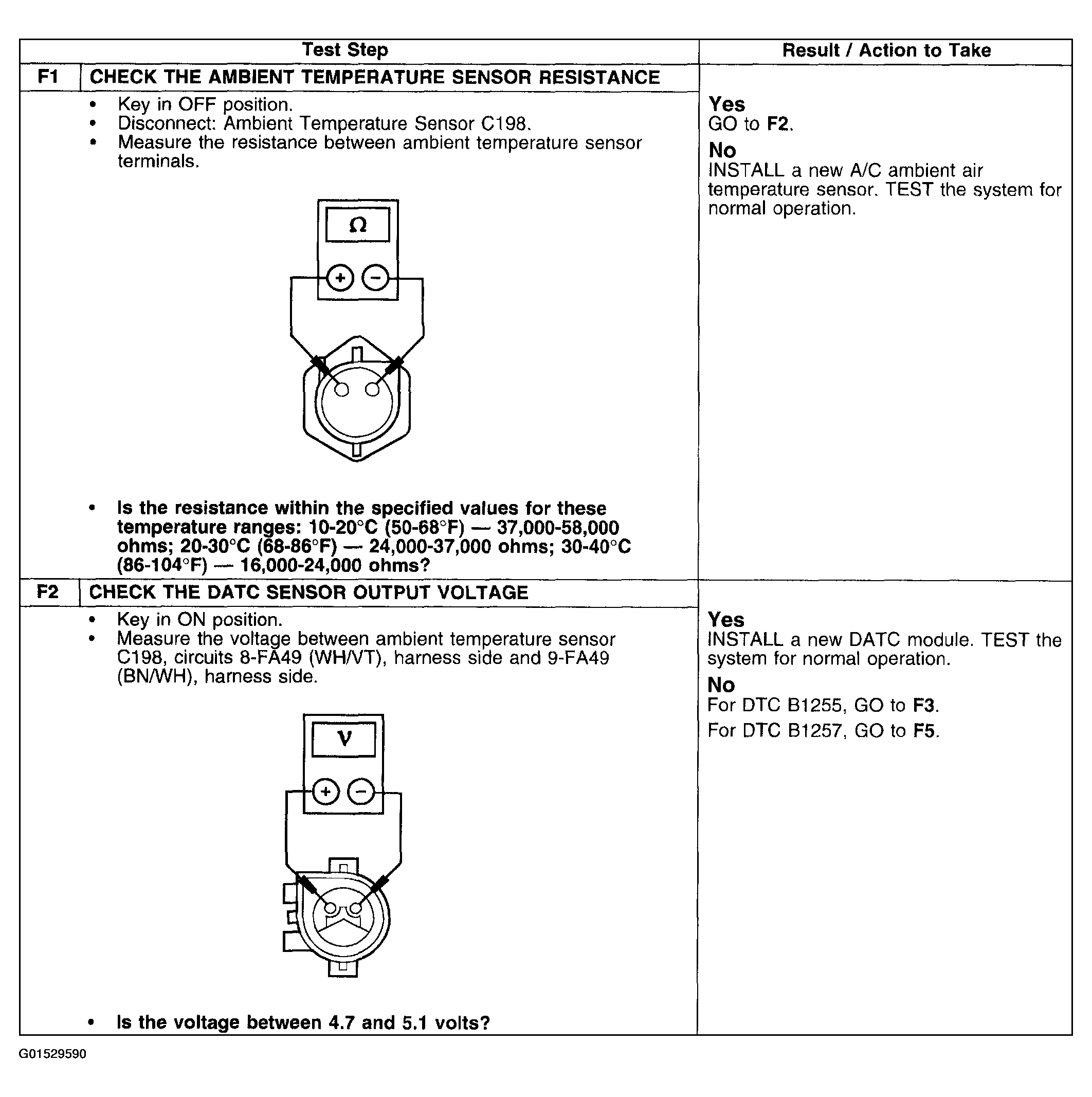

Fig 1: Pinpoint Test F: DTC B1255 Or DTC B1257 - A/C Ambient Temperature Sensor Open Circuit Or Short To Ground (F1-F2)
G01529590Courtesy of FORD MOTOR CO.

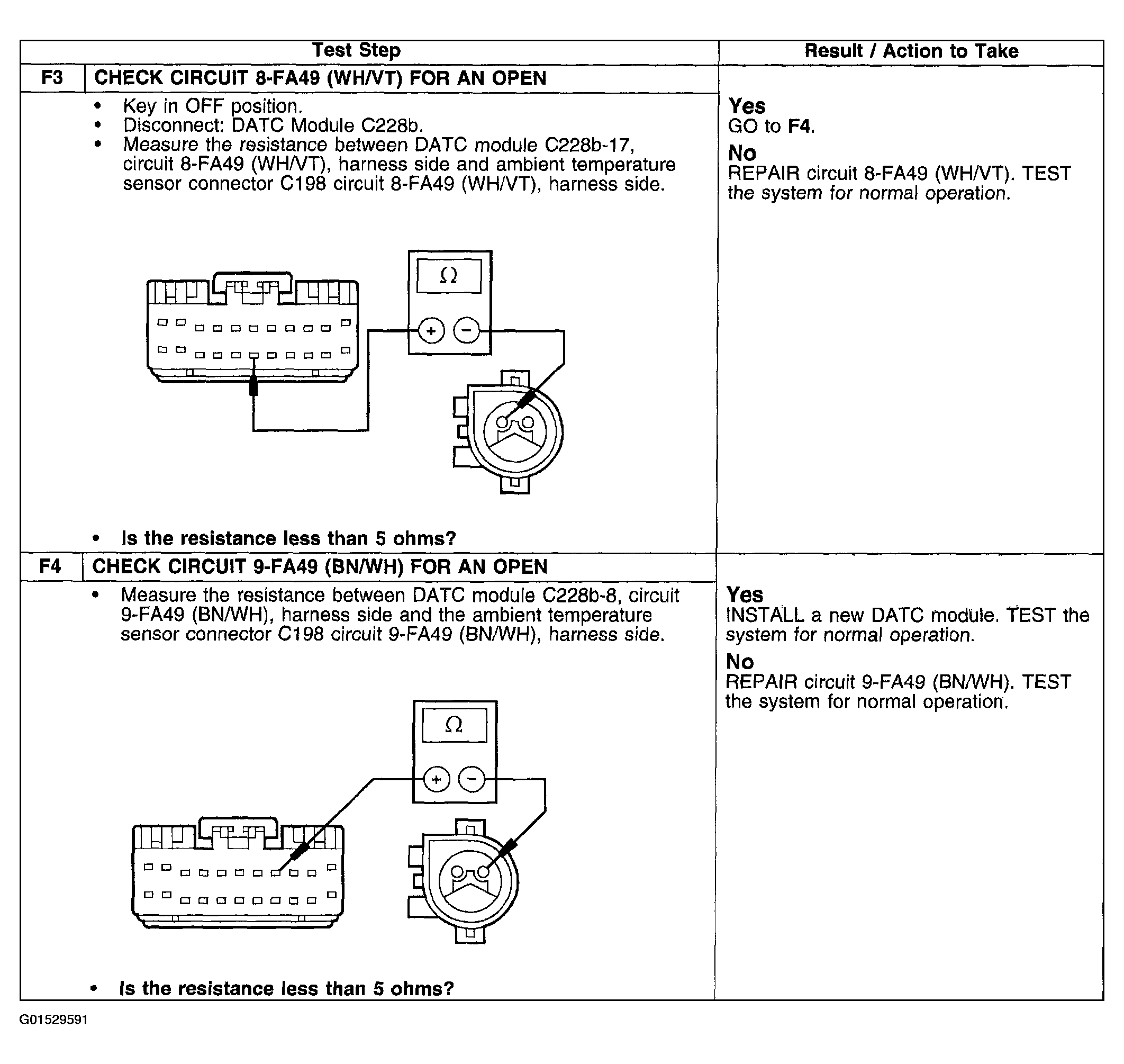

Fig 2: Pinpoint Test F: DTC B1255 Or DTC B1257 - A/C Ambient Temperature Sensor Open Circuit Or Short To Ground (F3-F4)
G01529591Courtesy of FORD MOTOR CO.

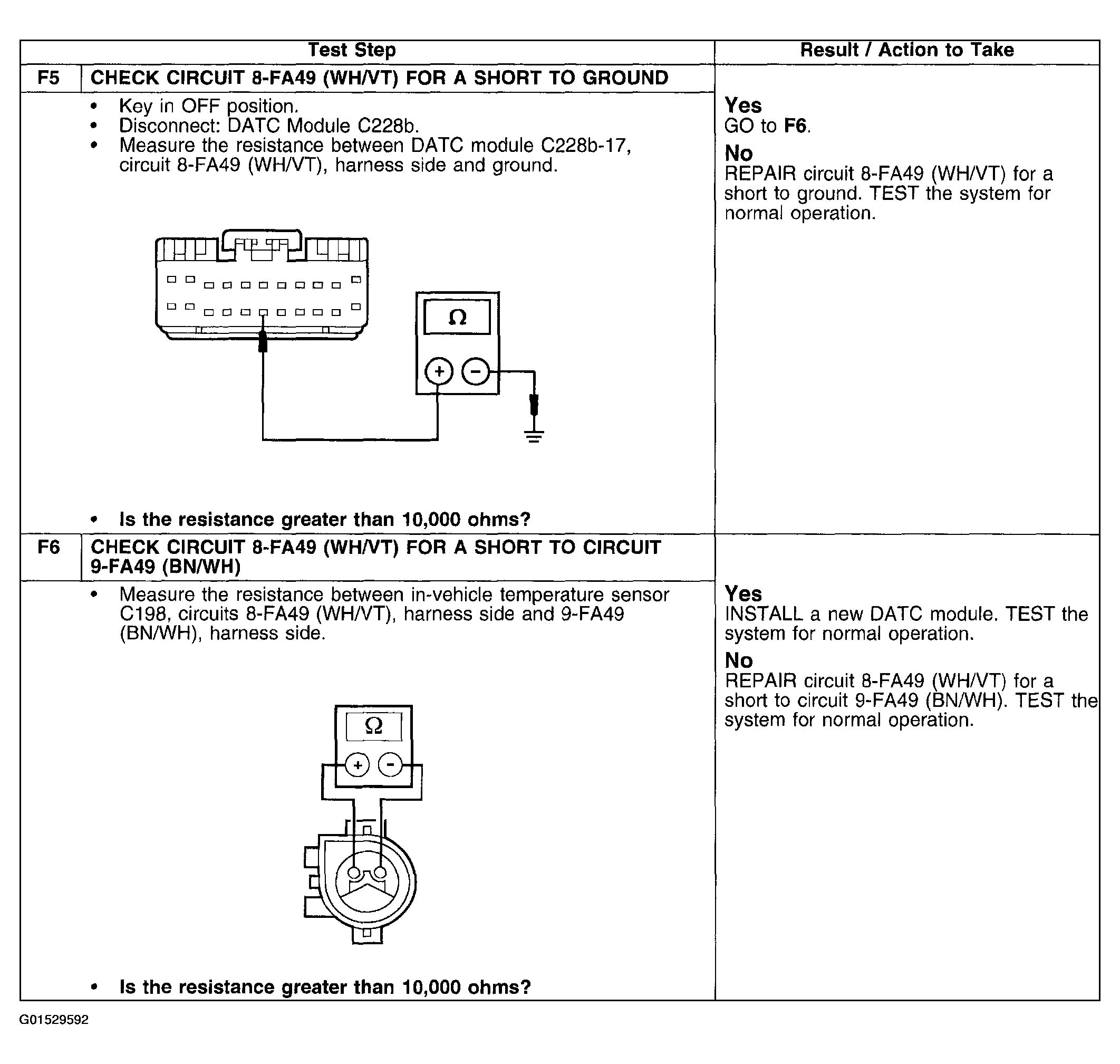

Fig 3: Pinpoint Test F: DTC B1255 Or DTC B1257 - A/C Ambient Temperature Sensor Open Circuit Or Short To Ground (F5-F6)
G01529592Courtesy of FORD MOTOR CO.
