Piston Pin Diameter
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

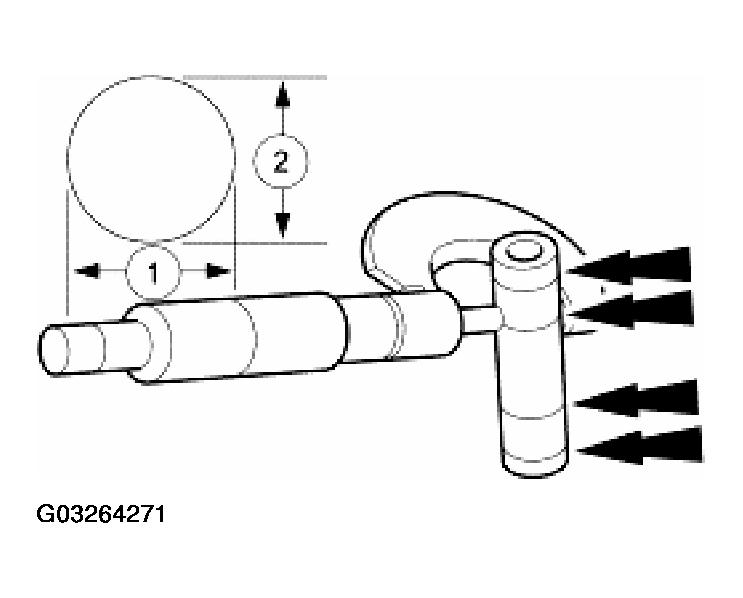

- Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- Refer to ENGINE
for the procedure.
- If out of specification, install new components as necessary. Refer to ENGINE
for the procedure.
Courtesy of FORD MOTOR CO.
