Visual Inspection Chart

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

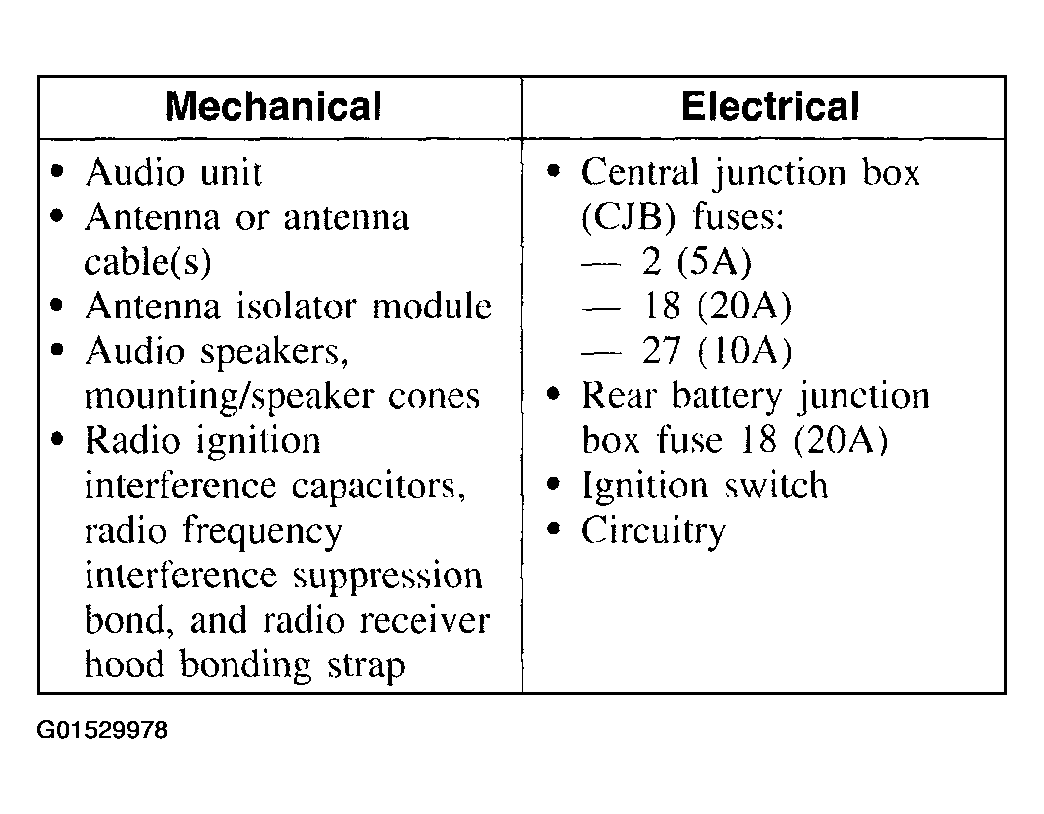

Fig 1: Visual Inspection Chart
G01529978Courtesy of FORD MOTOR CO.
