Instrument Cluster Module (ICM) C220c

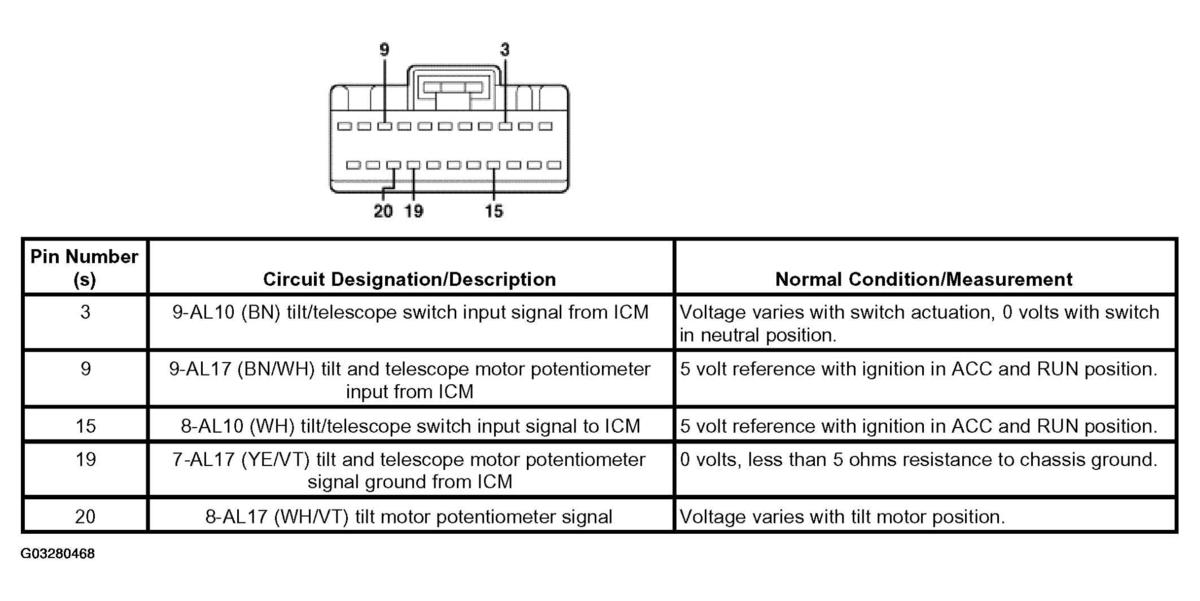

Fig 1: Identifying Instrument Cluster Module (ICM) C220C Terminals
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
