Home >> Ford >> 2005 >> Escape 4WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Side Impact Sensor >> Passenger 2

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

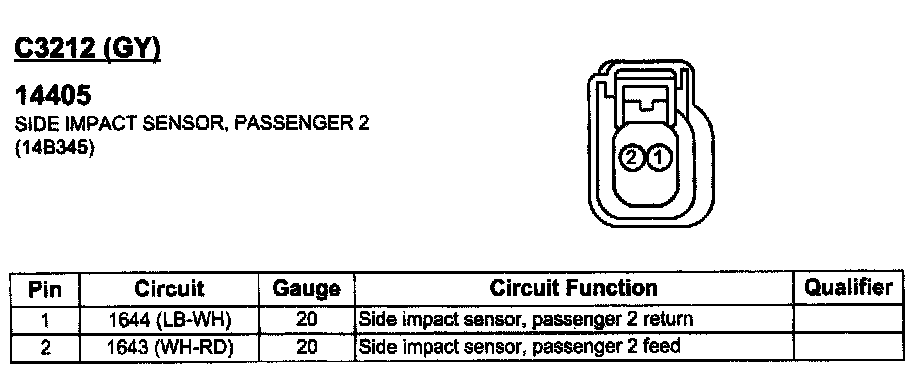

Passenger 2
