Gearshift Cables: Notes

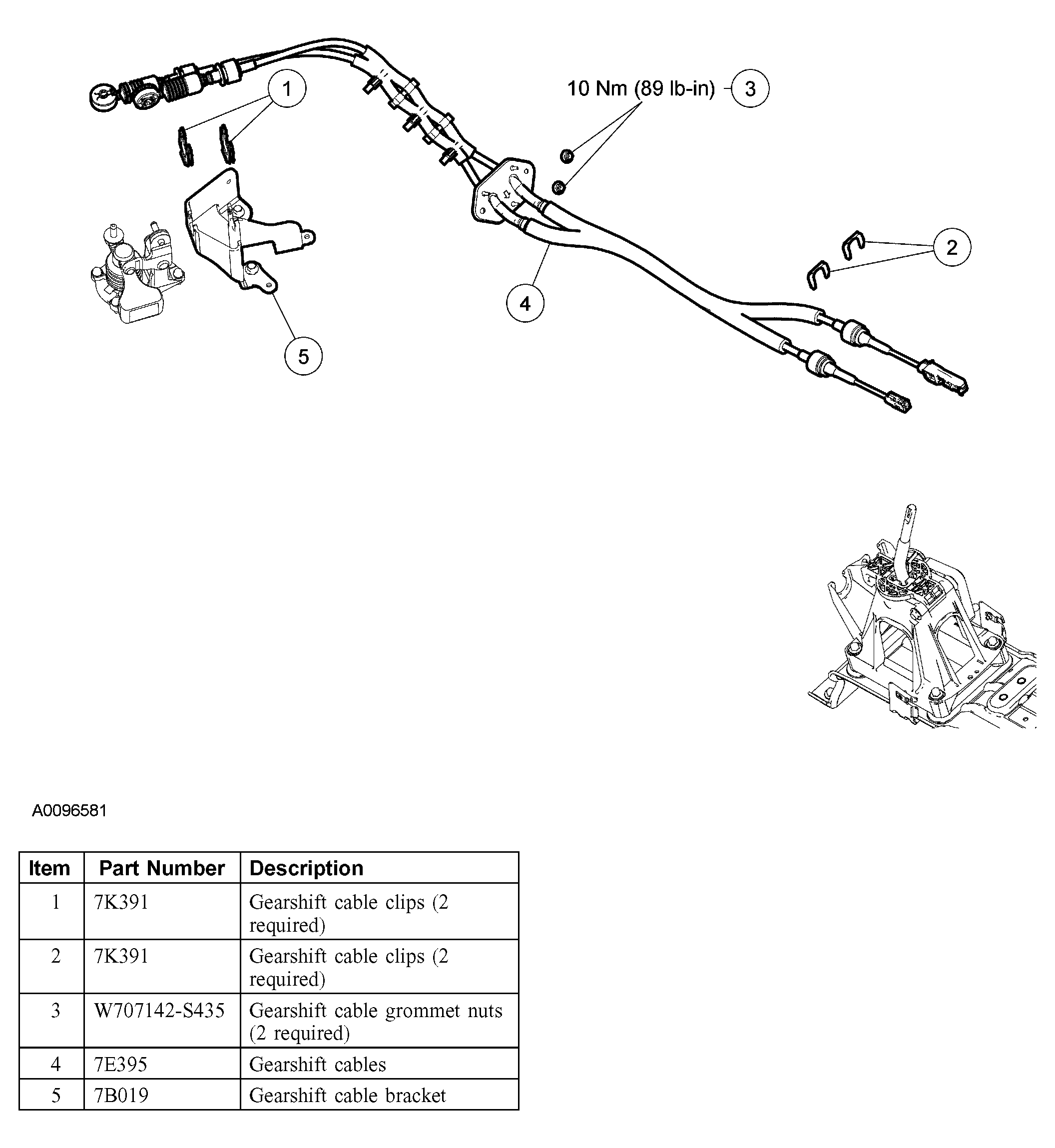

Fig 1: Gearshift Cables With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
