Test J: PCM ID Does Not Match Between Passive Anti-Theft (PATS) Module and Powertrain Control Module (PCM)

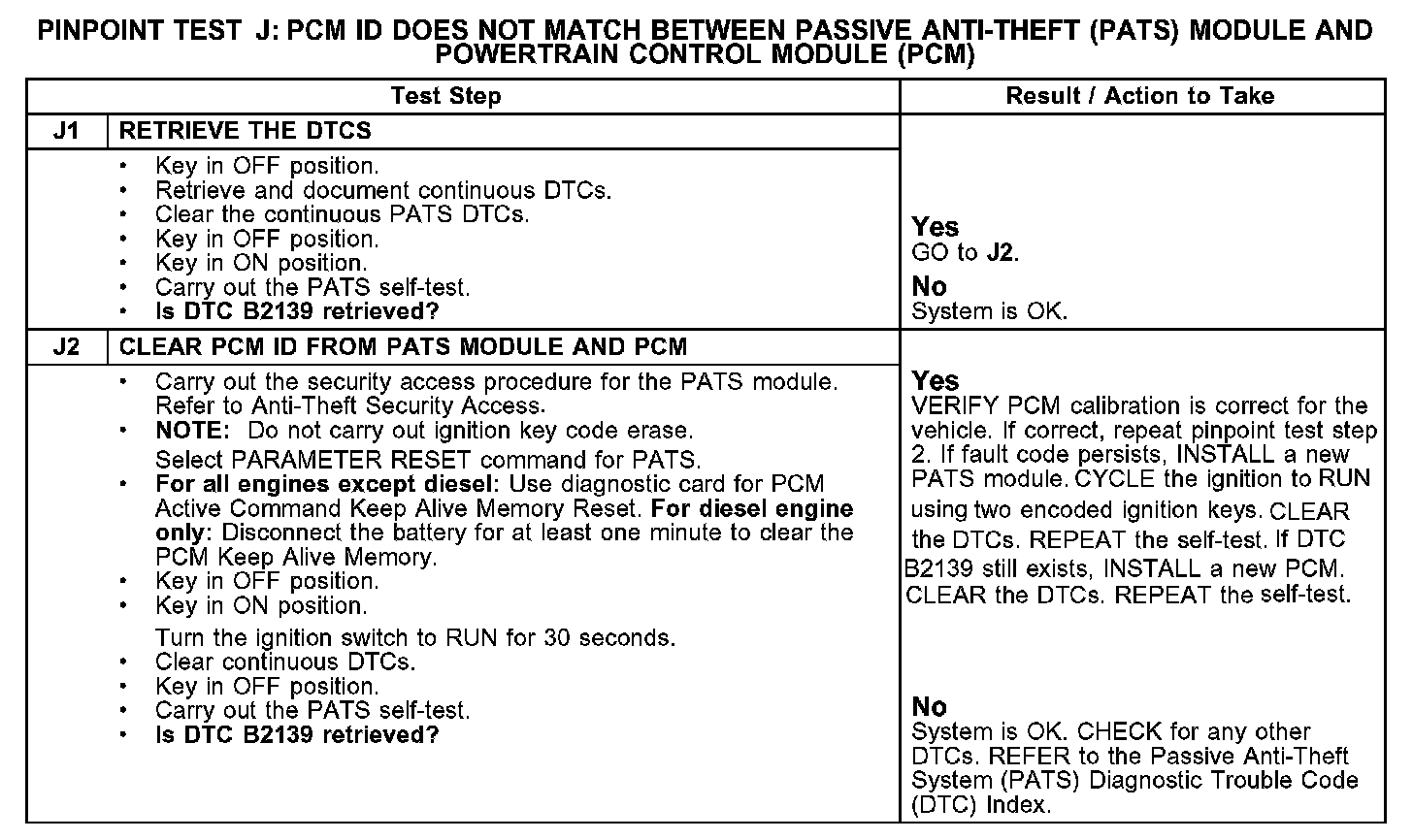

PINPOINT TEST J: PCM ID DOES NOT MATCH BETWEEN PASSIVE ANTI-THEFT (PATS) MODULE AND POWERTRAIN CONTROL MODULE (PCM)
J1-J2:
