Signal Functions
The CPP switches indicate the state of the clutch pedal. CPP switch A is a normally open switch that indicates clutch disengagement (bottom of travel). CPP switch B is a normally closed switch that indicates clutch engagement (top of travel). The application and release of the clutch pedal disables the speed control system, the cold idle kicker, or the power take-off (PTO) system, if enabled.
CAUTION:

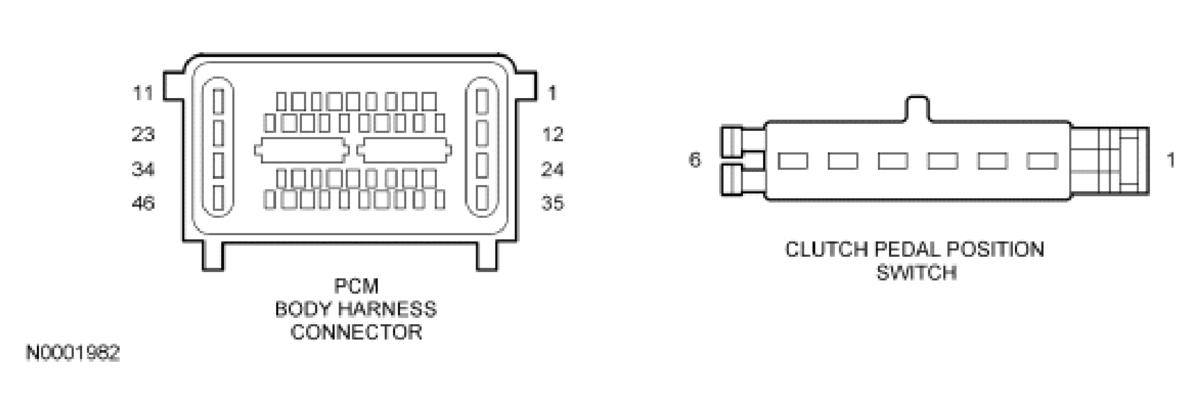

The powertrain control module (PCM) harness connectors must be properly seated and the connector latch properly attached to eliminate possible driveability concerns or a no start condition. Installing PCM connectors on an angle may cause an improper connection, misdiagnosis, and damaged components. Install the connector until the lever pivots and seats itself. Apply light pressure to get the connector into position on the PCM and then fully seat the connector.
NOTE:
Visually inspect the harness connectors for corrosion, damage, proper mating, and correct pin tension.
