Steering System Components - Vacuum Boost Brake System (CIII Power Steering Pump)

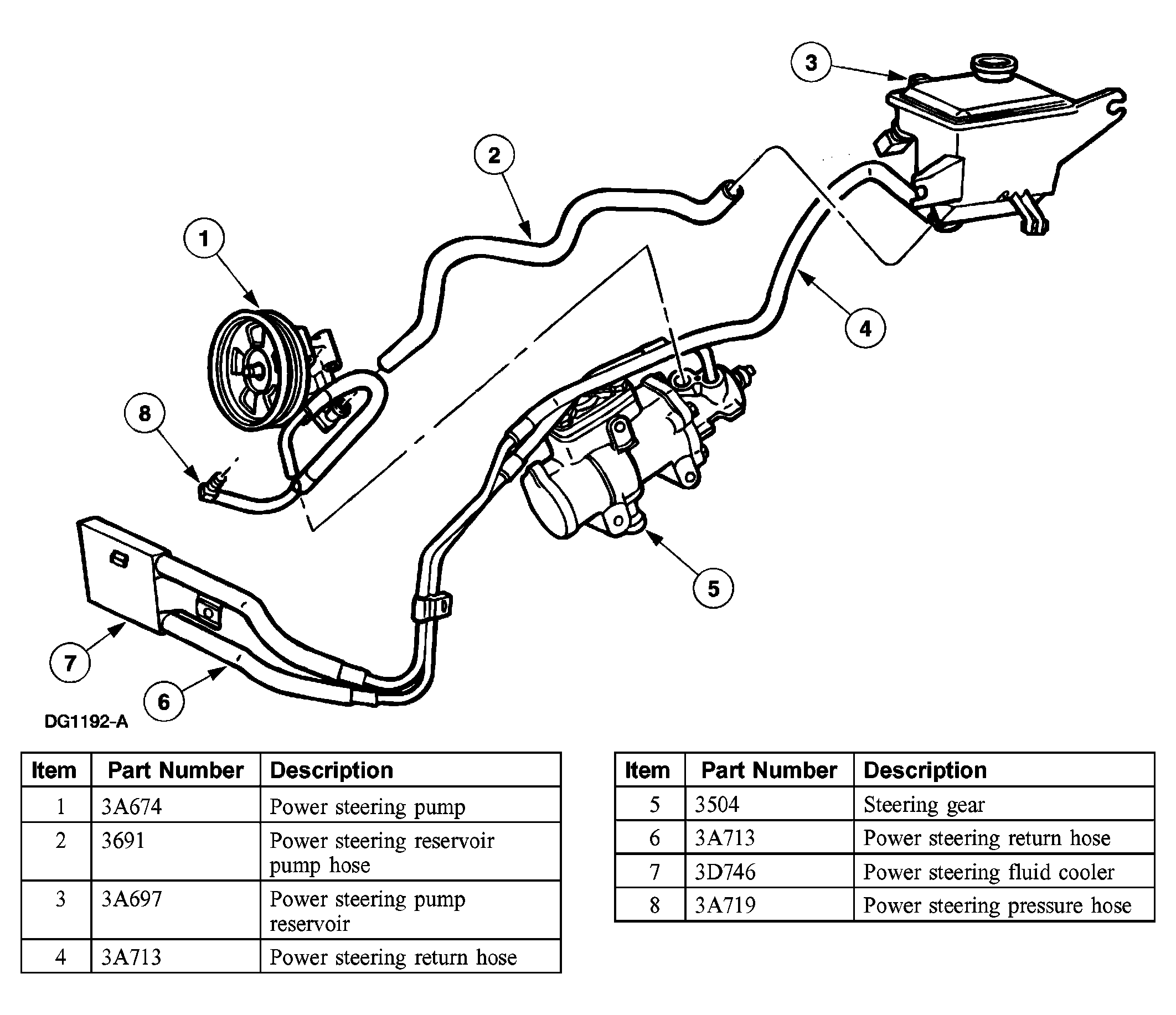

Fig 1: Identifying Steering System Components - Vacuum Boost Brake System (CIII Power Steering Pump)
G03904953Courtesy of FORD MOTOR CO.
