Seat adjust switch (Driver Side Front): Schematic

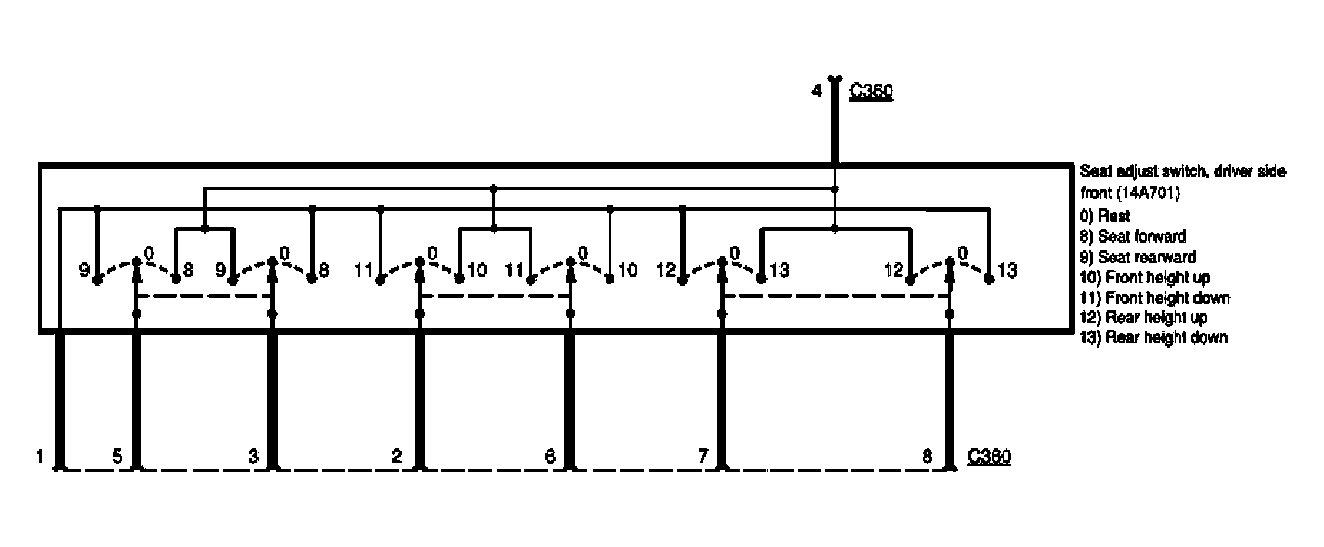

Fig 1: Seat Adjust Switch Schematic (Driver Side Front)

G03987522

Courtesy of FORD MOTOR CO.
