Home >> Ford >> 2005 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

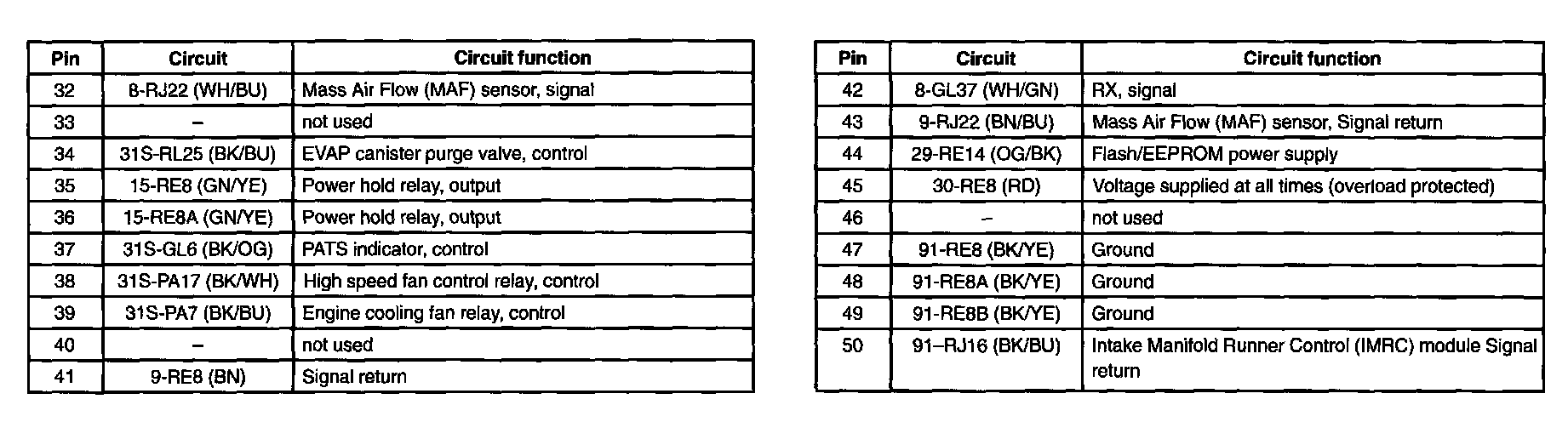

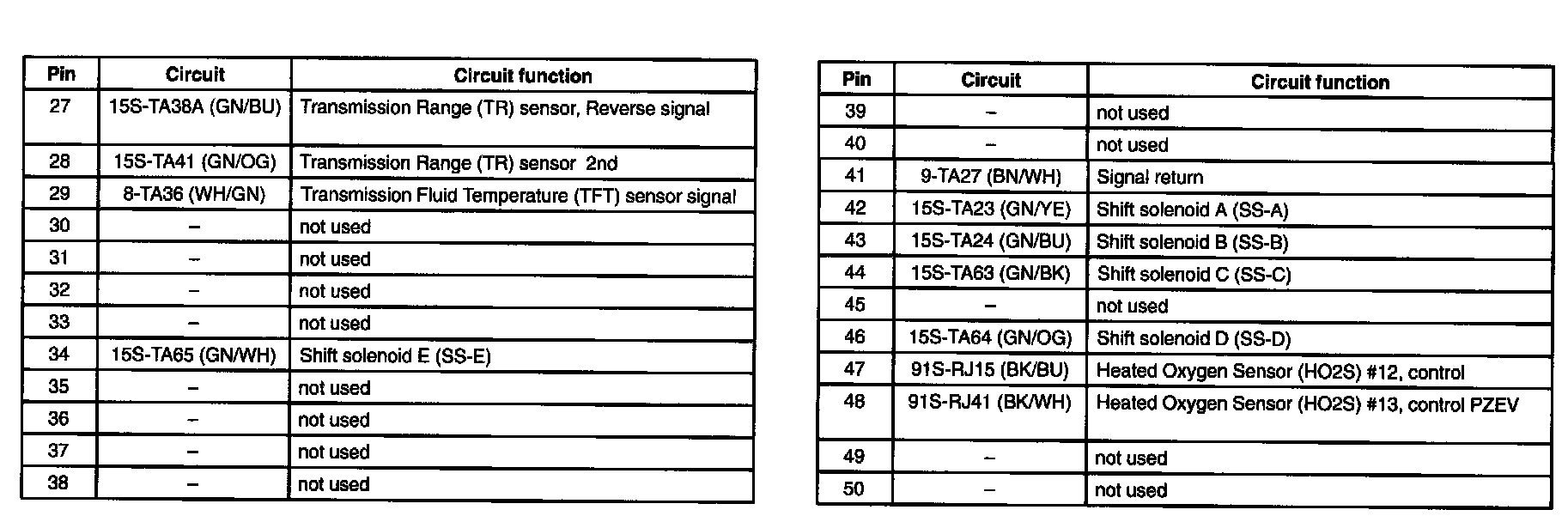

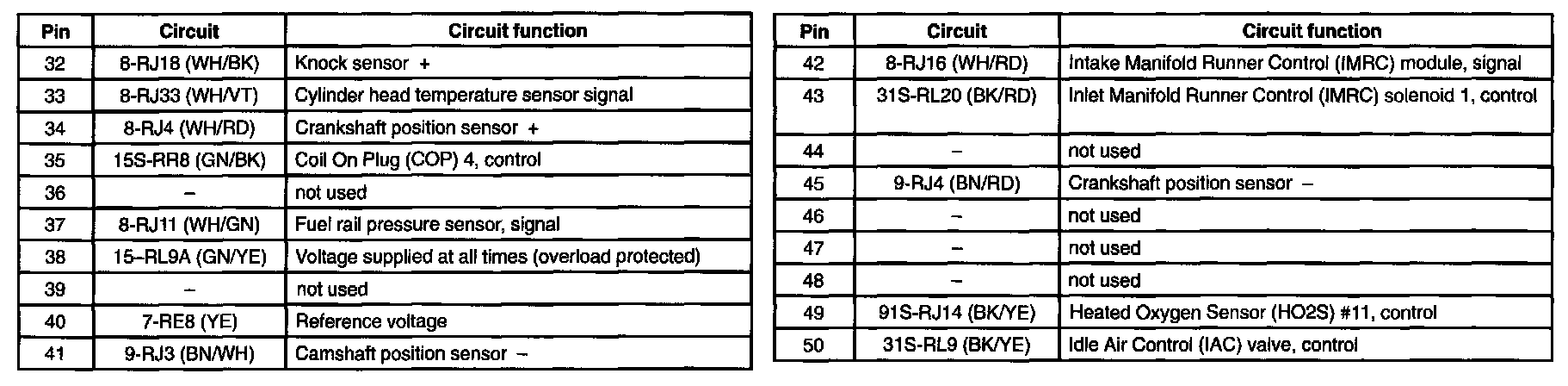

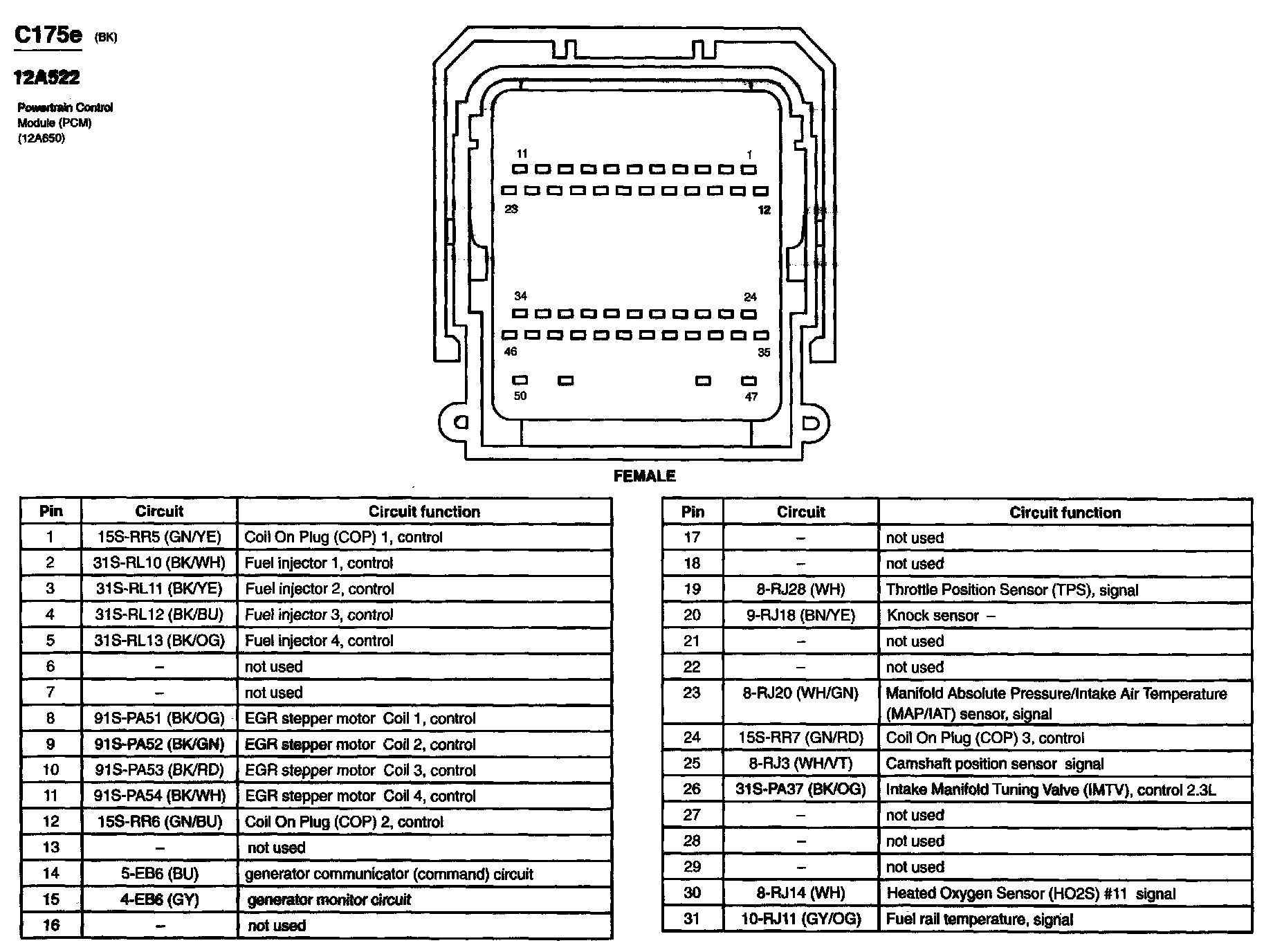

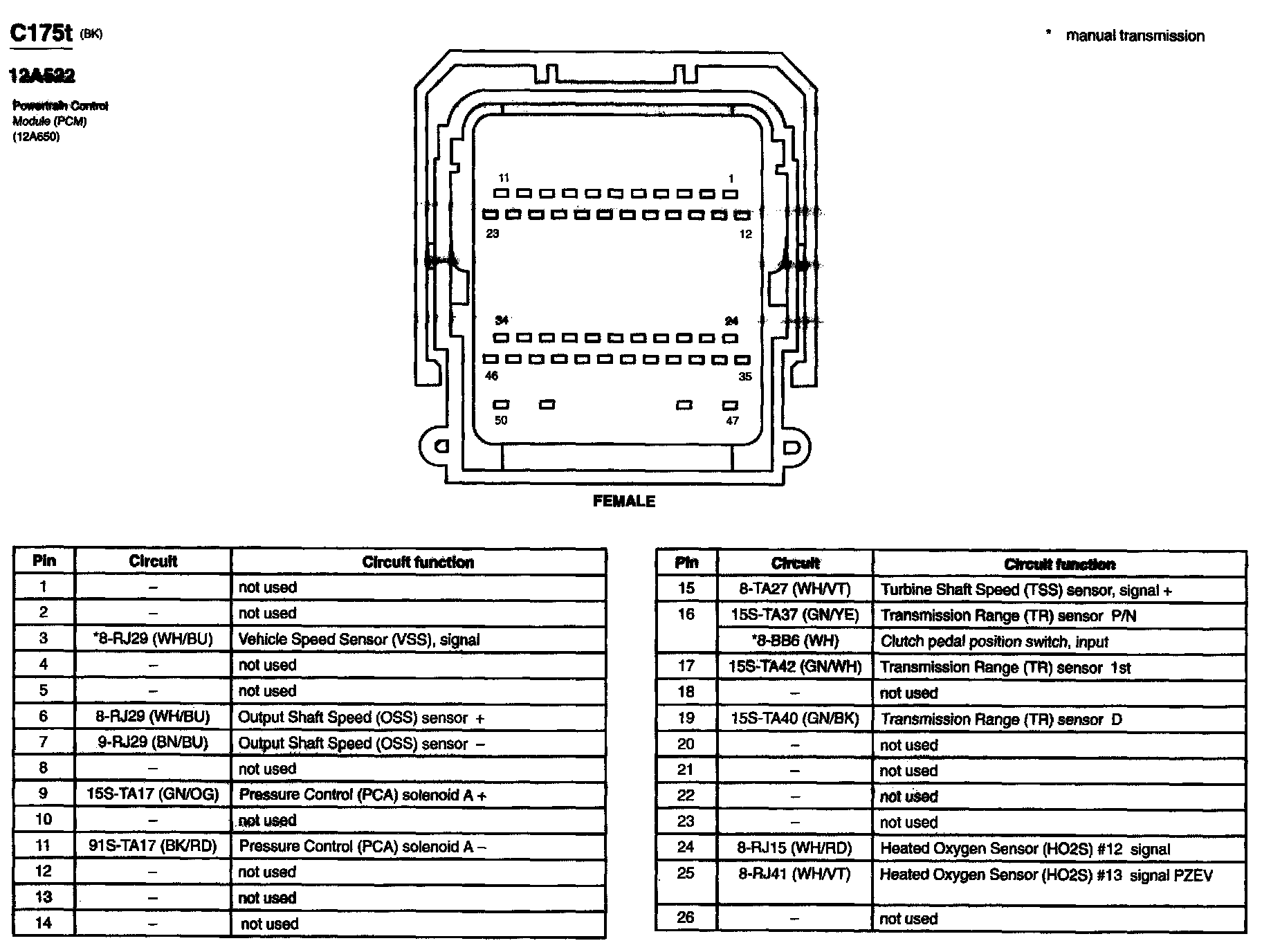

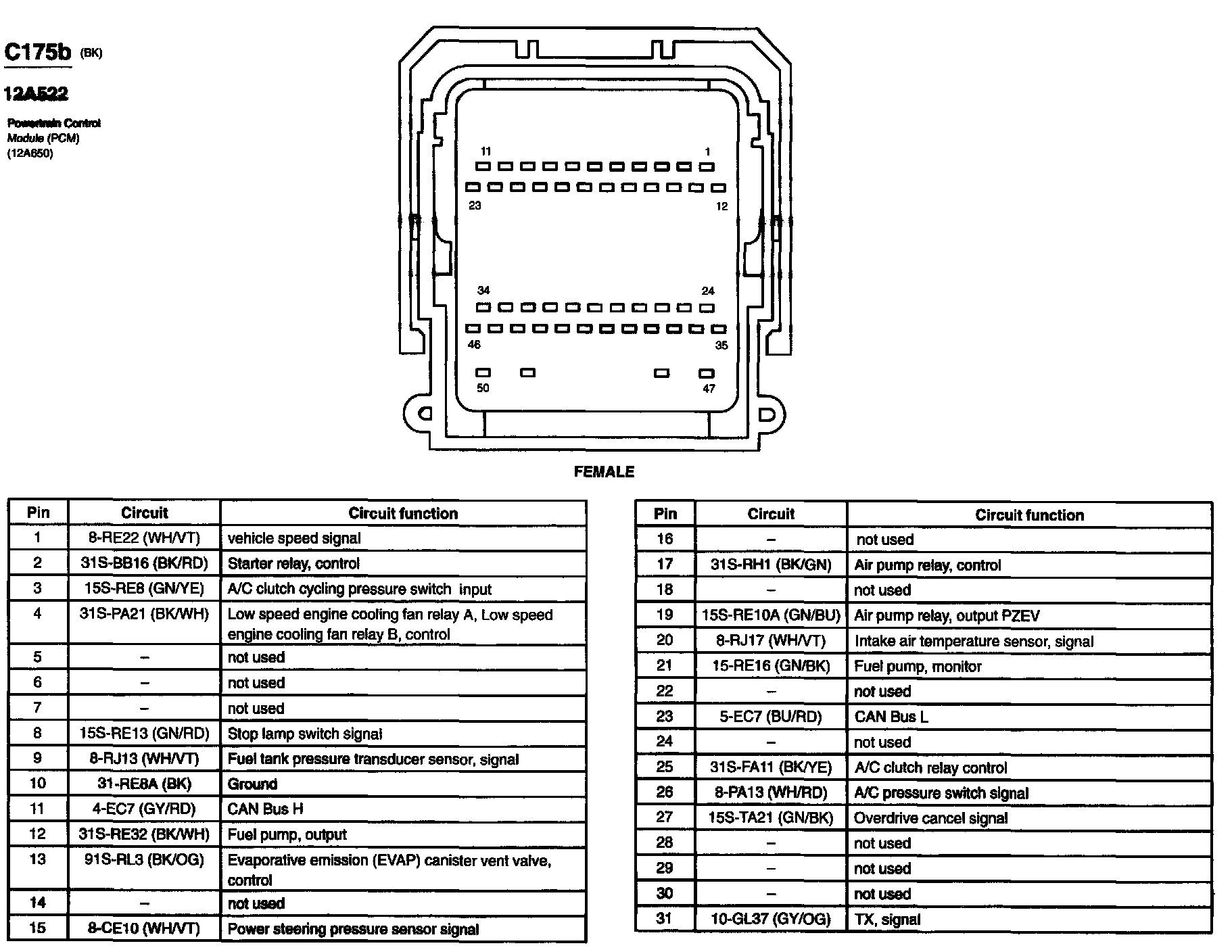

Engine Control Module
