Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Removal and Installation
1. Disconnect the battery ground cable.

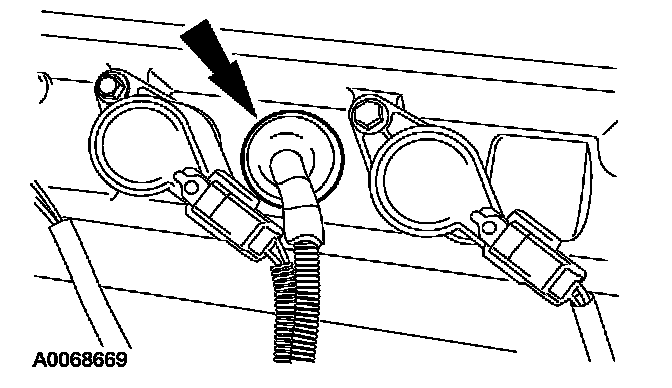

2. Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.

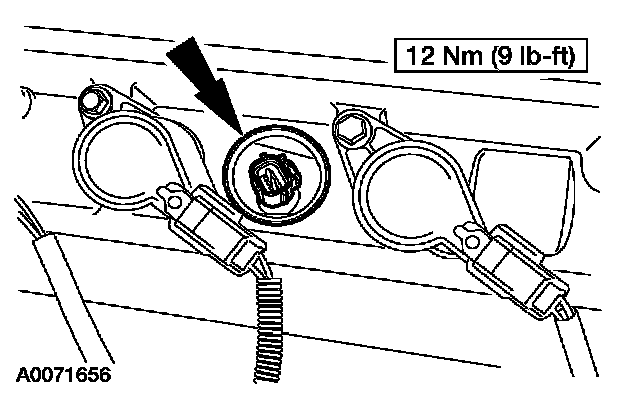

3. Remove and discard the CHT sensor.
4. To install, reverse the removal procedure.
