Test B: Powertrain Control Module (PCM) Power Relay



PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

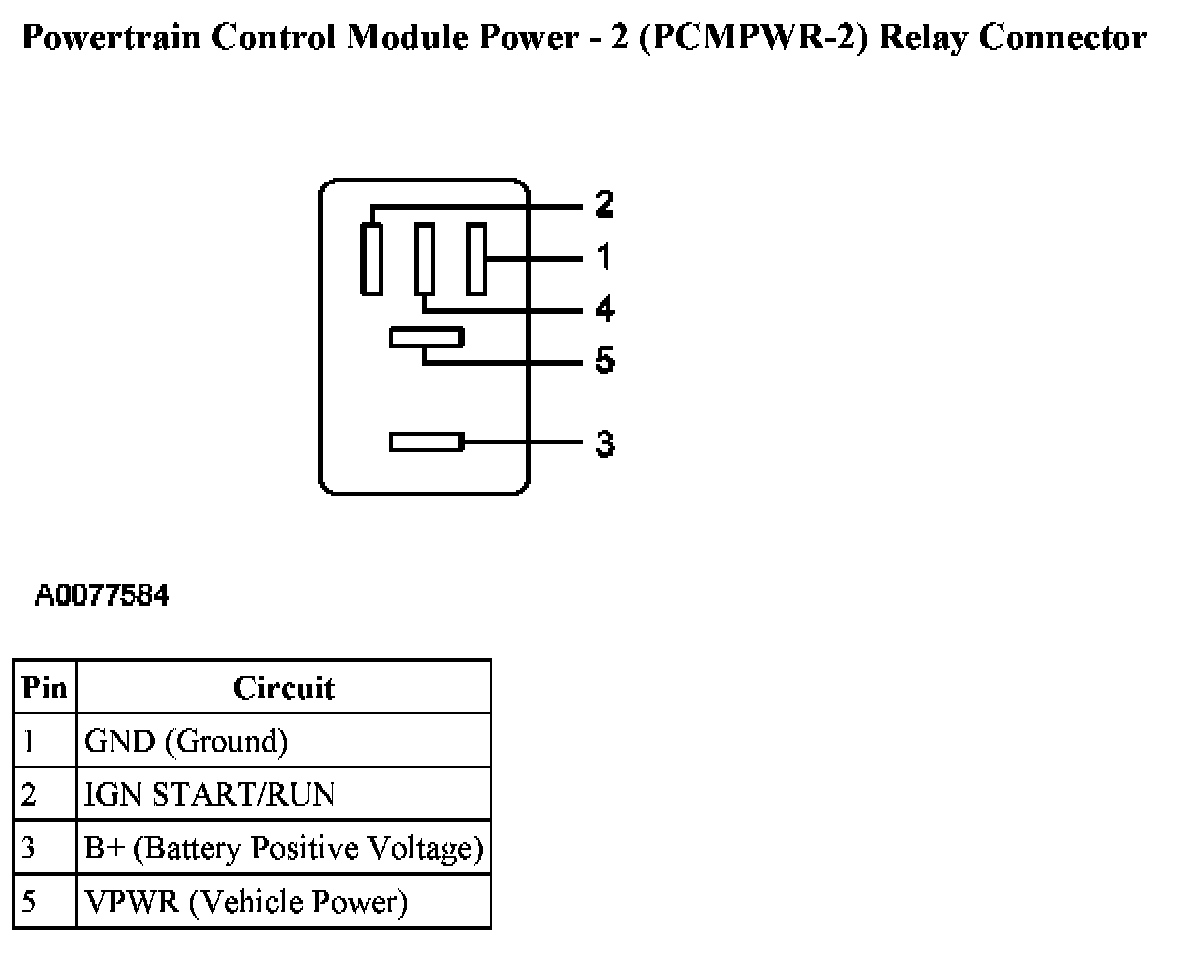

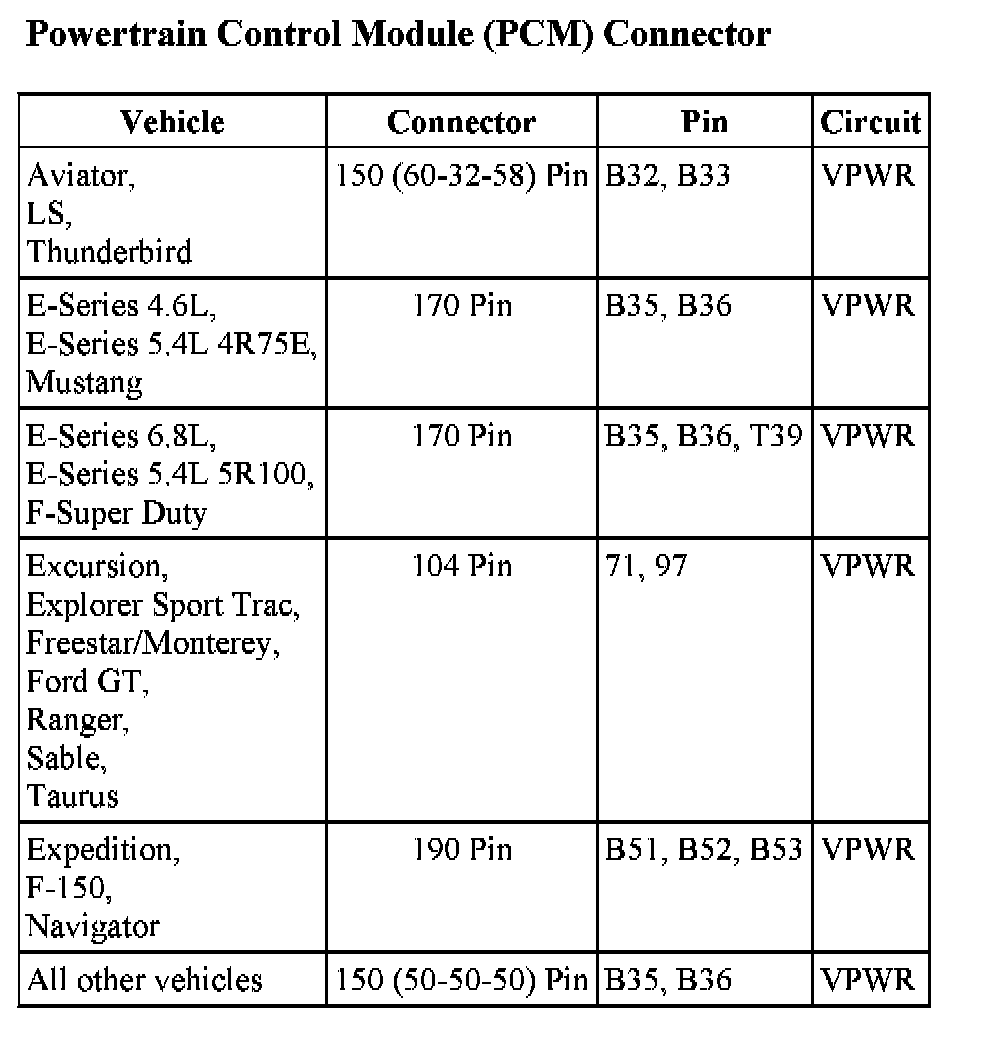

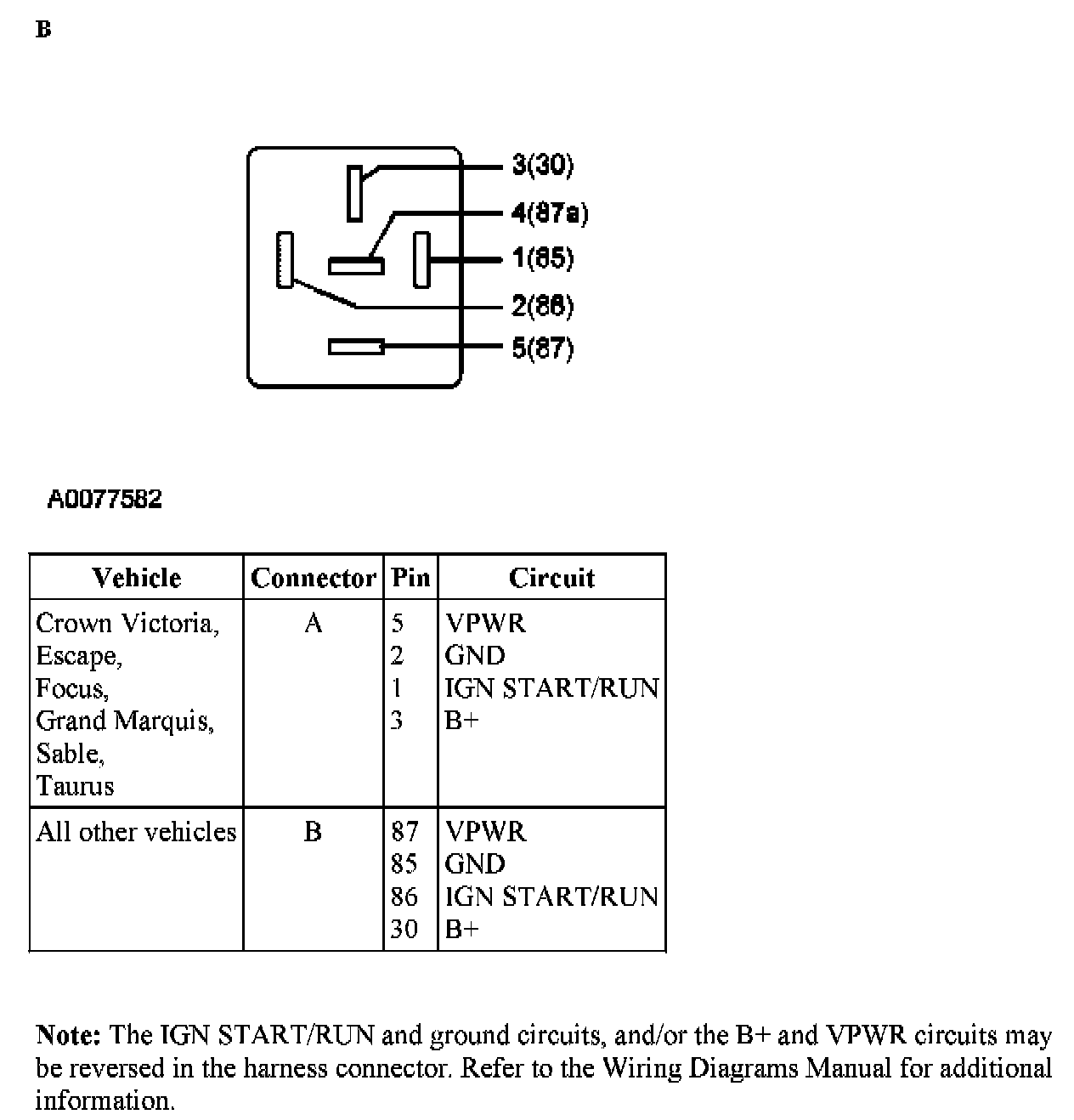

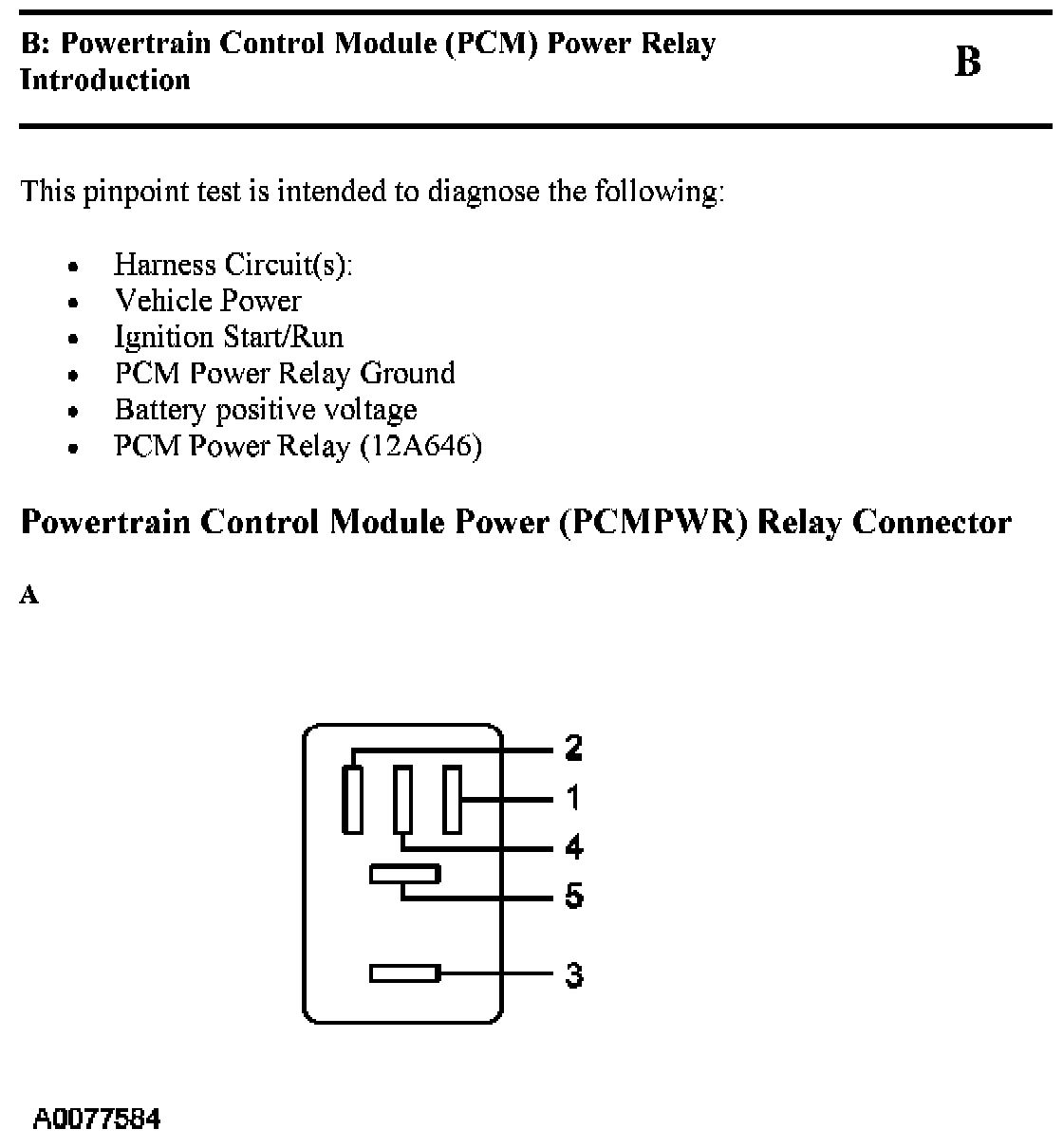

B Introduction:





B Introduction:





B Introduction:





B Introduction:

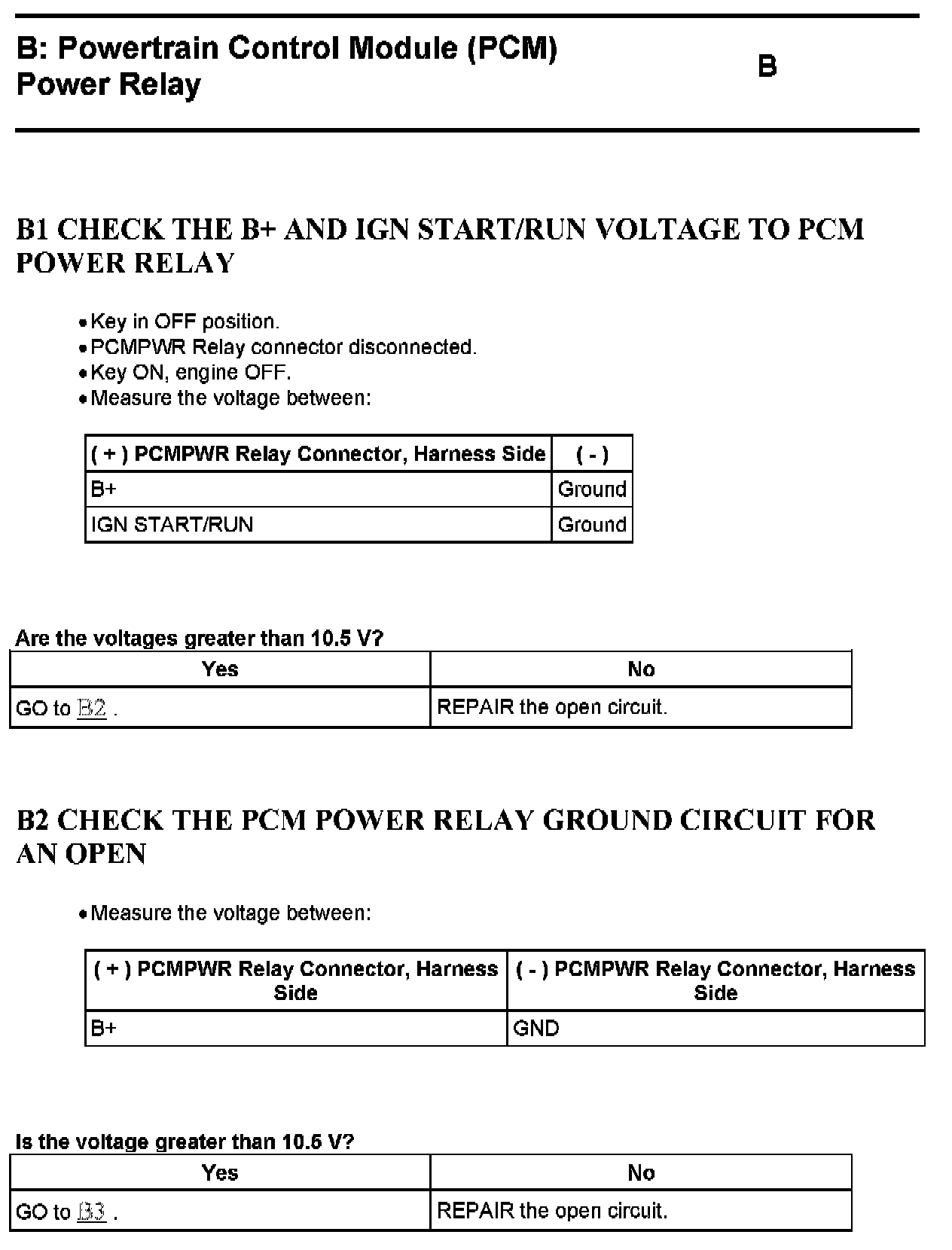

B1 - B2:

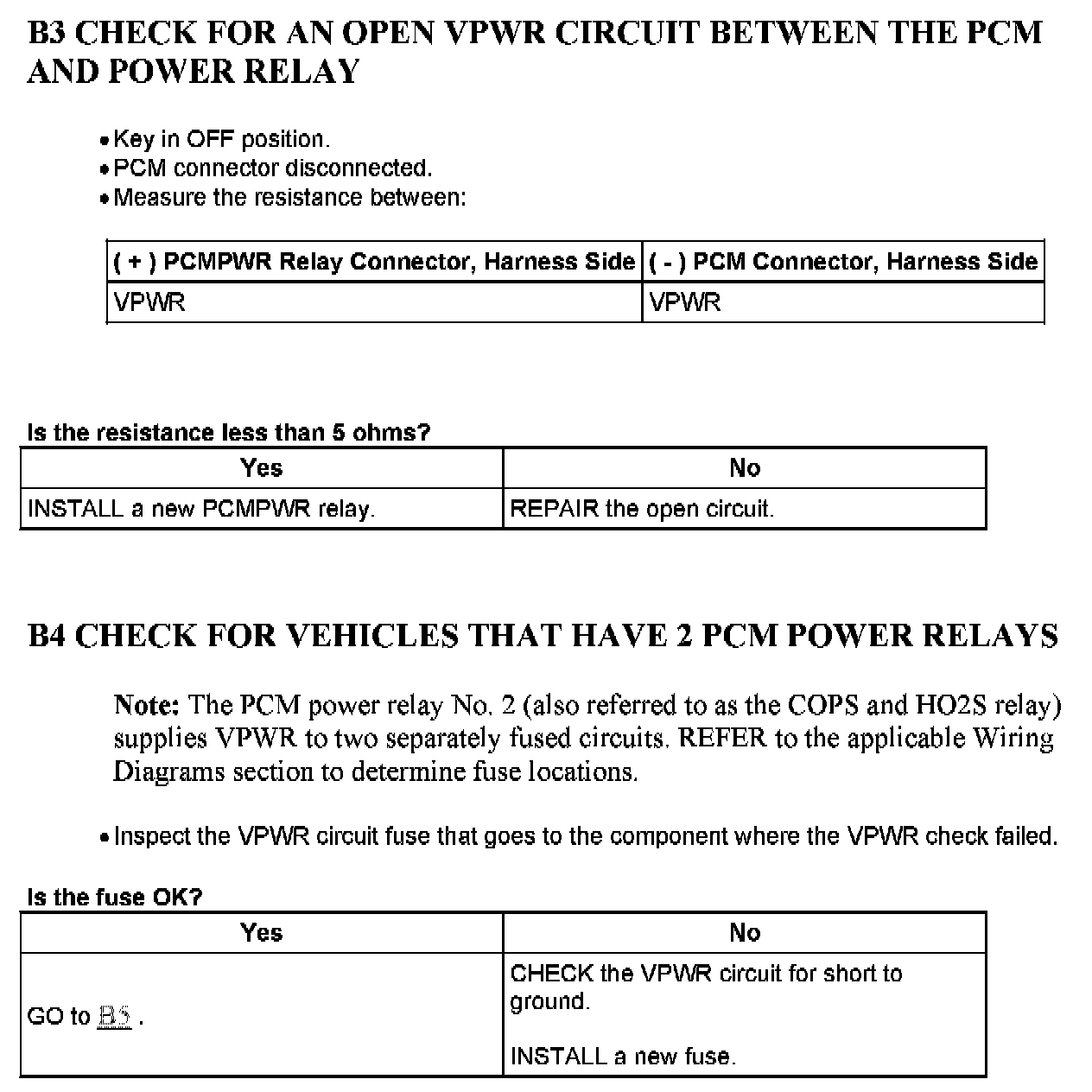

B3 - B4:

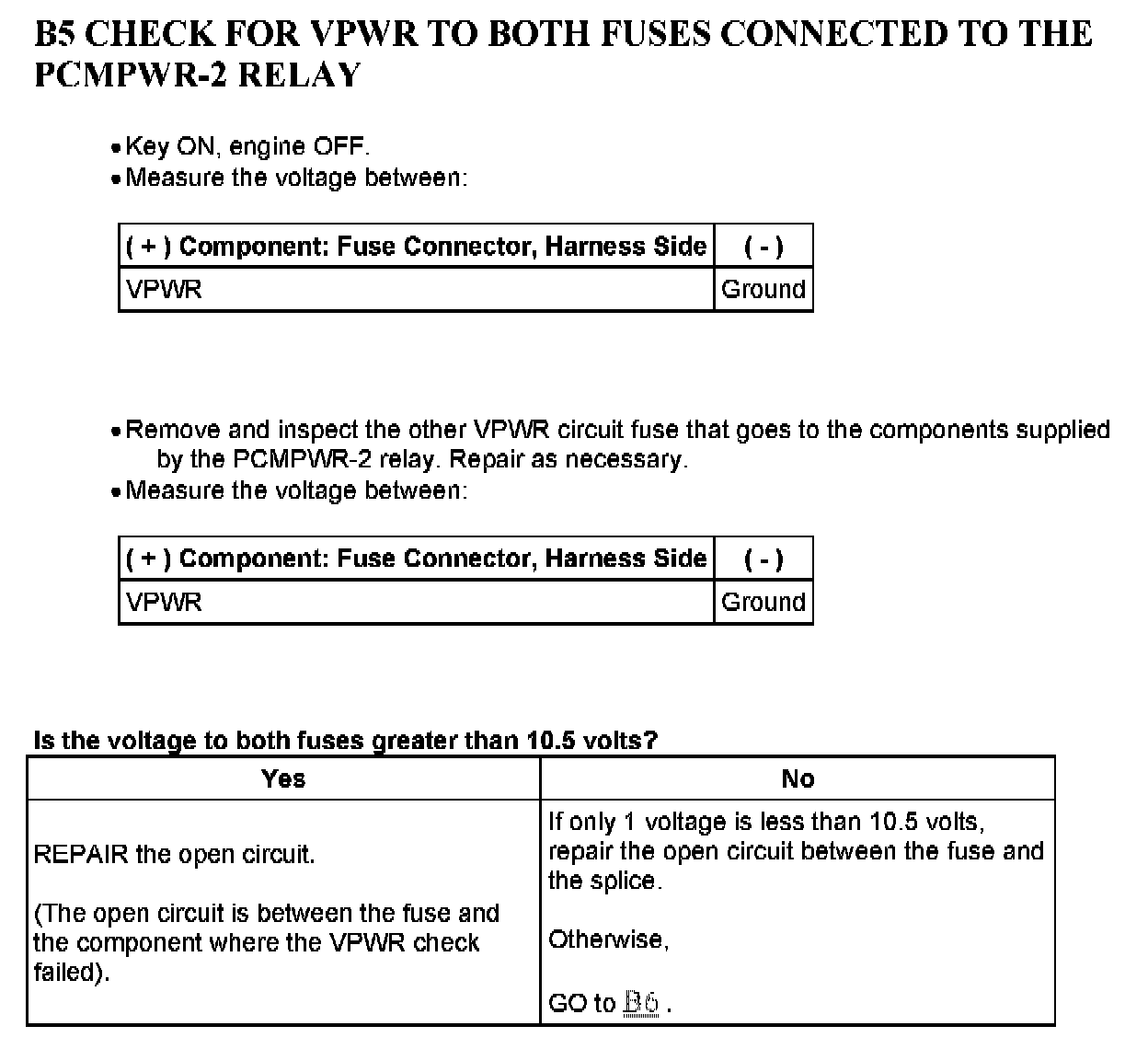

B5:

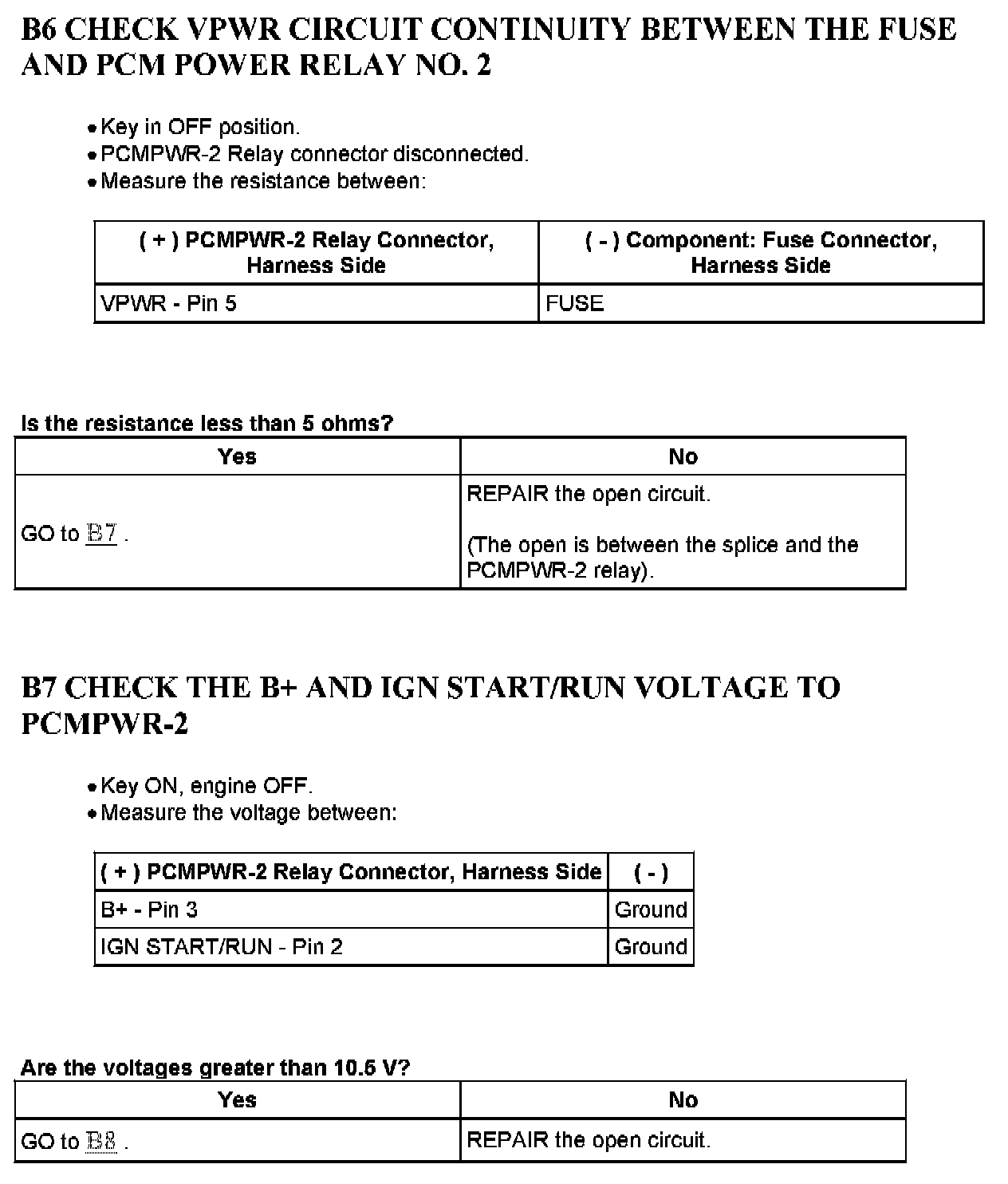

B6 - B7:

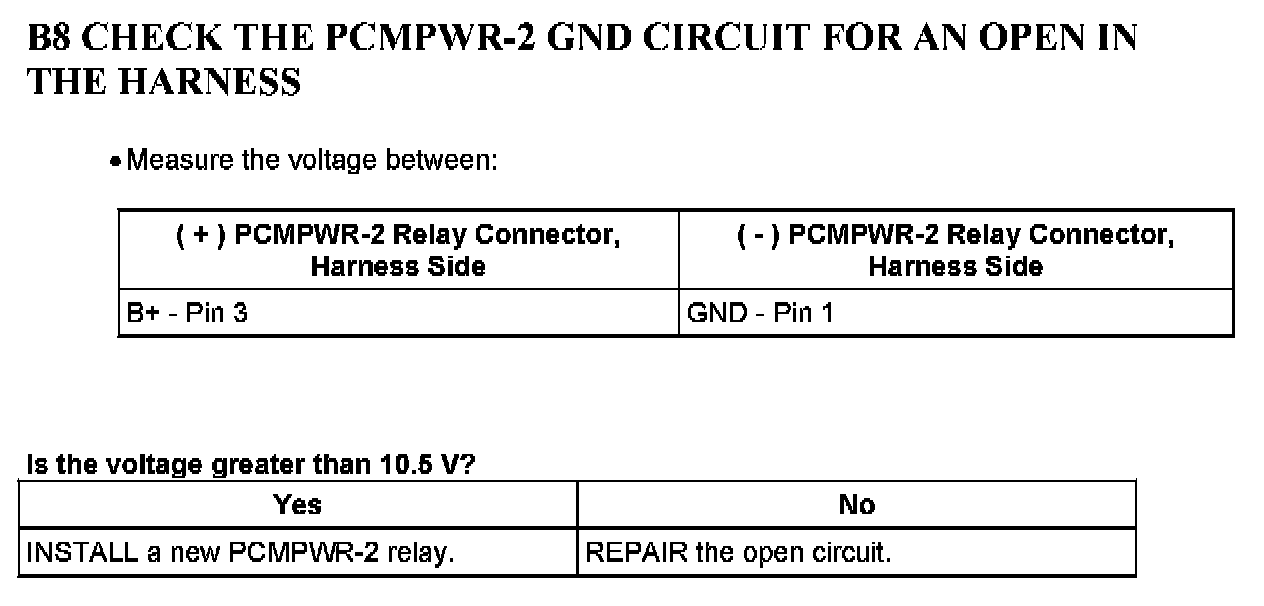

B8:
