In-Line Fuse/Generator Schematic

NOTE: In-line fuse is located between generator and starter motor. See Fig 1.

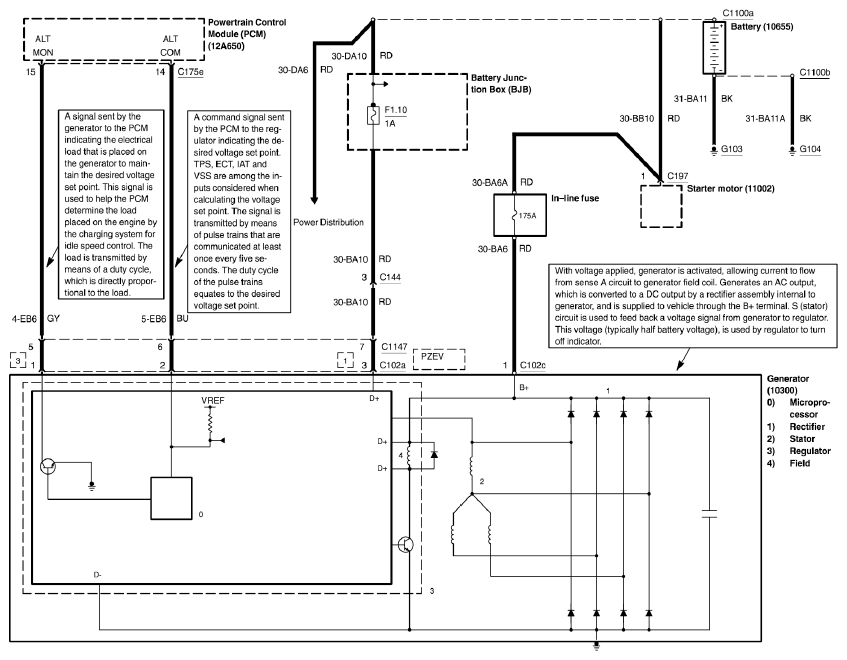

Fig 1: Generator Schematic
G05909201Courtesy of FORD MOTOR CO.
