Overdrive Planetary and One-Way Clutch Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the center shaft and one-way clutch.
    1. Install the center shaft and one-way clutch.
    2. Install the center shaft retaining ring.

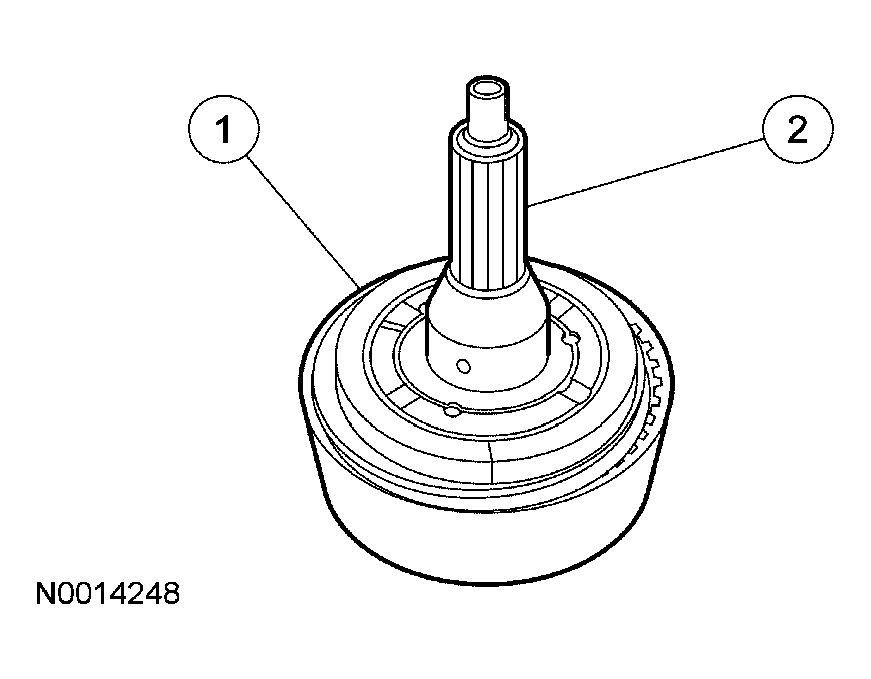

      Fig 1: Installing Center Shaft And One-Way Clutch
      G03949042Courtesy of FORD MOTOR CO.
