Selector Lever Cable and Bracket: Installation

WARNING: This page is about a different variant/trim than selected.

Install the shift cable eyelet on the transmission selector lever.

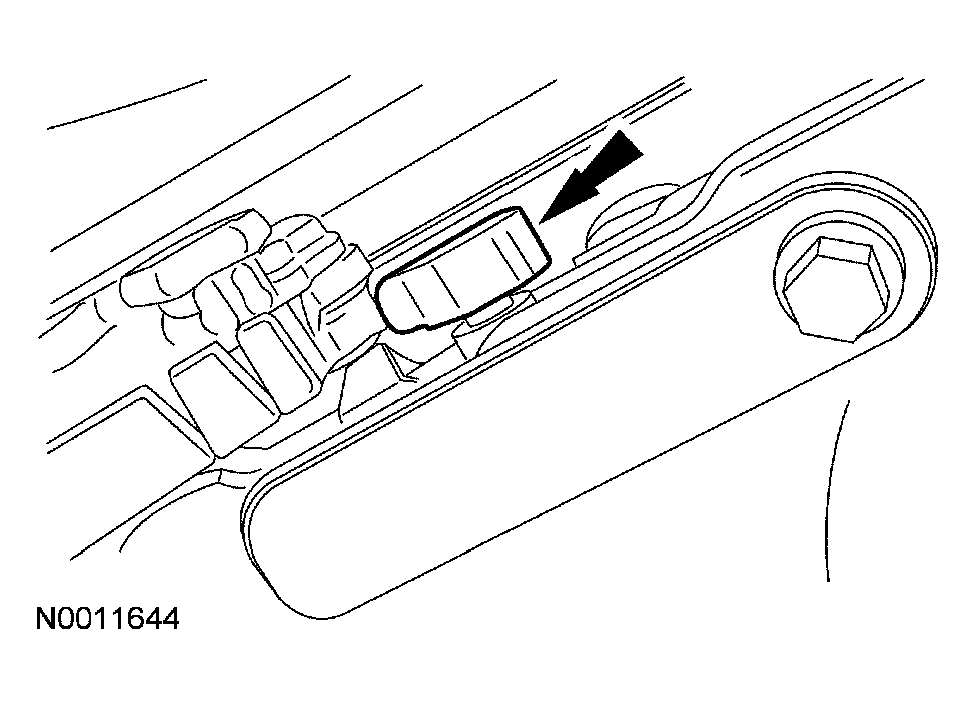

Fig 1: Installing Shift Cable Eyelet
Courtesy of FORD MOTOR CO.
Install the shift cable bracket and install the 2 bolts.
- Tighten to 28 Nm (20 lb-ft).

  Fig 2: Installing Shift Cable Bracket
  Courtesy of FORD MOTOR CO.

NOTE: It is necessary to install a new plastic clip prior to installation.

Fig 3: Installing Shift Cable Into Bracket

Courtesy of FORD MOTOR CO.

Install the shift cable in the shift cable bracket.
Install the shift cable on the manual lever and lock the shift cable adjustment lock.

Fig 4: Locking Shift Cable Adjustment Lock
Courtesy of FORD MOTOR CO.
Verify the shift cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
