Front Electronic Module (FEM) C201c

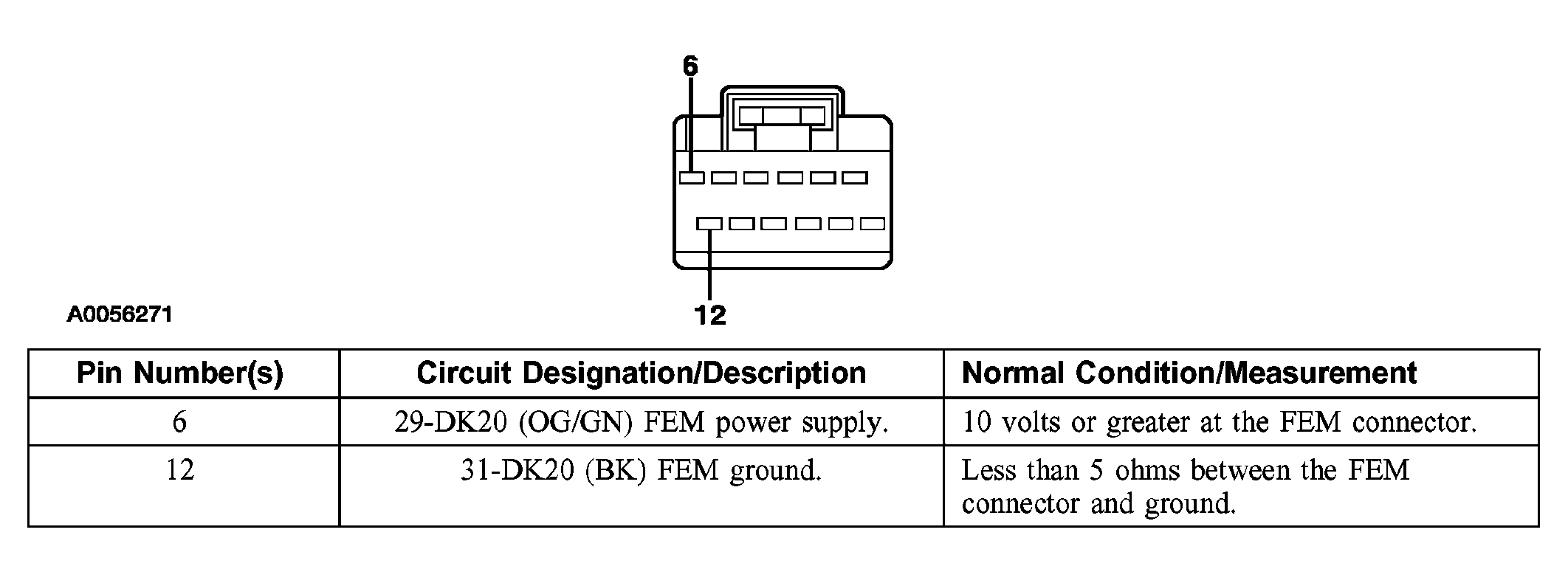

Fig 1: Identifying Front Electronic Module (FEM) C201c Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
