Pinpoint Test A: No Communication With The Abs Module
CAUTION:
Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
- A1 CHECK THE VOLTAGE TO THE ABS MODULE
- Key in OFF position.
- Disconnect: ABS Module C135.
- Key in ON position.

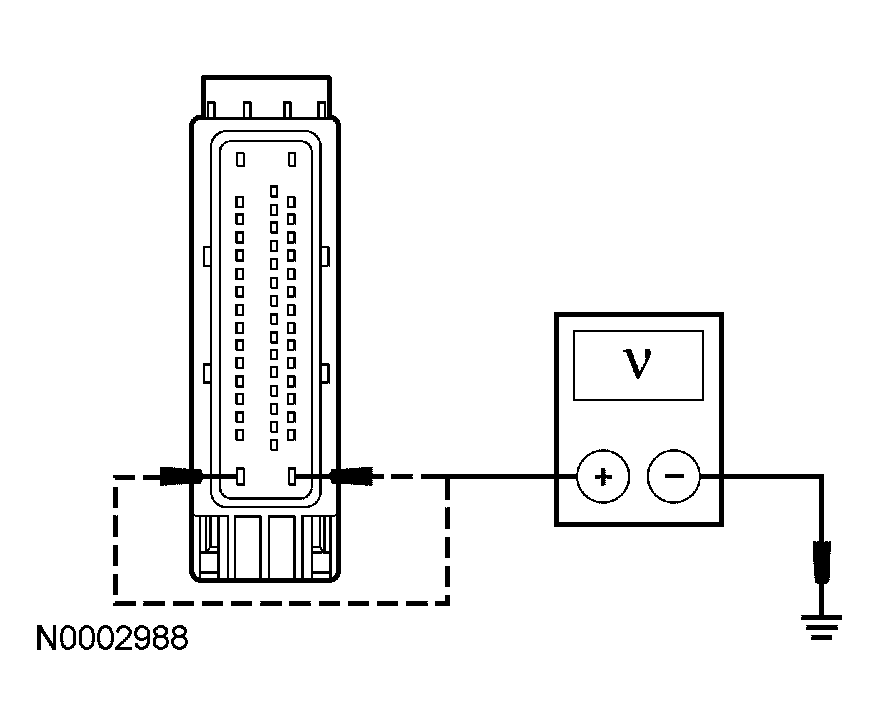

- Measure the voltage between the ABS module C135-1, circuit 30-CF13 (RD/BU), harness side and ground; and the ABS module C135-32, circuit 30-CF6A (RD), harness side and ground.
- Is the voltage greater than 10 volts?
- Yes : GO to A2.
- No : REPAIR the circuit in question. REPEAT the self-test.
- A2 CHECK THE ABS MODULE GROUNDS
- Key in OFF position.

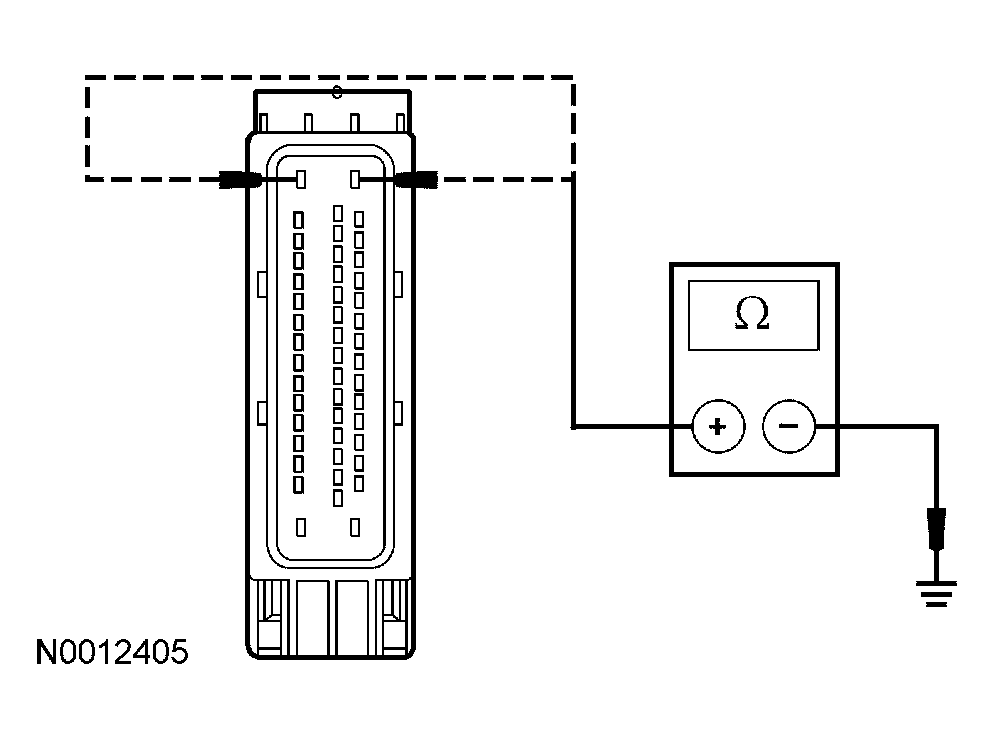

- Measure the resistance between the ABS module C135-16, circuit 31-CF6A (BK), harness side and ground; and between the ABS module C135-47 circuit 31-CF6B (BK) harness side, and ground.
- Are the resistances less than 5 ohms?
- Yes : CHECK the module communications network. REFER to MODULE COMMUNICATIONS NETWORK .
- No : REPAIR the circuit in question. REPEAT the self-test.
