Powertrain Control Module (PCM) C175a

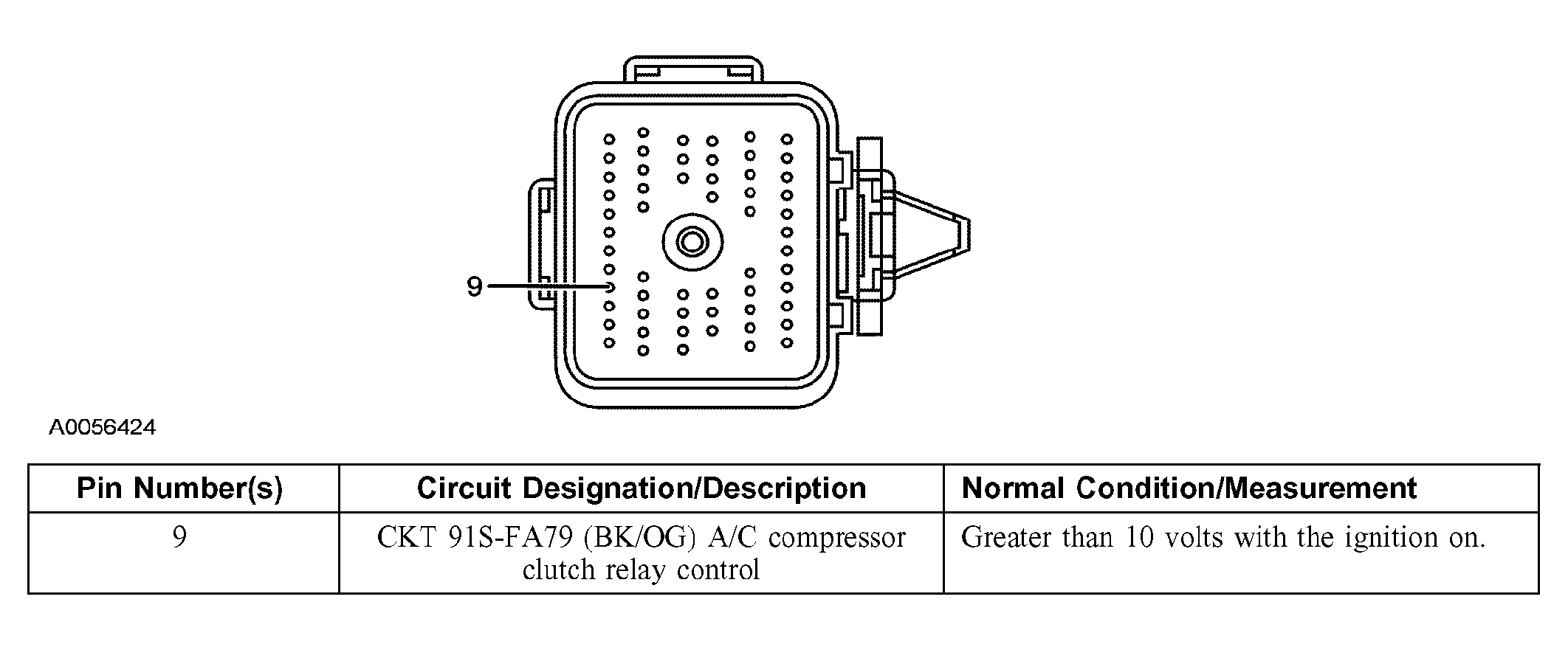

Fig 1: Identifying Powertrain Control Module (PCM) C175a Connector Terminals
G04008891Courtesy of FORD MOTOR CO.
